Мостовой Кран eot 2 тонны 3 5 10 однобалочный мостовой кран от производителя

Сохранить в закладки 1600215801203:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Overhead crane specifications single beam electric crane is composed of main beam, end carriage, electric hoist(or you can choose chain block), electric power transmission device and operation room(as your demand).




There are three control method: Pendent line(included); Wireless remote control; Operation room and the operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering has two ways, sideway enterance and end surface enterance, in order to satisfy the users' choice in different conditions.


Details




Product Features
• Reasonable structure and favorable performance.
• Smooth starting and stopping.
• Safe and reliable traveling, long life.
• Low noise, commodious cabin with good view.
• Easy installation and convenient maintenance.
• Excellent exchangeability for parts and components.


Safety Features
• Weight overload protection device.
• Top quality long time bearing polyurethane materials buffer.
• Crane travelling limit switch.
• Voltage lower protection function.
• Emergency stop system.
• Current overload protection system

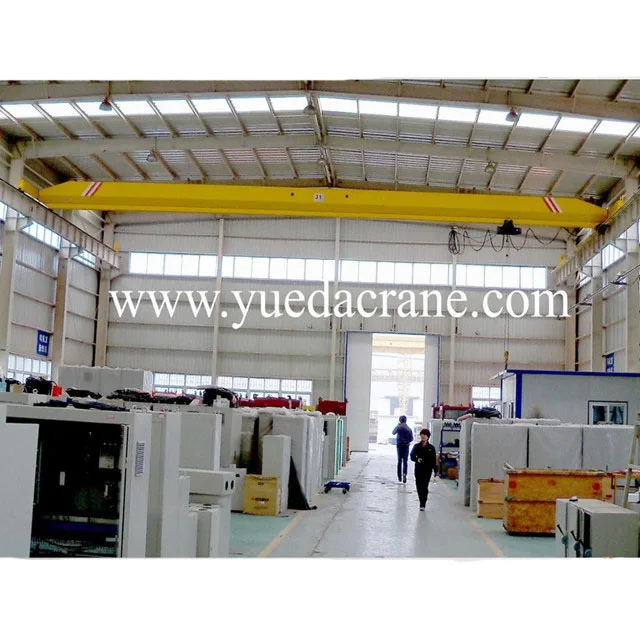

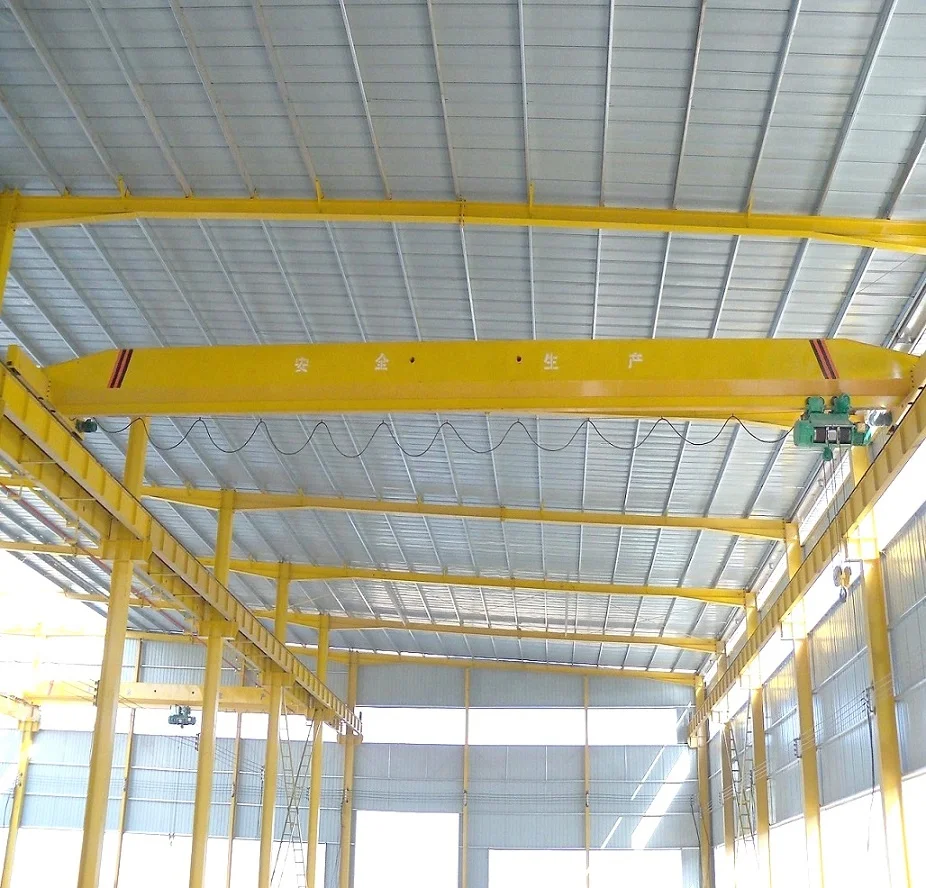

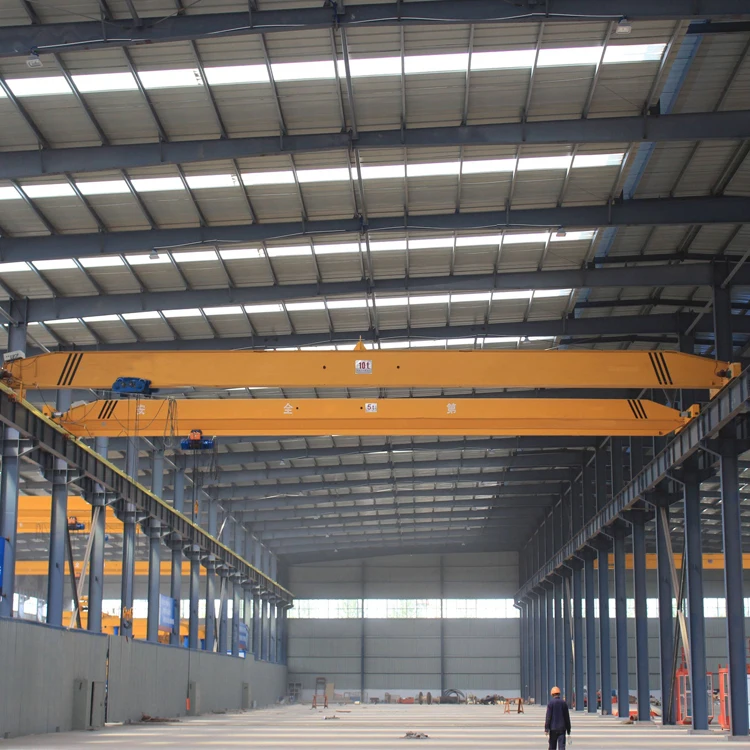

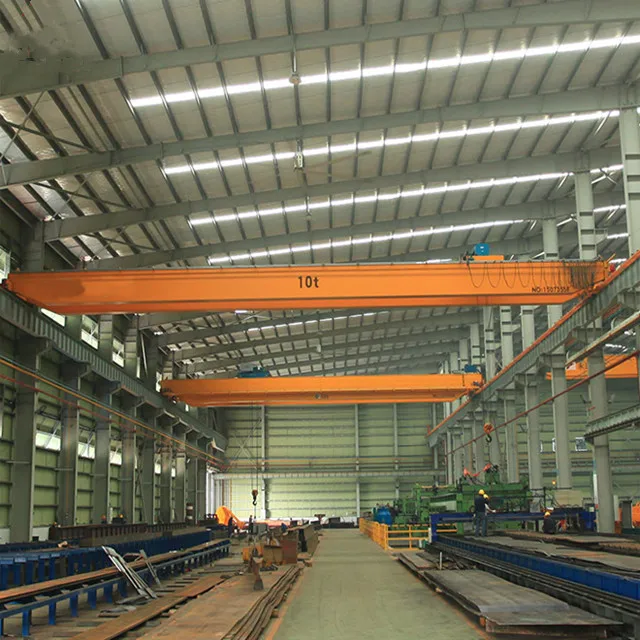

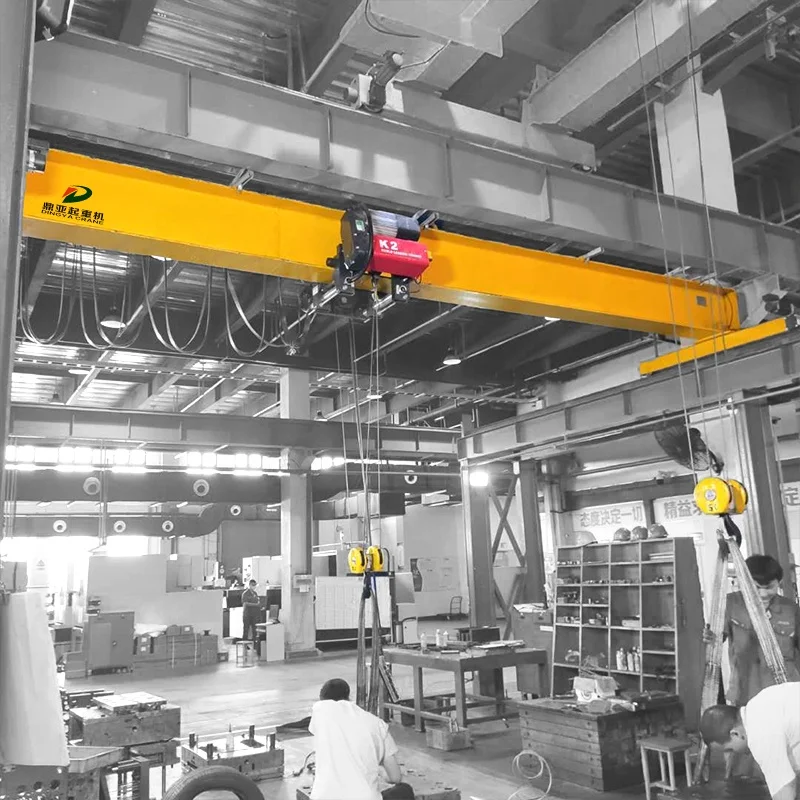

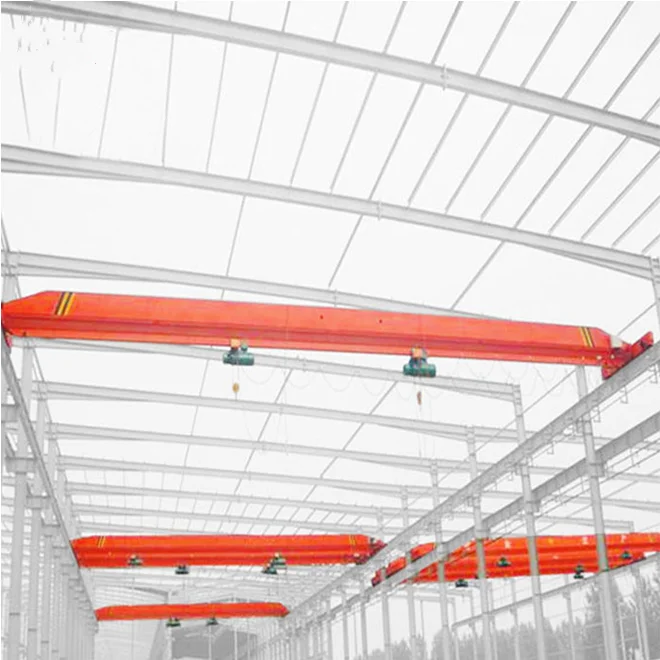

Application of single girder overhead crane






Drawing of single girder bridge crane




Parts Show






Specification


capacity(t)
1,2,3,5,10(8)
16,20
Span(m)
7.5~21.5




Crane travelling mechanism
Travelling speed
(m/min)
20
30
45
60
20
30
45
60
speed ratio
58.78
39.38
26.36
19.37
58.78
39.38
26.36
19.37
motor model
ZDY21-4
ZDR100-4
ZDY122-4
ZDY123-4
ZDRII2L1
power
2x0.8kw
2x1.5kw
2x1.5kw
2x2.2kw
2x2.1kw
turning speed
(r/min)
1380
1380

Lifting
mechanism
(electric hoist)
& Cross
travelling
mechanism
Hoist model
CD1/MD1
CD1/MD1/HC/HM
Lifting speed (m/min)
8, 8/0.8; 7, 7/0.7
3.5, 3.5/0.35
Lifting height(m)
6, 9, 12, 18, 24, 30
9, 12, 18, 24, 30
Travelling speed (m/min)
10, 20, 30
10, 20, 30
Motor
Cone Squirrel-cage
Cone Squirrel-cage
Duty class
A3-A4
Power source
380V 50HZ 3 phase (or according to your standard)
wheel diameter
φ270mm
φ370mm, φ400mm
Width of rail top
37~70mm
37~70mm


Company Profile


Xinxiang Yuedacrane Co.,Ltd was founded in 2009.There are more than 500 experienced engineers, technicians,workers and sales staff.As a company with rich practical experience,we committed to gantry crane, bridge crane, electric winch, electric hoist ,jib crane production and sales of more than ten years.To provide customers with the best solutions and services is our biggest goal.




Customer case


Certifications




Packing & Delivery


Packing details
1.Standard sea packaging suitable for long distance transportation.
2.The products are packed in strong wooden cases.






FAQ


1. Capacity of crane
2. Span(distance from rail center to rail center)
3. Do you need cantilever? please tell me the length of cantilever.
4. Lifting height(distance from ground to hook center)
5. Industrail voltage
6. Do you need we supply traveling rail? if you need, please tell me the length of rail
7. If you have drawing about crane or item, please send it to me.
Welcome to send inquiry to us by email or online, our professional engineers and technicians will serve you all technical support,
and I will offer you best service.


Service


1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sale service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process
of export.
3) After-sale service:
14 months warranty from the date of B/L
One year quick-wear parts for free
Professional technicians provide installation, commissioning services
Technical advisory for any time
