HD уличный P3.91 мобильный СВЕТОДИОДНЫЙ экран реклама аренда видео Светодиодная панель дисплея

HD уличный P3.91 мобильный СВЕТОДИОДНЫЙ экран реклама аренда видео Светодиодная панель дисплея

Категория: >>>
Поставщик: Shenzhen Huaxia Seven Color Technology Co. Ltd.Shenzhen Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

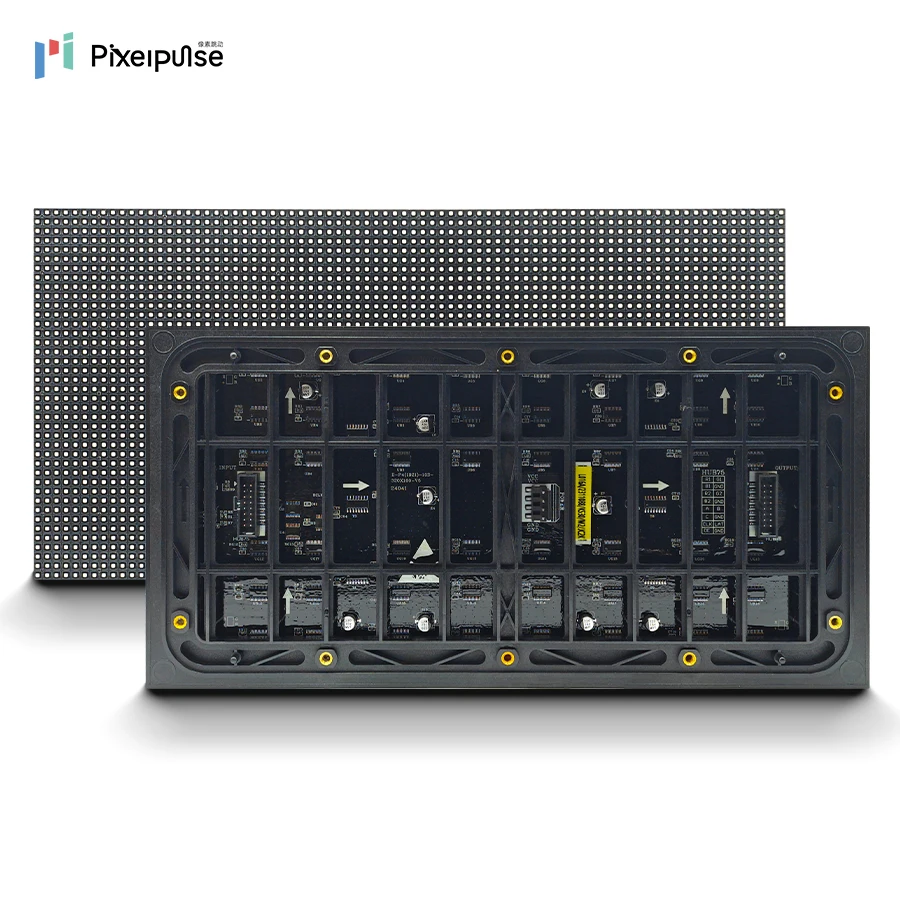

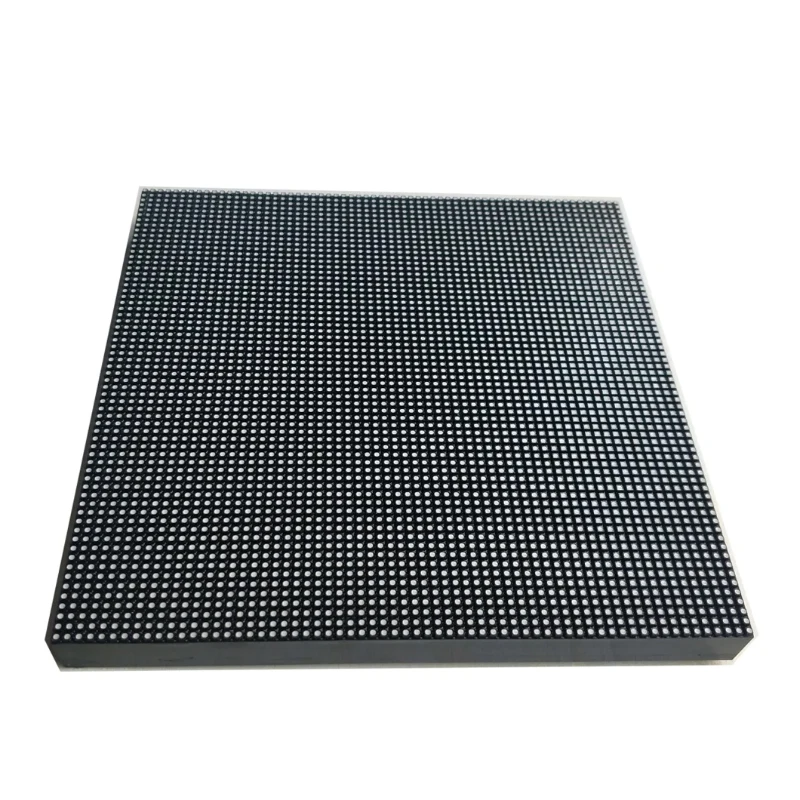

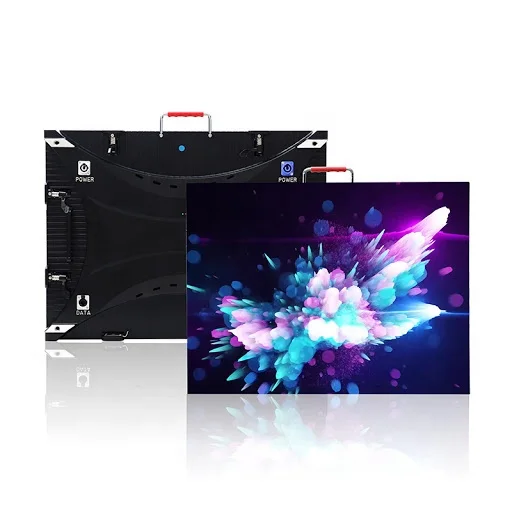

China Professional SMD Full Color P3.91Outdoor Rental LED TV Display Panel

Module No:	HXQC-OF3.91R	HXQC-OF4R	HXQC-OF4.81R	HXQC-OF5R	HXQC-OF6R
Pixel pitch	3.91mm	4mm	4.81mm	5mm	6mm
Module size	250mm x 250mm	256mm x 128mm	250mm x 250mm	320mm x 160mm	192mm x 192mm
Module resolution	64 x 64	64 x 64	52 x 52	64 x 32	32 x 32
Pixel density	65,536 pixels/㎡	62,500 pixels/㎡	43,264 pixels/㎡	40,000 pixels/㎡	27,777 pixels/㎡
LED package	SMD	SMD	SMD	SMD	SMD
Module wieght	0.5kg	0.26kg	0.8kg	0.5kg	0.5kg
cabinet size	500 x 500mm or 500 x1000mm	512 x 512mm	500 x 500mm or 500 x 1000mm	640 x 640mm or 960 x 960mm	576 x 576mm or 960 x 960mm
Brightness	4,500nits	5,000nits	5,000nits	6,000nits	6,000nits
Scan mode	1/16 Scaning	1/16 Scaning	1/13 Scaning	1/8 Scaning	1/8 Scaning
Refresh rate	over 1,920hz
Power consumption	Max: 800 W/㎡; Average: 350 W/㎡
working temprature	-20℃~60℃
Best view distance	≧4m	≧4m	≧5m	≧5m	≧6m
Viewing Angle	Horizontal 140°(+70/-70) , Vertical 120°(+60/-60)
Ingress Protection	Front IP65, Back IP54

Product Description

1.Thin and light design,one person can handle the installation;
2. 500x500mm big panel, speedily and easily mounting, perfect 16:9 colorful image;
3.Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
4.Natural aluminum heat conduction design (no-cooling fan),quiet world.

Recommended viewing distance for various Pixel pitch.
Since the size of the screen has an influence on the viewing distance, it is necessary to select a suitable model and size
according to the actual situation.

Where is LED display installed?

Contact us soon,we can provide structure frame design drawing and installation suggestions.

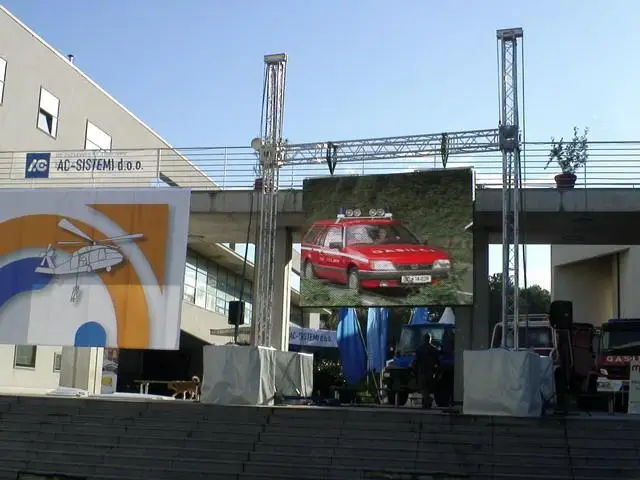

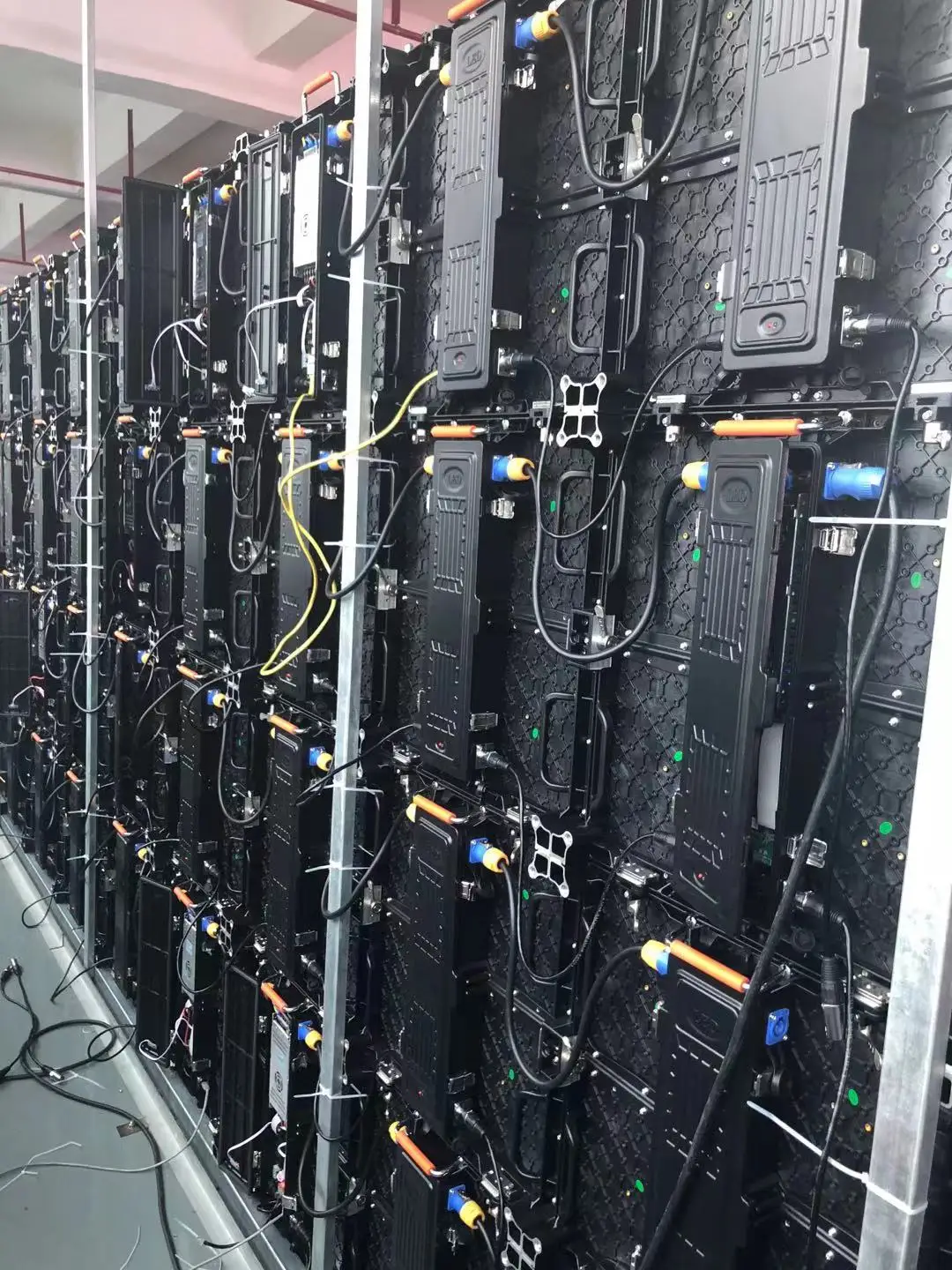

Hang mounted led display screen

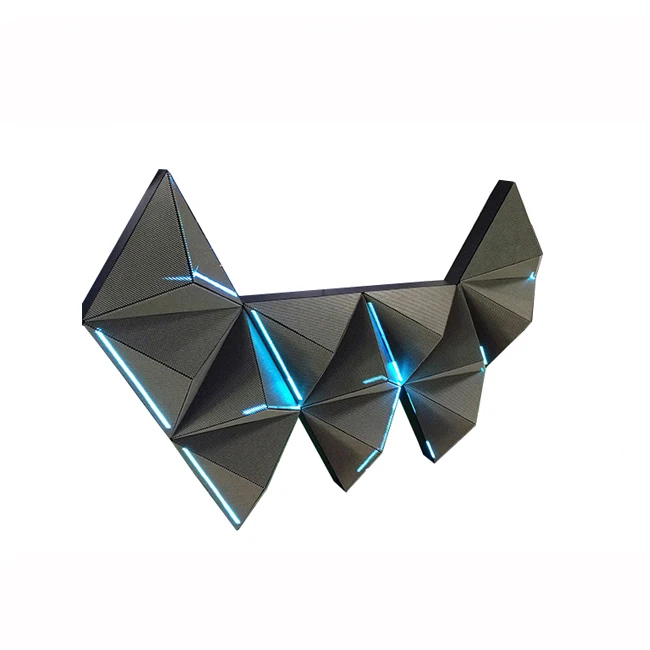

Various Shaped LED Display

Applications

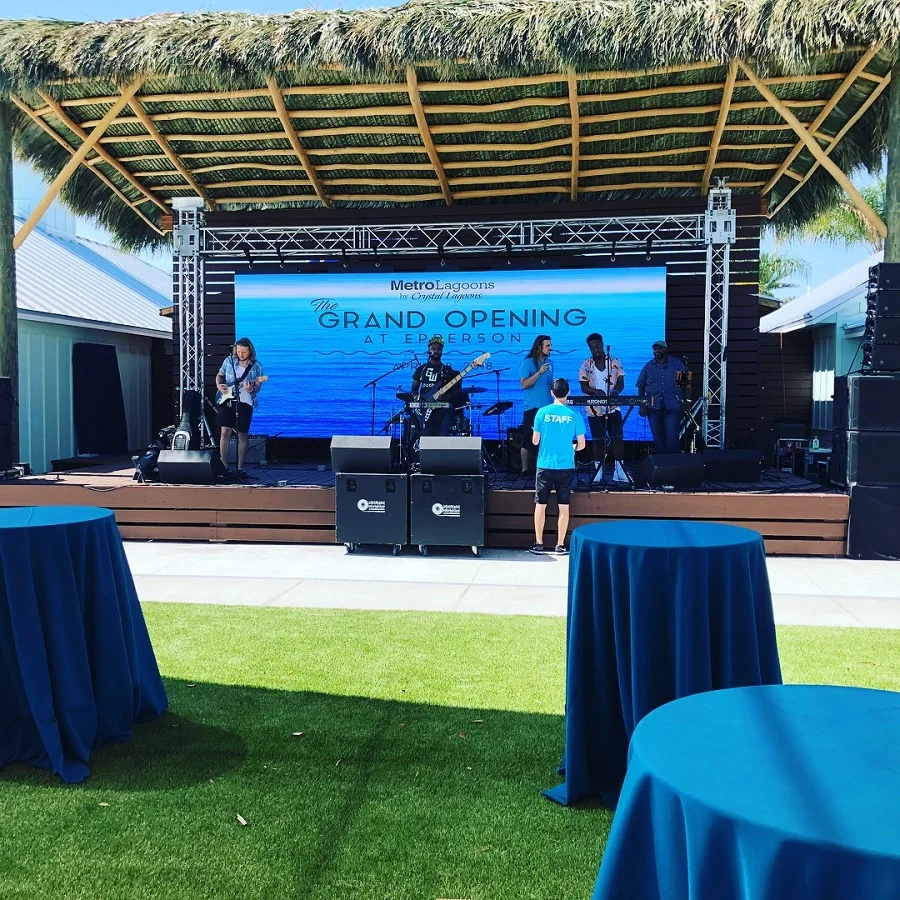

1,Stage led screen: easy to hanging install and fast assembly for the background video panel ,suitable to stage setting .
2,Conference & Board Rooms led screen : install in Conference & Board Rooms for meeting or stage background.
3.Stadiums & Gymnasiums led screen : install in the Stadiums & Gymnasiums to live sports event, as video wall panel
4.Meeting room & Auditoriums led screen : install with a portable section aluminum structure ,as a mobile led screen .

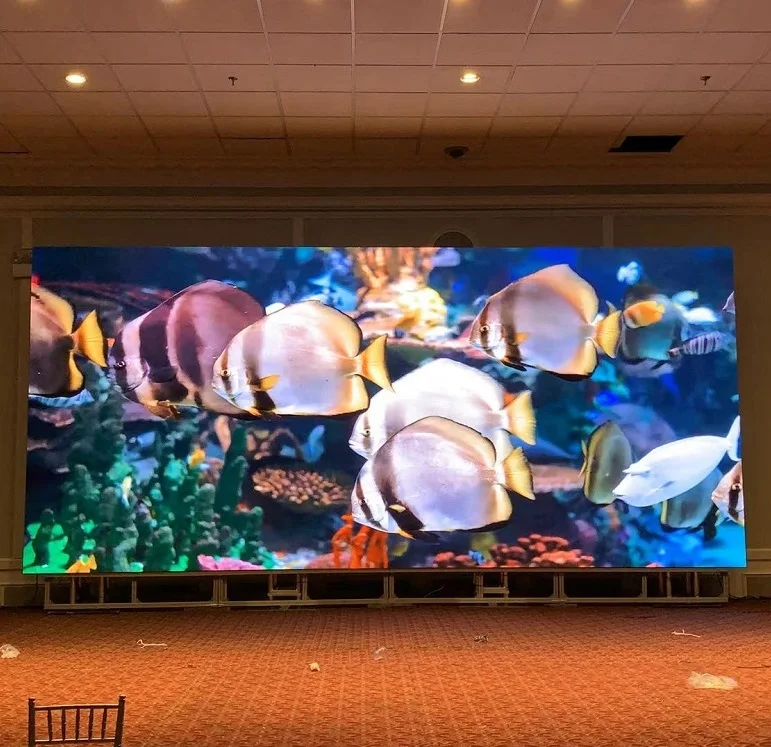

5.Banquet led screen: install in the banquet hall for music video or events video panel as setting.
6.Airport led screen : install in airport for festival advertisement or special video display .
