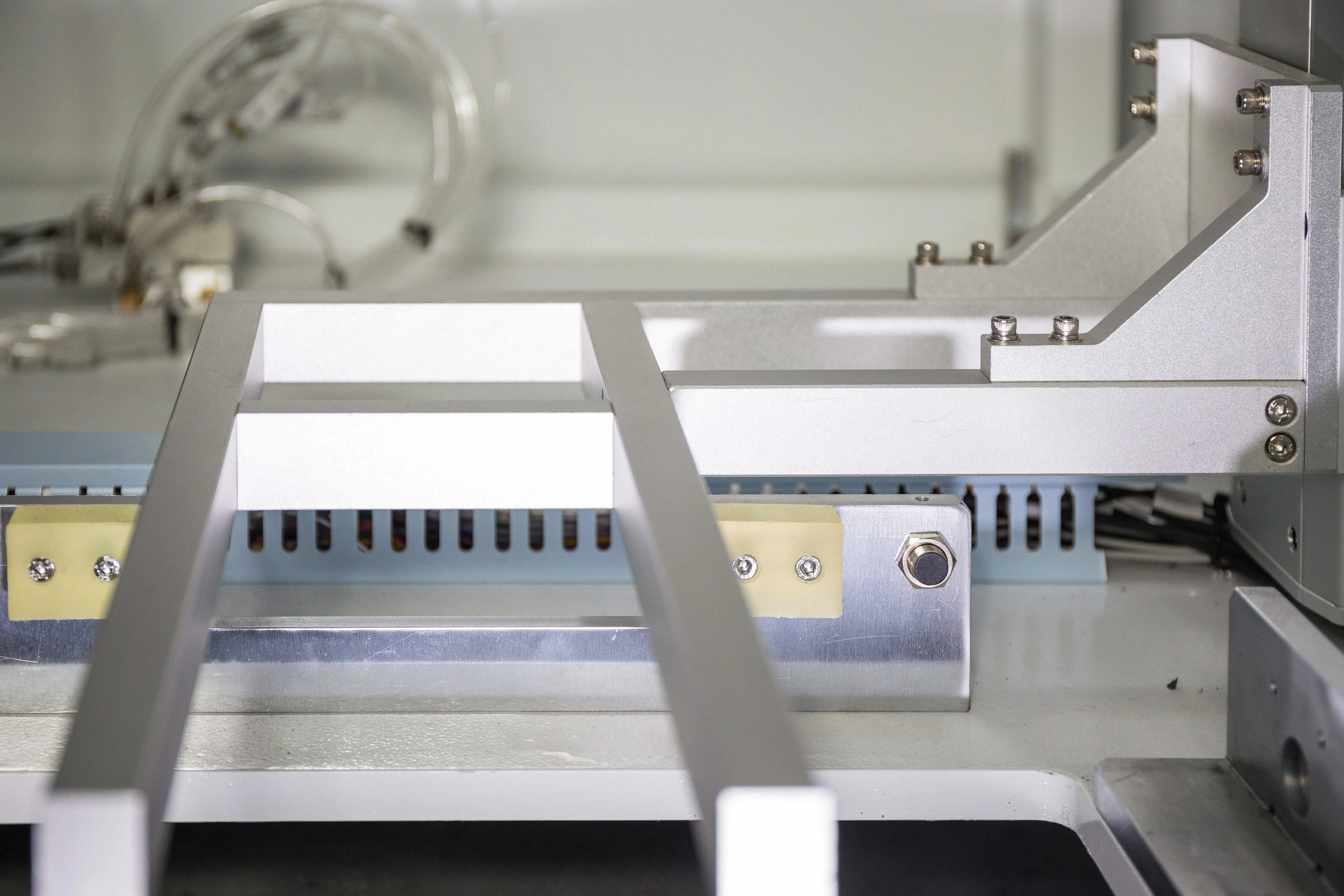

Конденсатор индуктивности чипа ИС с сопротивлением точечного устройства поверхностного монтажа полностью автоматический счетчик рентгеновских деталей из электронного материала
- Категория: >>>
- Поставщик: Shenzhen Zhuomao Technology Co. Ltd.
Сохранить в закладки 1600216725126:
Описание и отзывы
Характеристики
PRODUCT PARAMETERS
Equipment | Dimensions | 0.8M*1.26M*1.92M |
Weight | 1.4T | |
Power supply | AC220V±10% 50/60Hz | |
Total power | Max 1.5KW | |
Loading | Manually | |
X-Ray Tube | Brand | America VJ |
Max tube voltage | 80 KV | |
Max tube current | 700 µA | |
Focal spot size | 30 µm | |
Detector | Brand | Germany IRay |
Imaging area | 427mm*427mm | |
Pixel size | 139µm | |
Pixel matrix | 3072*3072 pixels | |
Gray scale | 16 bits | |
Reel Inspection | Max size | 17inch |
Min size | 7inch | |
Max thickness | 85 mm | |
Min thickness | 3 mm | |
Min parts size | 01005 | |
Others | Speed | Appr. 15s/reel |
Accuracy | ＞99.99% | |
Barcode scanning | Can be equipped with barcode, QR code scanner | |

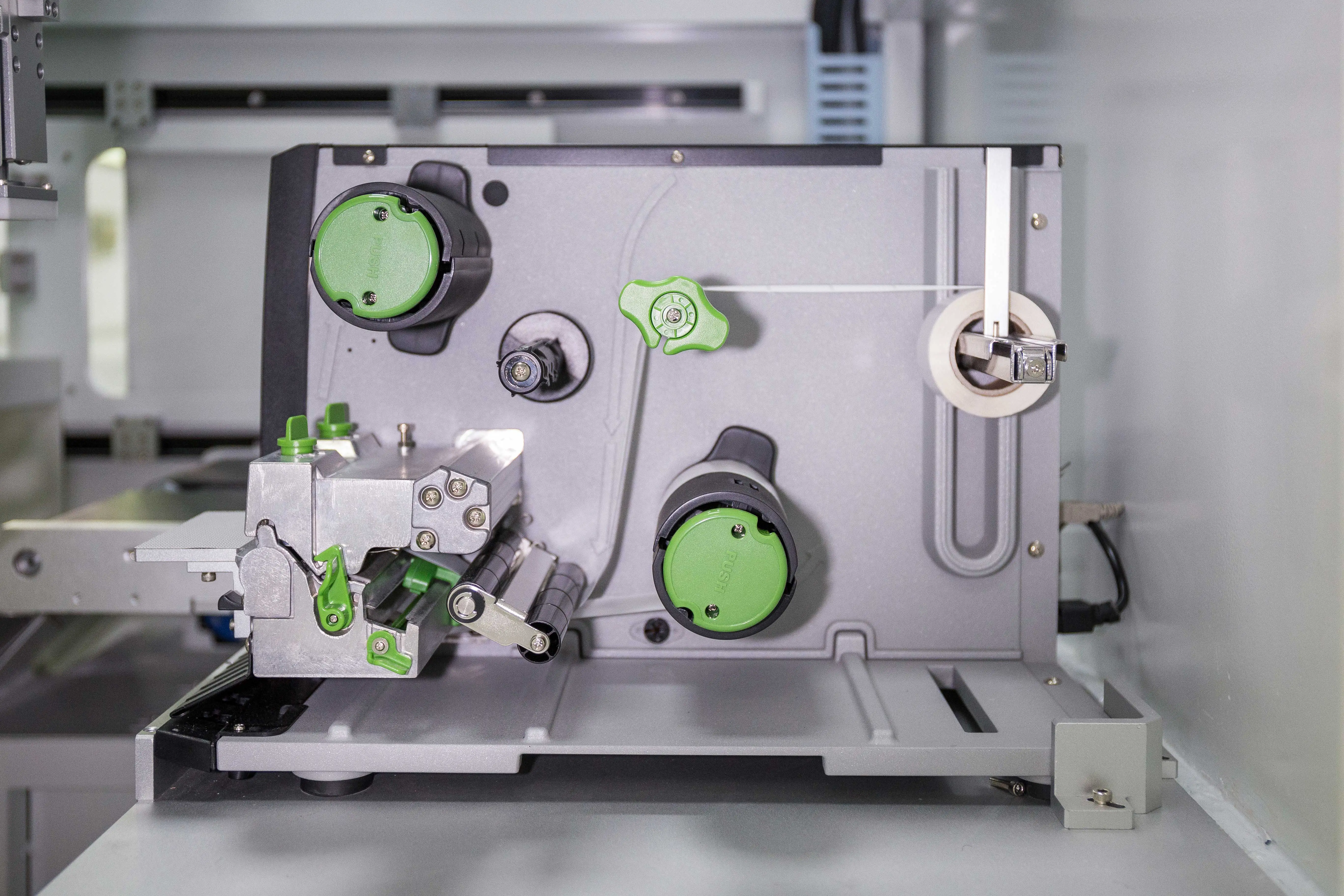

Label printing | Can print material code and counting results in real time | |
Parts support | Resistance, capacitance, inductance, crystal, LED, diode, triode, multi-pin IC, etc. | |
Software | Support for automatic saving of SPC statistics, images and results in any format | |
System docking | ERP, MES, etc. | |
Radiation | ＜ 1 µSv/Hour |
Computer Configuration
CPU ≥ i7-7700K
Memory ≥ 8GB
Storage: 128G SSD+4TB HDD
WIFI support
Memory ≥ 8GB
Storage: 128G SSD+4TB HDD
WIFI support
Key Features
1 | Deep Learning based fully automated counting algorithm. |
2 | No parts teaching procedure, user can directly use it. |
3 | Accumulated counting database that shared with all machines. |
4 | The more data, the more reliable, and the more accurate. |
5 | Support four 7inch Reels counting one time. |
6 | Support random positions, excellent user experience. |
7 | Continuously algorithm/database updating and support. |
8 | Extremely reliable/repeatable based on Deep Learning. |
RECOMMEND PRODUCT
MACHINE APPLICATION DIAGRAM
APPLICATION
ABOUT US
TEST
OUR EXHIBITION
CERTIFICATE
1. How about the package ? Is it safe during the delivery ?
All machines would be packaged Safely, by standard strong wooden carton with foam inside.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, 7-30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4. This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.
5. If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: L/C, D/P, T/T, WesterUnion, Moneygram, Paypal, etc.
All machines would be packaged Safely, by standard strong wooden carton with foam inside.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, 7-30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4. This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.
5. If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: L/C, D/P, T/T, WesterUnion, Moneygram, Paypal, etc.
For more details you can contact us via whatsapp/wechat: +86 13544216017
Похожие товары
Настоящий бриллиант, подвеска из желтого золота с алфавитом от A до Z, 18 карат
115,00 $ - 125,00 $

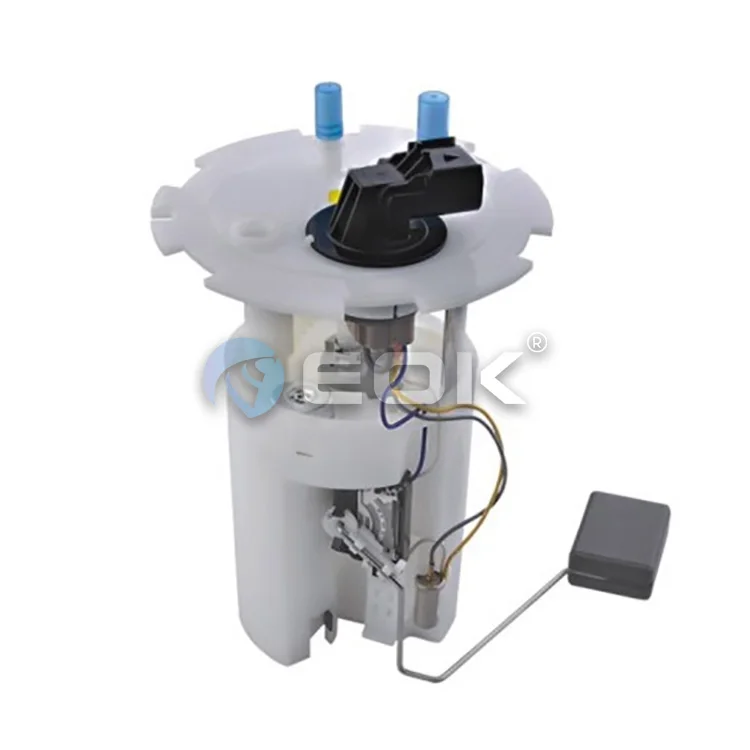

EOK авто двигатель топливный насос в сборе для DAEWOO NUBIRA J200 964476442 95949346
