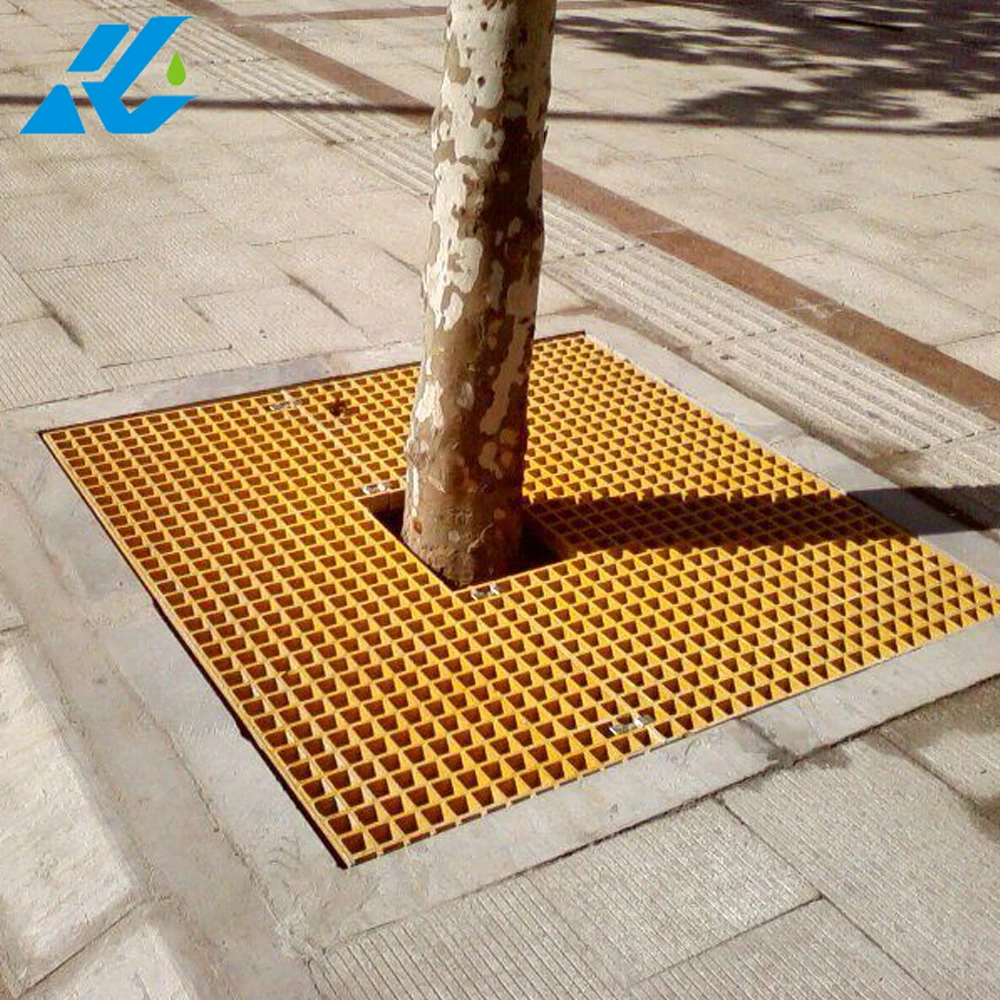

frp fibre glass grating for Pigeon loft and tree pool
1) Corrosion resistance
2) fire resistance meet ASTM E84 class 1
3) slip resistance
4) Impact resistance
5) light weight
6) UV protected
7) Easy fabrication
8) Easy maintenance
9) Cost effective
10) Longevity
11) Aesthetically appealing
12) Large range mesh sizes and thickness
Availabe Mesh size and Thickness
Thickness | Mesh size | Panel size | Open area | Weight |
(MM) | (MM) | (MM) | % | (kg/m2) |
13 | 38*38 | 1225*4030 | 68 | 6.1 |
25 | 38*38 | 1220*3660 | 68 | 12.5 |
1220*4000 | ||||
1000*4036 | ||||
1110*4080 | ||||
30 | 38*38 | 1220*3660 | 68 | 14.75 |
1000*4036 | ||||
38 | 38*38 | 1000*4032 | 68 | 19.5 |
1220*3660 | ||||
1524*4000 | ||||
50 | 38*38 | 1220*3660 | 68 | 56 |
38 | 40*40 | 1007*4047 | 67 | 20 |
25 | 50*50 | 1220*3660 | 78 | 11.5 |
50 | 50*50 | 1220*3660 | 78 | 23.5 |
30 | 20*20/40*40 | 1007*4047 | 42 | 18.1 |
1525*4047 | ||||
38 | 20*20/40*40 | 1007*4047 | 42 | 23.2 |
38 | 19*19/38*38 | 1220*4000 | 40 | 23.5 |
25 | 100*25 | 1007*4107 | 67 | 13 |
Available Resins
Symbol | Resin Basic | Corrosion Resistance | Applied Occasions |
VE | Vinyl ester | Very good | Severely corroded environment by acid and solvent |
ISO | ISO-phthalic | Good | Acid resistant very good,alkali resistant is general and colvent |
Ortho | Ortho-phthalic | common | General acid and alkali environment |
Product show
Jiangyin Runlin Molding New Materials Co., Ltd was established in 2005,We are manufacturer of FRP grating , FRP profile, handrail, ladder,etc ... for more than 10 years.
Factory management: ISO 9001 International Quality Management System and ABS certificate(ASTM E84 test) .
Markets: UAS, UK, AU, Spain, Netherland,Italy, Germany, Bulgaria, Russia, Israel, Panama, Middle East, Southeast Asia, etc.
we sincerely hope to cooperate with friends from all walks of life, to seek common progress and development and to contribute to the development of both.
