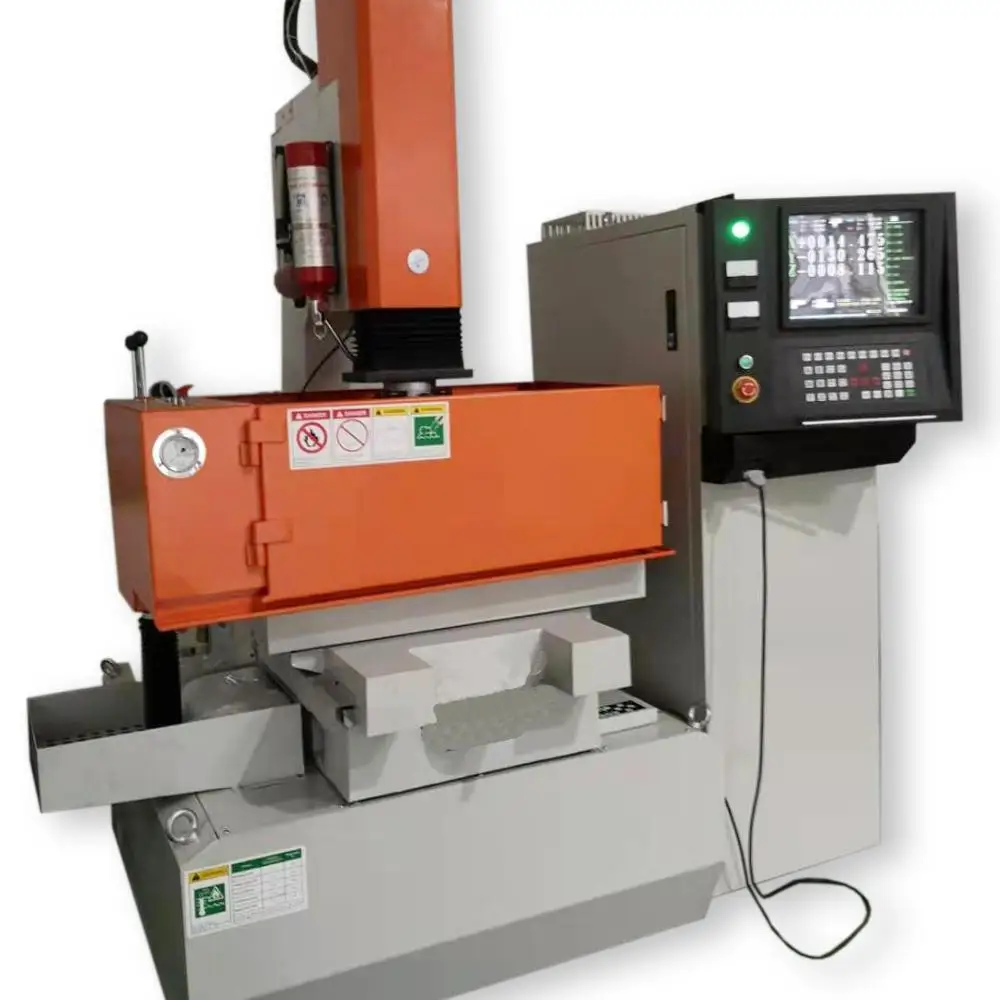

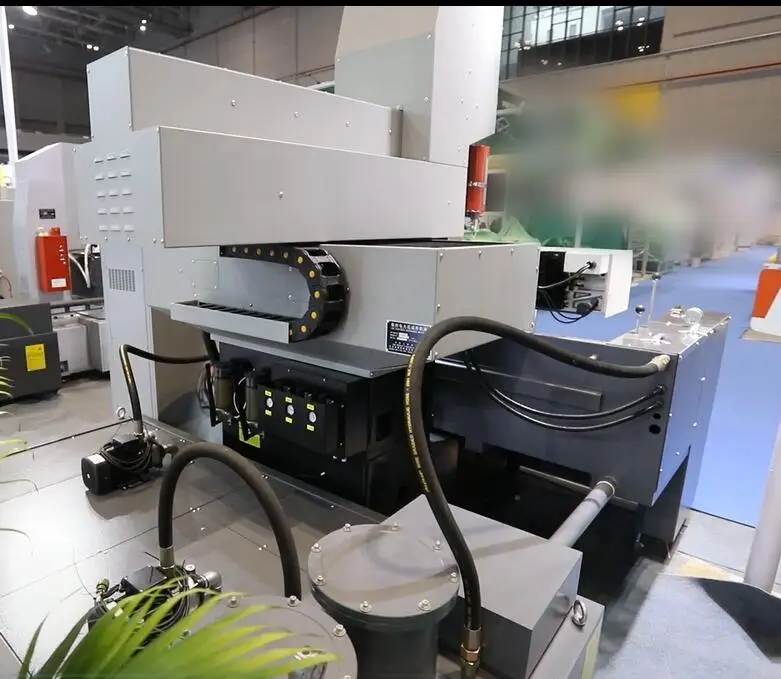

EDM машина высокого качества CNC Sinker высокая точность

Сохранить в закладки 1600217308170:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

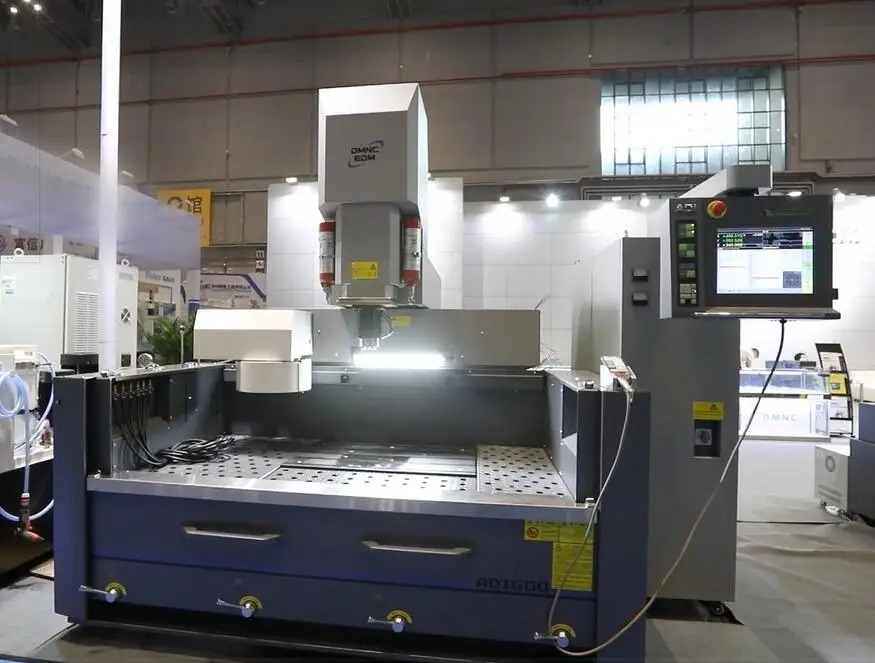

Advantages of DMNC ADI 600:


1.Powerful latest 6th generation Windows platform control system, machining speed is 30% faster than DOS platform





2.Min machining current 0.1A, excellent performance for fine machining





3.Best surface finish Ra≤0.2µm





4.Imported SP grade linear guideway & C2 grade ball screw





5. 3 years aging treatment of casting of machine.





6.The performance of ADI 600 is competitive to machines produced by top manufacturers, but price is more attractive








Specification:








































































































































No.



Name



ADI600



1



Working table dimension(L×W)



900×500mm



2



X×Y×Z axis travel



600×400×350mm



3



Working tank dimension(L×W×H)



1600×980×520mm



4



Highest level of working liquid



350mm



5



End of spindle to working table



720mm



6



Capacity of oil tank



750L



7



Max weight of electrode



150kg



8



Max weight of workpiece



2000kg



9



Positioning accuracy



5µm



10



Repeat positioning accuracy



3µm



11



Weight of machine



3500kg



12



Dimension of machine



2800×2730×2500mm



13



General input



9kVA(50A)



14



Input power



3 Phase 380/50Hz



15



CNC power generator



Windows 7 based



16



Max working current



50A



17



Best surface finish



Ra≤0.2µm



18



Min. wear of electrode



≤0.1%



19



Max machining efficiency



≥500mm3/min



20



Interpolation methods



Straight line, arc, helix



21



Accuracy compensation options



Step pitch compensation of each axis,


gap compensation



22



Min. drive unit, Min command unit



1µm



23



Outer dimension of controller



1250×550×1800mm



24



Display



15 inch touch screen



25



Remote control



different gradesMFR0-3

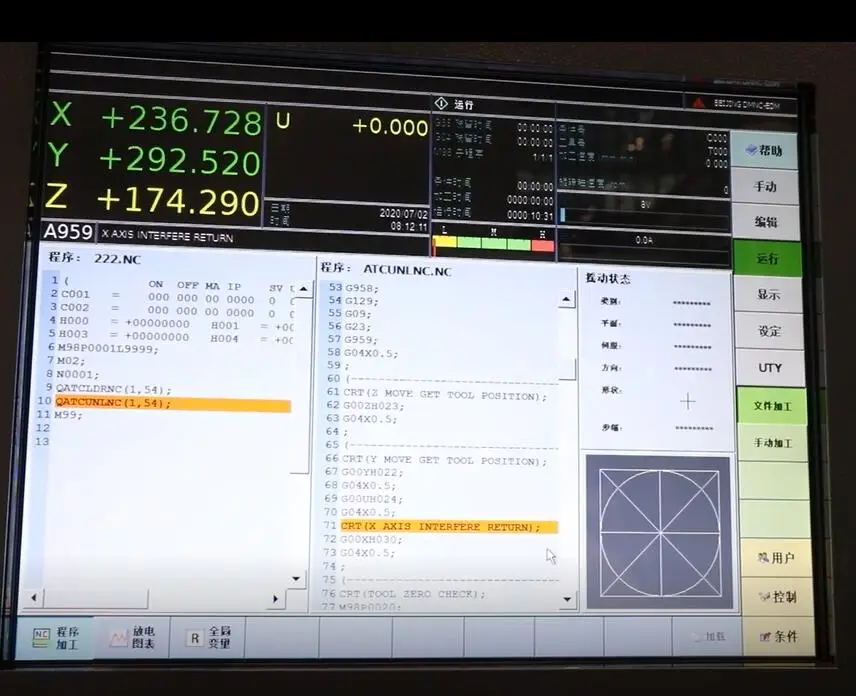

Functions of Controller:














































No.



Function explanation



1



LCD, touch screen input



2



Windows intelligent expert platform CNC EDM control system



3



Multiple pages to be edit at the same time



4



Coordinate position automatic memory



5



Standard with simultaneous three axis control, Max six axis simultaneous control



6



Super finish PIKA machining circuits-mirror surface machining function, Min machining current 0.1A



7



Expert machining parameters database: with high explosive power circuit, especially good for processing hard alloy material)



8






Input material of electrode and workpiece, machining area, shrinkage of electrode, required surface finish and etc Then control system automatically calculate machining parameters from rough machining to finish machining according to expert database.



9



Utilize automatic positioning function to do online measuring and amending to machined workpiece.






Parts Made By DMNC EDM Machines:


0.15mm narrow ribsmobile cover moldIMG_20200928_082732eyeglasses frame











 Professional Factory:






























Strict Quality Control with Advanced Test Instrument:
