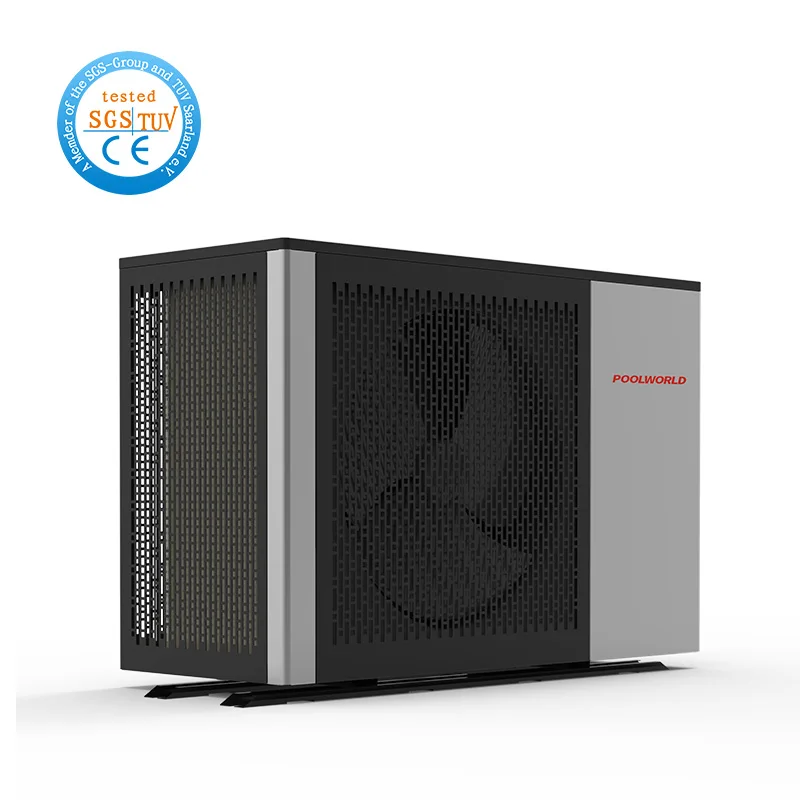

Новый дизайн небольшой инвертор тепловой насос система отопления бассейна Электрический водонагреватель

Новый дизайн небольшой инвертор тепловой насос система отопления бассейна Электрический водонагреватель

Категория: >>>
Поставщик: Guangzhou Pool World Environmental Technology Co. Ltd.

Цена:669,00 $ - 752,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

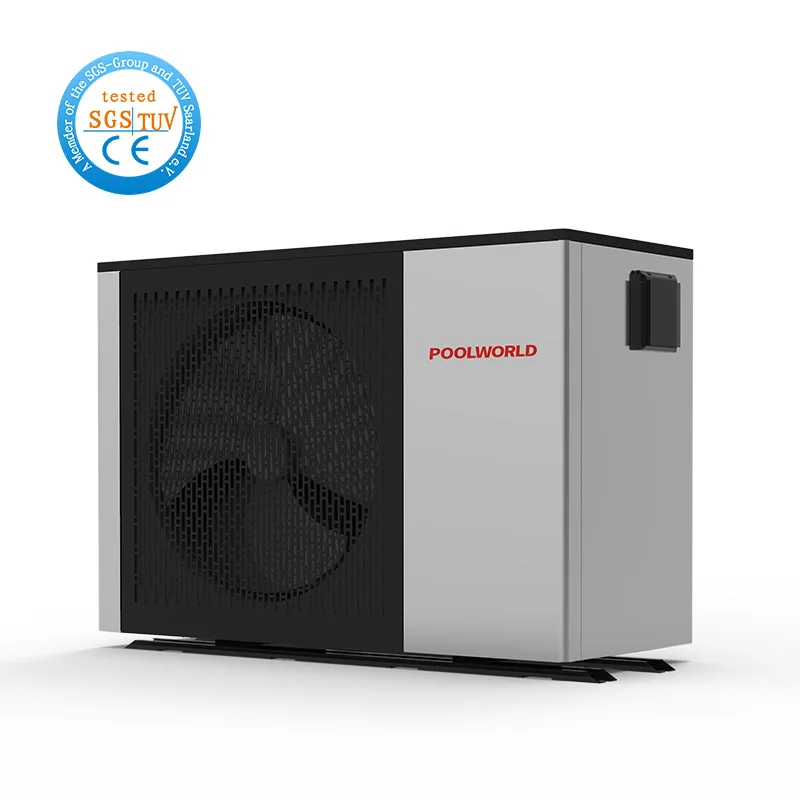

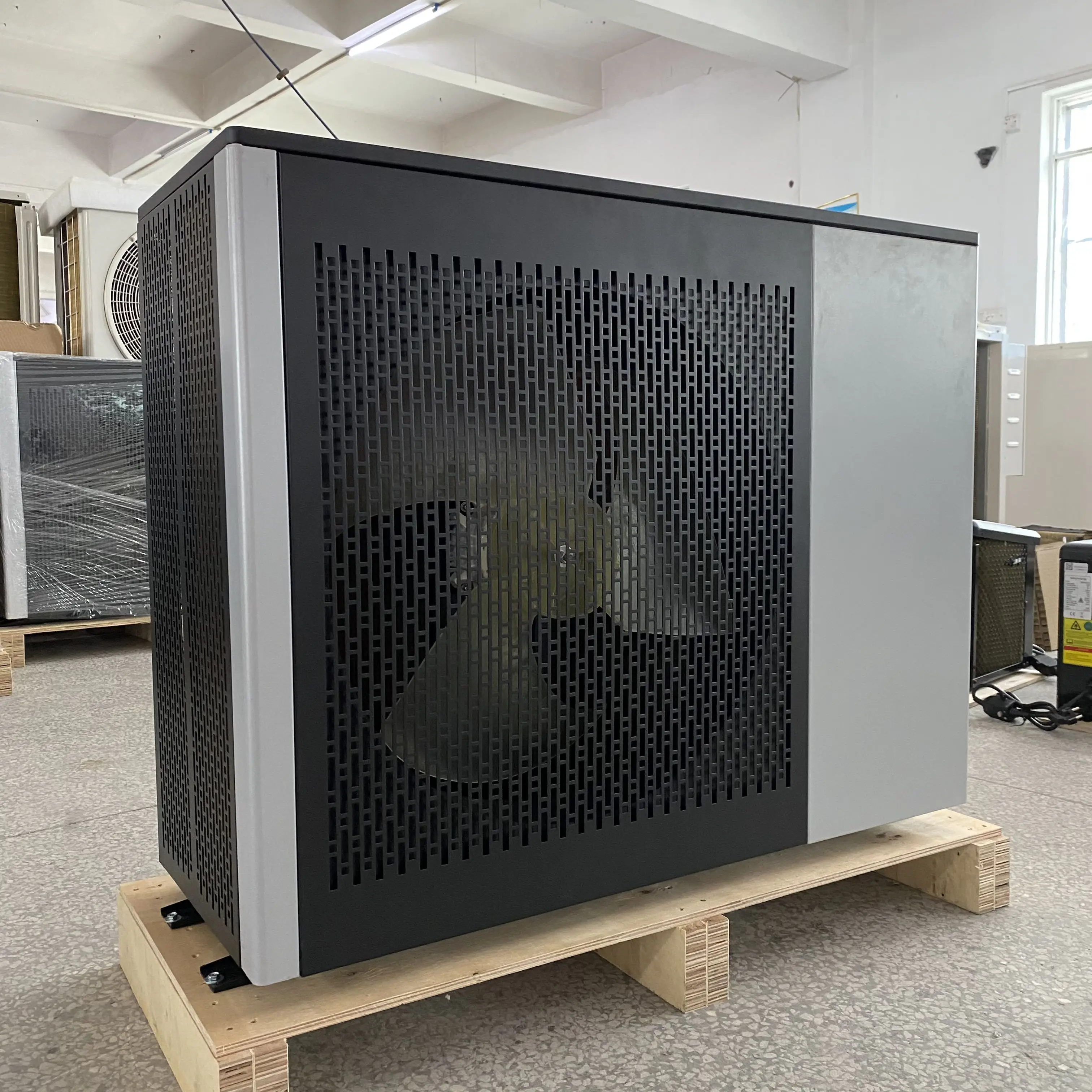

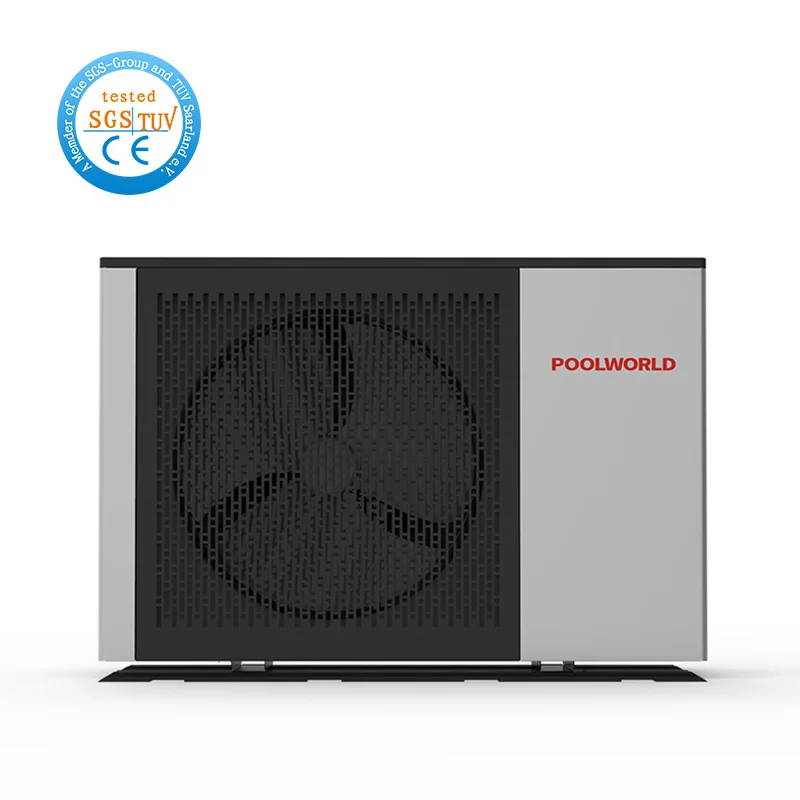

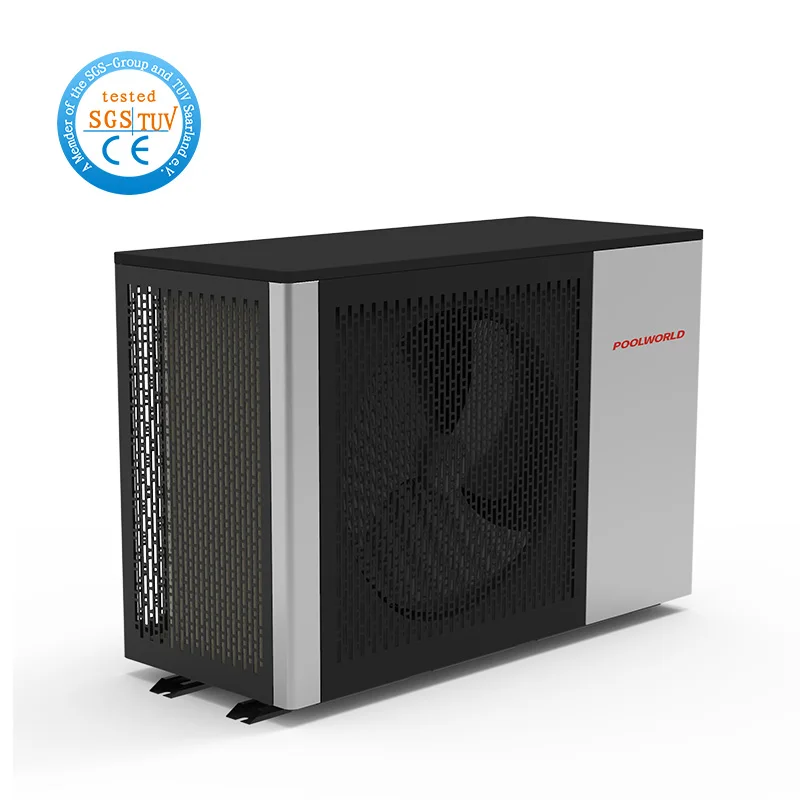

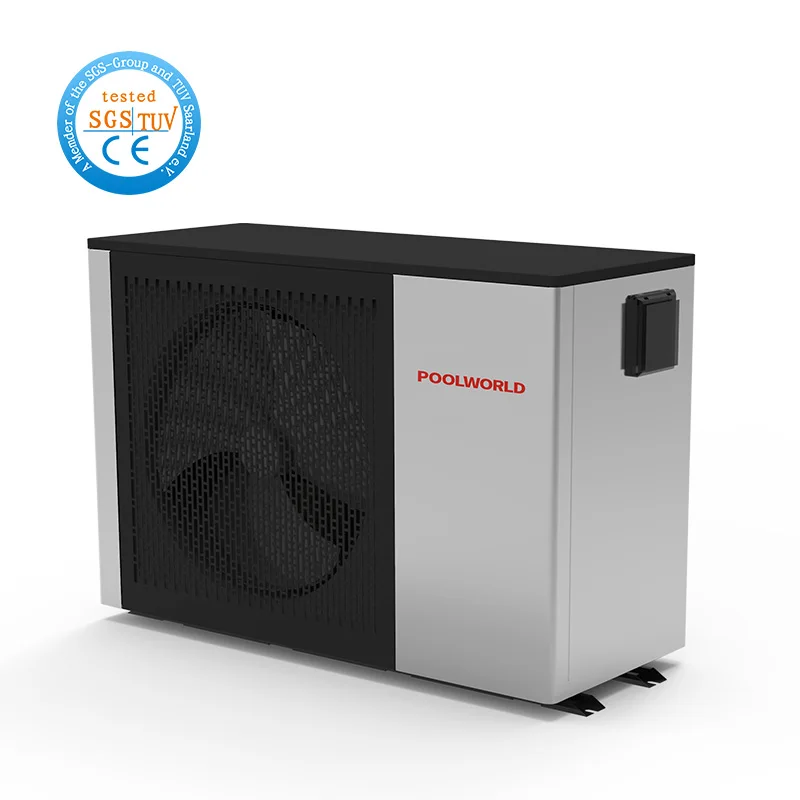

This series is full inverter designed for fast heating of indoor or outdoor swimming pool 15m3 to 100m3,which greatly saves energy and enables you to enjoy swimming without waiting for a long time.

Features:

1.Intelligent full inverter control system.
2.Patented design.
3.Silently operation .
4.Wi-Fi module/Smartphone APP control remotely.
5.Smart operation with heating and cooling mode.
6.Energy saving and Eco-friendly.
7.Speed up heating time.
8.Constant temperature technology.
9.Efficient defrosting system.
10.High/low pressure switch protection.

Our Advantages

Noise Leavel-low as 38dB.

The design of the flow channel of the wind field can reduce the noise of the compressors, unit body, etc. in a multiple ways such as elimination, isolation, and suction.
There is a shock-absorbing block on the copper pipe to reduce vibration and improve the reliability of the equipment.

SAVE ENERGY & TIME

With a leading and mature full DC inverter technology by Pool World, this series can reach a high COP of 13.4, indicating in a short time heating, customers don't need to wait for a long time to enjoy swimming. In the meanwhile, it saves more energy than ON/OFF units.

APP CONTROL

The Wi-Fi function is built into the control panel.
When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.

5-BUTTON LCD TOUCH CONTROL PANEL

With the LCD panel, you can get more information about your unit status than the LED panel, and also can change the inner parameters based on your needs.

Product Paramenters

Model

PW10-CY-DCC

PW15-CY-DCC

PW20-CY-DCC

PW30-CY-DCC

PW40-CY-DCC

PW50-CY-DCC

Advised pool volume (m3)

15~30

20~40

25~50

30~60

40~75

55~100

Operating air temperature (℃)

-7 ~43

Performance Condition: Air 27°C, Water 26°C, Humidity 80%

Heating capacity (kW)

7.50~1.92

9.50~2.10

11.00~2.50

14.00~3.15

17.00~3.75

20.00~4.00

Heating Capacity(Btu)

25500~6528

32300~7140

37400~8500

47600~10710

57800~13090

68000~13600

Consumed power (kW)

1.36~0.15

1.73~0.16

2.00~0.19

2.54~0.24

3.1~0.28

3.64~0.31

COP

5.5~12.8

5.5~13.1

5.5~13.2

5.5~13.0

5.5~13.4

5.5~12.9

COP at 50% capacity

9.00

9.50

9.00

9.50

Performance Condition: Air 15°C, Water 26°C, Humidity 70%

Heating capacity (kW)

5.80~1.42

7.2~1.50

8.5~1.65

10.7~2.40

13.0~2.65

15.6~2.85

Heating Capacity(Btu)

19720~4828

24480~5100

28900~5610

36380~8160

44200~9010

53040~9690

Consumed power (kW)

1.28~0.22

1.60~0.23

1.89~0.25

2.38~0.37

2.89~0.41

3.47~0.44

COP

4.5~6.5

COP at 50% capacity

5.20

5.50

5.20

5.50

Performance Condition: Air 35℃,Water 28℃, Humidity 80%

Cooling capacity (kW)

4.0

5.2

6.0

7.2

8.6

10.1

Sound pressure at 1m dB(A)

38~48

40~50

42~51

43~52

43~53

Sound pressure of 50% capacity at 1m dB(A)

Sound pressure at 10m dB(A)

18~25

19~26

22~27

23~30

24~31

Heat exchanger

Spiral titanium tube in PVC

Casing

Metal Casing

Power supply

230V/1 Ph/50Hz

Water Connection (mm)

Φ50

Rated input current at air 15℃（A）

5.6~1.0

7.0~1.0

8.3~1.1

10.5~1.6

12.6~1.8

15.2~1.9

Advised water flux (m³/h)

2~4

3~5

4~6

6~9

8~10

Water Pressure Drop (max) kPa

Net weight/Gross weight（kg)

48/53

50/55

53/58

62/67

67/72

Carton size（mm）

912*360*610

980*370*760

Refrigerant consumption（g）

370g

470g

450g

570g

750g

800g
