Трехлетняя гарантия блистерная упаковочная машина для фармацевтической промышленности

Сохранить в закладки 1600217502389:


Цена:13 789,00 $ - 15 321,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики







Model
DPP-160R
Blanking
20~50 times/min
Production Capacity
1200-4200 plates/h

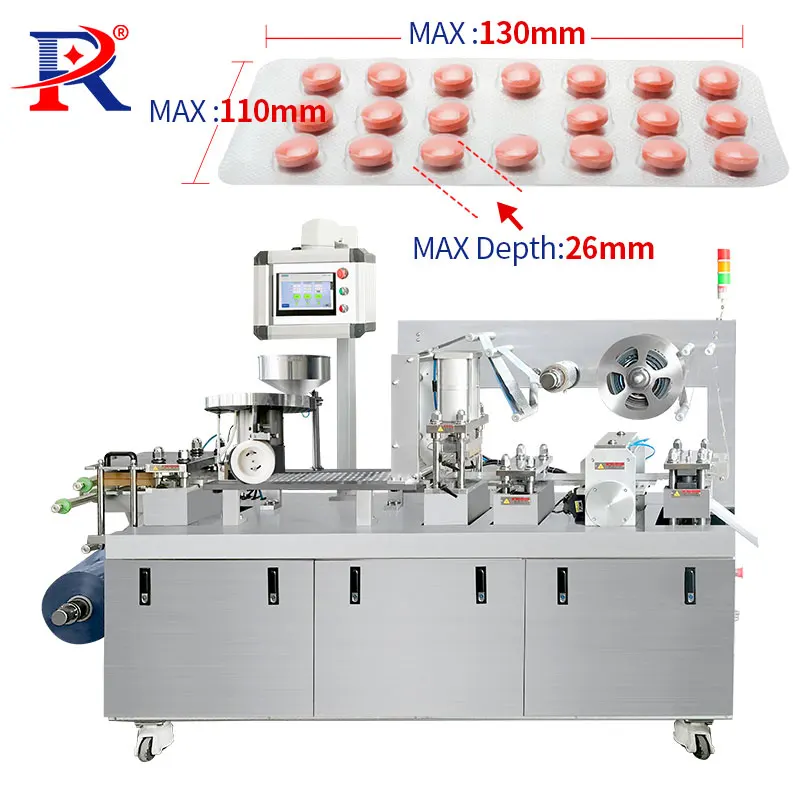

Max. Shaping Dia. And Depth
130*100*15mm Max. Depth 26mm(custom-made)
Standard Travel Range
40~110mm
Standard Plate
80*57mm
Power of Main Motor
1.5kW
Total Power
3.78kW
Power
380V/220V/50Hz
Vacuum
0.4MPa-0.6MPa
Noise
<75dBA
Thickness and Width of PVC
140×0.25~0. 5mm
Thickness and Width of PTP
140×0.02~0.03mm
Dialyzing Paper
50~100g*150mm
Mold Cooling
Runing water or circulating water
Weight
Net weight 1600 kg ;
Overall Size of Machine
2510×750×1450 mm




Applications

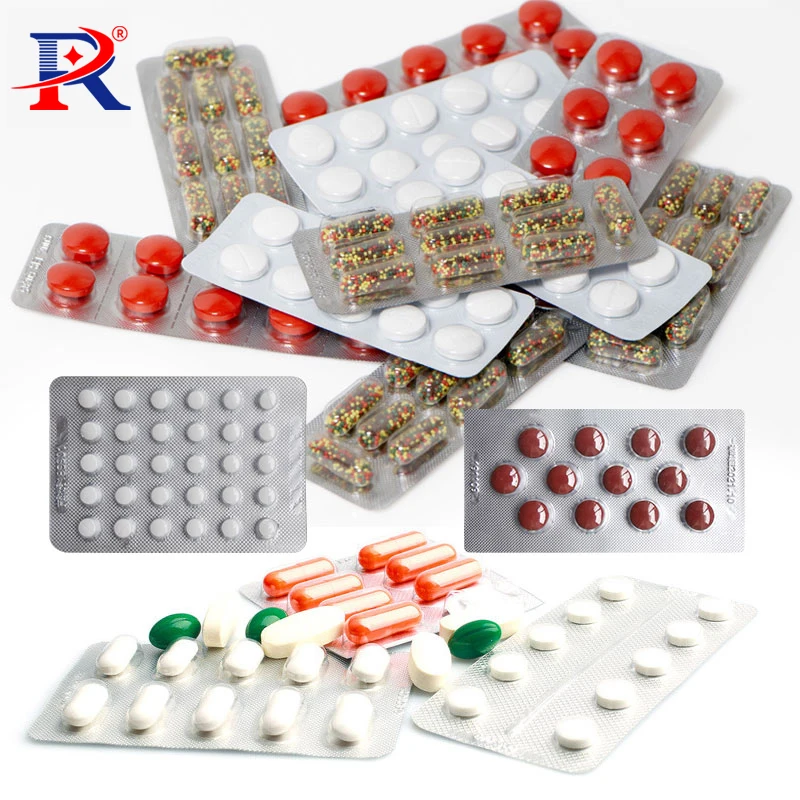

Finished product display

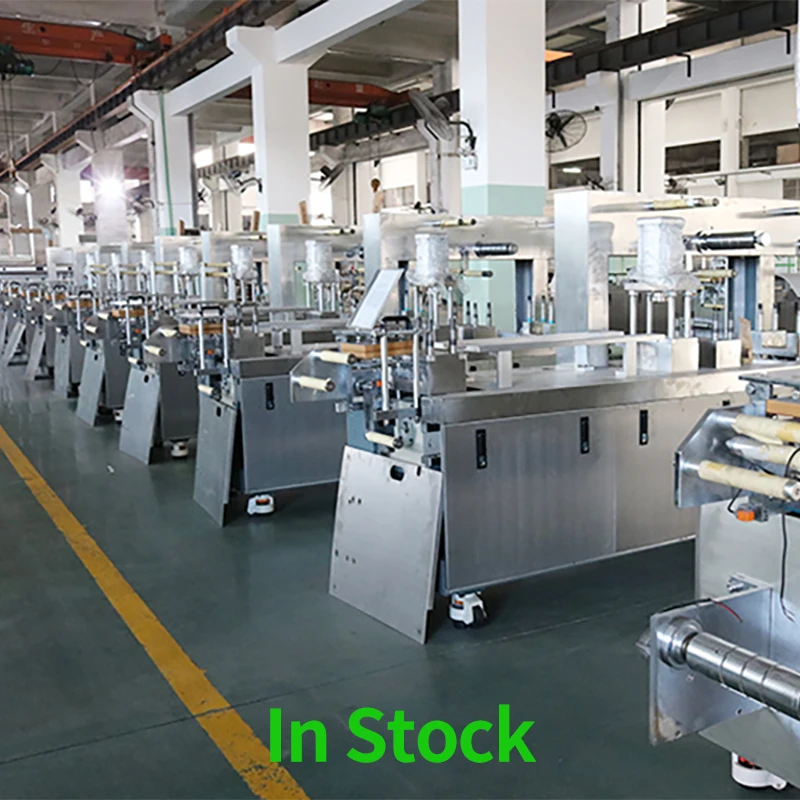

Our Factory








Product Details




Certifications






About us










Exhibition




FAQ








Three-year warranty blister packaging machine pharmaceutical industry blistering machine 160R blister packaging machine is a
production and packaging machine that conforms to pharmaceutical companies, and is more in line with GMP standards, and has the
characteristics of high cost performance. 160R blister packaging machine has a design that is convenient for customers to operate:
flat large platform design, easy to clean the machine; mold drawing card slot design, 10 minutes to complete the installation of
the entire mold; the cam box mandrel of each station has positioning reference and scale adjustment, It is convenient for
customers to install in place; And there is an emergency stop device, and it will automatically stop when there is a problem.
