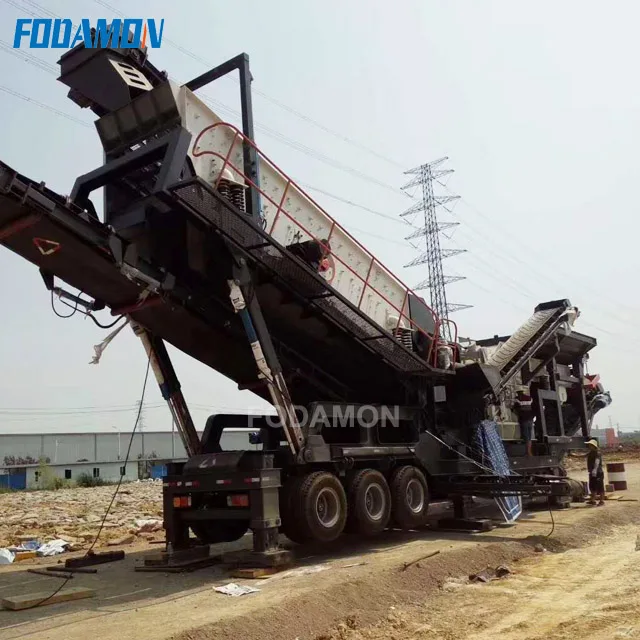

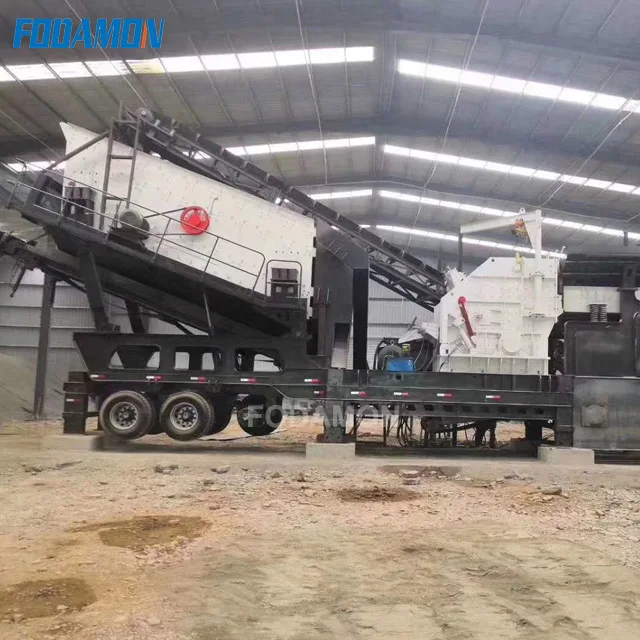

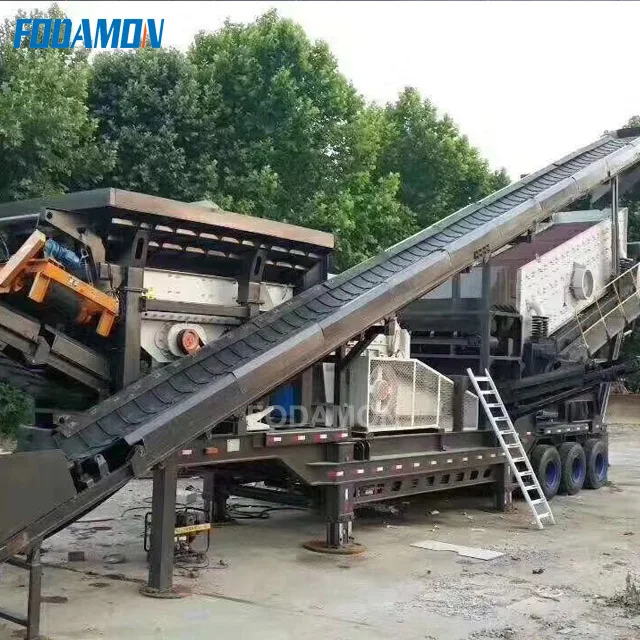

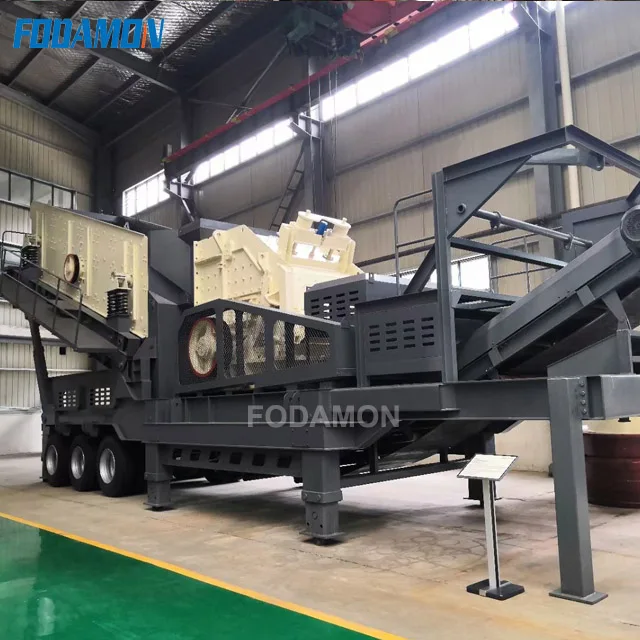

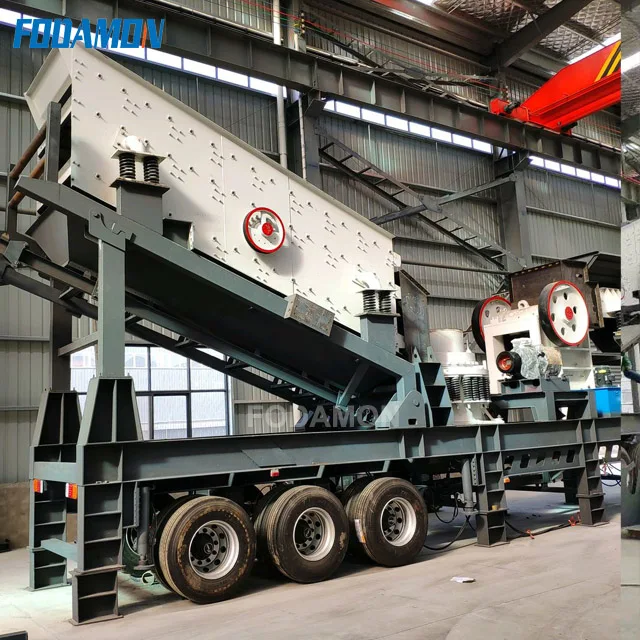

Mobile Crusher is a kind of mobile crusher which integrates crushing, screening and feeding operation. It is widely used to process pebble, basalt, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal and other stone, ore and other minerals.
According to the different crushing materials, we have the existing production, mobile jaw crusher, mobile sand making machine, mobile cone crusher, mobile impact crusher, mobile hammer crusher, mobile vibrating screen, etc. Depending on the driving method, we have rubber-tyred mobile crushing stations and crawler-type mobile crushing stations. Tailor-made solutions for you.
Compared with the ordinary crusher, the mobile crusher station has the advantages of convenient movement, small floor area, direct site selection, and can be put into production when it is placed on the site. Another important feature is that the ordinary crusher transfers the raw materials to the crushing chamber of the crusher, between the feeder and the crusher through the belt conveyor placed on the ore surface, while the mobile crusher station The raw material feeder of crusher in the crushing station is close to each other, and the intermediate cross does not need the transmission of conveyor. The raw material of ore surface is directly transported to the feeding port of crusher by shovel, and the raw material will be injected into the crusher at a fixed speed, which not only reduces the unnecessary process, but also greatly reduces the unnecessary trouble in the speed and cost. Each crushing device in the crushing station Prepare to work back and forth until all raw materials are broken.
SMC Jaw crusher | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
Transport dimension | ||||||
Length (mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width (mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height (mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Weight (Kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 |
Axle load(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
Traction pin load(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw crusher | ||||||
Model | PE400X600 | PE500X750 | PE600X900 | PE750X1060 | PE900X1200 | PEX300X1300 |
Inlet size (mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
Adjustment range of discharge port (mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
Capacity (m³/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-65 |
Vibrating feeder | ||||||
Hopper volume(m³) | 3 | 4 | 7 | 10 | 10 | 3 |
Width of Hopper(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW600X130 | GZT0724 |
Belt conveyor | ||||||
Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
FAQ
What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, Dryer, Beneficiation, etc. spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment.
How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
What about after-sale service?
12 months warranty for all kinds of products.
1.Pre-sale services: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: To establish long term friendship, we will regularly pay return visit to customers.Supplying technique, building design, instruction, installation and debugging for free.
4.We provide one-year warranty to make sure your machine runs consistently.We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one year.
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
