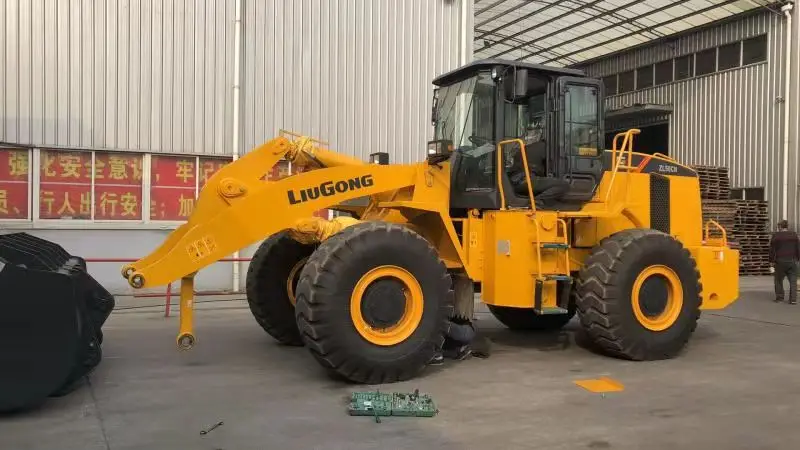

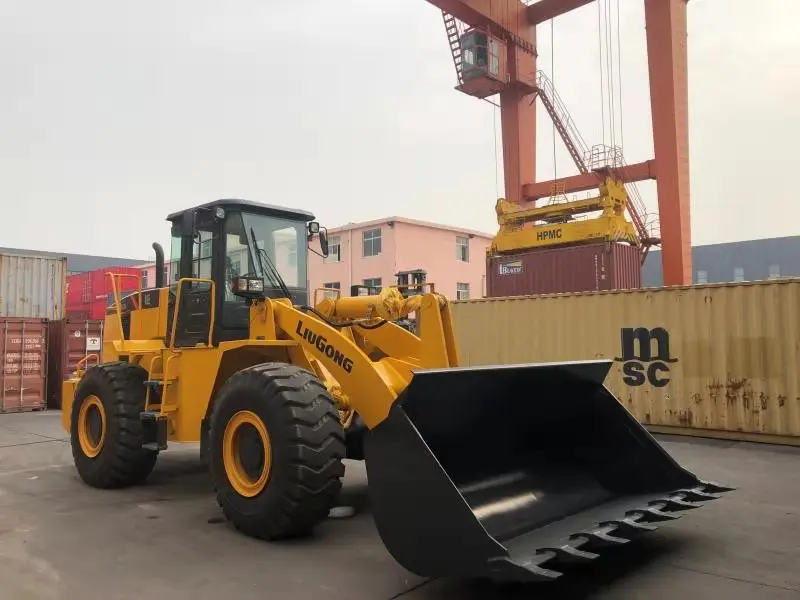

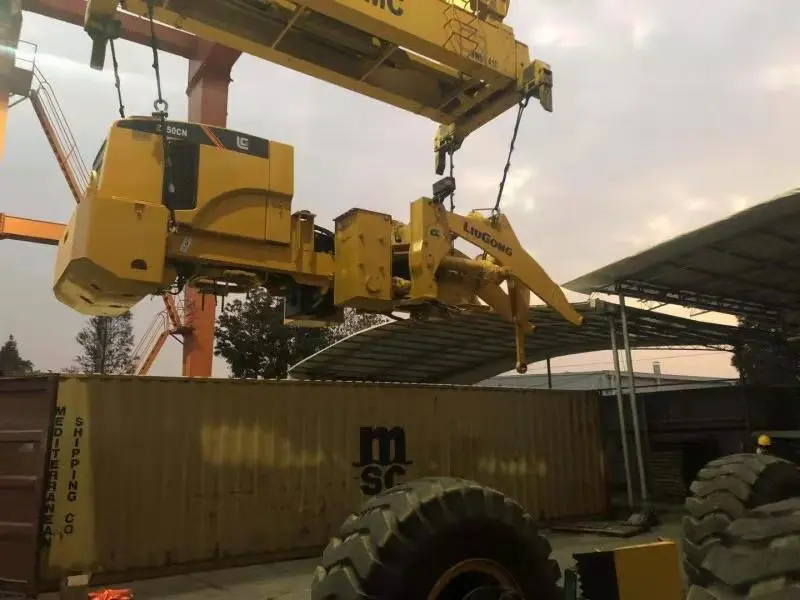

Колесный Погрузчик Liugong Zl50cn по низкой цене

ENGINE

Emission Regulation

Tier 2 / Stage II

Make

weichai

Gross Power

162kW ( 220 hp ) @ 2,000 rpm

Net Power

154 kW ( 207 hp ) @ 2,000 rpm

Peak Torque

900 N.m @ 1,300 - 1,500 rpm

Displacement

9.726 L

Number of Cylinders

6

Aspiration

turbocharged

TRANSMISSION

Transmission Type

power shift

Transmission Configuration

planetary

Torque Converter

double - stage, 4 - element

Maximum Travel Speed, fwd

38 km/h

Maximum Travel Speed, rev

16 km/h

Number of Speeds, fwd

2

Number of Speeds, rev

1

AXLES

Differential Front Type

conventional only

Differential Rear Type

conventional only

Axle Oscillation

±11°

STEERING

Steering Configuration

articulated

Steering Relief Pressure

12 Mpa

BRAKES

Service Brake Type

caliper disc

Service Brake Actuation

air over hydraulic

Parking Brake Type

manual pneumatic control

Parking Brake Actuation

use paking brake, applied by air

pressure control

HYDRAULIC SYSTEM

Main Pump Type

gear

Main Relief Pressure

17 Mpa

Raise

6.5 sec

Dump Time

1.5 sec

Float Down Time

3.5 sec

Fastest Total Cycle Time

11.5 sec

LOADER ARM PERFORMANCE

Tipping Load

13,622 kg

Full Turn Tipping Load

11,327 kg

Bucket Breakout Force

167 kN

Maximum Dump Angle at Full Height

45°

Dump Clearance at Full Height Discharge

2,970 mm

Dump Reach at Full Height Discharge

1,200 mm

Maximum Hinge Pin Height

4,020 mm

Maximum Digging Depth, Bucket Level

60 mm

Bucket Rollback at Ground Level

42°

Bucket Rollback at Carry

46°

Bucket Rollback at Maximum Height

59°

BUCKET PERFORMANCE

Reference Bucket

3 m³

DIMENSIONS

Length with Bucket Down

8,030 mm

Width Over Tires

2,750 mm

Wheelbase

3,427 mm

Wheel Tread

2,150 mm

Ground Clearance

485 mm

Turn Angle, Either Side

35°

Rear Angle of Departure

30°

Turning Radius, Outside of Tire

6,647 mm

Turning Radius, Center of Tire

6,347 mm

Turning Radius, Bucket Carry

7,598 mm

TIRES

Tire Size

23.5 - 25

OPERATING WEIGHTS

Operating Weight

16,500 kg

SERVICE CAPACITIES

Fuel Tank

300 L

Engine Oil

22 L

Cooling System

54 L

Hydraulic Reservoir

300 L

Transmission and Torque Converter

45 L

Axles, each

32 L
