Китай высокое качество продукта cnc высокой точности toolroom токарный станок
16 000,00 $ - 17 000,00 $
Звезда Швейцарский Тип токарный станок с ЧПУ автомат 5 оси мини
- Категория: Токарный станок с ЧПУ >>>
- Поставщик: Foshan Shunde Guoqiang Daosheng Industrial Co. Ltd.
Сохранить в закладки 1600218125036:
Описание и отзывы
Характеристики
Product Description
Double Spindle Swiss Type Cnc Lathe
- The base of machine tool is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation and ensure the high rigidity and high precision of the machine tool. It is widely applied in processing of long shaft components for electronics, telecommunication, facsimile machine and printer applications etc.
- The machine tool control system is Taiwan SYNTEC system(other systems are optional).
- Renowned electric appliances such as Yaskawa driver, servo motor and inverter as well as other world famous brands are used.
- The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan.
- Automatic intermittent lubricating system is used, with intermission time controllable by the system.
- Full-closed protection and Exterior Design is graceful and decent.
Application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
Features:
1. A high strength ,widening the carriage ,suitable for heavy cutting
2.Frequency conversion stepless speed regulation
3. Standard configuration: manual chuck
4. Optional configuration: hydraulic chuck
| Name(Parameter) | CNC16Z | DS-20Z | CNNC25Z |
| Max.cutting length (mm) | 202 | 202 | 202 |
| Max.positive drilling diameter (mm) | φ10 | φ10 | φ25 |
| Max.process diameter (mm) | φ16 | φ20 | φ14 |
| Spindle speed (r/min) | 45-3800 | 45-3800 | 45-3800 |
| Auto feeding max.diameter (mm) | φ16 | φ20 | φ25 |
| Min.resolution (mm) | 0.001 | 0.001 | 0.001 |
| X/Z axis speed (m/min) | 18 | 18 | 18 |
| X/Z axis Repetitive positioning accuracy (mm) | 0.005/0.005 | 0.005/0.005 | 0.005/0.005 |
| Taper (mm) | ≤0.005/100 | ≤0.005/100 | ≤0.005/100 |
| Card position size (mm) | ≤0.003 | ≤0.003 | ≤0.003 |
| Configurable tools (quantity) | 10 | 10 | 10 |
| Knife size (mm) | 12x12 | 12x12 | 12x12 |
| Boring size (mm) | φ20 | φ20 | φ20 |
| Change knife manner | Random | Random | Random |
| Adjacent change knife time (s) | 0.2 | 0.2 | 0.2 |
| Center height (mm) | 1050 | 1050 | 1050 |
| Power (KW) | 6 | 6 | 6 |
| Weight (KG) | 1200 | 1300 | 1300 |
| Size (L*W*H mm) | 1600x1200x1650 | 1600x1200x1650 | 1600x1200x1650 |

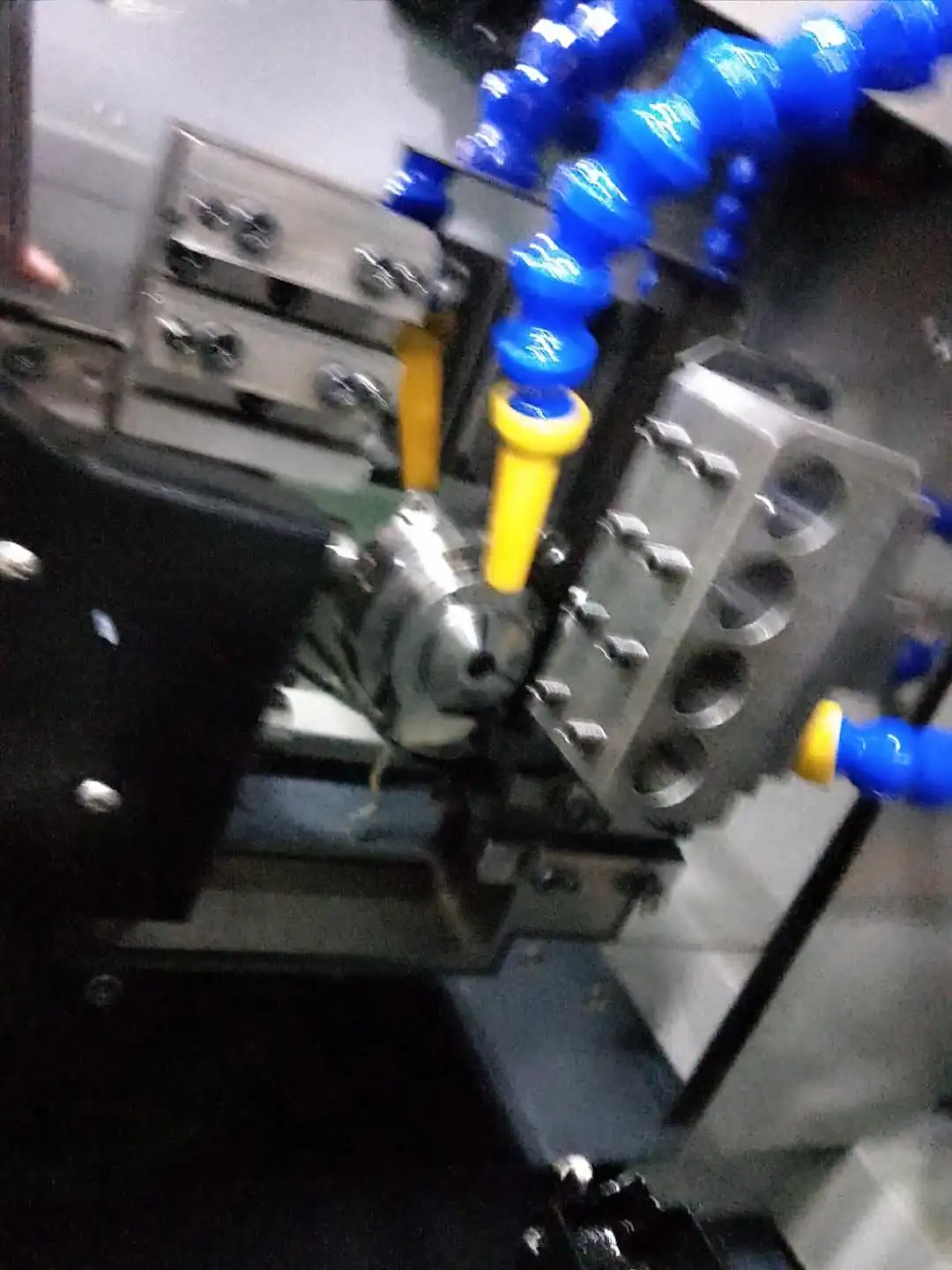

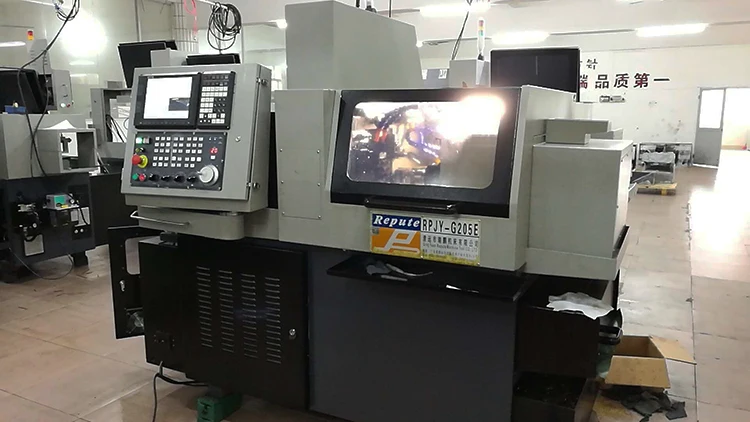

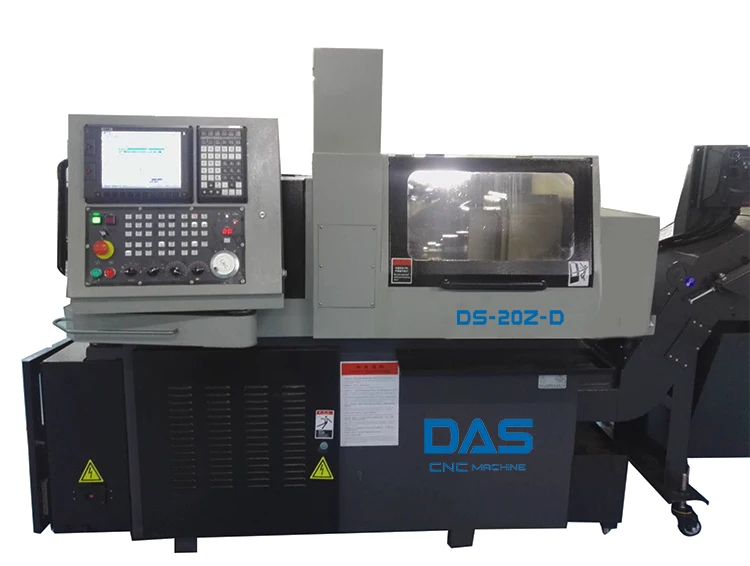

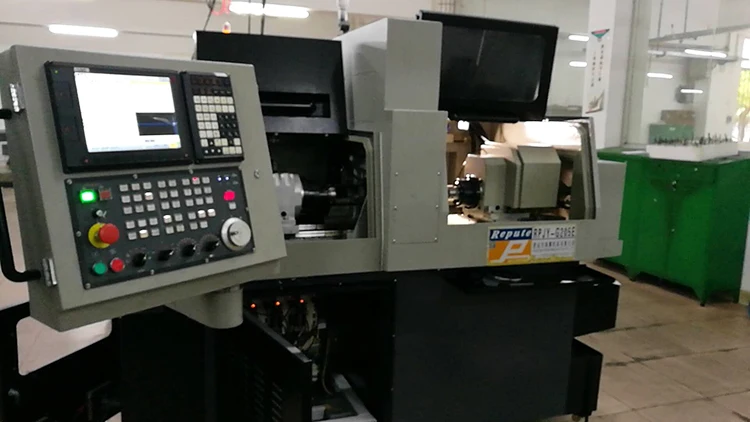

Swiss type cnc automatic lathe Taiwan syntec system

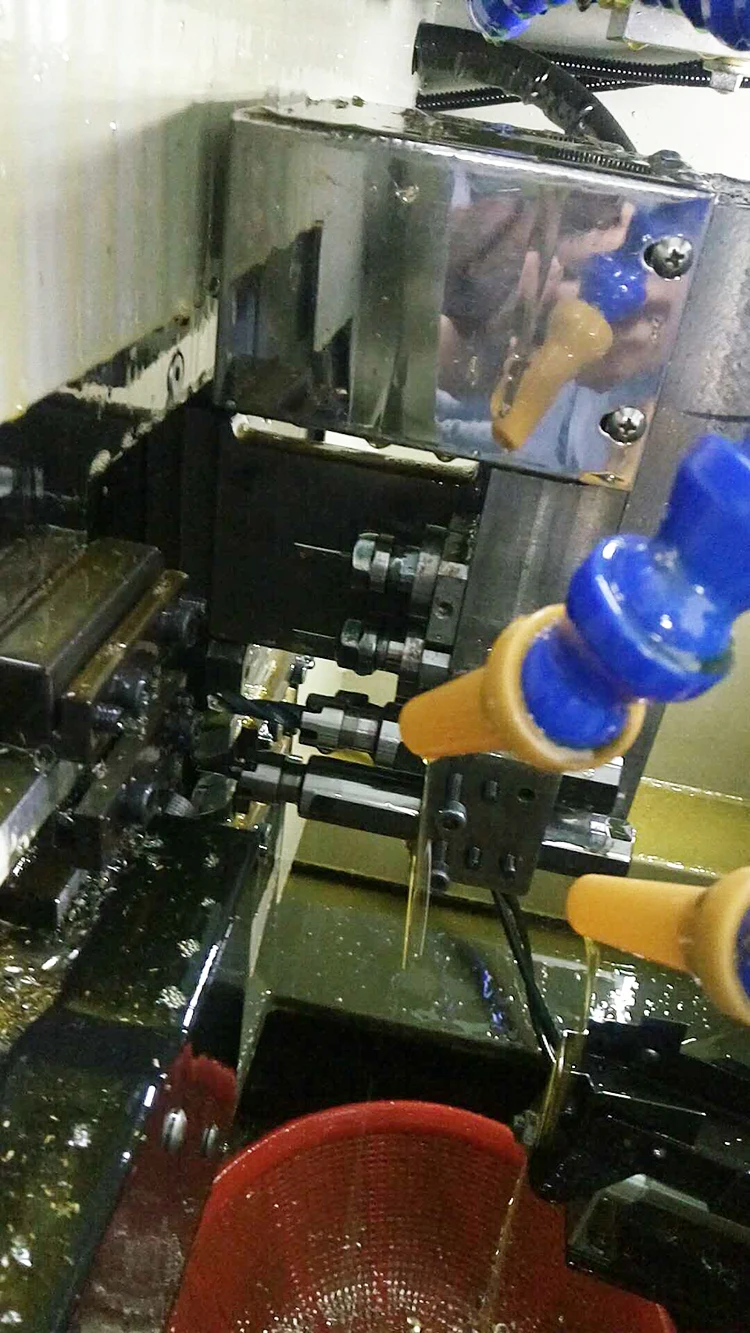

Swiss type cnc automatic lathe more detail, also have Bar feed and Chips Conveyor sale
Hot Product
Company Information
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof, electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools.
FAQ
| 1. Dear: How do I pay for my purchase order? |
| Trasa: T/T , Western Union , Escrow , Paypal , Alipay. |
| 2. Dear: How can I visit your company? |
| Trasa: A: You can take underground to South of Station Guangzhou,then we will pick you up to our company. Just one hour from Baiyun airport to our company.Warmly welcome you to visit our company. |
| 3. Dear: What is the MOQ? |
| Trasa: One set. |
| 4. Dear: What is the delivery time? |
| Trasa: 30-45days. |
| 5. Dear: Can I have my own order customized products? |
| Trasa: Yes, your customized requirements for color , logo , design , package , carton mark , ect. are very welcome. |
| 6. Dear: Do you have quality control? |
| Trasa: Yes, we attach great important to quality problem accurs |
| 7. Dear: How about the waranty? |
| Trasa: Since the Bill of Lading date ,out company implements the products` After-sale service.The warranty period is 12 months. During the warranty period ,our company provides free replacement parts if these parts or damages are out of machine itseif quality problems.Meantime ,the machine should be under normal operation according to the Operational Maunal provided by the buyers.(Except for im-proper operation or man-made damage by the buyers. |
