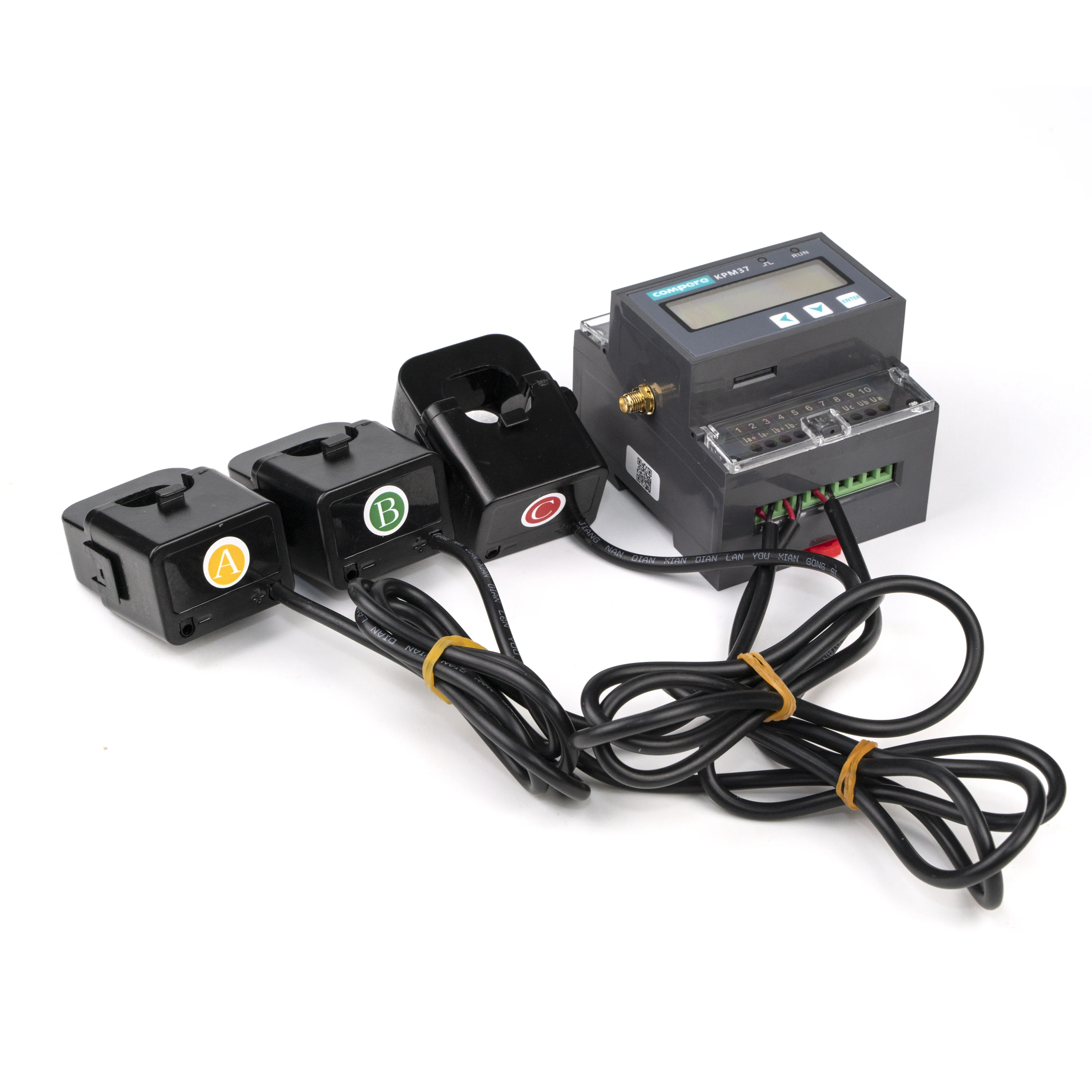

4G/Wi Fi MQTT цифровой измеритель мощности ваттметр 3 фазный энергии с 3 CTs монитором потребления

4G/Wi Fi MQTT цифровой измеритель мощности ваттметр 3 фазный энергии с 3 CTs монитором потребления

Категория: Energy Meters >>>
Поставщик: Henan Compere Smart Technology Co. Ltd.

Цена:60,00 $ - 75,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Overview

4G/WIFI MQTT Energy Meter Digital Power Meter Modus Power Data Logger Digital Watt Meter 3 phase energy power meter with 3 cts

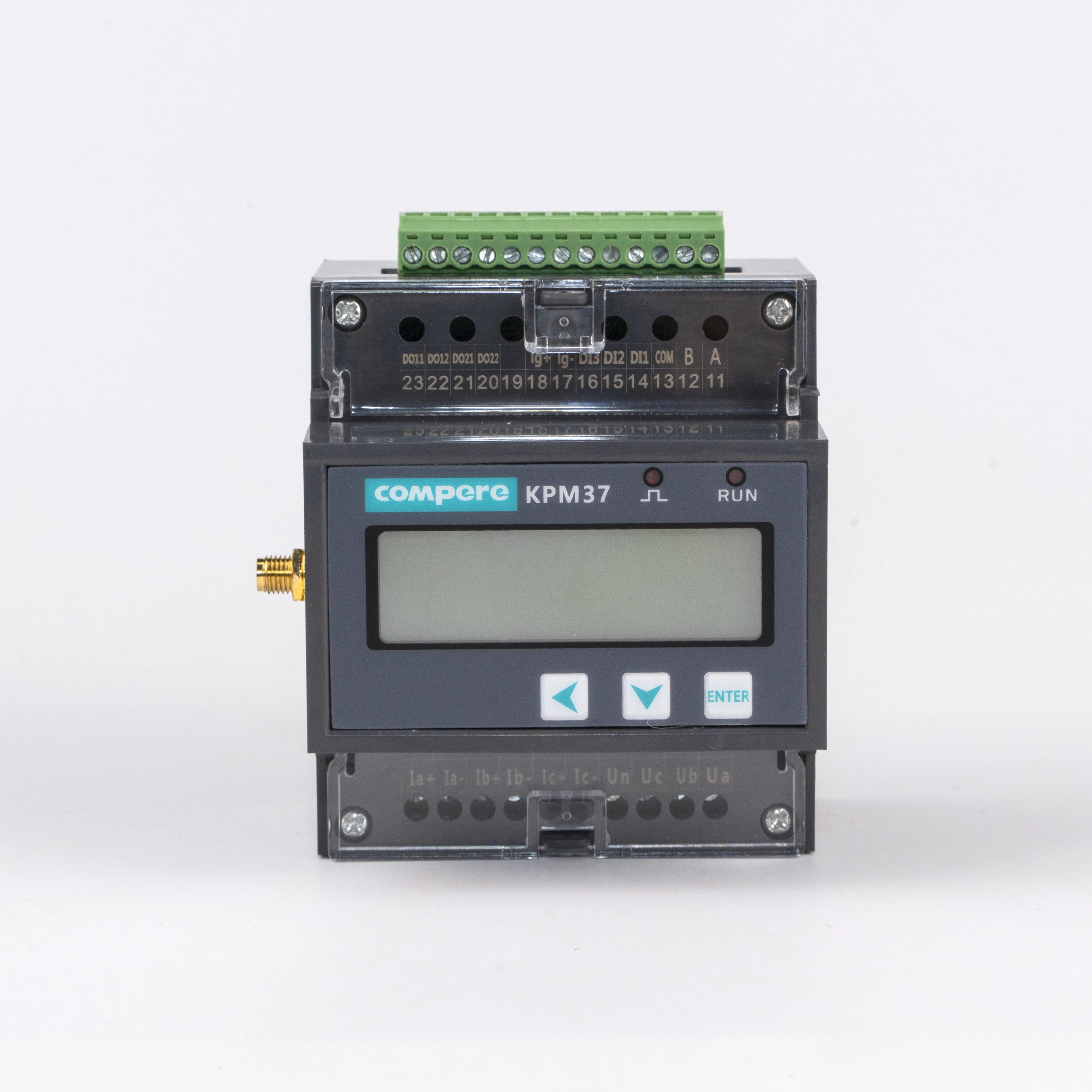

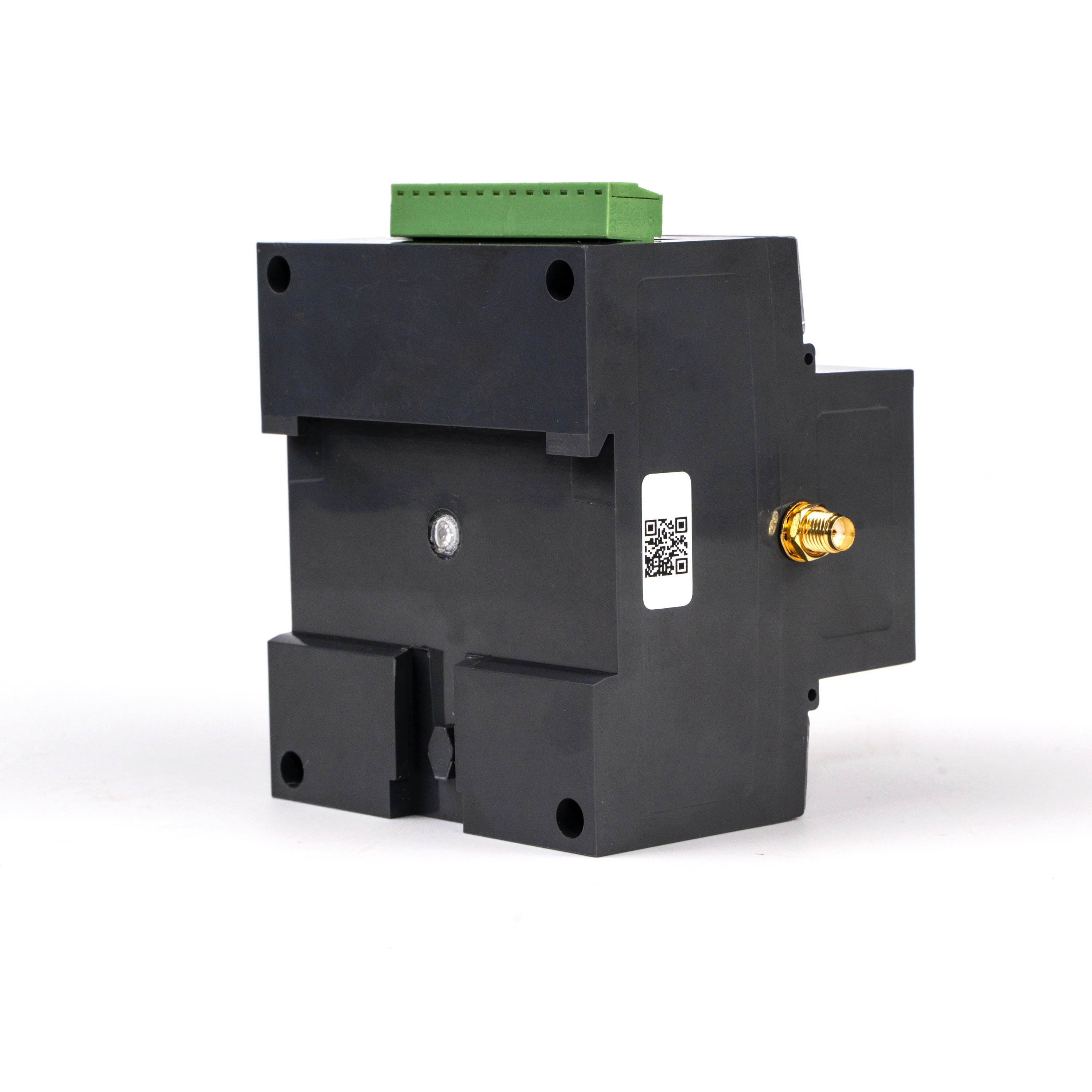

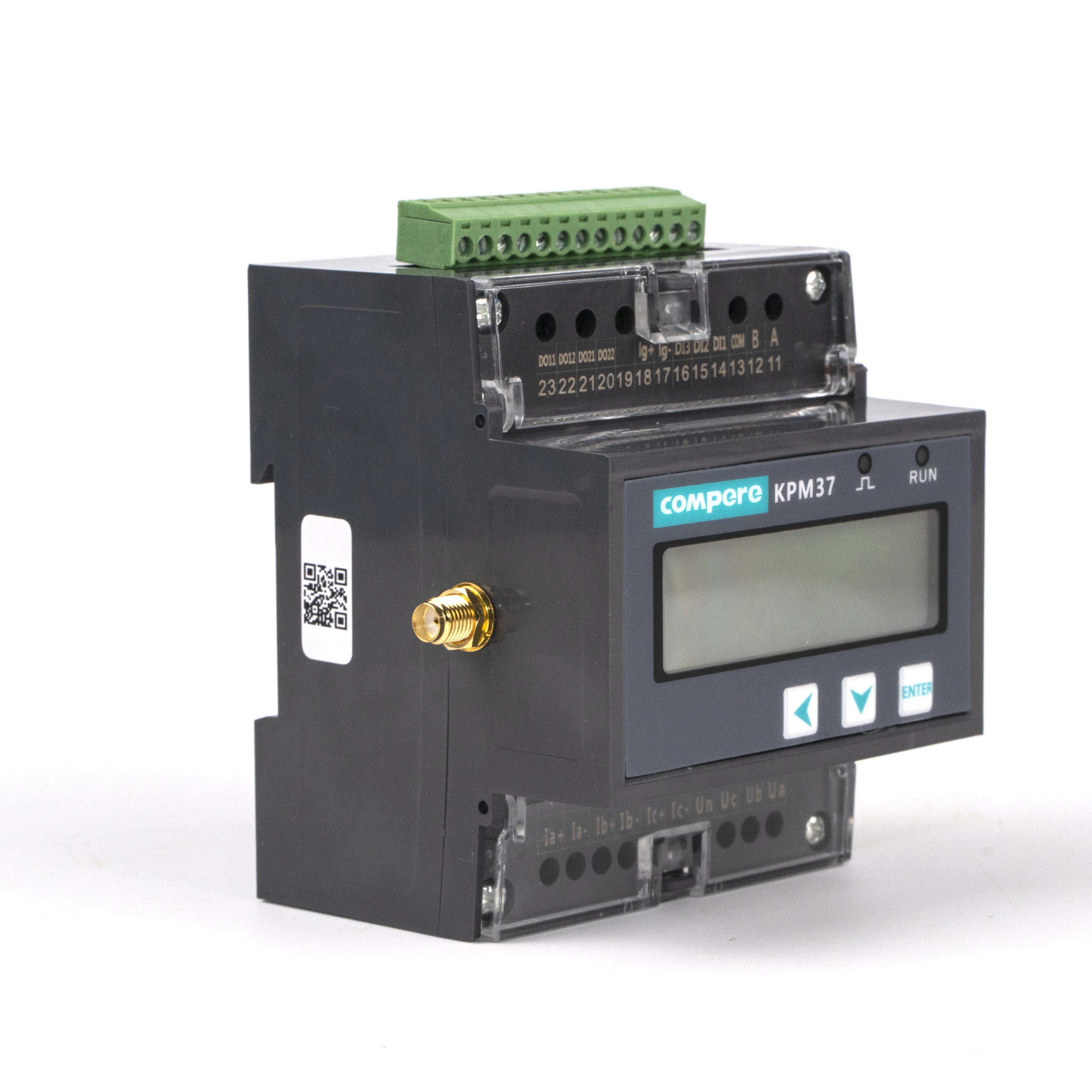

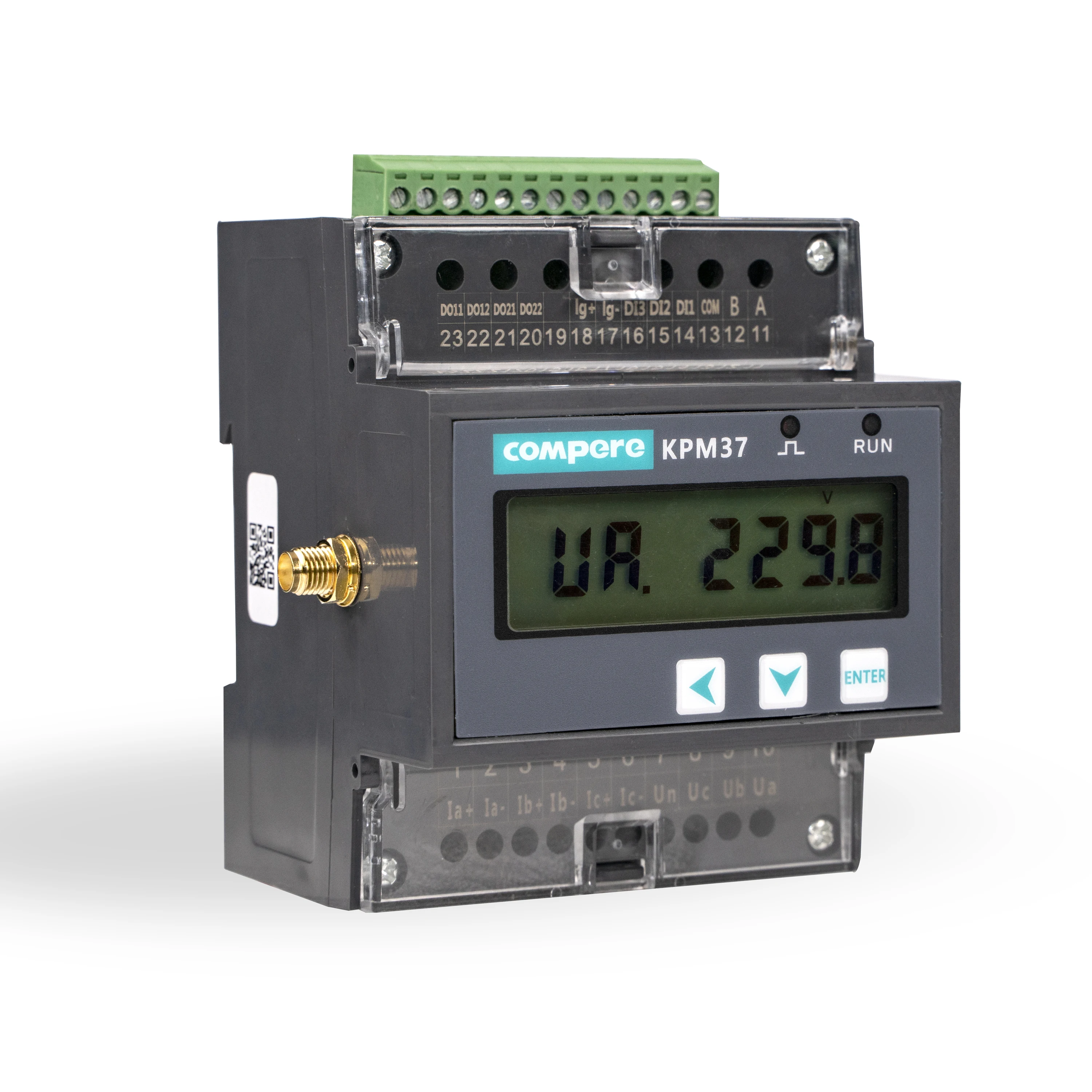

KPM37 Three Phase Rail Smart Power Meter adopts DIN 35MM rail type installation structure and LCD display. It integrates three-phase electric parameter measurement, 2~31st harmonic analysis and time statistics. KPM37 default communication is Modbus-RTU by RS485 interface. WiFi, 4G, Lora communication are optional. The meter can also expand 2-way digital input and 2-way relay output, 4-way temperature measurement and 1 way residual current measurement.
KPM37 has the advantages of small size, high accuracy, high reliability, easy installation, etc. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space, etc.

FEATURES AT A GLANCE

Application
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system

Details Images

Product Paramenters

Technical Parameters - KPM 37 DIN rail three phase wireless energy meter			Item	Data
accuracy class	Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5		37.5KW
	2	Active Power: 0.5S; Reactive Power: 2.0		2.8 M3
	3	Active Energy: 0.5S; Reactive Energy: 2.0		125Ton
Input	Rated Value	Voltage: 57.7/100V, 220/380V,380/660V
	Rated Value	5	Max. breakout force	Current: 5A (0~6A)
	6	Overload	Voltage: Sustained Overload: 1.2 times of the rated value
	7		Engine displacement	Momentary Overload: 2 times of the rated value, allows 1s
	8		Max. torque	Current: Sustained Overload: 1.2 times of the rated value
				Momentary Overload: 20 times of the rated value, allows 1s
		Frequency	45-60Hz
Functional Module	Pulse Output	1
Functional Module		Interface	RS485 / WIFI / 4G/ Lora Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps
Power Supply	Working Range	AC: 85-265V; DC: 80-300V
Power Supply		Consumption	< 0.5VA per phase
Working Condition	Temperature	Operating: -25°C~+70°C. Storage: -30°C~ +75°C
		Humidity	5%~95% No condensation
		Altitude	<3000m
Dimensions:			758874mm
