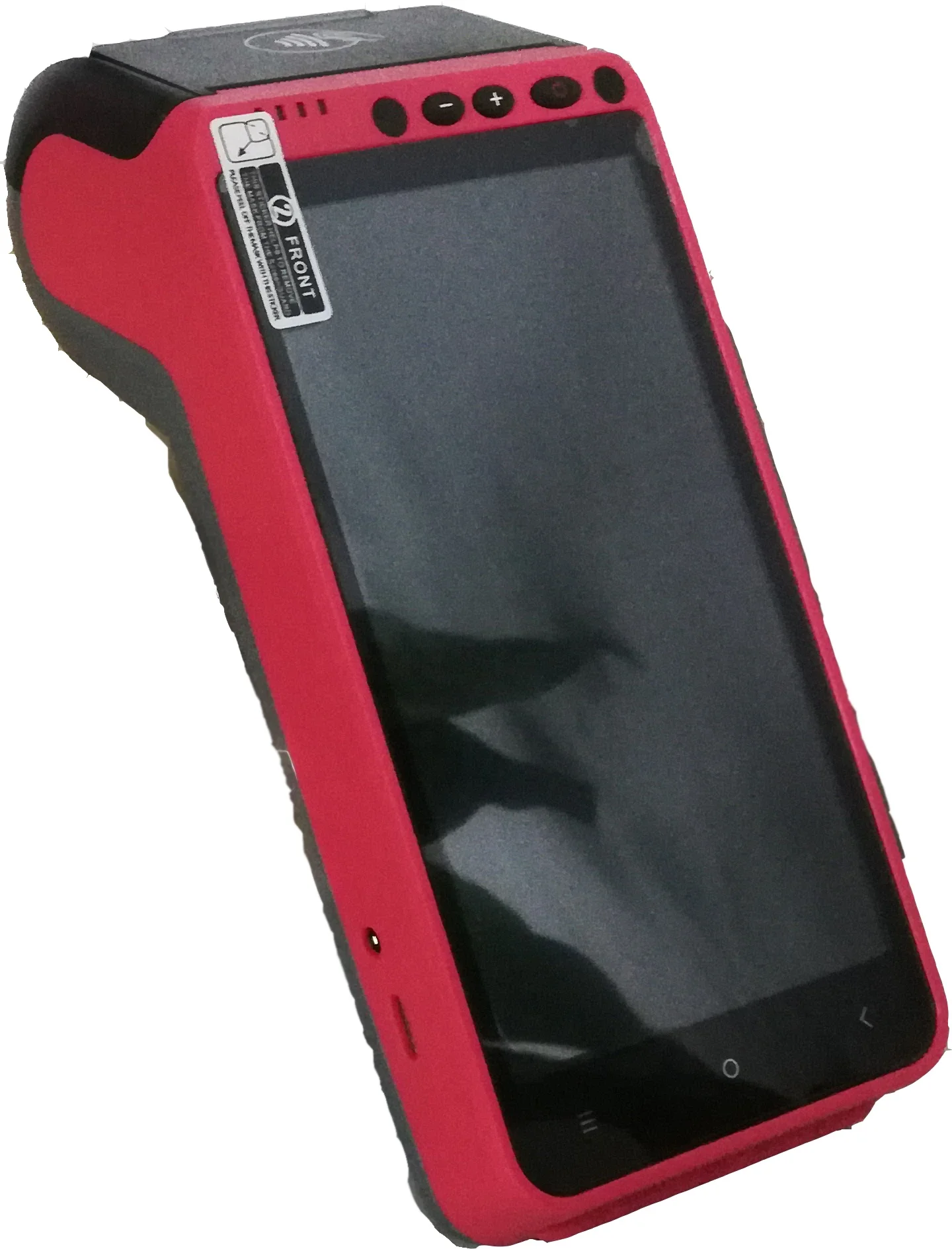

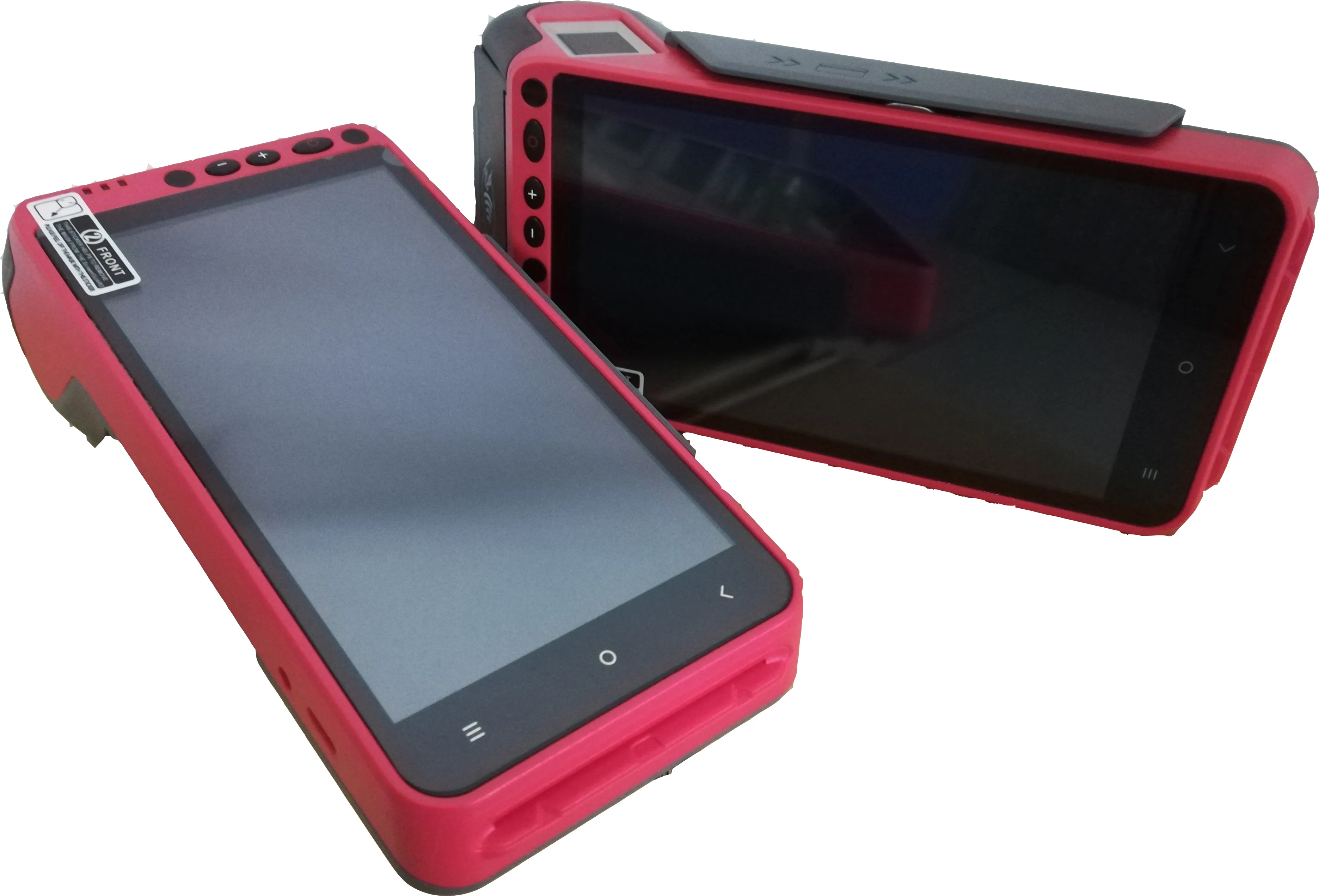

EMV PCI 4G мобильный ручной Android POS терминал GT CS20

Описание и отзывы

Характеристики

Smart POS terminal with Camera 4G WIFI Bluetooth Barcode Scanner Thermal Printer

 Highlights
 Qualcomm Octa-Core ARM Cortex-A53 1.8GHz;
 Safedroid OS (based on Android 10.0);
 Massive memory: 2G RAM + 16G ROM;
 5.7 inch TFT IPS LCD, resolution 1440*720;
 Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
 Dual camera for quickly QR code scan & Symbol 2D scanner as option;
 The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;

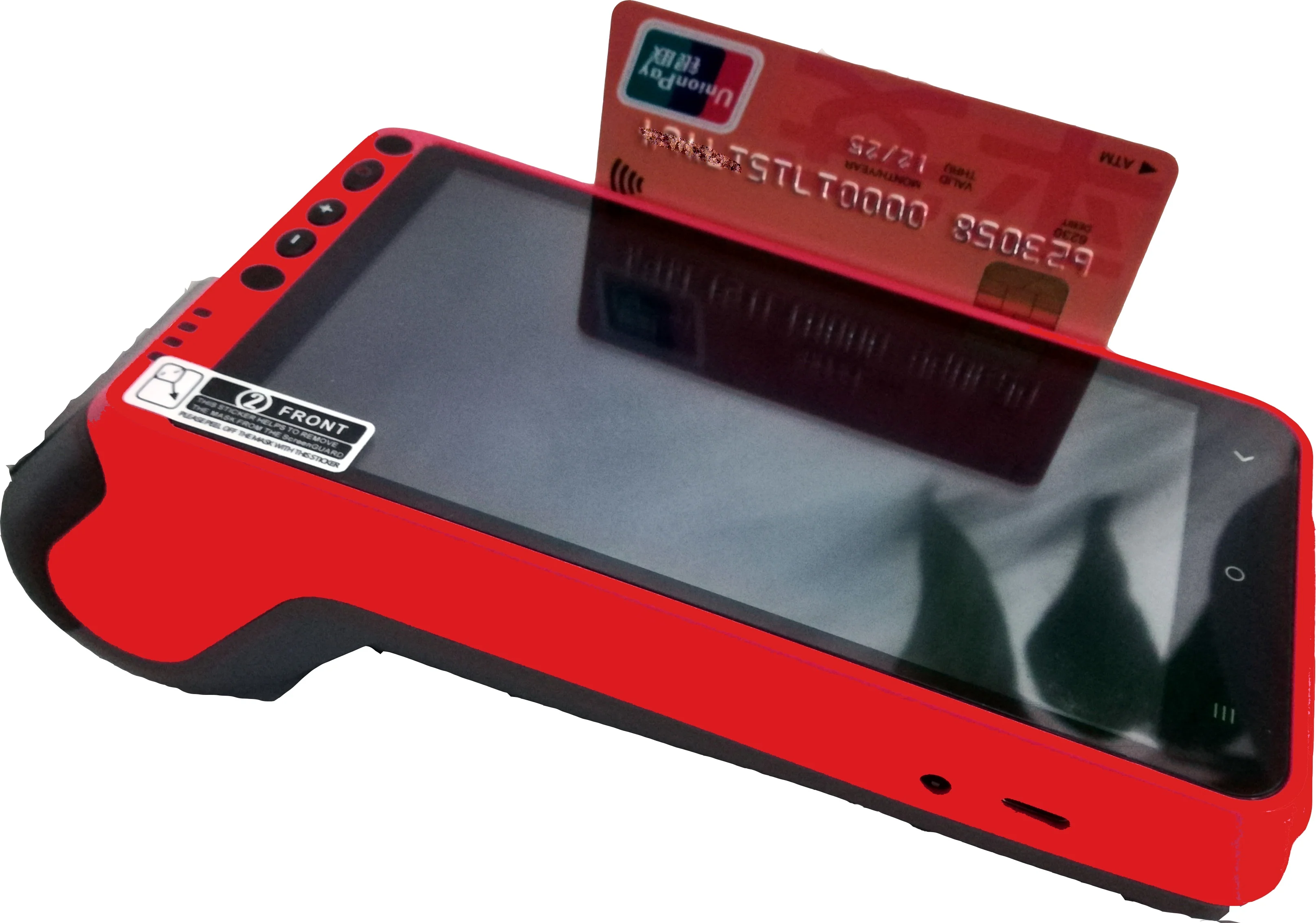

 One-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
 NFC for full scenarios such as transportation, logistic, and ID control.

Specifications
Basic
Characteristics
OS Safedroid OS (based on Android 10.0)
CPU Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
ROM 16GB ROM EMMC
RAM 2G RAM LPDDR3
Display 5.7 inch TFT IPS LCD, resolution 720*1440
Panel
Ultra sensitive capacitive touch screen, can work with gloves and
wet fingers
Dimensions 163mmX77mmX17.5mm (max 21.8mm)
Weight 300g (Battery included)
Keys Physical keys: power on/off, Volume + /-, Scan1/ Scan2
Input Chinese/English, and supports handwriting and soft keyboard
Radio
Communication
WIFI IEEE 802.11 b/g/n and a/c,support dual Band 2.4GHZ and 5GHZ
Bluetooth BT 4.2 LE and earlier
4G
European version(Default):
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B39/B40/B41
American version(Optional):
FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26
TDD-LTE: B41
3G
European version(Default):
WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39,
CDMA 1x/EVDO: BC0
American version(Optional):
WCDMA: B2/B4/B5,
CDMA 1X/EVDO: BC1
2G GSM/GPRS/EDGE: 850/900/1800/1900MHZ
Payment
Magcard reader
Supports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card reader Supports ISO7816 standard
Contactless Card
reader
Supports 14443A/ 14443B
Camera 5MP camera with LED flash and auto-focus function
Satellite
Positioning
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
NFC 13.56MHZ
Audio Speaker, Microphone,
Interfaces
Micro SD Card
Slot
1 PCS support up to 128GB
SIM Card Slot 1 PCS MICRO SIM
PSAM Card Slot 2 PCS Conforms to ISO7816 standard
USB Port 1PCS TYPE C USB
Power Battery Li-ion battery, 4.35V/3500mAH
Smart & Reliable
Charging Port Type C USB Port, 5V DC/2A
Environment
Operating
Temperature
-10°C to 50°C
Storage
Temperature
-20°C to 70°C
Humidity 5% to 95% Relative Humidity, Non-Condensing
Certification
Electromagnetic CE, Rohs, FCC, BIS, TQM
Payment PCI PTS 5.X, EMV L1&L2, Paypass, Paywave, Amex
Optional

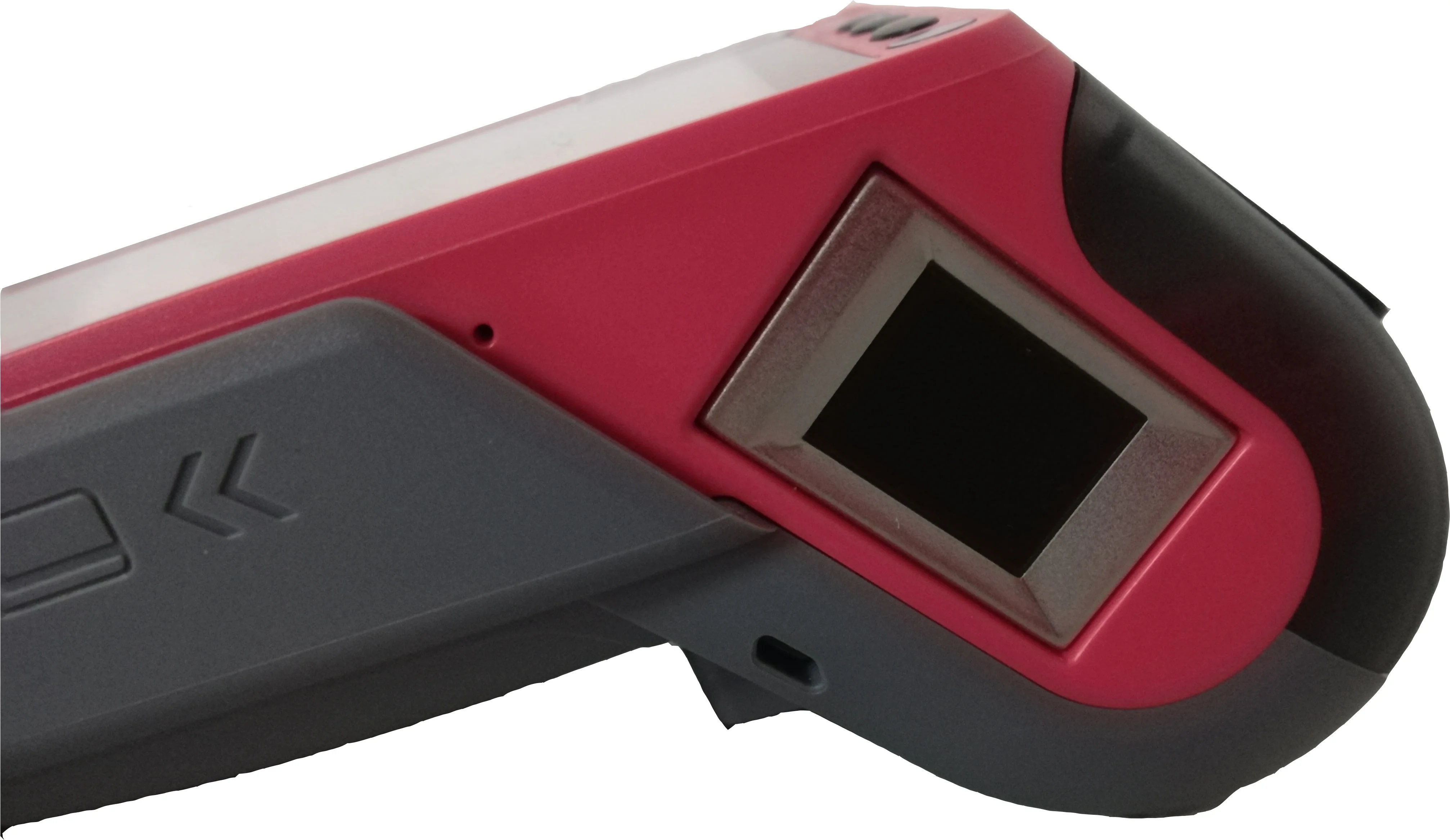

Fingerprint (Extended support on the charging cradle)
Printer
High-Speed Thermal Printer(Extended support on the charging
cradle)
ESIM Card support
Front camera 2 Megapixel Fixed Focal Camera
Barcode Scanner Symbol 4710 2D Image Engine, Support 1D and 2D symbologies

FAQ

 1.  Are you manufacturer?
Yes, we are manufacturers. We can provide OEM / ODM customized service according to our customers’  demands, welcome to our factory at any time .

2. Would you provide SDK for customer ?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What is the minimum order?
We accept one sample order .

4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

5.What is your warranty?

 We will provide 12 months warranty time from the shipment date .
