Модель FL сушилка/гранулятор для порошковых жидкостей
- Категория: >>>
- Поставщик: Changzhou Hengmai Drying Equipment Co. Ltd.
Сохранить в закладки 1600219771771:
Описание и отзывы
Характеристики
Product Overview

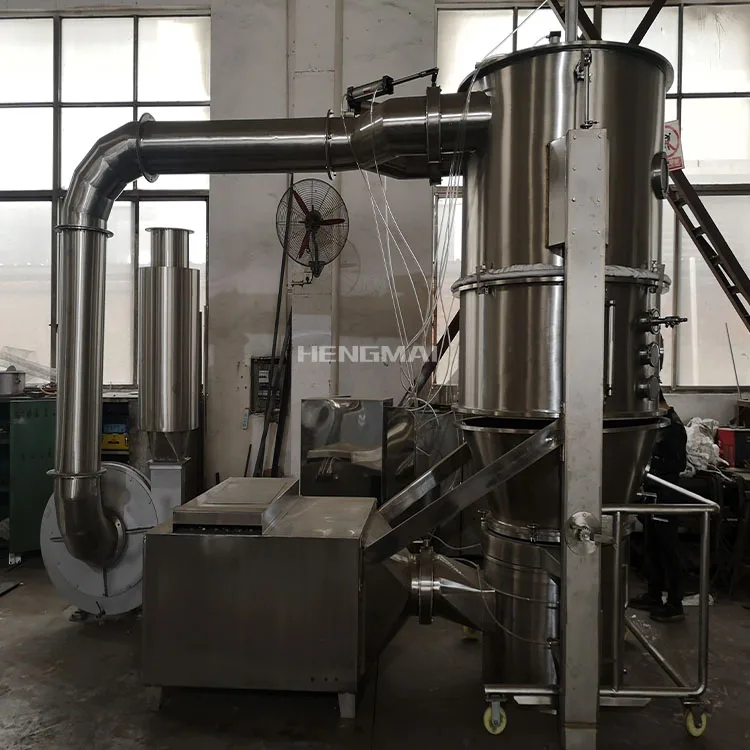

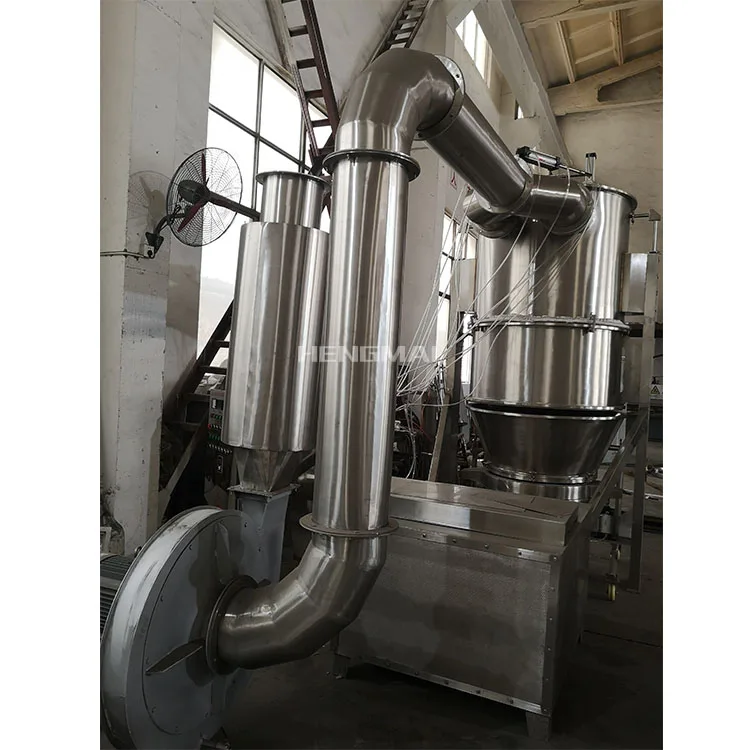

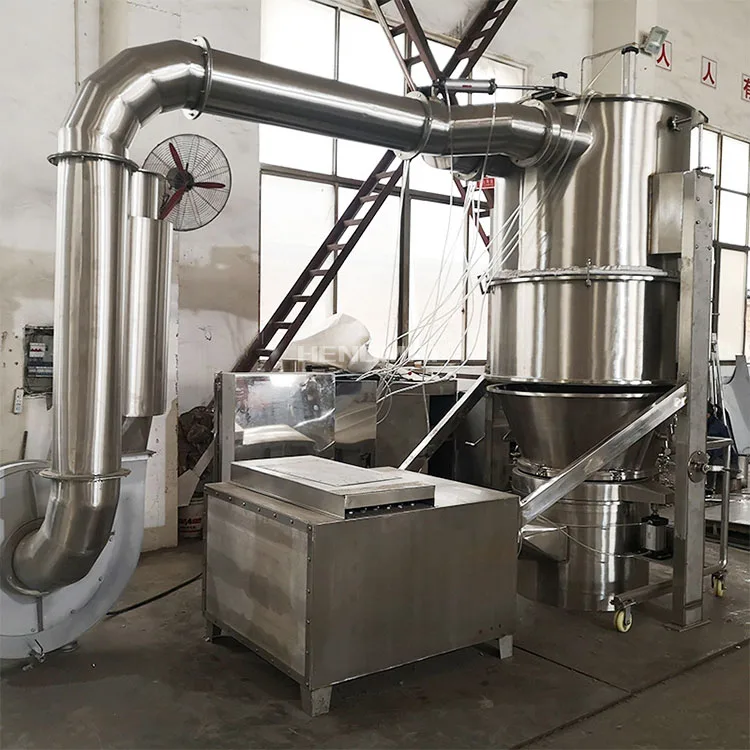

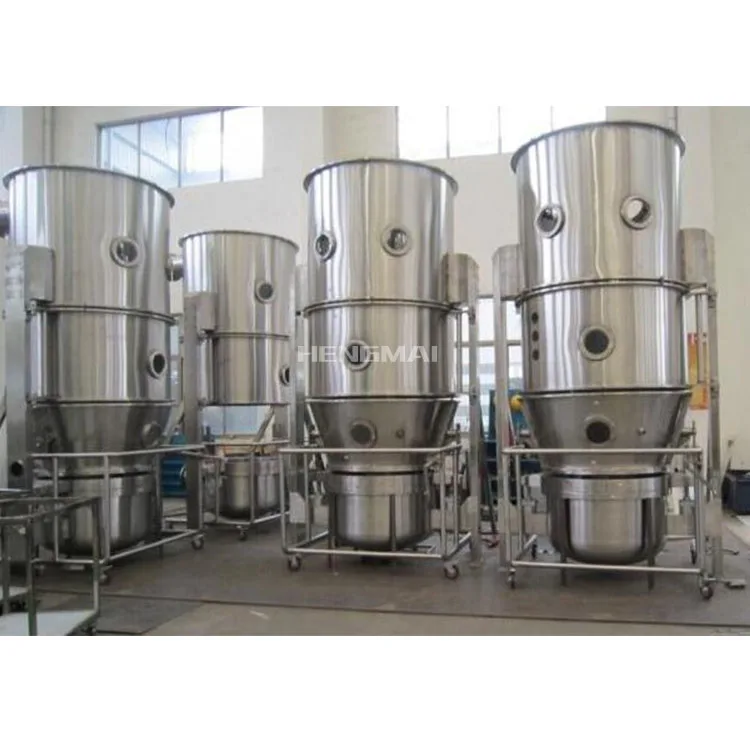

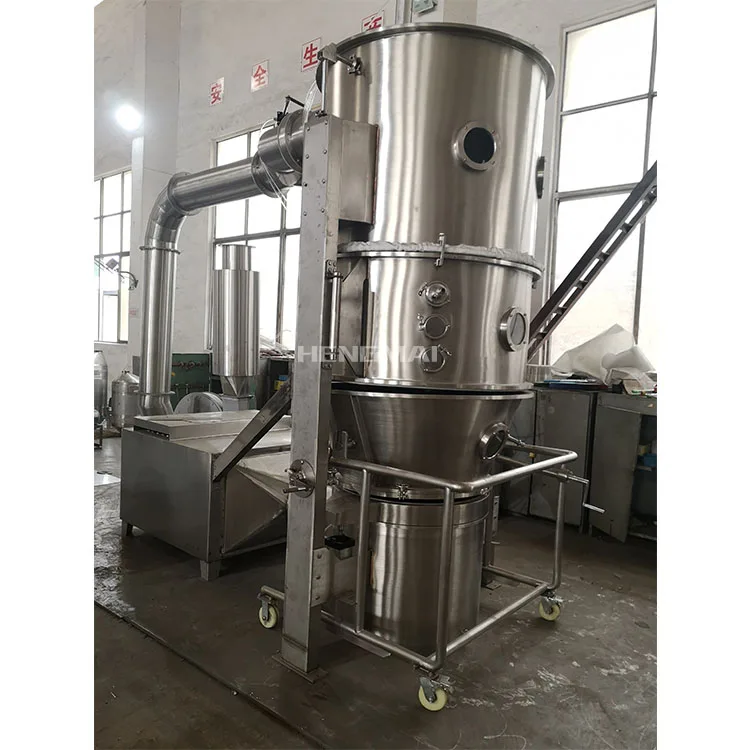

FL series boiling dry granulator
The machine is mainly used for the operations of mixing, granulating,drying and coating of granule，powder material in pharmaceutical industry , foodstuff industry,chemical industry etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Main Features
Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.
Principle
Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test. Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.
Item | Model | ||||||||||||||
5 | 30 | 60 | 120 | 300 | 500 | 800-1000 | |||||||||
Container | Volume (L) | 22 | 100 | 220 | 420 | 1000 | 1500 | By client | |||||||
Diameter(mm) | 400 | 700 | 1000 | 1200 | 1600 | 1800 | |||||||||
Capability | min.(kg) | 4 | 15 | 30 | 80 | 150 | 250 | ||||||||
max.(kg) | 6 | 45 | 90 | 160 | 450 | 750 | |||||||||
Fan | Capacity(m³/h) | 1200 | 1800 | 3000 | 4500 | 7000 | 8000 | ||||||||
Pressure(mmH2O) | 375 | 480 | 950 | 950 | 950 | 950 | |||||||||
Power(kw) | 4 | 7.5 | 11 | 18.5 | 30 | 45 | |||||||||
Steam expenditure(kg/h) | 23 | 70 | 141 | 211 | 366 | 451 | |||||||||
Compressed air expenditure(m³/min) | 0.9 | 0.9 | 1.0 | 1.0 | 1.5 | 1.5 | |||||||||
Weight of the main body(kg) | 700 | 1000 | 1100 | 1300 | 1800 | 2000 | |||||||||
Steam pressure(mpa) | 0.3-6 | ||||||||||||||
Temperature(°C) | (adjustable at the range from room temperature to 120°C ) | ||||||||||||||
Working time(min) | 45~90 ( decided in accordance with the proplerties of raw materials ) | ||||||||||||||
Field(%) | ≥99 | ||||||||||||||
Noise(dB(A)) | ≤75dB(A) (When installation.main machine is separated from fan) | ||||||||||||||
Size(LxWxH)m | 1.2*0.7*2 | 1.6* 1.1*2.5 | 1.9* 1.4*3 | 2.2* 1.7*3.3 | 2.8* 2*4 | 3*2.3 *4.4 | |||||||||
Applications
Drug granulation and coating. Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating. Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.
Product packaging and delivery
Why Choose Us
Changzhou Hengmai Drying Equipment Co., Ltd.
Our company located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
Recommend Products
Похожие товары

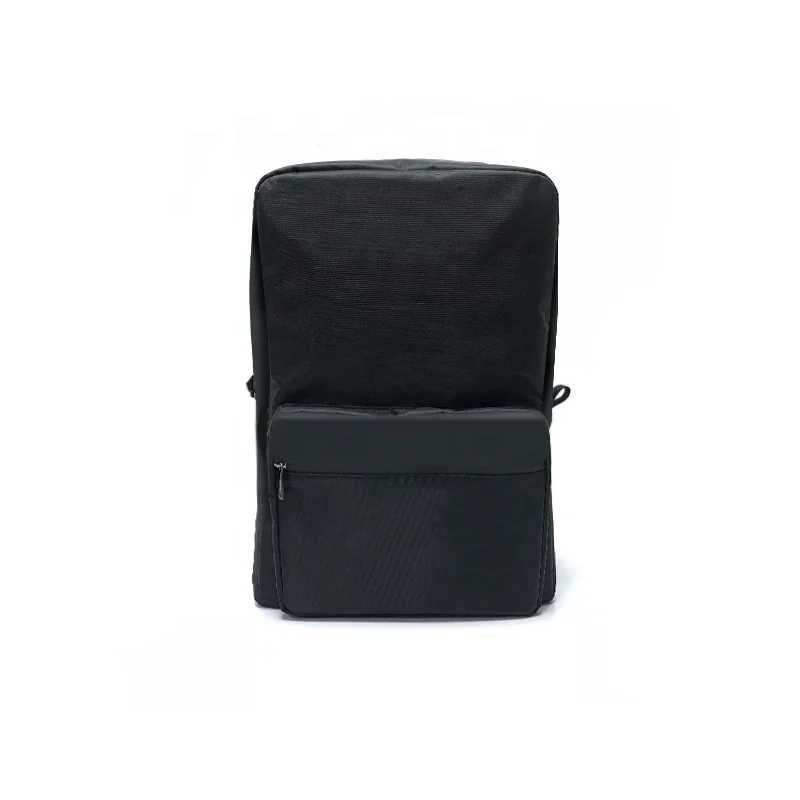

Ламинированный рюкзак с защитой от запаха сорняков из ткани с активированным углем, прочный рюкзак с защитой от запаха
9,97 $ - 10,97 $
Новый дизайн, Европа, США, лидер продаж, Модный Цветной тканевый чехол с блестками и фильтром из активированного угля
0,63 $
Пользовательский фильтр кондиционера A1668300318 с низким сопротивлением и активированным углем для Mercedes Ml350/w166 встроен
3,40 $ - 5,20 $

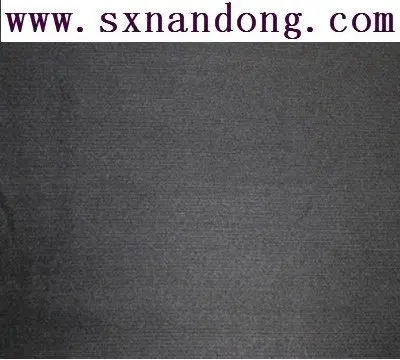

Activated Carbon Fiber(Felt/cloth/paper)

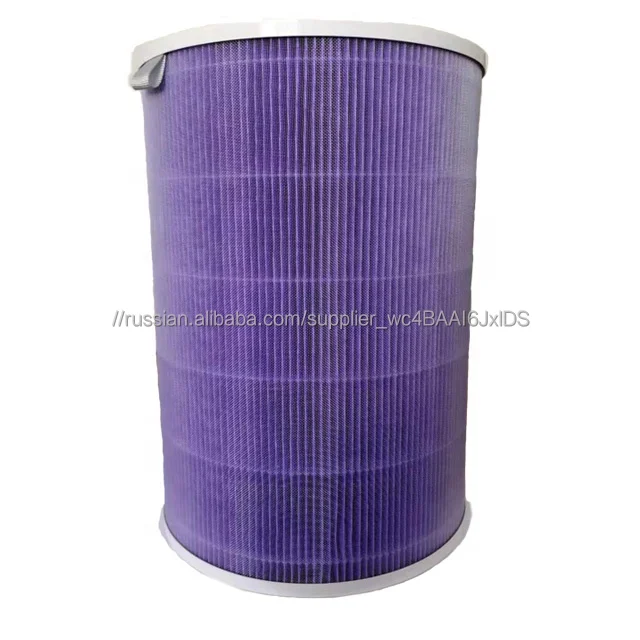

продажи фиолетовый двойной баррель эффективное удаление пыли ткань активированный уголь очиститель воздуха HEPA фильтр H13
