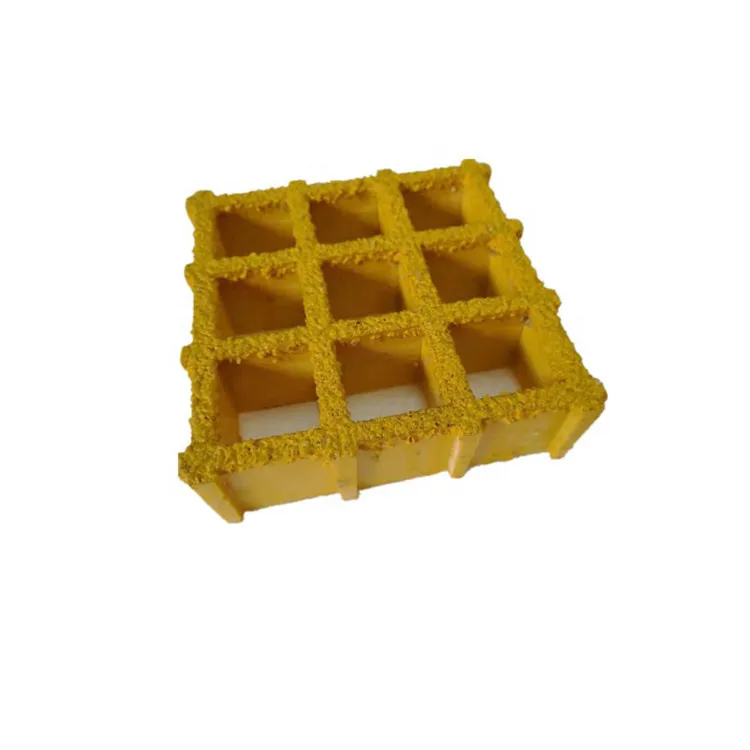

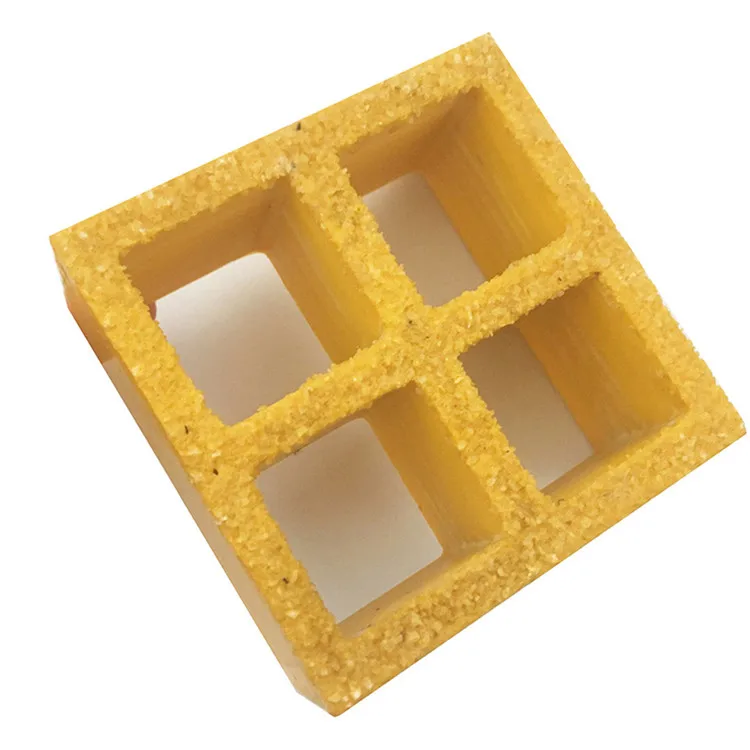

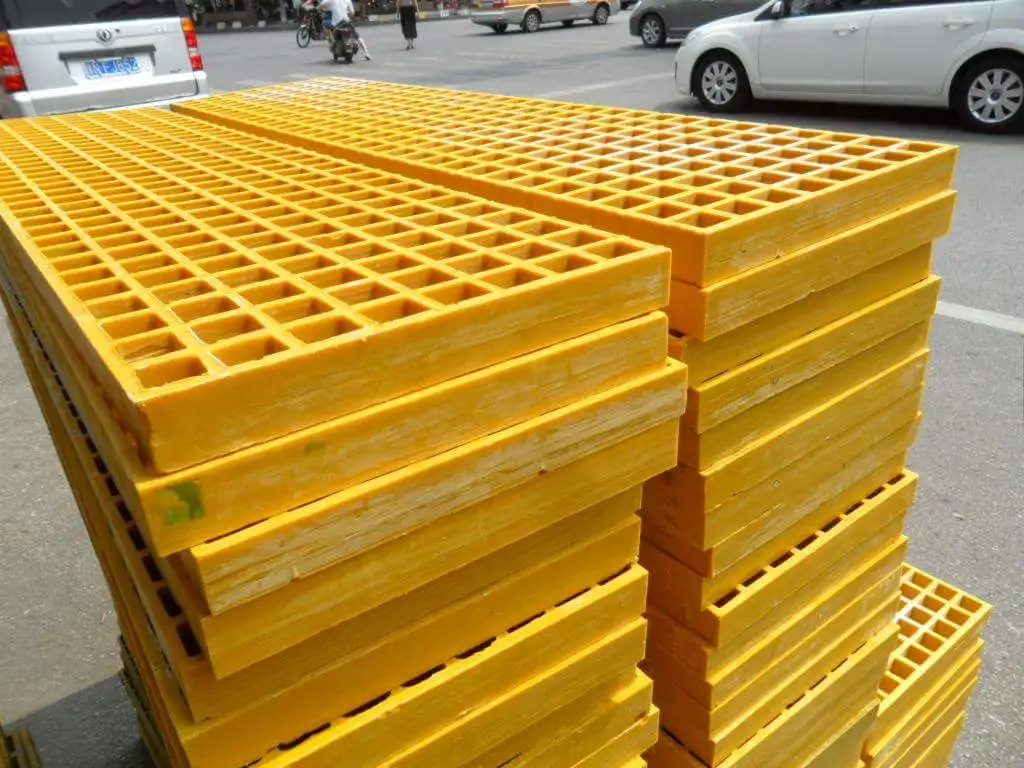

Литой Стекловолоконный FRP Grp решетка/решетка для электростанции/забор аквакультуры/тротуар
- Категория: >>>
- Поставщик: Hengshui Aoliande Trading Co. Ltd.
Сохранить в закладки 1600219944372:
Описание и отзывы
Характеристики
Product Description
FRP grating is manufcturered by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.
Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.
Detailed Image
Type M Clips
For attaching grating to supports.
Type J Clips
For attaching grating to supports for
moderate loads.
Type C Clips
For joining two unsupported edges if
needed.
Specification(mm) | Panel size(mm) |
38*38*25mm | 1220*3660 |
38*38*30mm | 1220*3660 |
38*38*38mm | 1220*3660 |
38*38*38mm | 1000*4007 |
50*50*50 | 1220*3660 |
19*19*38*38*30 | 1075*3626 |
38*38*65 | 1030*4040 |
40*40*40 | 1010*4040 |
19*19*38*38*38 | 1220*3660 |
25*25*50*50*30 | 1220*3660 |
High strength Security Anti-aging
It contains strong stress resistance, Lightweight, high strength.
Excellent electrical insulation.
UV absorption agent and polyester surface veil mat are added in the formula.
It contains strong stress resistance, Lightweight, high strength.
Excellent electrical insulation.
UV absorption agent and polyester surface veil mat are added in the formula.
Good mechanical property Inflaming Retarding
Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of project)
Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of project)

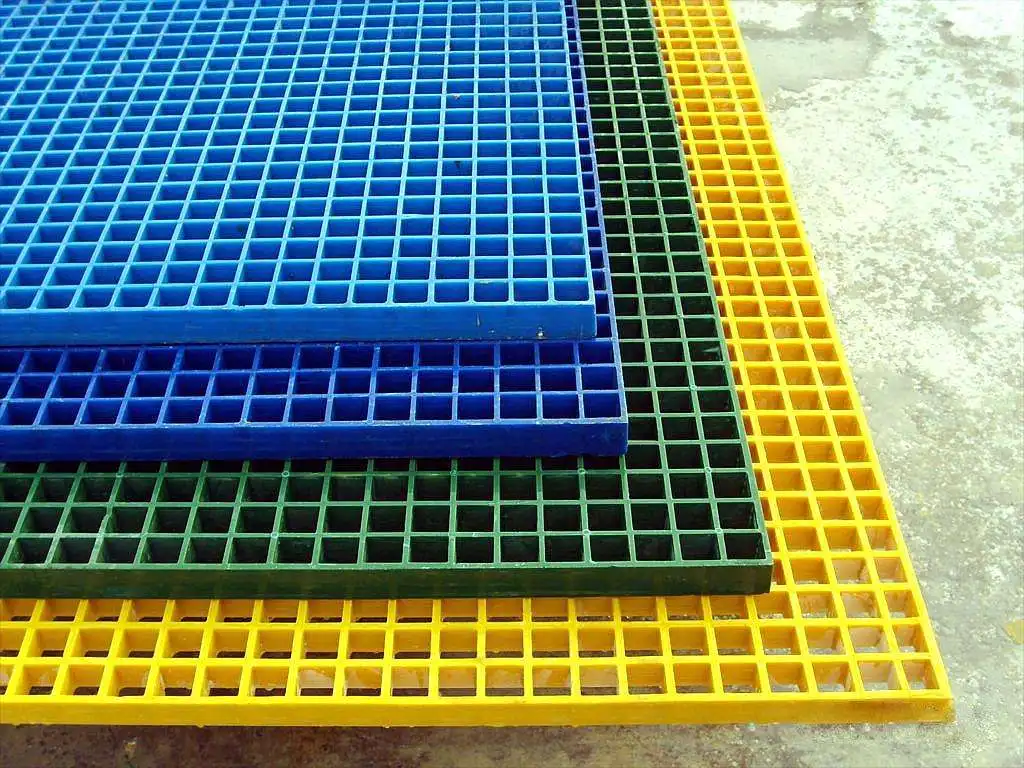

Size Color
Customized size are available.
Yellow, green, black, grey, transparent, etc
Customized color are available.
Customized size are available.
Yellow, green, black, grey, transparent, etc
Customized color are available.
Factory supply FRP/GRP Grating price, Fiberglass grating, FRP grating for car wash grate floor
Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protects the fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars are then assembled using two-piece cross bars and epoxy to mechanically join the load bars. Pultruded grating has unidirectional strength, with its much higher glass content resulting in a greater span capability than molded products. This product is usually specified in applications requiring larger spans or heavier loading.
Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protects the fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars are then assembled using two-piece cross bars and epoxy to mechanically join the load bars. Pultruded grating has unidirectional strength, with its much higher glass content resulting in a greater span capability than molded products. This product is usually specified in applications requiring larger spans or heavier loading.

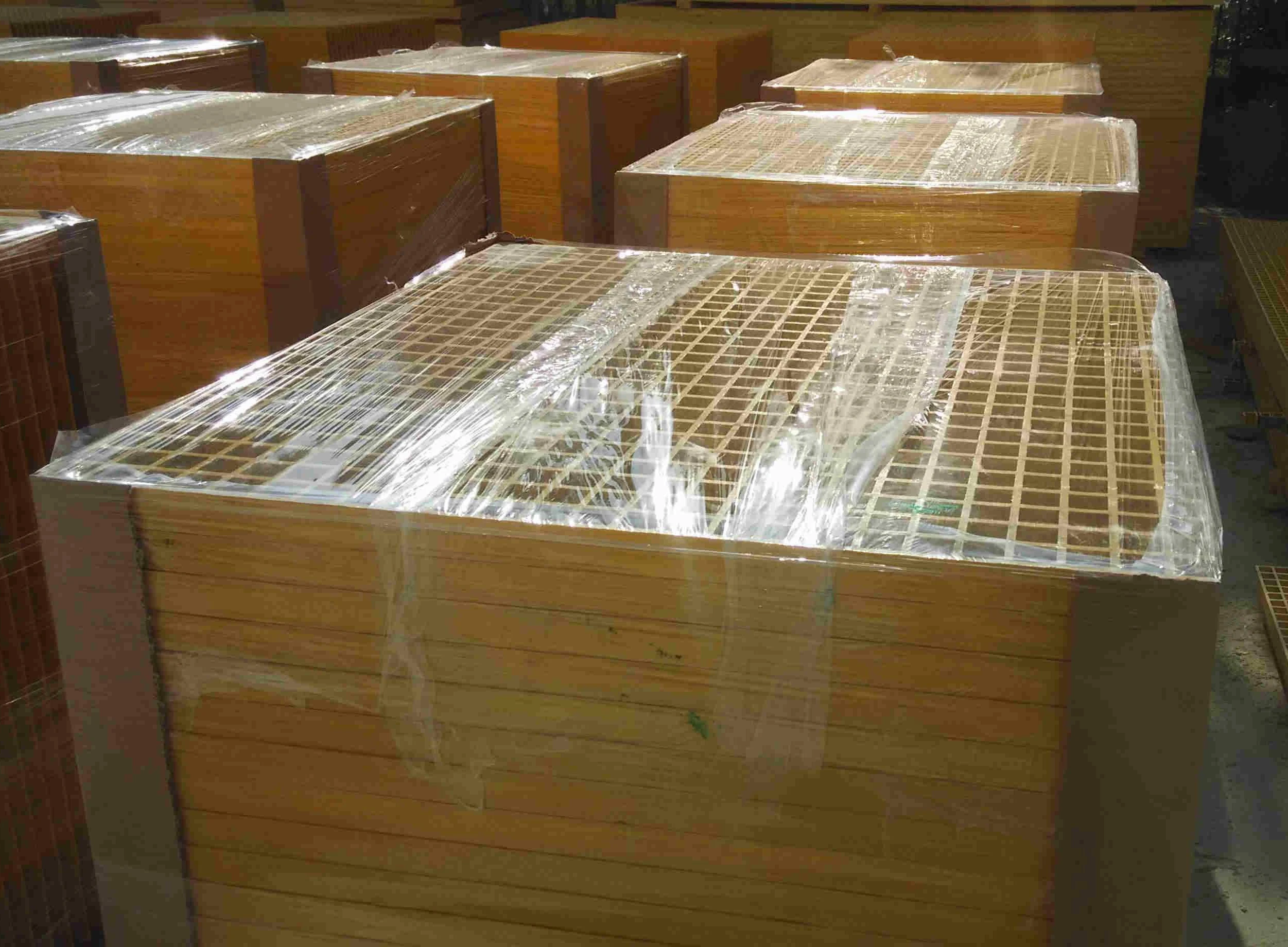

Packing & Delivery
Company Profile
Testing Center
