4G wifi промышленный двухсимочный маршрутизатор R40 DTU RTU IOT Ethernet WAN LAN DO DI AI RS232 RS485 GPS POE TCP UDP Modbus реле
- Категория: >>>
- Поставщик: Shenzhen King Pigeon Comm Co. Ltd.
Сохранить в закладки 1600220136210:
Описание и отзывы
Характеристики
About Us
King Pigeon Communication Co., Ltd. is a leading IoT solution provider since 2005. Our products and services cover GSM GPRS 3G 4G DTU, RTU, Industrial router, various monitoring & alarming system, cloud platform and complete IoT solution. We work for making people's life more convenient and comfortable
Main Products:
GSM 3G 4G SMS Alarm Controller | GSM 3G 4G Remote Switch | GSM 3G 4G Gate Opener Intercom |
GSM 3G 4G Remote Terminal Unit | GSM 3G 4G Modbus RTU | GSM 3G 4G SMS Modem DTU |
GSM 3G 4G Power IoT RTU | 433Mhz GSM 3G 4G Wireless RTU | Ethernet Remote I/O Module |
Modbus RTU Remote I/O Module | GSM 3G 4G Security System | Web Server+Cloud Platform+APP |
Quick Guide List
GSM SMS GPRS 3G 4G RTU Controller Quick Selection Guide | |
Modbus TCP Ethernet Remote I/O Module Quick Selection Guide | |
Modbus RTU Remote I/O Module Quick Selection Guide | |
GSM SMS 3G 4G Security Alarm Senior Care Quick Selection Guide |
Brief Introduction

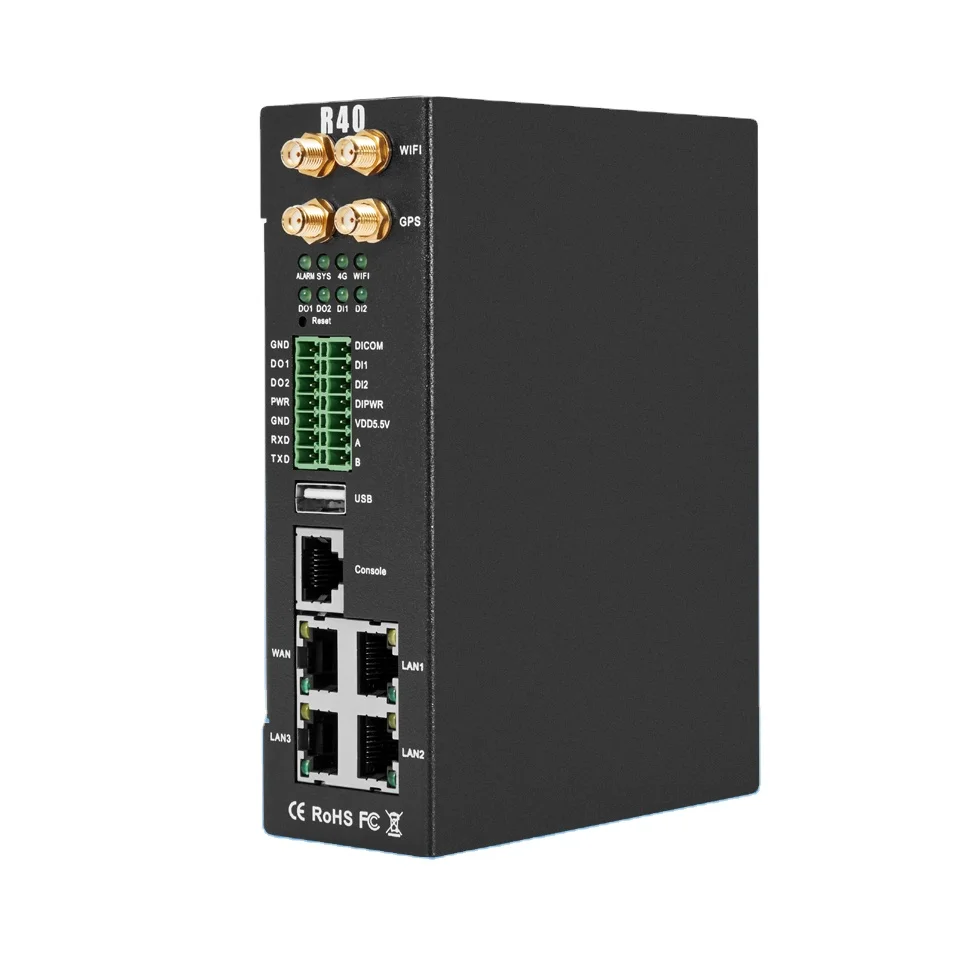

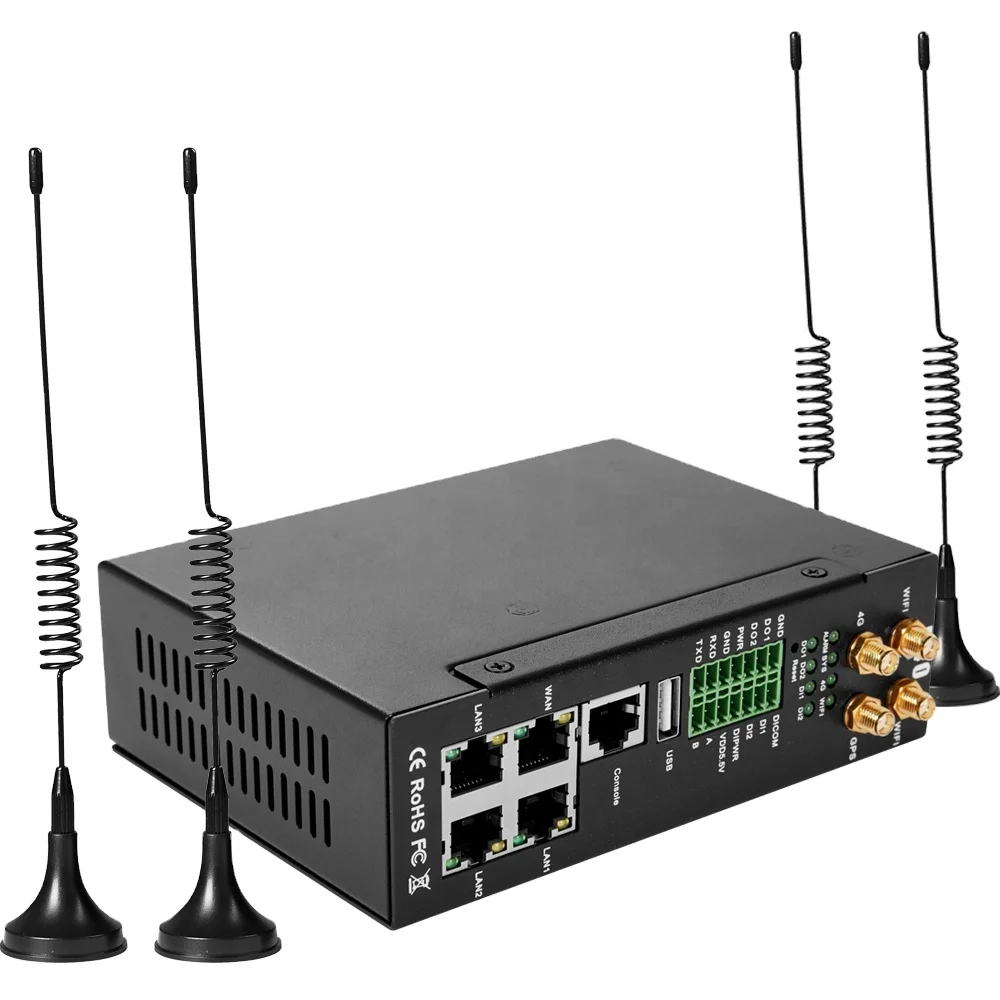

R40 4g wifi industrial dual sim router openwrt
4G LTE Industrial VPN Router R40 is an industrial-grade multifunctional Router, a powerful industrial IoT gateway. It's equipped with 2 SIMcards, 1WAN, 3LAN, WIFI, 4AIN, 2DO, 2DI, 1RS485, 1RS232. Widely used in wireless industrial Internet of Things applications.
High-performance industrial-grade cellular router adopts 32-bit processor, developed based on Linux system, supports
GSM/2G/3G/4G/GPRS/EDGE/WCDMA/HSPA+/LTE network, provides high-speed wireless network bandwidth for the device through wireless connection, and has automatic detection of network disconnection, automatic restart of dial-up failure, and scheduled restart to ensure stable network connection.
GSM/2G/3G/4G/GPRS/EDGE/WCDMA/HSPA+/LTE network, provides high-speed wireless network bandwidth for the device through wireless connection, and has automatic detection of network disconnection, automatic restart of dial-up failure, and scheduled restart to ensure stable network connection.
Item Pictures
Main Features
1. Can be operated from anywhere, no distance limitation;

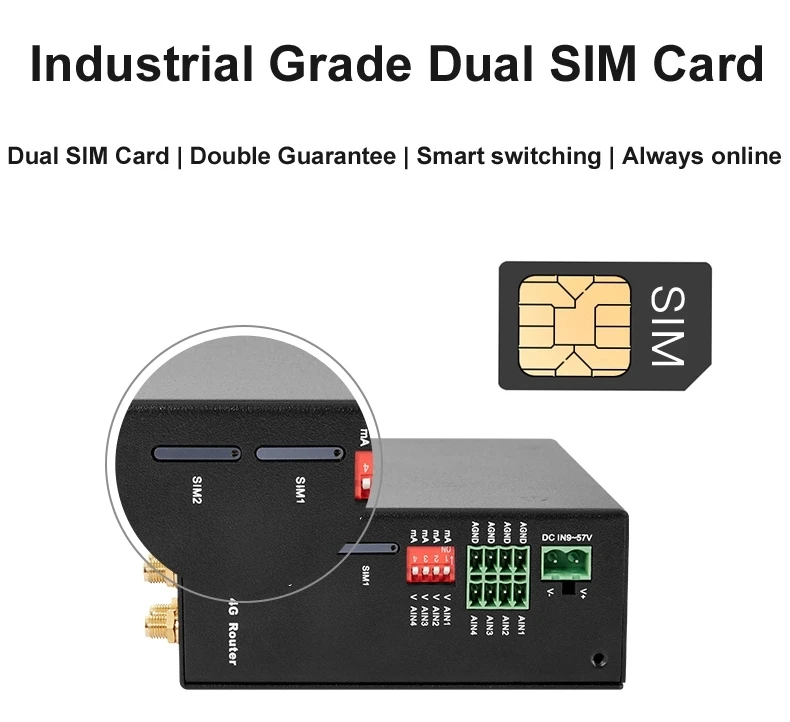

2. Dual-SIM card redundancy design, supports 3G/4G LTE networks;
3. Embedded 580MHz MIPS 24KEc CPU with Linux openWRT system;
4. Wide range power supply 9~57VDC with over voltage and phase-reversal protection;
5. Supports 2.4G WIFI AP and STA mode, comply with 802.11a/b/g/n（mixed）;
6. 1 RJ45 for WAN Port, 3 RJ45 for LAN Port, supports 10/100M,MDI/MDIX;
7. 4 Analog inputs(16bits), 2 DO, 2 DI, 1 RS485, 1 RS232;
8. Inbuilt inter-lock logic programmer and powerful timer program function;
9. Resend data when there is communication failure.
10. Monitoring Network connection status and alarm by SMS;
11. Support VPN security tunneling, including PPTP, L2TP, OPENVPN;
12. Support ARP, DDNS, DHCP, DNS , HTTP,HTTPS, ICMP, PPP, PPPoE, SMTP, SNTP, SSL,TCP/IP, Telnet, UDP protocols;
13. Supports Modbus RTU Master, Modbus TCP Master, DLT645, IEC104, PLC Protocols;
14. Supports Modbus TCP, MQTT, AWS IOT, Aliyun IoT and other IOT protocols;
15. Support 3 POE power output Compatible with IEEE802.3at / af standards
Single POE maximum output power 30W;
16. Intelligent anti-drop line, support online detection, online maintenance, ensuring that the device is always online;
17. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial
applications in the field;

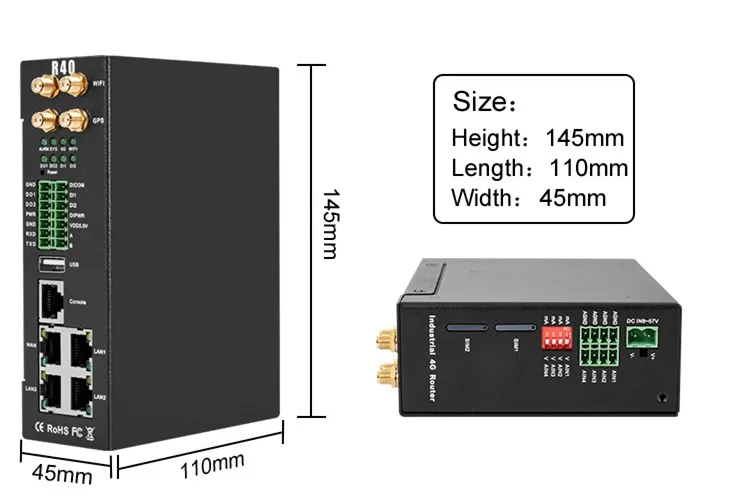

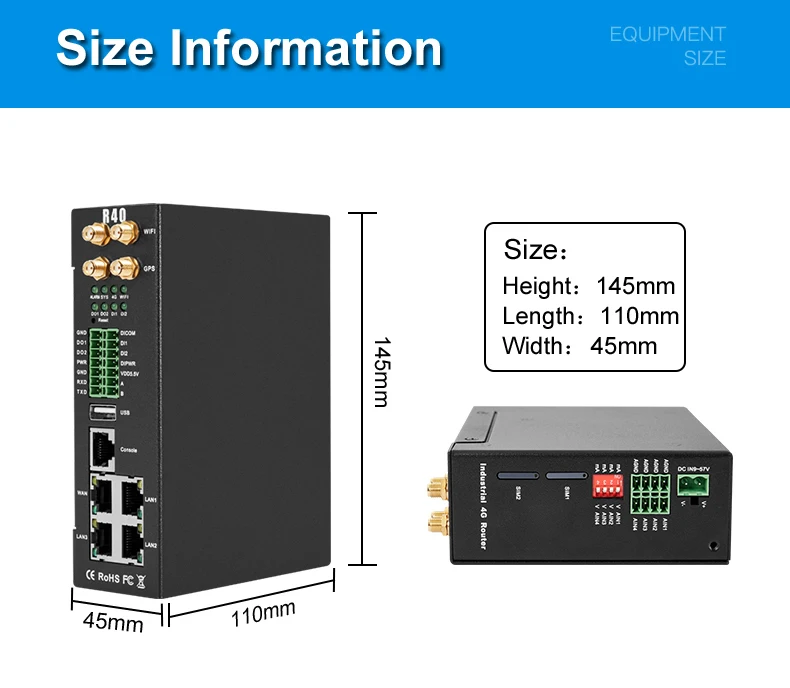

18. L145 * W110 * H45mm, compatible wall installation and DIN35mm industrial rail installation.
2. Dual-SIM card redundancy design, supports 3G/4G LTE networks;
3. Embedded 580MHz MIPS 24KEc CPU with Linux openWRT system;
4. Wide range power supply 9~57VDC with over voltage and phase-reversal protection;
5. Supports 2.4G WIFI AP and STA mode, comply with 802.11a/b/g/n（mixed）;
6. 1 RJ45 for WAN Port, 3 RJ45 for LAN Port, supports 10/100M,MDI/MDIX;
7. 4 Analog inputs(16bits), 2 DO, 2 DI, 1 RS485, 1 RS232;
8. Inbuilt inter-lock logic programmer and powerful timer program function;
9. Resend data when there is communication failure.
10. Monitoring Network connection status and alarm by SMS;
11. Support VPN security tunneling, including PPTP, L2TP, OPENVPN;
12. Support ARP, DDNS, DHCP, DNS , HTTP,HTTPS, ICMP, PPP, PPPoE, SMTP, SNTP, SSL,TCP/IP, Telnet, UDP protocols;
13. Supports Modbus RTU Master, Modbus TCP Master, DLT645, IEC104, PLC Protocols;
14. Supports Modbus TCP, MQTT, AWS IOT, Aliyun IoT and other IOT protocols;
15. Support 3 POE power output Compatible with IEEE802.3at / af standards
Single POE maximum output power 30W;
16. Intelligent anti-drop line, support online detection, online maintenance, ensuring that the device is always online;
17. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial
applications in the field;
18. L145 * W110 * H45mm, compatible wall installation and DIN35mm industrial rail installation.
Product Details
More Information
Download User Manual, App, PC configurator please visit our website:
For Industrial IoT Solutions: //www.GPRS-M2M.COM
For Home Security Alarms: //www.GSMalarmsystem.com
For Industrial IoT Solutions: //www.GPRS-M2M.COM
For Home Security Alarms: //www.GSMalarmsystem.com
Похожие товары
Новинка 2019, мужской дождевик с крышкой, дождевик из ПВХ для взрослых, мотоциклетный дождевик для прогулок
19,00 $ - 21,00 $
Лидер продаж, профессиональный бензиновый мини-Квадроцикл для детей
LaunLin 8bar air compressor 175HP compressor 132kw air screw compressors
2 360,00 $ - 2 500,00 $

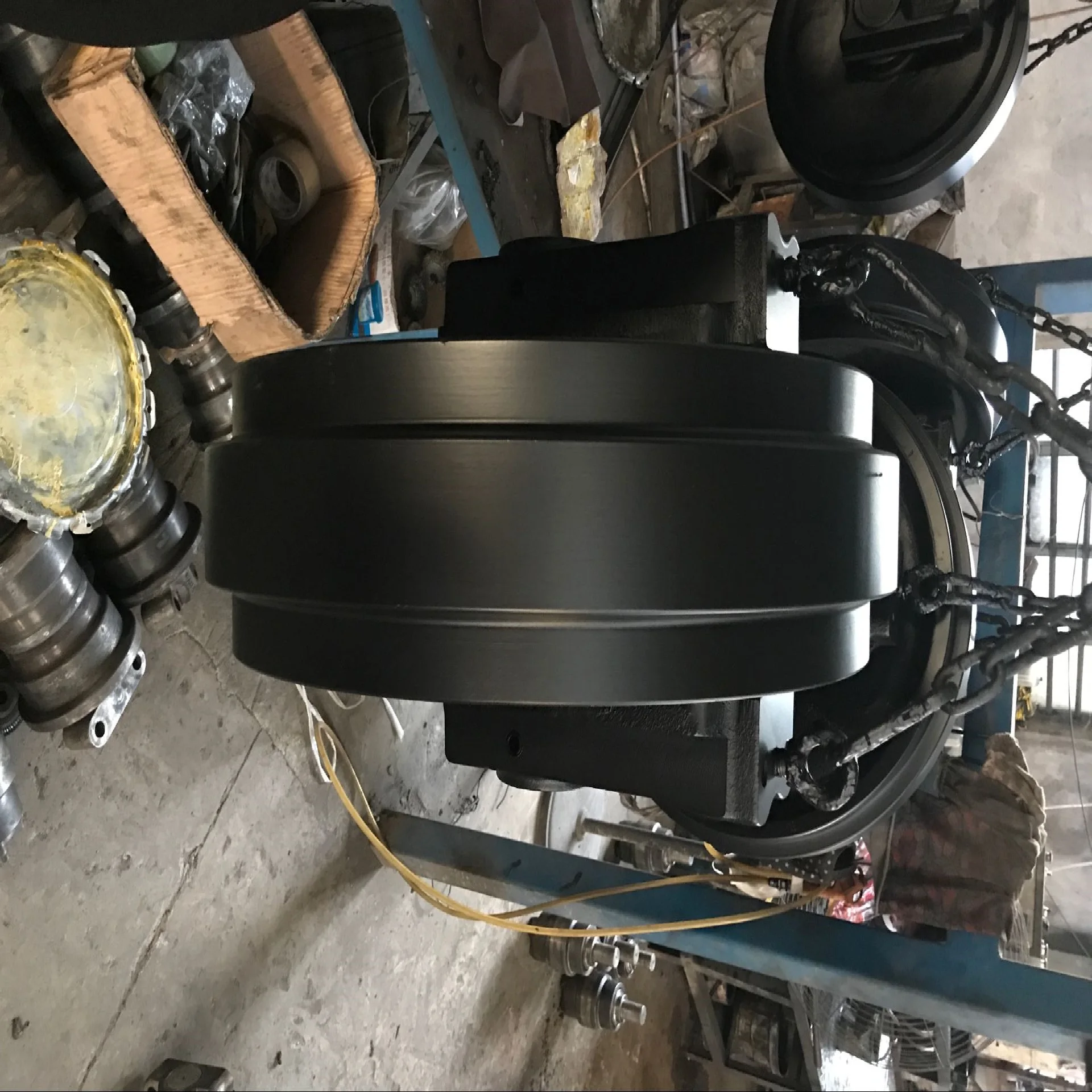

Запчасти для строительной техники Запчасти для ходовой BERCH PC200-5 20Y-30-00030 Натяжной PC100 PC300 PC400

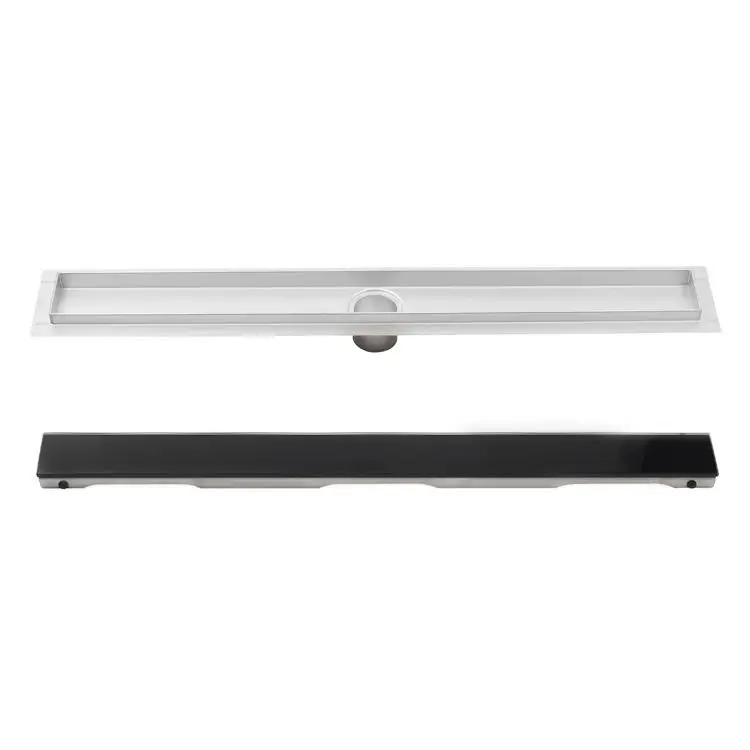

Дренажная Система во французском стиле, дренажный шланг для душа, роскошный водный дренажный канал для душа

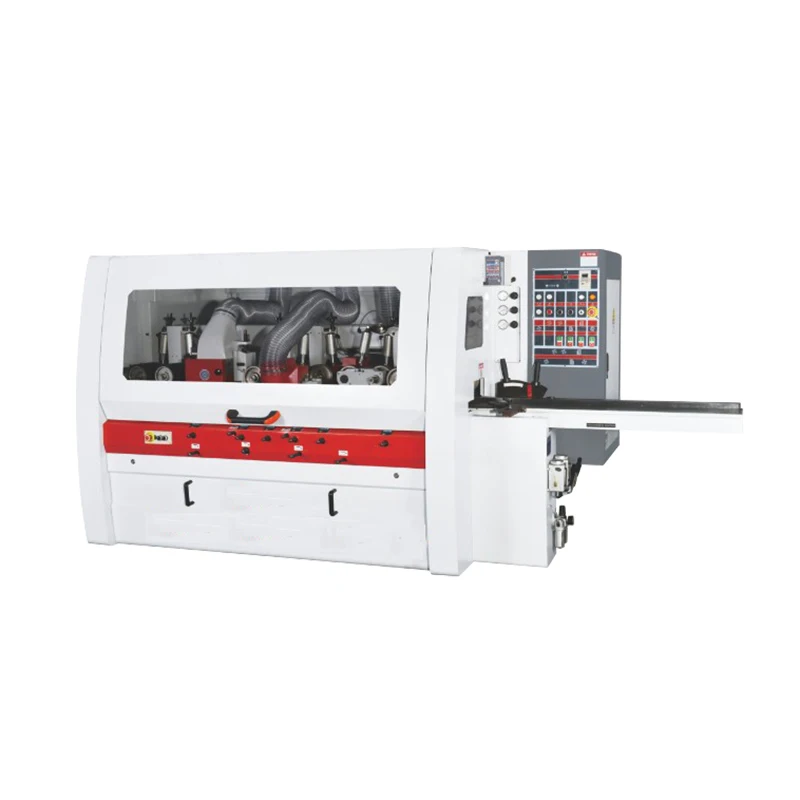

Автоматический четырехсторонний строгальный станок ZICAR
