Solis-1P5K-4G инвертор для галстуков 5 кВт 10 20 солнечный 5000 Вт 8000
799,00-1 155,00 $
Jinsdon Factory HHP 48 Plus 1kw 2kw 3kw 4kw 5kw off Grid Hybrid Solar Inverter for air Conditioner Pure Sine Wave
- Категория: Солнечные инверторы >>>
- Поставщик: Shenzhen Jinsdon Lighting Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600220555792:
Описание и отзывы
Характеристики
Jinsdon factory HHP-48 plus 1kw 2kw 3kw 4kw 5kw off grid
hybrid solar inverter for air conditioner pure sine wave output
Specification
Features of solar power inverter HHP-48 series
* Pure sine wave inverter;
* Inverter running without battery;
* Built-in MPPT solar controller;
* Configurable input voltage range for home appliances and personal computers via LCD setting;
* Configurable AC/Solar charge priority via LCD setting;
* Compatible to mains voltage or generator power;
* Auto restart while AC is recovering;
* Overload/Over temperature/ short circuit protection;
* Smart battery charge design for optimize battery performance;
* Cold start function;
* Smart WIfi remote monitoring (optional);
* Parallel operation with up to 6 units.
* Inverter running without battery;
* Built-in MPPT solar controller;
* Configurable input voltage range for home appliances and personal computers via LCD setting;
* Configurable AC/Solar charge priority via LCD setting;
* Compatible to mains voltage or generator power;
* Auto restart while AC is recovering;
* Overload/Over temperature/ short circuit protection;
* Smart battery charge design for optimize battery performance;
* Cold start function;
* Smart WIfi remote monitoring (optional);
* Parallel operation with up to 6 units.
LCD Display Information
Solar System Connection
MODEL | Glory M1500 HHS-24 | Glory M3000 HHS-24 | Glory M5000 HHS-48 | Glory M5000 HHP-48 | ||||
Capacity | 1.5KVA/1.5KW | 3KVA/3KW | 5KVA/5KW | 5KVA/5KW | ||||
Parallel Capability | NO | NO | NO | YES, 9units | ||||
INPUT | ||||||||
Nominal Voltage | 230VAC | |||||||
Acceptable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) | |||||||
Frequency | 50/60HZ (Auto sensing) | |||||||
OUTPUT | ||||||||
Nominal Voltage | 220/230VAC ± 5% | |||||||
Surge Power | 3000VA | 6000VA | 10000VA | 10000VA | ||||
Frequency | 50Hz/60Hz | |||||||
Waveform | Pure Sine Wave | |||||||
Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) | |||||||
Peak Efficiency (PV to INV) | 97% | |||||||
Peak Efficiency (Battery to INV) | 93% | |||||||
Overload Protection | 5s@>=150% load; 10s 110%~150% load | |||||||
Crest Factor | 3:1 | |||||||
Admissible Power Factor | 0.6~1(inductive or capacitive) | |||||||
BATTERY | ||||||||
Battery Voltage | 24 VDC | 24VDC | 48 VDC | 48 VDC | ||||
Floating Charge Voltage | 27 VDC | 27 VDC | 54 VDC | 54 VDC | ||||
Overcharge Protection | 33 VDC | 33 VDC | 63 VDC | 63 VDC | ||||
Charging Method | CC/CV | |||||||
Solar Charge & AC Charge | ||||||||
Solar Charge Type | MPPT | |||||||
Max. PV Array Power | 2000W | 4000W | 5000W | 5000W | ||||
Max. PV Array Open Circuit Voltage | 500 VDC | |||||||
PV Array MPPT Voltage Range | 120VDC~450 VDC | |||||||
Maximum Solar Input Current | 10A | 15A | 18A | 18A | ||||
Maximum Solar Charge Current | 60A | 80A | 80A | 80A | ||||
Maximum AC Charge Current | 40A | 60A | 60A | 60A | ||||
Maximum Charge Current | 60A | 80A | 80A | 80A | ||||
Communication Interface | USB/RS232/Dry-contact | |||||||
Environment | ||||||||
Operating Temperature | (-10℃~50℃) | |||||||
Storage Temperature | (-15℃~60℃) | |||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||
Nature | ||||||||
Size (L*W*H) | 448mm*295mm*105mm | |||||||
Packing Size (L*W*H) | 565mm*380mm*190mm | |||||||
Gross Weight (kg) | 8.5 | 9 | 10 | 10 | ||||
Communication Method | USB/RS232/Dry Contact | |||||||
Recommend Products

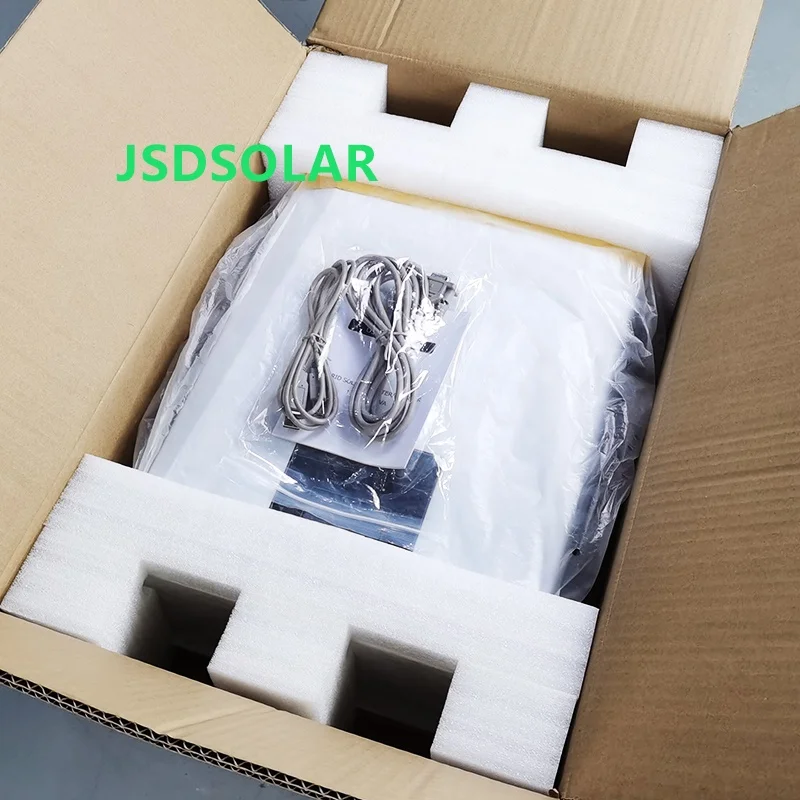

Packing & Delivery
Our Service
Samples, OEM and ODM, Warranty and After-Sale Service:
* Welcome Solar Power Inverter Sample Test;
* OEM & ODM is welcomed;
* Warranty: 3 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
* Welcome Solar Power Inverter Sample Test;
* OEM & ODM is welcomed;
* Warranty: 3 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
Jinsdon History
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent |
Exhibition
Certificate
FAQ
Q1: How to choose a right inverter?
A1: Tell us your demand, then our sellers will recommend suitable inverters to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: 3 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Tell us your demand, then our sellers will recommend suitable inverters to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: 3 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: what kinds of solar system do your inverter fit for?
A6: Our solar inverter is combined with solar inverter and MPPT charge controller, and it is suitable for hybrid and off grid solar energy system.
Why not press the below "SEND" button to send us an email about your detail requirements?
A6: Our solar inverter is combined with solar inverter and MPPT charge controller, and it is suitable for hybrid and off grid solar energy system.
Why not press the below "SEND" button to send us an email about your detail requirements?
