Стальная труба для теплообменника сверления Расточного глубокого
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Xiamen Openex Mechanical Technology Limited
Сохранить в закладки 1600220657992:
Описание и отзывы
Характеристики
Details Images
Tube Sheet for Heat Exchanger
Low Alloy Structural Steel 20MnMo, Diameter 3692mm, Depth 638mm, 5723 holes
Tube Sheet for Heat Exchanger
Diameter 4520 mm, Thickness 200 mm, Weight 45 tons
Products Description
Description | Deep Drilling Hole Steel Tube Sheet for Heat Exchanger |
Material | Carbon Steel, Stainless Steel |
Finish | Degreasing, Tarnishment |
External Size | Max. Diameter 11.9m |
Hole Depth | Max. 1100 mm |
Deep Drilling Hole Steel Tube Sheet for Heat Exchanger
A tube sheet (or tubeplate), is a flat plate with a number of small holes evenly distributed which are used to fix and support
thin walled tubes in parallel. Round shape tube sheets are most widely used, but rectangular and square shapes are also
occasionally adopted. We have contracted to custom make a variety of tube sheets for heat exchangers, boilers, pressure vessels used in many industries like nuclear power, petro-chemical, water-treatment, new energy, etc. The bespoke tube plates we have produced feature as below:
* Large diameter capability up to 11900mm (11.9 meter)
* High precision, very narrow tolerance
* Deep boring possible up to 1100mm (1.1 meter)
* Complex hole shapes possible
* Multi machining processes possible
* Metal material can be carbon steel, stainless steel, and special alloys including Titanium.
thin walled tubes in parallel. Round shape tube sheets are most widely used, but rectangular and square shapes are also
occasionally adopted. We have contracted to custom make a variety of tube sheets for heat exchangers, boilers, pressure vessels used in many industries like nuclear power, petro-chemical, water-treatment, new energy, etc. The bespoke tube plates we have produced feature as below:
* Large diameter capability up to 11900mm (11.9 meter)
* High precision, very narrow tolerance
* Deep boring possible up to 1100mm (1.1 meter)
* Complex hole shapes possible
* Multi machining processes possible
* Metal material can be carbon steel, stainless steel, and special alloys including Titanium.
Material Introduction
We provide a comprehensive range of custom cost effective very thick tube sheets with deep holes by precision metal services to customers around the globe. We not only work with all the typical metals, such as carbon steel, stainless steel, aluminum and copper alloys, but also rare metals like nickel and titanium alloys.
CNC Machining
Manufacturing Process
Our cost effective precision metal machining for tube sheets and baffle plates include planing, cutting, milling, drilling, grinding, and any other metal processing techniques. Usually, for a round tube sheet or baffle not very thick, we can get the workpiece from cutting the metal sheet. Equipped with all series of world-class CNC machine tools like: Germany Schiess Double-gantry boring and milling machine, Italy PAMA large boring mill, Japan Mitsubishi horizontal boring and milling machine, China WZ large vertical turning center, Openex have the ability to complete a variety of tube sheets with tight tolerances in a few days after receiving the orders.
Plasma Cutting
We can get the workpieces with rough external dimensions
Lathe Turning
Machining by CNC vertical lathe
Vertical Hole Drilling
Hole drilling for small or medium size tube sheet

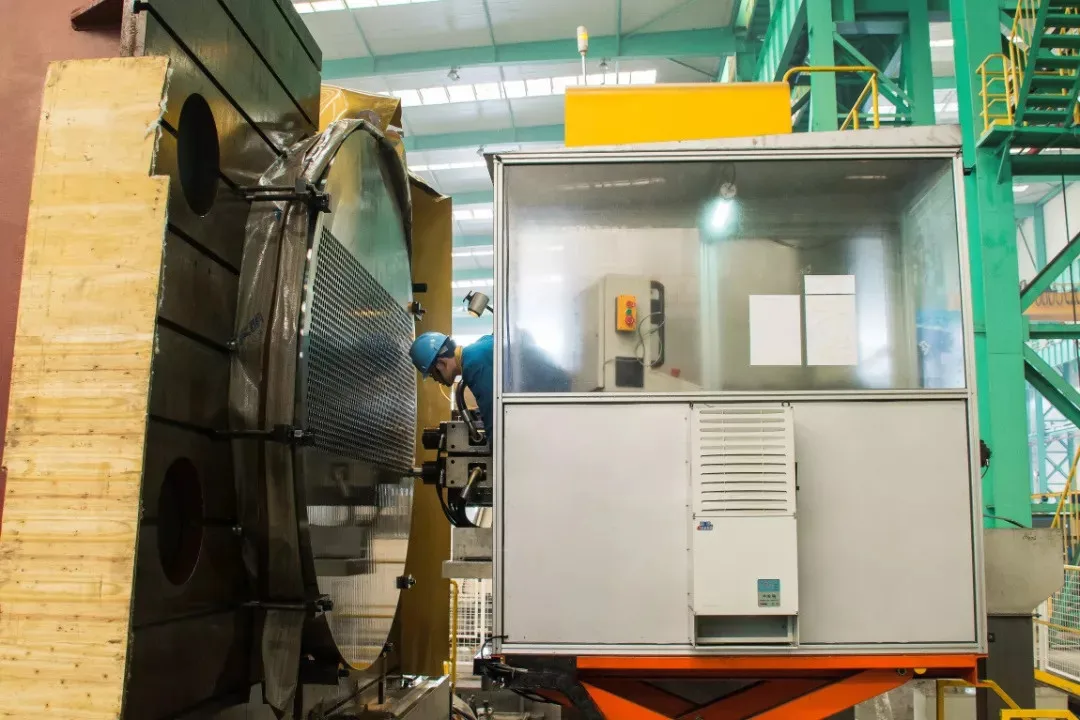

Deep Hole Drilling for Heat Exchanger Tube Sheet
Low Alloy Structural Steel 20MnMo, Diameter 3692mm, Depth 638mm, 5723 holes

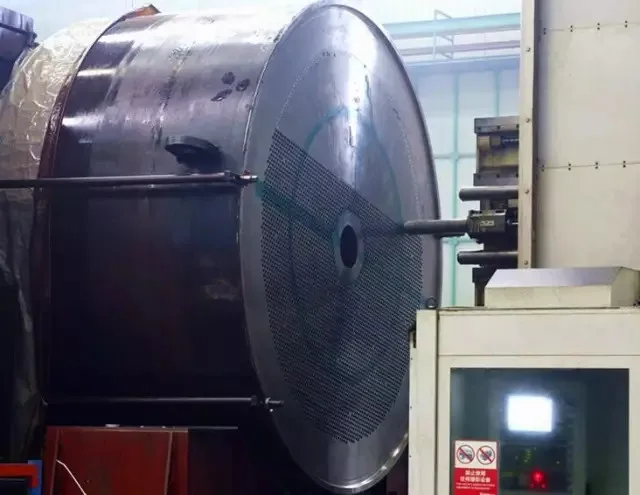

Deep-drilling for Heat Exchanger Tube Sheet
Diameter 4520 mm, Thickness 200 mm, Weight 45 tons

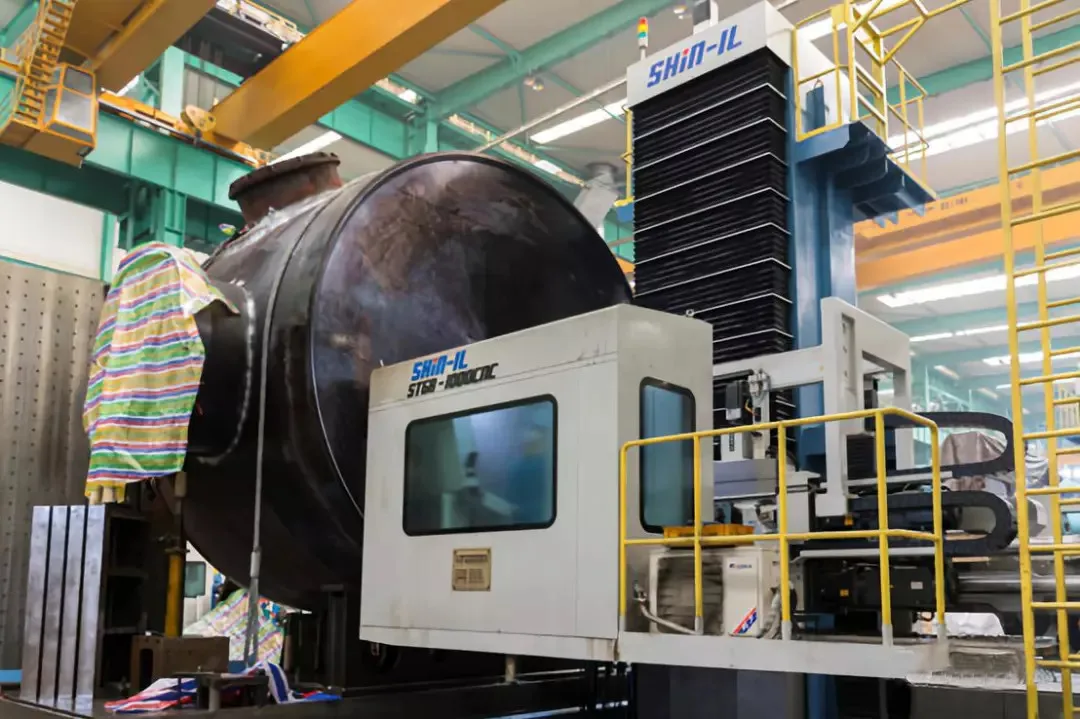

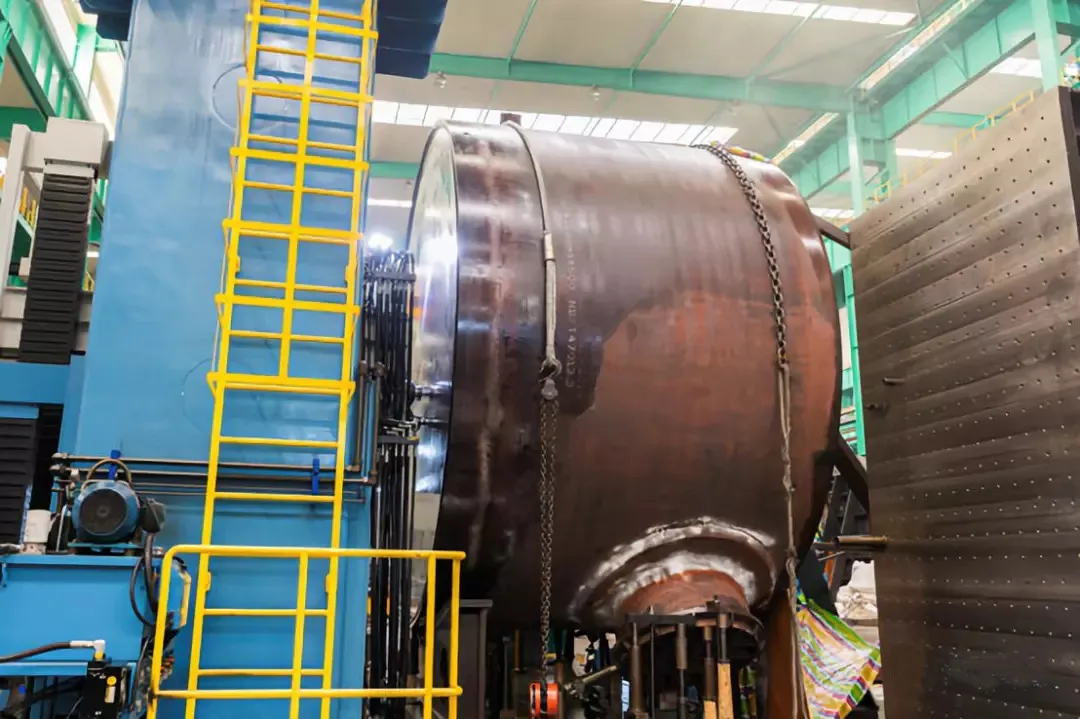

Horizontal Deep Hole Drilling
In case of very thick tube sheet with deep holes, we choose horizontal drilling.
Deep Hole Drilling
16MnIII+S22053 for chemical industry
Quality Assurance
Quality Inspection
We have equipped our factory with the best inspection tools, like Leica AT901-LR laser tracker and different types of CMM test machines, which make our quality guaranteed. Being a one-station-shop company, we can handle all the other related processes like heat treatment, sand blasting, x-ray testing, etc.
Measuring Dimensions
The dimensions should be within the very narrow tolerances.
In-process Quality Inspection
Preventing the defects from happening in the first place.
Coordinate-Measuring Machines
Our Zeiss CMM can work on 7000x4000x3000mm with an accuracy of 0.43 micron (0.00043mm).
Case Study
Applications
We can manufacture a full range of tube sheets which are widely used in many different industries, some of which are listed below.
Petrochemical
Environment Protection
Power Generation
About Manufacturer
About Us
Openex Mechanical Technology Co., Ltd is one of very few companies that can provide comprehensive metalworking services to customers worldwide. Our services typically include machining, cost effective metal pressings and stamped parts precision metal and casting for metal parts, components, subassemblies, and complete assemblies, especially for large and medium size with high precision. We have a vast range of world-class machine tools and advanced inspecting tools, and they have been successfully providing services for more than 30 industrial giants listed among the Fortune 500. We use our knowledge and expertise to devise and employ solutions that exceed our customers’ expectations, and our wealth of industry experience allows us to offer suggestions to help customers optimize designs and find more efficient production procedures.
Certificates
We understand the importance of meticulous quality management and we have already passed certificates of ISO, CE, ASME, API, LR etc. Whatever your metalwork requirements are, no task is too large, no task is too complex for Openex. We pride ourselves on being one of the most professional and reliable suppliers, not just through quick delivery, but also creative capability to meet customer’s increasing diversified and specified demands in metalworking.
