Экономичный электронный компонент SMD компонентная ленточная машина Автоматическая и катушечная
- Категория: Electronics Production Machinery >>>
- Поставщик: Shenzhen Yuyang New Material Co. Ltd.
Сохранить в закладки 1600221739904:
Описание и отзывы
Характеристики
Dear customer ；
Before you browse, I want to say:
1. The data on this detail page is for reference only;
2. The mechanical manual is different according to your product, and different electronic components need to use different configurations of packaging machines.
3. If you need to know more details, please contact our customer service staff.
Thank you for browsing.
Product Description
1 Type & Name
Item Code: Z6601
-s \t----P-----
1) Lateral feeding structure; 2) Vertical feeding structure
Carrier
Conversion
Bulk material
2 The use scope:
It is a packaging machine for semiconductor materials and applicable to volum packing. Loading material through vibrating disk and taking out material by vacuum manipulator so that materials can be carried to carrier band for packing.
This is a machine which characterized by self-adhesion / hot-press sealing to those mold cavity depth≦5mm and width≦24mm
etc.
3 Specification and technical parameters
Item | Parameters |
External Dimension | 1500mm length/700mm width/1450mm height,weight 200 kg |
Dynamical System | Monophase AC220V,50HZ;5.0kg/cm²≦Pressure≦9.0kg/cm² |
Rated Power | 4.6KW |
Feeding System | Be applicable to tape wheel and supporting upper cover tape with standrad as EIA-481A. |
Braid Speicification | width≦24mm depth≦5mm |
Temperature control System | Single-end PID temperature controller,temperature control: 120℃-200℃ |
Braiding Velocity | 6000-7000pcs/h,Limited by components specification. |
Tally Function | Internal system pulse counting |
Sealing mode | self-adhesion / hot-press |
Landing material plate | 17,19.6,28.8,35.4 inch plastic plate or paper plate. |
Work environment | Dust-free plant,0℃≦temperature≦50℃,35%≦humidity≦85%no condensation. |

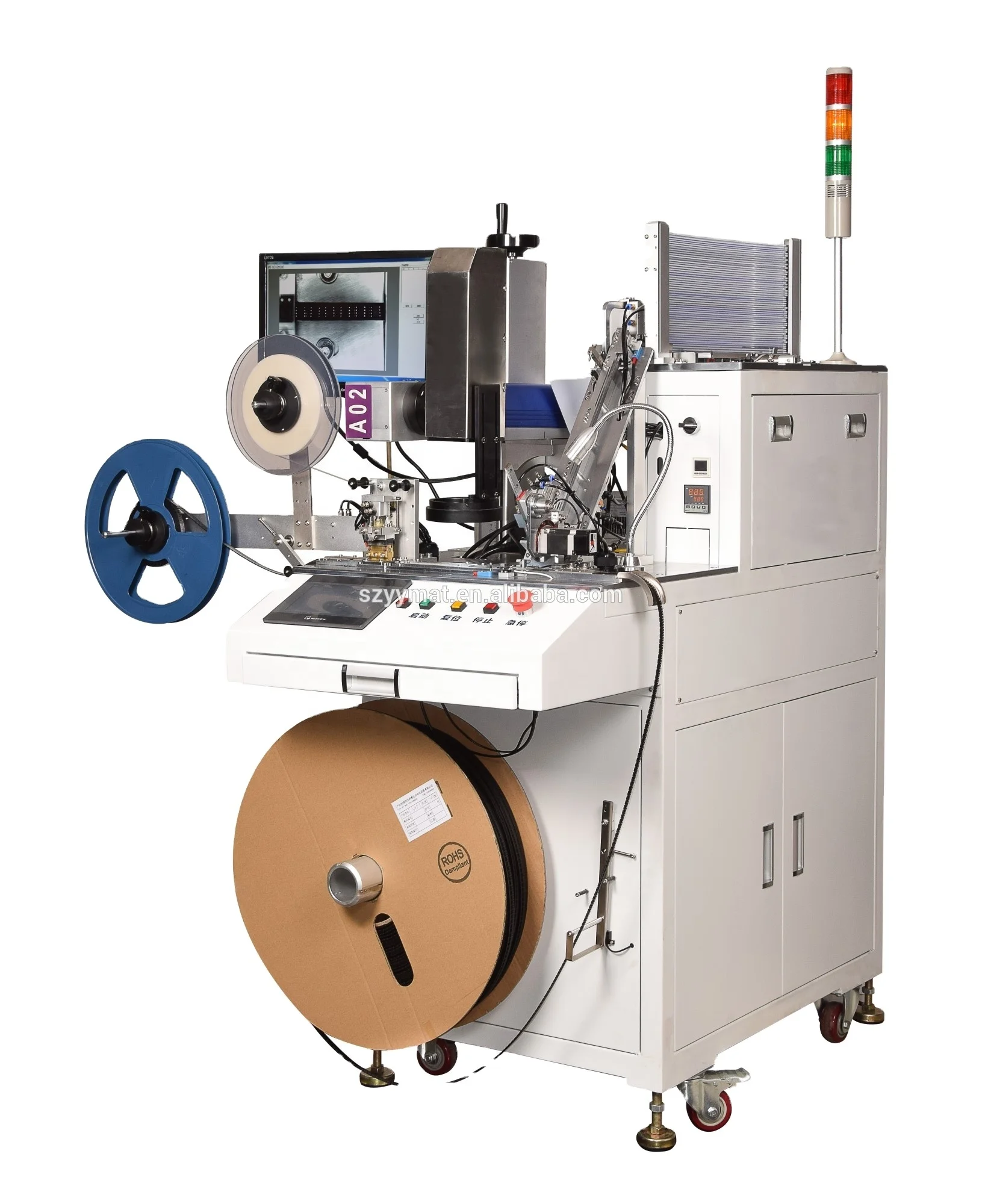

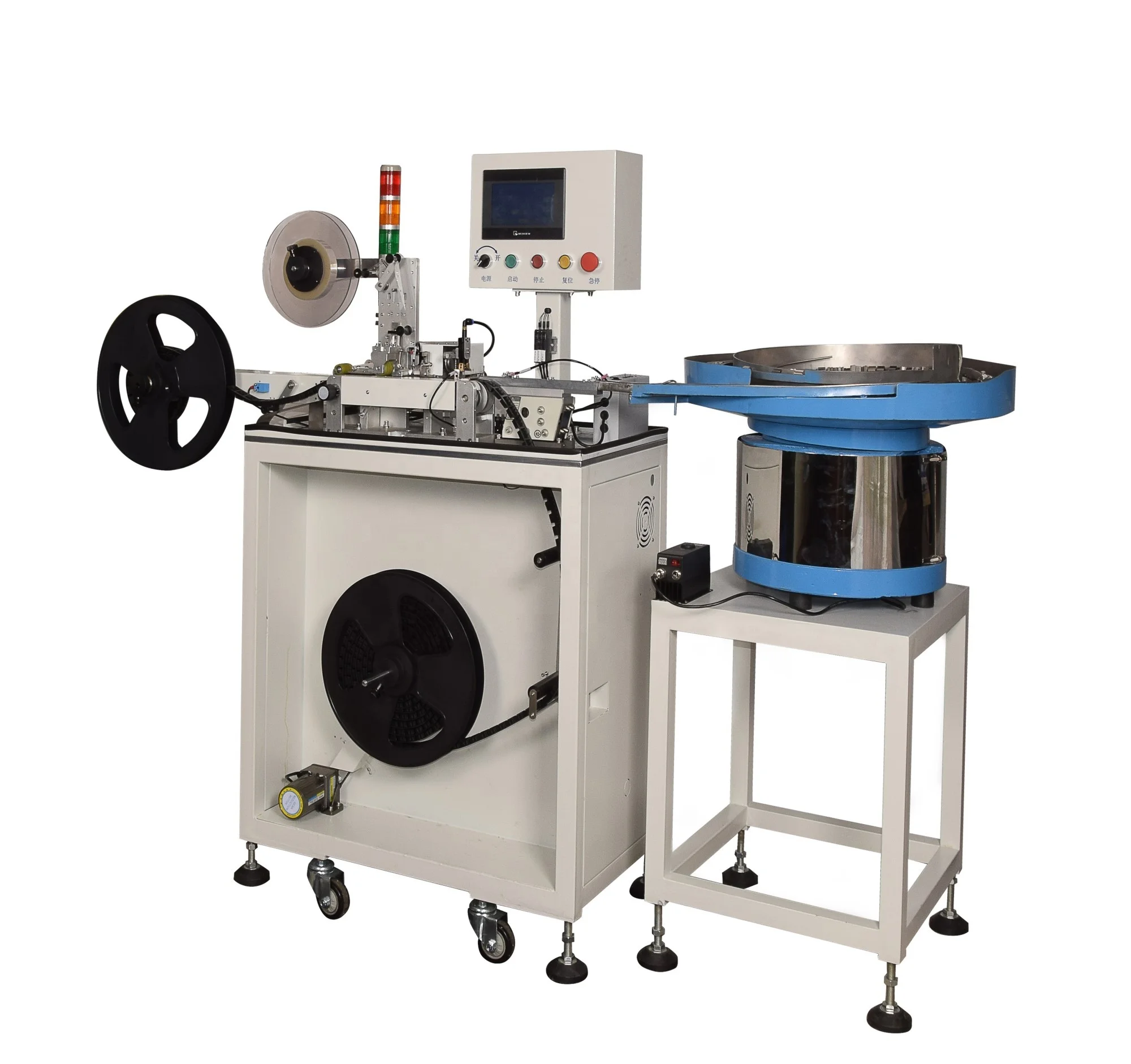

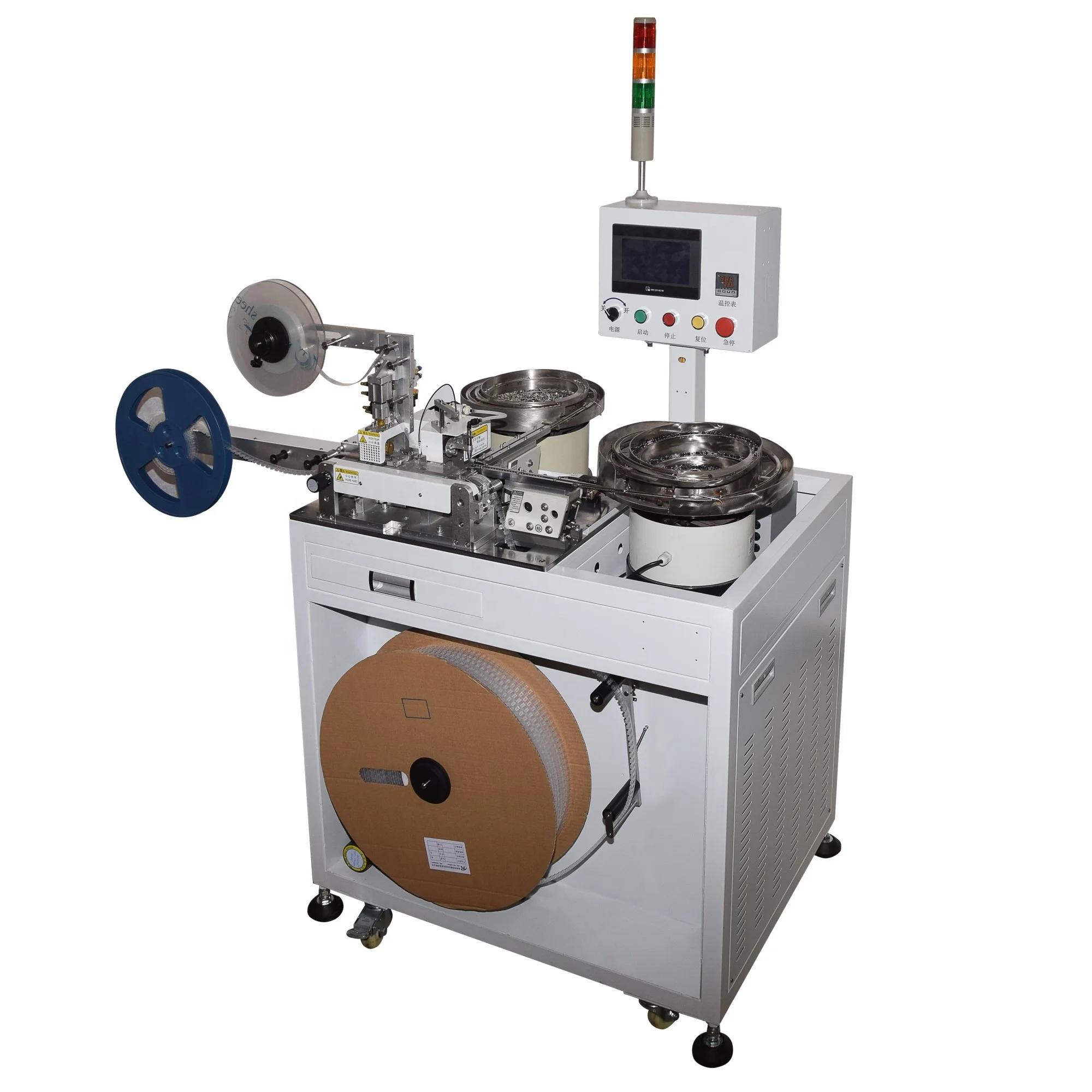

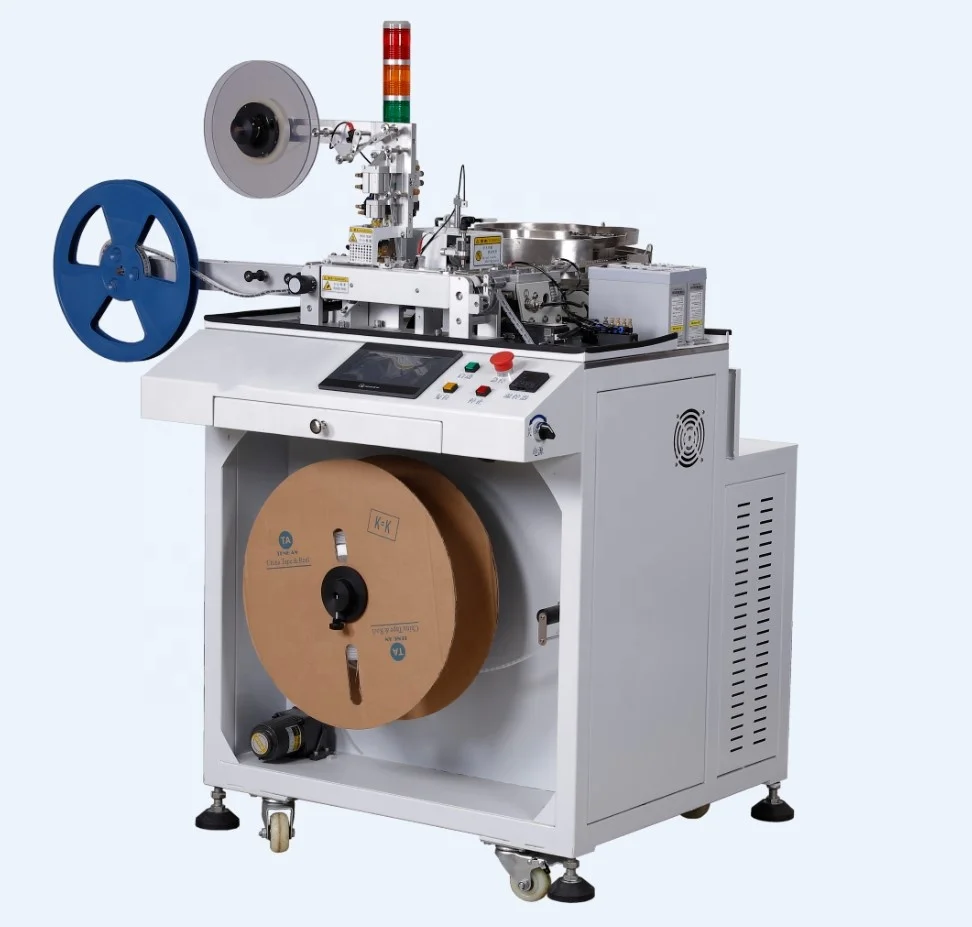

Products Show
Our Service
High quality
Our products meet various environmental certifications and cooperate with well-known global companies for a long time.
High efficiency
We are a direct manufacturer, we can provide you with fast delivery service, and you can also tailor the product according to your requirements.
Carefree after-sales service
We provide you with permanent free technical guidance support services.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our production workshop
Warehouse
Our production workshop
Packing & Delivery
Our Certifications
Best stainless
Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,
Customer Photo
Scope of application

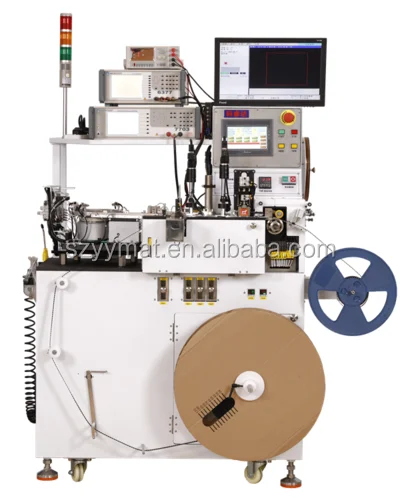

Inductive test spray code placement integrated automatic packaging machine
Scope of application
Inductor packaging machine
Title goes here.
FAQ
Q1. Can I have a sample order for Carrier tape and Cover tape?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs1-2 days, mass production time needs 2-3 weeks for order quantity more than
Q3. Do you have any MOQ limit for Carrier tape and cover tape order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Carrier tape and cover tape?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Carrier tape and cover product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, We offer lifetime free technical service support for our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new tape with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
