Water tank is widely used in factories, enterprises, institutions, residences, hotels and other places to store drinking water, sewage, fire fighting water, etc.

Different type :

Stainless steel water tank

Hot-dip galvanized water tank

FRP water tank

Features:

Beautiful appearance
Anti-corrosion and durable
Flexible installation
Widely applicable

1.Specification list :

2.Water tank from different material for your choice :

2.1 Stainless steel water tank:

a.Stainless steel is sensitive to chloride ions, so the content of chloride ions should not exceed the standard.

b.The thickness of the plate changes according to the height of the water tank.

It is getting thicker and thicker from top to bottom.

c.The thickness of stainless steel sheet is 1-3mm, customized according to customer needs

d.Stainless steel screw connection to water tank

e.Stainless steel water tanks are widely used in factories, enterprises, institutions, residences, hotels and other places to store drinking water, sewage, fire water, etc.

2.2 Hot-dip galvanized water tank

a.The hot-dip galvanized steel water tank uses Q235 steel as the raw material, the thickness of the sheet is 2-5mm, and the sheet is pressed by a 1000-ton large hydraulic press.

b.The surface of the sheet is hot-dip galvanized to enhance corrosion resistance.

c.There are 6 kinds of sheet sizes: 1500*1000mm, 1500*500mm, 1220*1220mm, 1000*1000mm, 1000*500mm, 500*500mm, of which 1220*1220mm is widely used in the international market.

d.Water tanks are widely used for industrial water and fire fighting water.

The plate thickness of  hot-dip galvanized steel water tank:

Advantages of hot-dip galvanized steel water tank:

Beautiful appearance
Flexible size
Easy to install and assemble
Earthquake resistance
Strong
No penetration and no leakage
long service life
Store hot or cold water

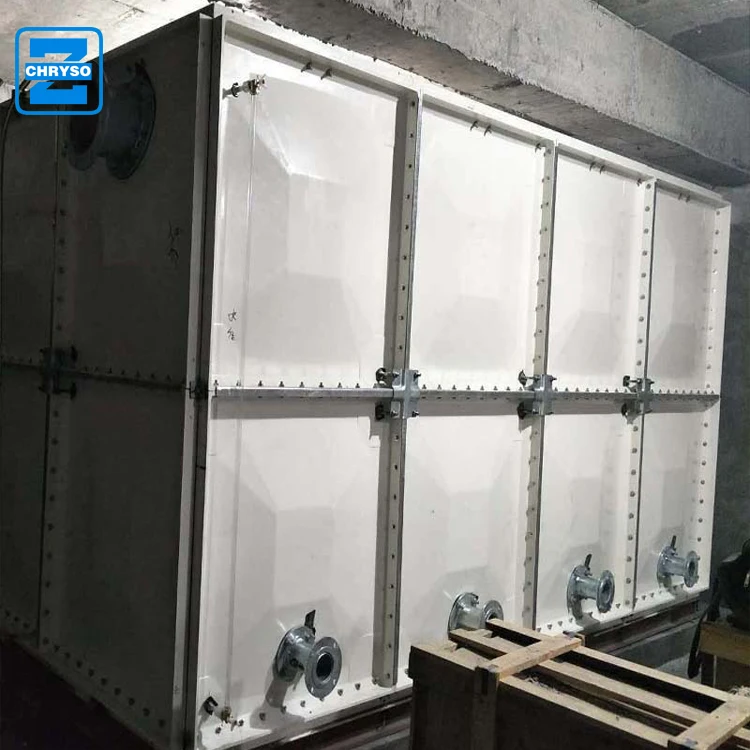

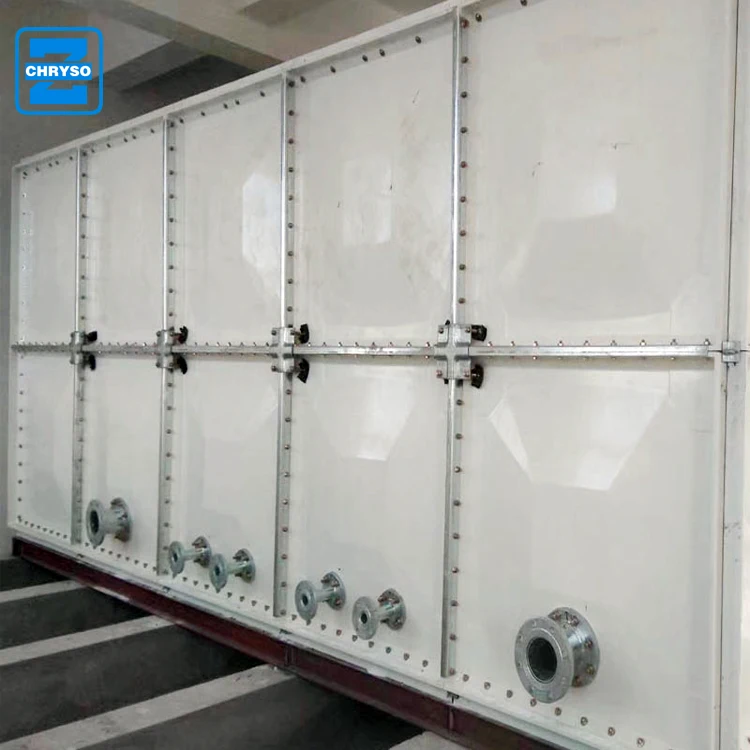

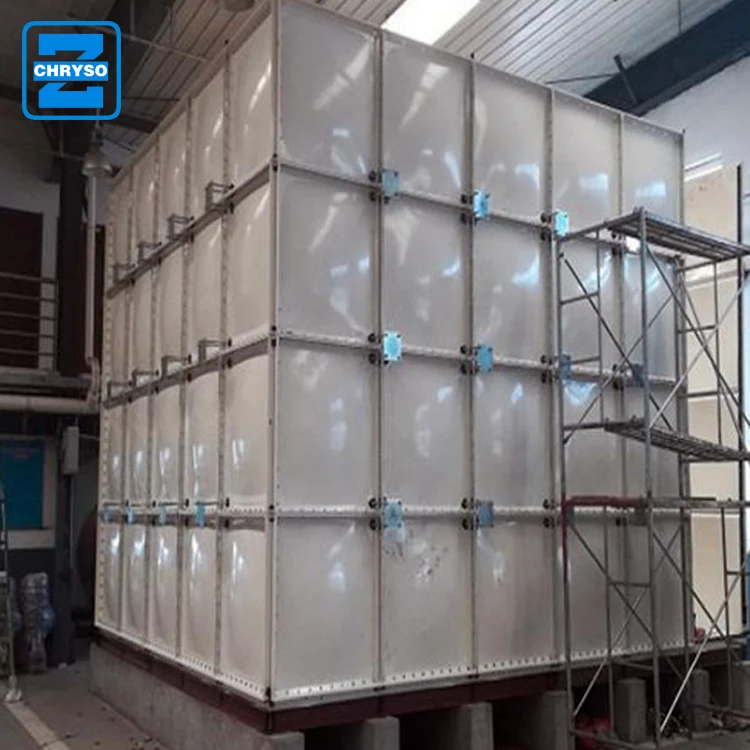

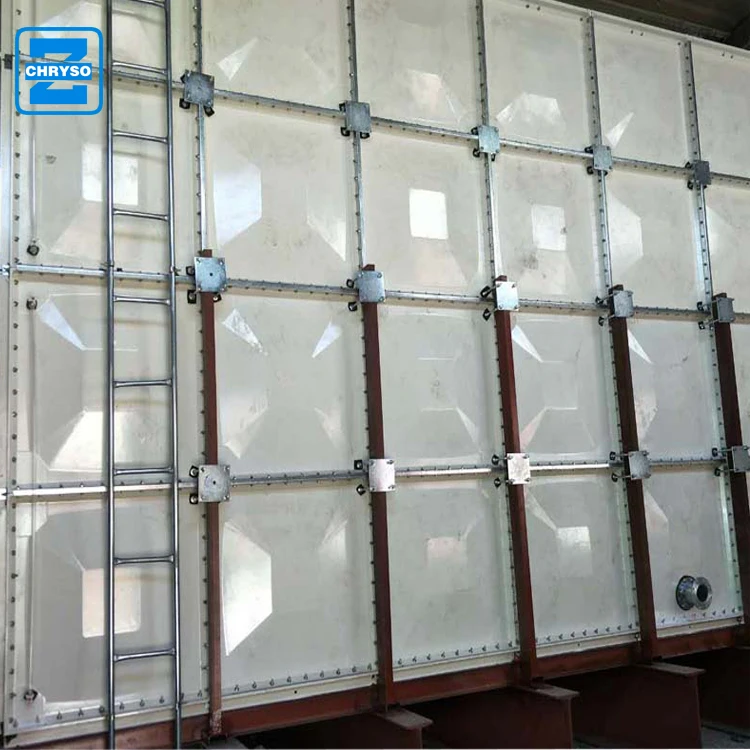

2.3 FRP water tank

a.The FRP water tank includes SMC molded sheet, sealing material, metal structure and piping system.

b.Design capacity from 0.125 cubic meters to 10,000 cubic meters

c.FRP water tank plates are made of food-grade resin raw materials and pressed by high temperature and high pressure

d.The glass fiber reinforced plastic water tank is composed of standard water tank plates.

e.The plates are available in 5 sizes, namely 1500*1000mm, 1500*500mm, 1000*1000mm, 1000*500mm, 500*500mm,

thickness 6-20mm, and the water tank cover is a special plate of 4mm.

The plate thickness of  FRP water tank:

1. Stainless steel water tank has beautiful appearance, low cost, light weight, long service life, simple installation and wide application range.

2. Sanitation, strong corrosion resistance, no algae reproduction inside, water quality is always guaranteed.

3. Water tank is made of stainless steel plate, which has strong corrosion resistance, no rust, impact resistance, good crack resistance and long service life.

4. Insulation effects

5. Full bolt connection, use special sealing strip to seal when assembling

6. The special tie rod structure in the water tank makes the mechanical properties more reasonable. It is produced by the stamping process. The unique plate shape is light and the material consumption is small to meet the high strength requirements.

1.Does the water tank have a warranty?
   The water tank warranty period is one year

2.How long is the production cycle?
   For water tanks less than 100 cubic meters, the production cycle is 3-5 days.

   The production cycle of customized water tanks is 7-15 days.

3.How many SMC FRP panels can be installed in a cabinet?
   For 1*1m plates, a 20-foot container can hold 400 pieces, and a 40-foot container can hold 700 pieces

4.How long is the life of the water tank?
   More than 20 years

5.How to pack?
   Iron frame or plywood packaging (with steel strip)
