4 оси CNC router машина Вертикальный фрезерный обрабатывающий центр с

Name: 4 оси CNC router машина Вертикальный фрезерный обрабатывающий центр с
SKU: 1600224125608
Availability: InStock

Цена:*

Количество:

4 axis Machine CNC vertical milling machining center

Vertical milling machine

Model	XH7136 (GSK 980MDI system)
Travel parameters of 3 axis
X /Y/Zaxis travel	900/300/450mm
Spindle face to table distance	100-550mm
Distance between spindle center and column guide surface	380mm
Worktable parameters
Worktable size	800×300mm
Maximum load bearing of worktable	300kg
T Shot	3×16×110mm
Feeding parameters
X/Y/Z axis rapid movement rate	10/10/10 m/min
Feed moving velocity X, Y, Z	1-6m/min
Spindle parameters
Main shaft connection	Belt
Spindle taper	BT40-120
Range of spindle speed	8000rpm
Spindle motor power	(Alternating current servo)5.5kW
ATC paremeters
ATC capacity	16qty
Maximum tool size	Φ92mm(tool from a distance)
Maximum tool weight	5kg
Precision
PositionaI accuracy(JIS standard)	±0.008/300mm
Repeated positioning accuracy(JIS standard)	±0.005mm
Shape and weight
Machine size	2200×1800×2260mm
Weight	2900kg
Standard accessories
GSK 25i CNC System	Bt40-120-8000rpm belt spindle
Machine tool lighting working lamp	Centralized automatic feed lubrication system
Spindles clean the air	Spindle taper: BT40
Chip liquid system	Tricolor warning light
10.4 "display	Separate handwheel
Servo transformer	RS232 interface

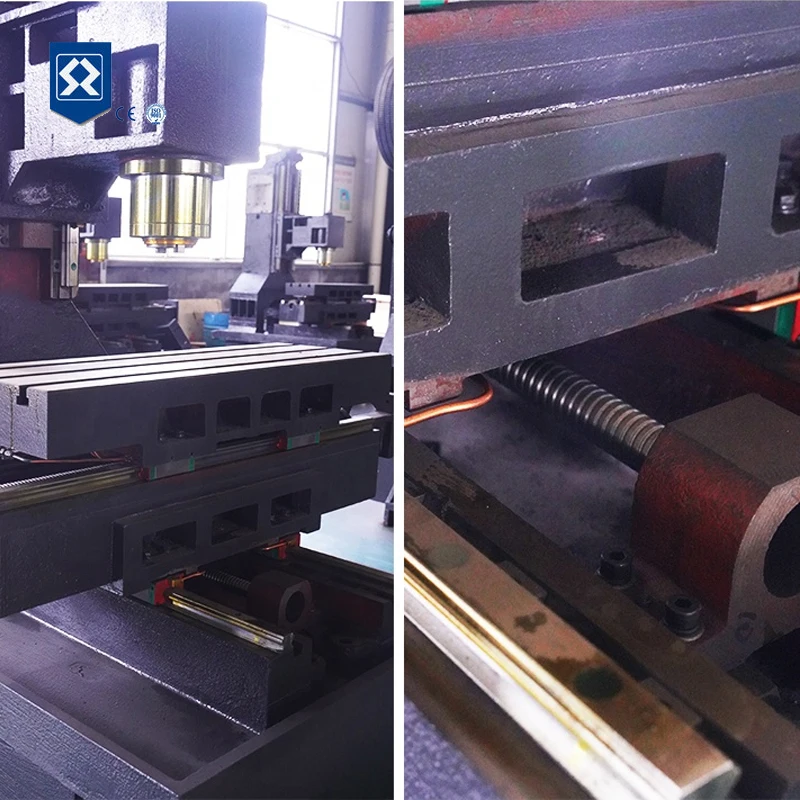

Foundation gasket and adjusting bolt	Three ball type linear guide rail

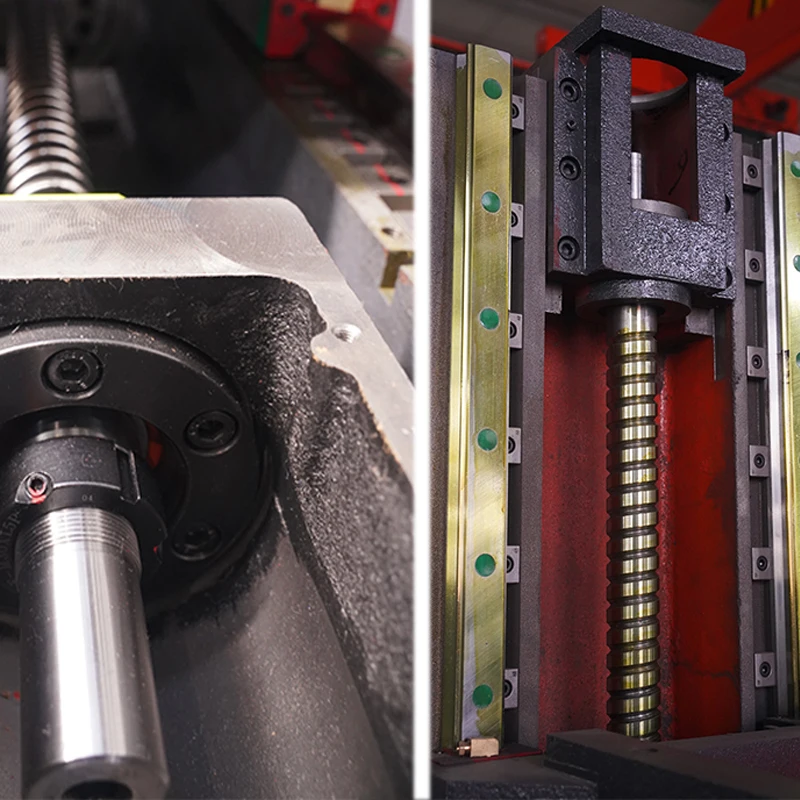

Random technical document	Three-axis precision grinding ball screw
Electrical cabinet cold and heat exchanger
