Product Description




Features

1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.


Specification

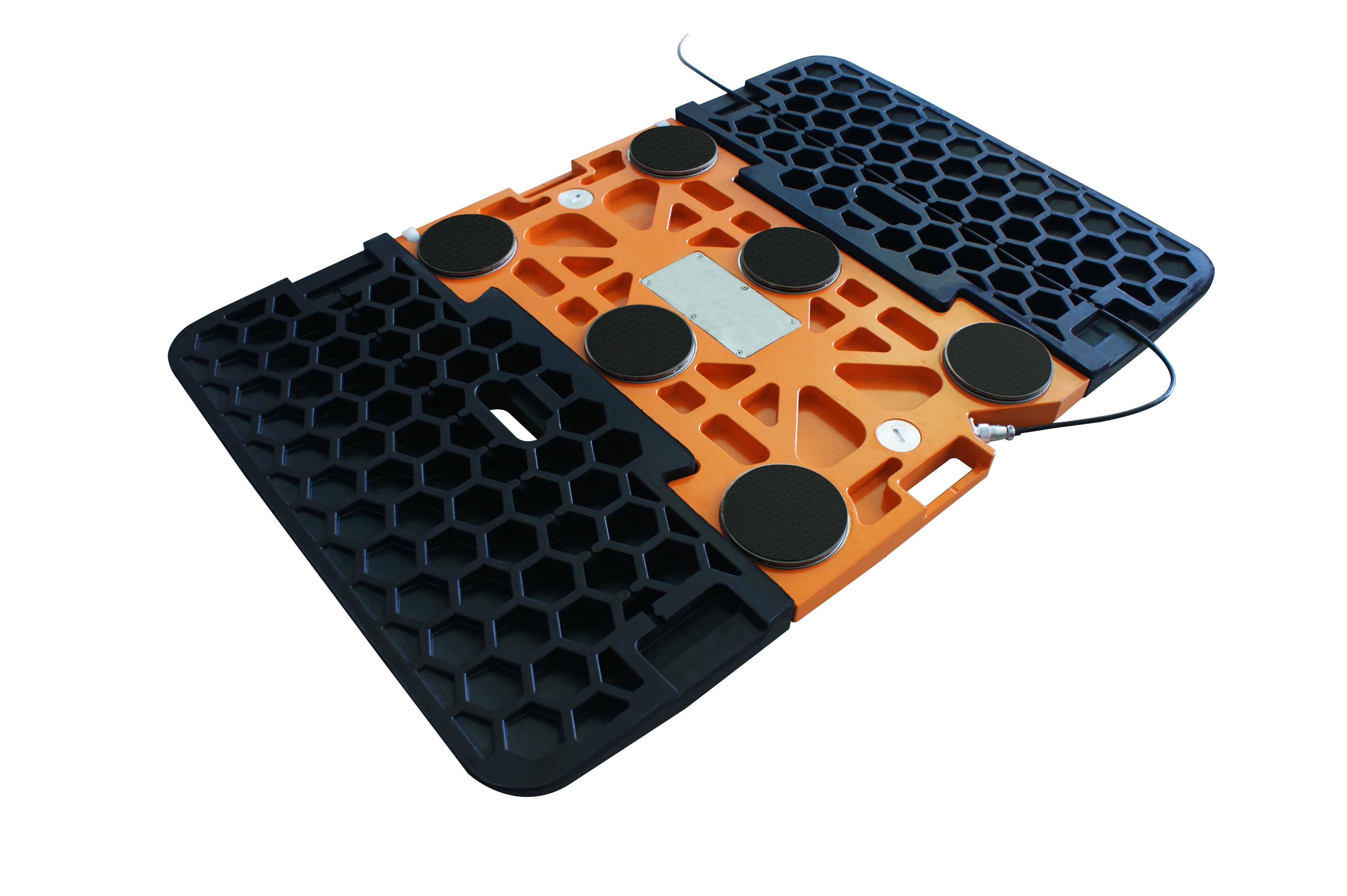

Weigh pads

1.Ultra-low,hard aluminum alloy pad,integrated design.
2.High strength,good repeatability.
3.Anti-rust, insterting-in and pulling-out seamless connection, waterproof.


The unique structure design of key components accepts the weight to be 120% more than weighing capability.
It contributes huge work in transportation, construction and Highways enforcement, etc.
It would be the only choice to replace truck scale for monitoring.

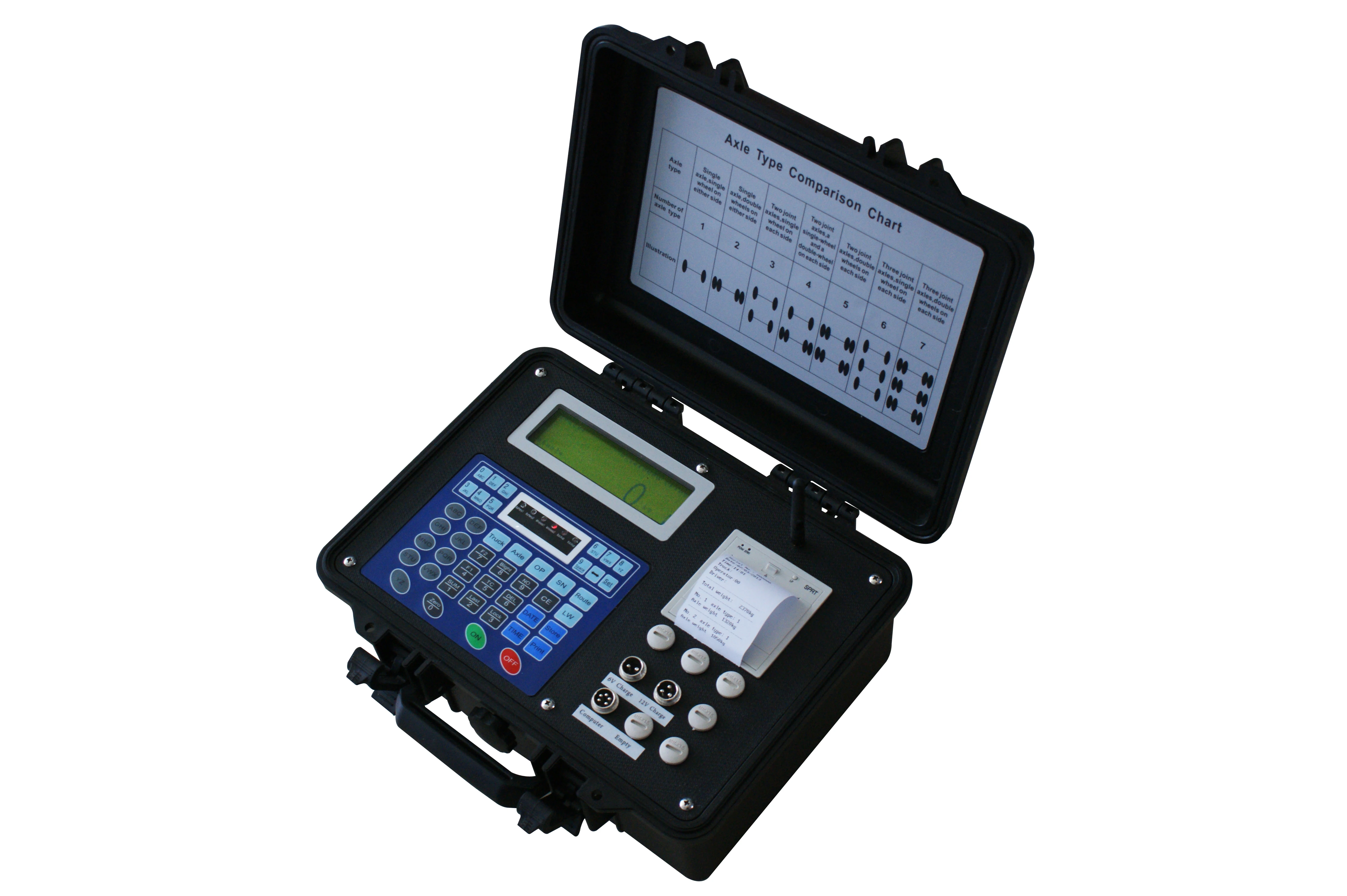

Box indicator

1.Support USB, SD card,
2.Support dynamic and static,
3.Support alarm output,
4.Can be applied to unattended weighing


Model
PAW-A
Max Capacity (Single Axle)
5t
10t
15t
20t
30t
Pad dimension
700*430*30 (mm); 800*430*30 (mm)
Ramp dimension
700*350 (mm); 800*350 (mm)
Precision
Static ± 0.05%, Dynastic ± 2%
Load Cell structure
Pad is load cell, strain  gauge inside
Cable Length
One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.
Division
0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg
Inspecting Speed
≤10km/h on average
Work Temperature
-45℃~+70℃


Our Advantages:

1, Multiple seal protection and water proof for the system to work in raining or snowing.
2, The pad adopts IP866~IP67 protection level, even better sealing for harsh environments.
3, According to different situation, you can chose different working modes: Traffic police mode, highways mode and ministries mode.


Product&Exhibition




Company Profile




Changzhou Hener Corporation (Changzhou Hener Weighing Equipment Co., Ltd. & Changzhou Billiontree Import & Export Co., Ltd.) is located in Changzhou, Jiangsu Province, which is one of the most developed areas in China.

As one of the leading manufacturers in weighing equipment field in China. Hener has a wide weighing equipment product line, covering electronic crane scales, truck scales, rail scales, weighing indicators, portable axle scales, etc. Our crane scales and weighing indicators have passed CE certification.

Truck scale is Hener's most excellent product. After years of development, now we have truck scales classified into 15 categories and truck scale accessories classified into 40 categories. Specially, thanks to the unique mature technology and reliable quantity, our big truck scales have enjoyed a great reputation among our clients!

Relying on the philosophy of "Constant Innovation, High Quality, Superior Service", Hener has developed rapidly in the past few years. With numbers of experienced technical personnel, advanced technologies, innovated designs, superior production equipment, a certified QC system and efficient after-sales service, Hener can supply clients with standard and customized products. Now products of Changzhou Hener Corporation have been sold all over China, and also exported to many countries, such as Japan, Germany, Spain, the UAE, Saudi Arabia, Cambodia, etc.

"Professional Design, Advanced Technology, Reliable Quality" is our promise to clients. Hener sincerely invites you to cooperate with us and develop business together.

Hener, think more for you.


Certifications




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2006,sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale

4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
