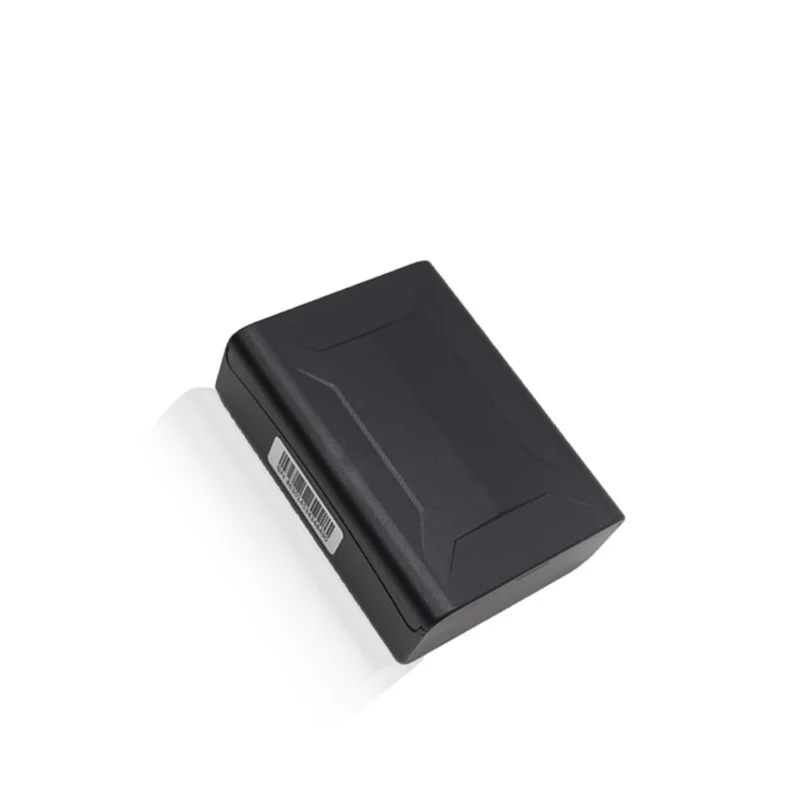

Сильный магнитный беспроводной GPS трекер долгий срок службы батареи 10000 мАч скрытый актив автомобиля GPS устройство слежения
2 858,17 ₽

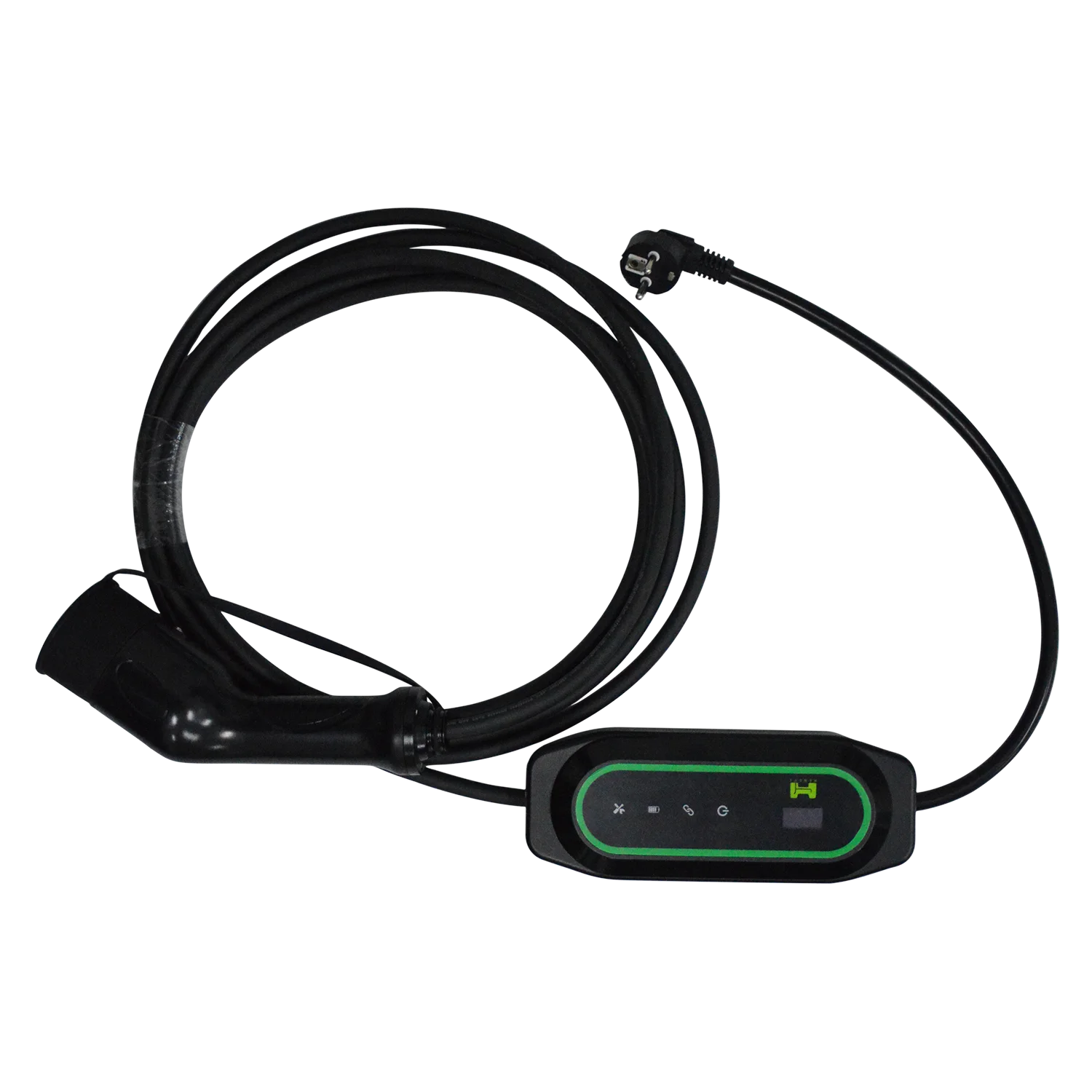

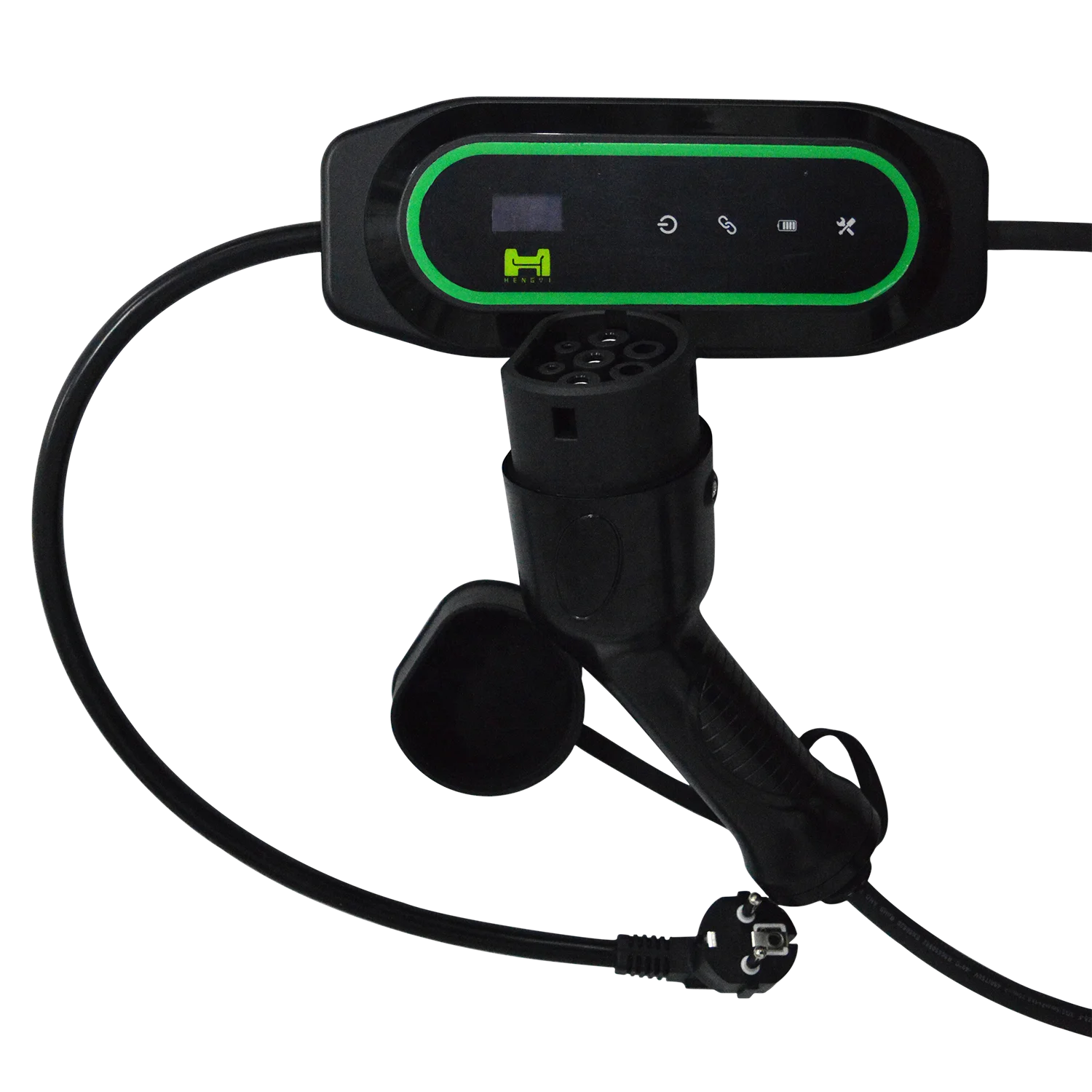

5 м Level2 с разъемом типа 2 220 В электрическая Автомобильная зарядная станция Ev зарядка
- Категория: >>>
- Поставщик: Shanghai Hengyi Mechanical&Electrical Engineering Co. Ltd.
Сохранить в закладки 1600224867874:
Описание и отзывы
Характеристики
Related Products
Product Description
Power regulation & charging reservation_function definition V2.0
1) Keep pressing the touch button at the bottom of the screen for more than 2S (less than 5S), the buzzer will sound once, then release the touch button to enter the power regulation mode, and charging cannot be started in the power regulation mode
2) In the power adjustment mode, press the touch button again to switch the rated current of the device cyclically, and the buzzer will sound once every time it is switched.
——The defined standard value is: 32A/25A/20A/16A/13A/10A/8A, the upper limit of the current must not exceed the maximum current carrying capacity calibrated by the device itself (the maximum charging current sent by the main control board)

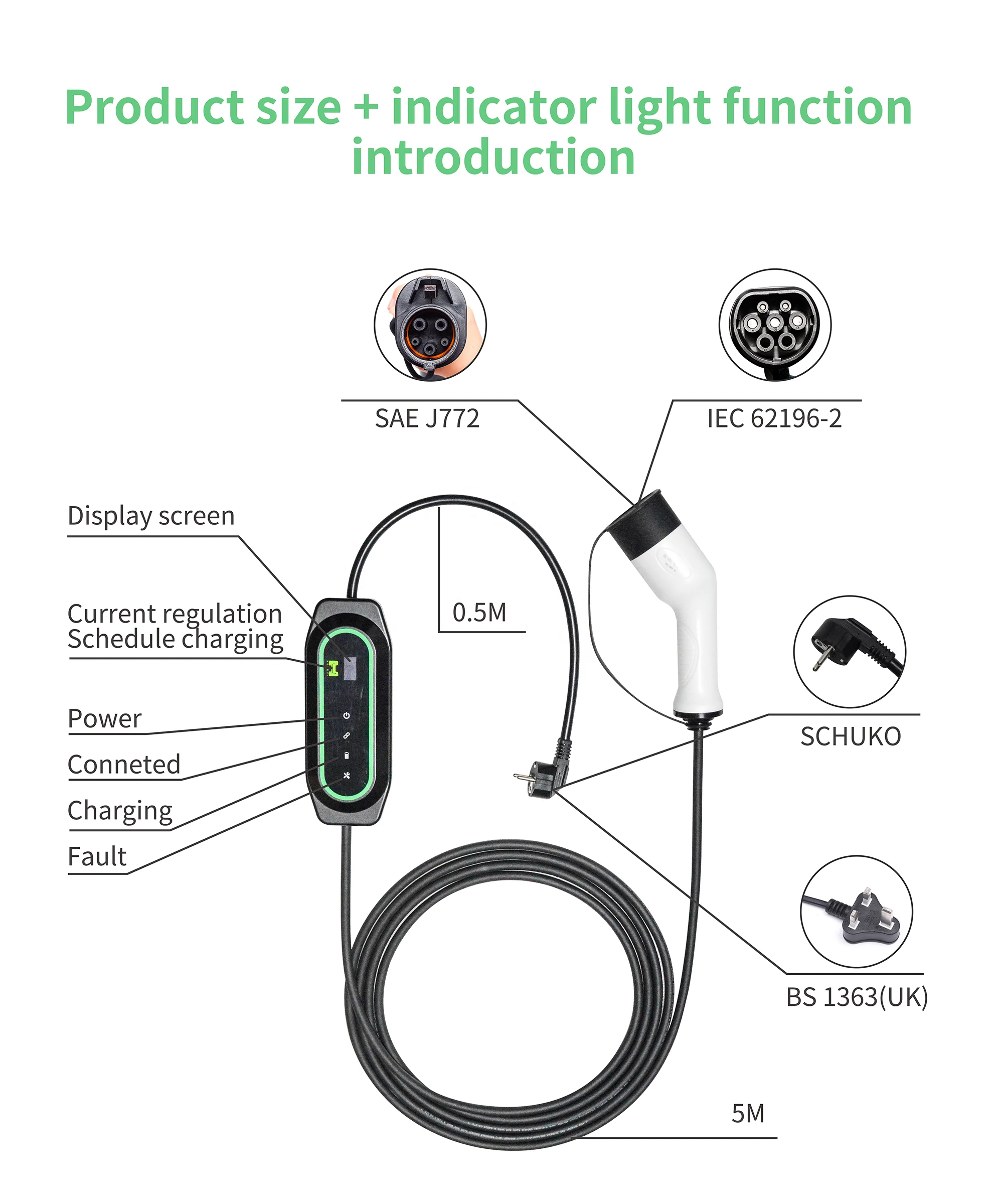

Charging appointment-through the capacitive touch button at the bottom of the screen (add buzzer interaction)
1) Keep pressing the touch button at the bottom of the screen for more than 5 seconds (when the button is pressed for more than 2 seconds, the buzzer will beep first, at this time, keep pressing and not let go, otherwise it will enter the power adjustment mode) to enter the charging appointment adjustment Mode, the buzzer will beep twice, and charging cannot be started in the charging schedule adjustment mode
2) In the charge scheduling adjustment mode, press the touch button again to cycle the time for the device to delay the start of charging, and the buzzer will sound every time it is switched.
——The defined standard value is: 1H/2H/4H/6H/8H/10H and then start charging
Note: The power adjustment/charge reservation function can only be entered in the idle/standby state
Parameter | Product model | SE12235AC05EU | HY122007AC1-01-P/W-S | |
Structure | Product Series | Pony Ⅱ | ||
Size(mm) | 225(H)*88(W)*50(D)mm | |||
Charging cable | 5m Standard Support Custom Length | |||
Weight | 3kg(with plug) | |||
Electrical Specifications | Input voltage | AC220V±20% | ||
Frequency rating | 45~65HZ | |||
Power rating | 3.5 KW | 7.0KW | ||
Measuring accuracy | 1.0 grade | |||
Output voltage | AC220V±20% | |||
Current rating | 8A , 10A , 13A , 16A Adjustable | 32A | ||
Delay charging | 1H , 2H , 4H , 6H , 8H , 10H Adjustable | |||
Function | LED | Y | Y | |
Display | Y | Y | ||
RFID | N | Y | ||
Operating conditions | Working temperature | -40~+65℃ | ||
Relative humidity permission | 5%~95%(non-condensation) | |||
Maximum altitude permission | ≤3000m | |||
IP grade | IP67 | |||
Cooling way | Natural cooling | |||
Applicable ambient | Indoor/outdoor | |||
ECT | UV resistance | |||
MTBF | ≥100000H | |||
Company Profile
Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding.
We can provide customized services to meet different needs from customers, in addition to our regular standard products.
We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.
We can provide customized services to meet different needs from customers, in addition to our regular standard products.
We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.
FAQ
Q1:How do you package it ?
A:We pack in cartons.
A:We pack in cartons.
Q2:what's the MOQ?
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy directly, we will ship within 3-10 days.
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy directly, we will ship within 3-10 days.
Q3:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
A:Yes, we have 100% test before delivery.
Q5:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.
A:EXW, FOB, CFR, CIF, DDU.
Q6:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Thank you for watching！
Похожие товары

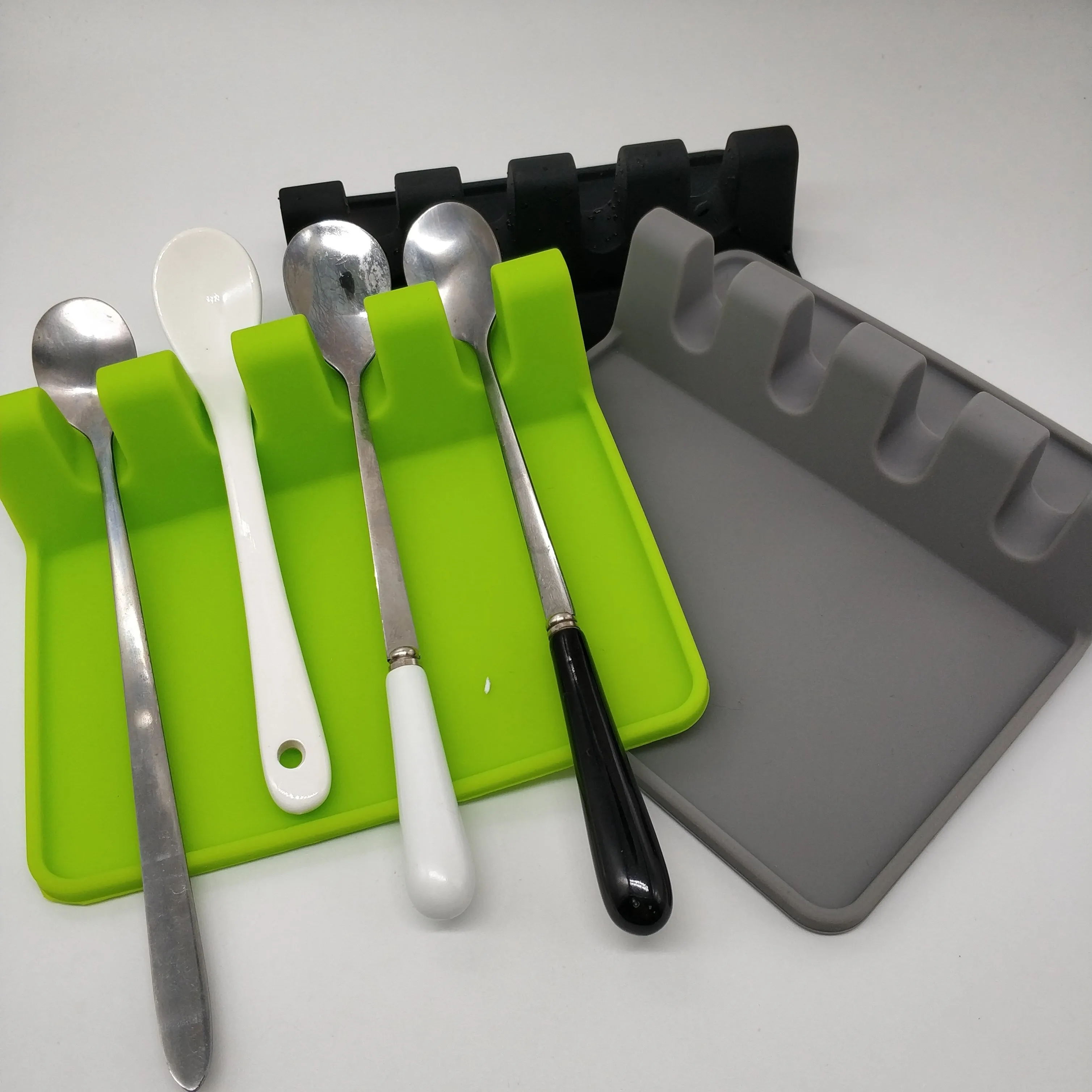

Удобная силиконовая подставка для посуды с подставкой для капельницы, подставка для хранения нескольких принадлежностей одновременно
51,31 ₽ - 95,28 ₽

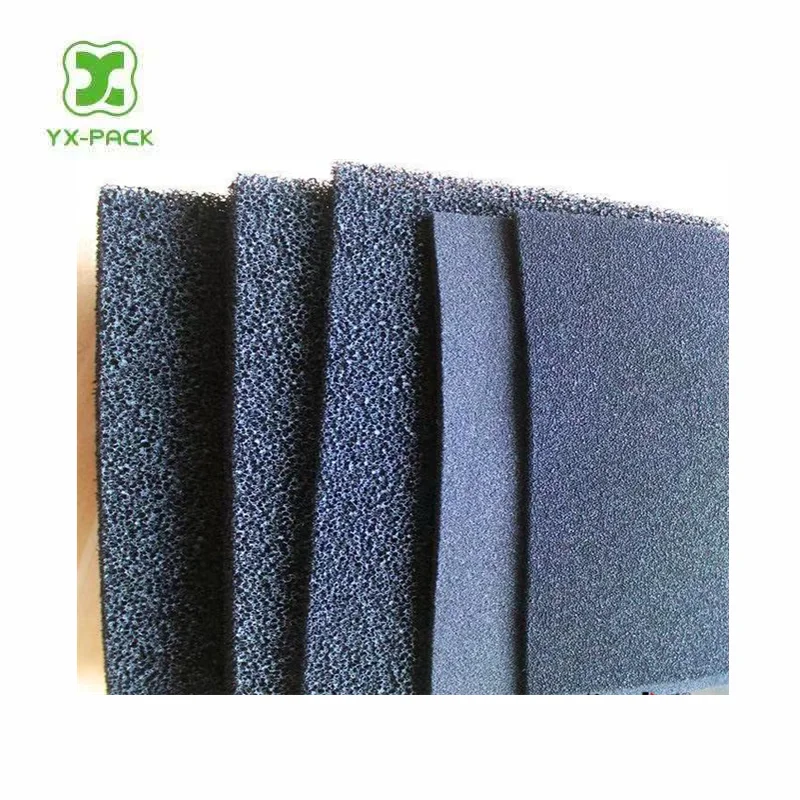

Черная сетчатая открытая клетка для защиты от пыли на крыше водосточных желобов/губка для фильтра от дождя/пена
0,80 $ - 1,00 $
24 предмета в комплекте 8 формы формочка для печенья из нержавеющей стали для выпечки тортов мусс Тирамису плесень многоразовые кухонные инструменты для приготовления пищи
220,60 ₽
Amazon лучший набор для маникюра и ухода за ногтями
3,40 $ - 4,00 $

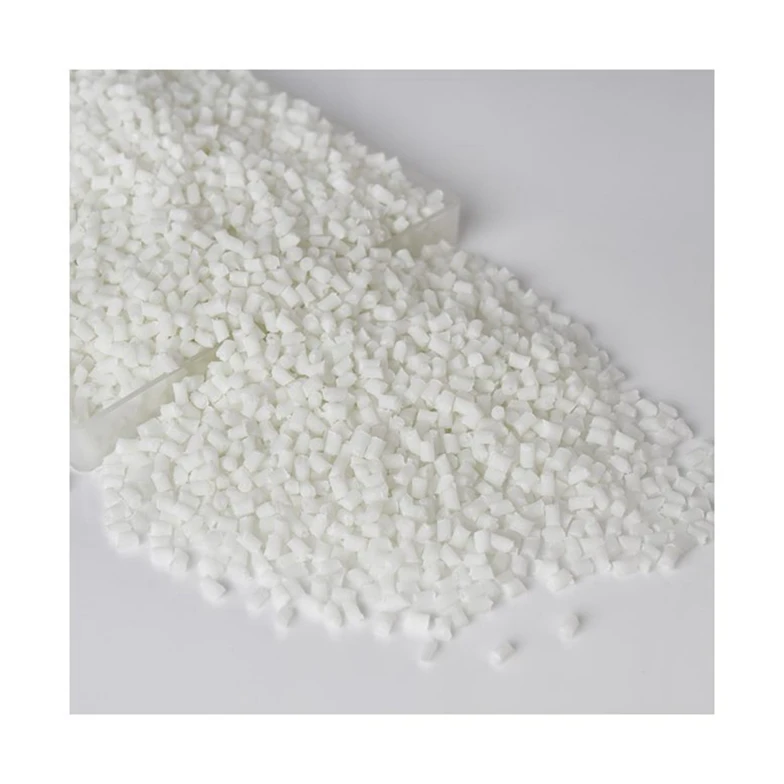

Профессиональное производство, дешевое сырье из 15% армированного стекловолокном pom
219,86 ₽ - 293,15 ₽
Конвекционная печь от китайского производителя, низкая цена, конвекционная печь горячего воздуха

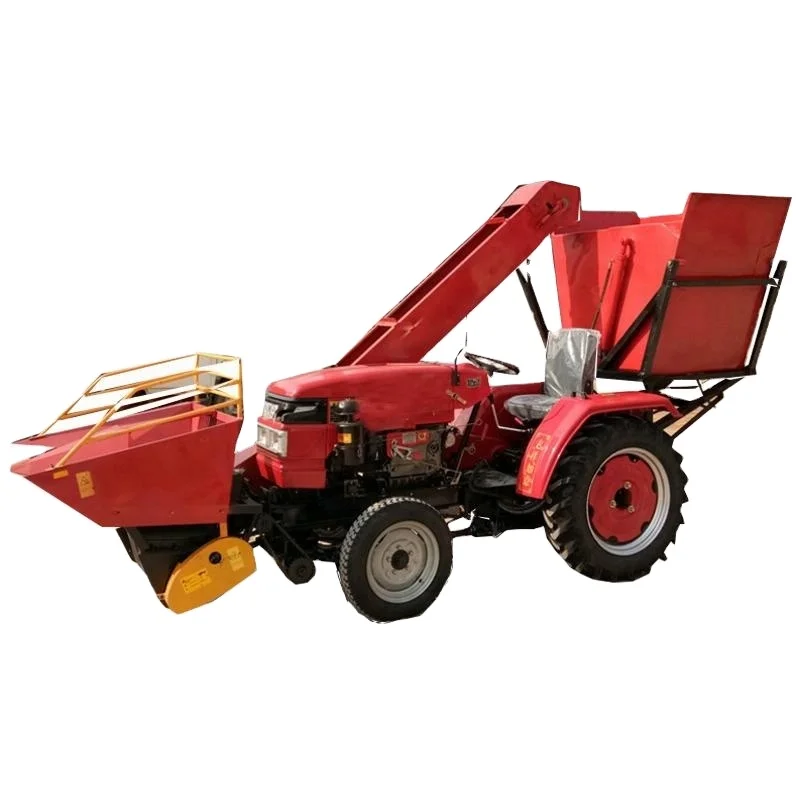

Высококачественный тракторный мини-комбайн для кукурузы
