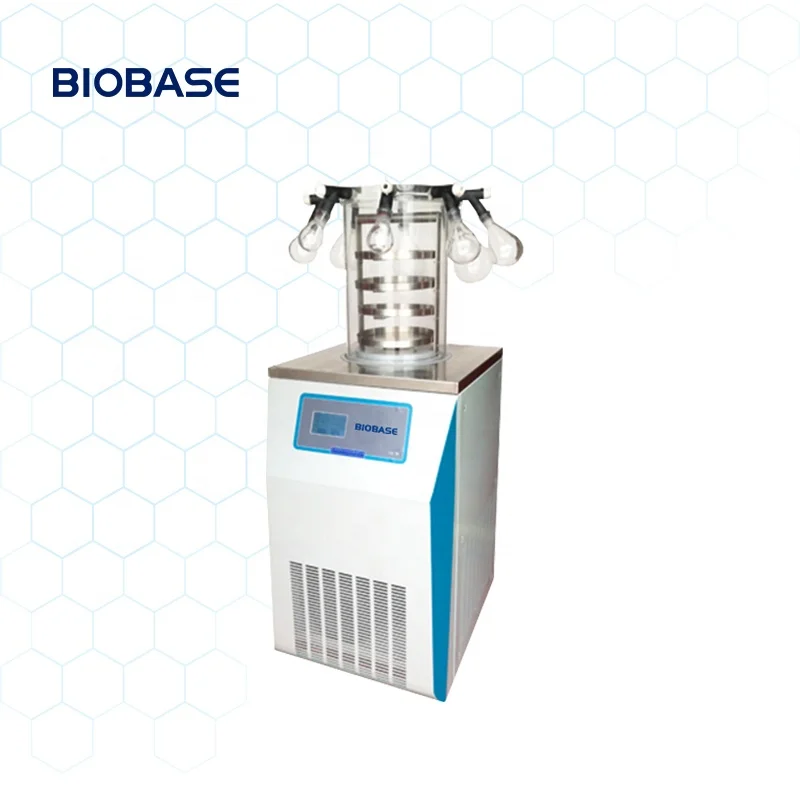

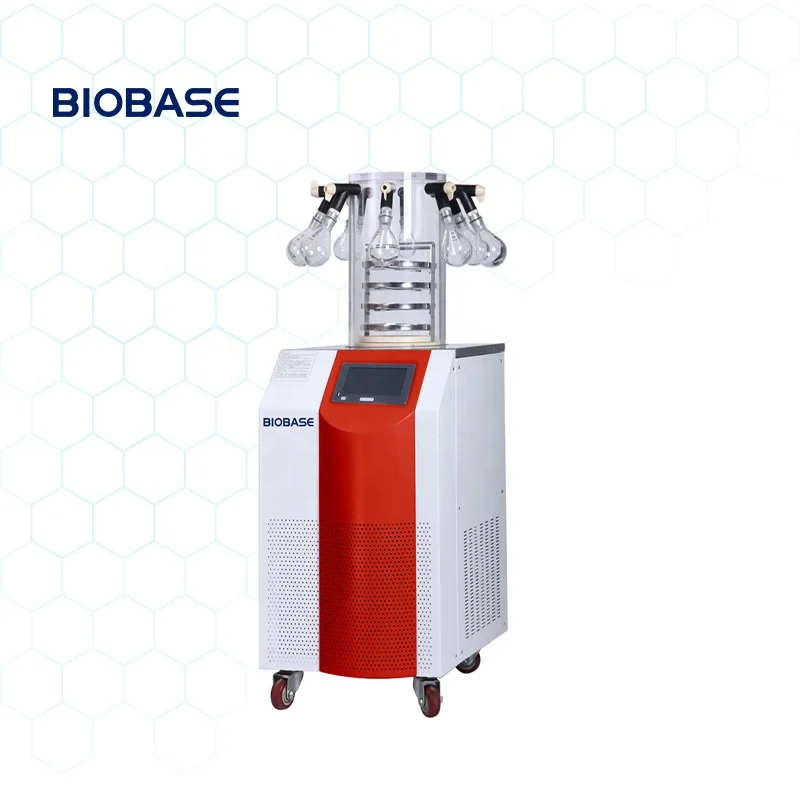

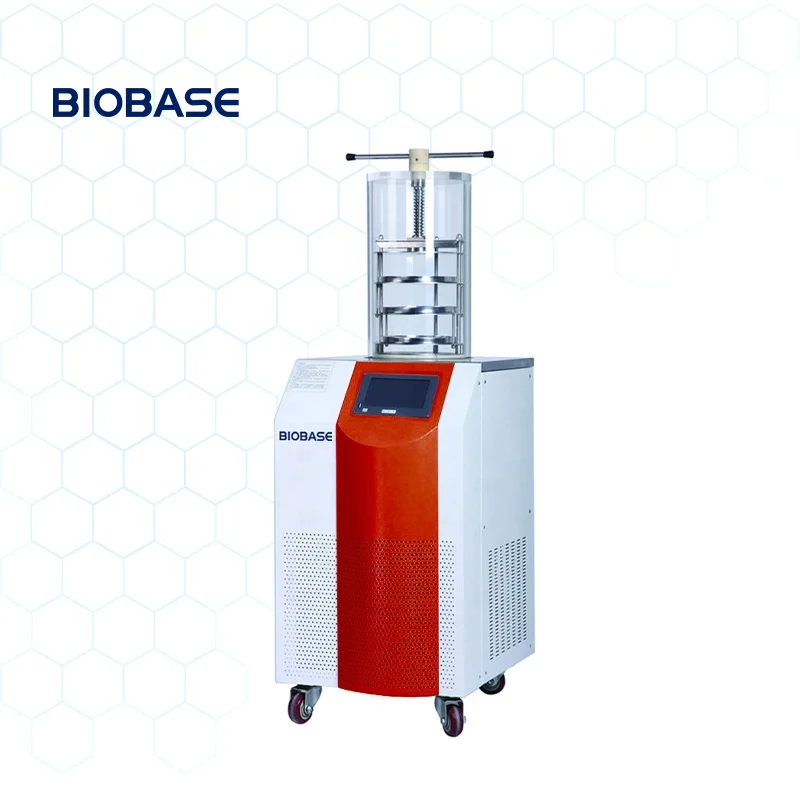

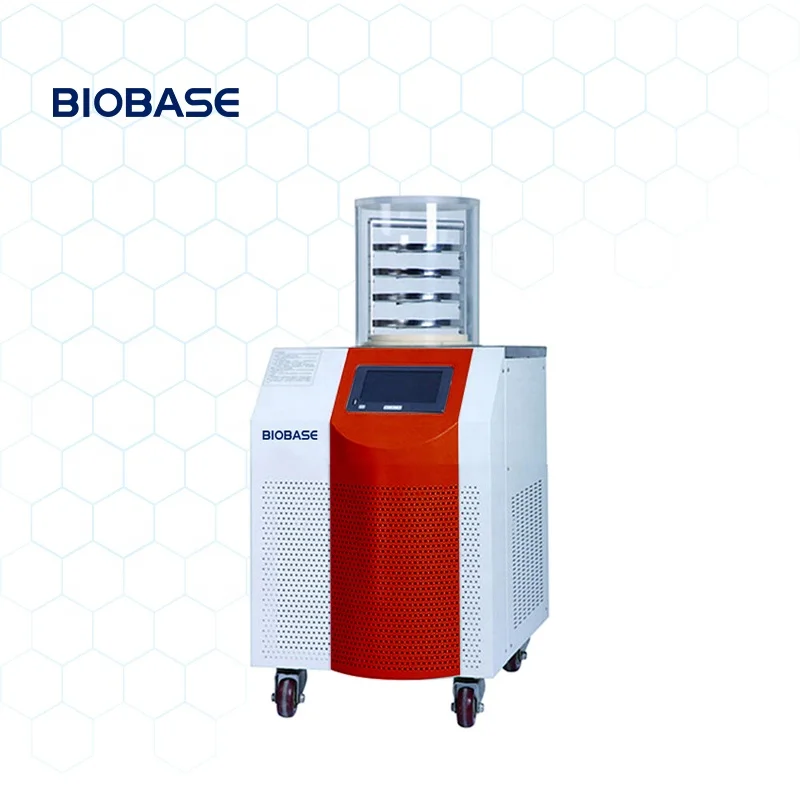

Vertical Freeze Dryer
Product Overview
BK-FD12P(-60/-80)
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |||||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||||
Tray | 4 pcs | 3 pcs | |||||||||
Height Between Trays | 50mm | 68mm | |||||||||
Cold Trap Temperature | ≤-60℃/-80℃ | ||||||||||
Cold Trap Capacity | 9.5L | ||||||||||
Cold Trap Size (Dr*H) | Φ215*260mm | ||||||||||
Vacuum Degree | <10 Pa | ||||||||||
Water Capture Capacity | 4kg/24h | ||||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||||
Freeze Drying Time | 24h | ||||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||||
Drying Chamber Size (D*H) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||||||||
Can Load Vials Qty | Φ22mm | 260 | 195 | ||||||||
Φ16mm | 480 | 360 | |||||||||
Φ12mm | 920 | 690 | |||||||||
Refrigerant | R600a+R290+R23 | ||||||||||
Cooling System | Air cooling | ||||||||||
Consumption | -60℃: 0.9kW,-80℃: 1.5kW | ||||||||||
Power Supply | AC220V, 50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase, only for -60℃) | ||||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||||||||
Optional Function & Accessory | Tray heating (for all models), Cold trap defrosting (for all models), Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), Import vacuum pump | ||||||||||
External Size (W*D*H) | 460*620*920/1370mm | ||||||||||
Package Size (W*D*H)mm/ Gross Weight | Main Body | 590*710*1170/90kg | 590*710*1170/90kg | ||||||||
Drying Chamber | 340*340*460/12kg | 390*390*670/12kg | |||||||||
Vacuum Pump | 590*380*220/22kg | 590*380*220/22kg | |||||||||
Features
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Related Products
Packing & Delivery
Company Profile
Buyer Feedback
FAQ
Q:Do you accept OEM (Original Equipment Manufacturer) service?
A:Yes we accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 years of OEM experiences.
Q:What kind of guarantee do you offer?
A:We provide 1 year warranty for all our items.
Q:How to deal with the faulty?
A:First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1
warranty year.Secondly, our after-sales department will periodically follow up customers.
Q:How can get the shipping cost?
A:You tell us your destination port or delivery address, we check the Sea Freight, Air Freight or Express Freight for you based on your requirement.
Q:What should I do if I do not know how to use?
A:Please do not worry, manual user will be sent together, you can also contact us with more technological support.
Q:When can I get the price?
A:We usually quote as soon as we get your inquiry. If you need urgent reply, please tell us your email or Skype account, we will contact you ASAP.
A:Yes we accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 years of OEM experiences.
Q:What kind of guarantee do you offer?
A:We provide 1 year warranty for all our items.
Q:How to deal with the faulty?
A:First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1
warranty year.Secondly, our after-sales department will periodically follow up customers.
Q:How can get the shipping cost?
A:You tell us your destination port or delivery address, we check the Sea Freight, Air Freight or Express Freight for you based on your requirement.
Q:What should I do if I do not know how to use?
A:Please do not worry, manual user will be sent together, you can also contact us with more technological support.
Q:When can I get the price?
A:We usually quote as soon as we get your inquiry. If you need urgent reply, please tell us your email or Skype account, we will contact you ASAP.
