Product Description

Best BGA rework station ZM-R7850A Zhuomao hot air bga soldering system

ZM-R7850A Optical BGA rework station introduction:

ZM-R7850A is a high end optical BGA rework station, it can repair the motherboard in high precision. The mainly repairing process including 3 parts: Best BGA rework station

1. Automatic desolderingthe BGA– Remove. Best BGA rework station

2. Semi- Automatic alignment the BGA – Mount. Best BGA rework station

3. Automatic solderingthe BGA- Solder. Best BGA rework station

d rework station

After finish the 3 process, the motherboard repairing finished. Best BGA rework stationprice

For more information, please feel free to inquire us:Best BGA rework station

E-mail: luoxiaojuan @zhuomao.com.cn Whatsapp/Wechat: +8615013511044

Beside the BGA rework station, we also manufacture the X-ray inspection machine. We can use the X-ray machine to test & analyze the rework quality for your viewing. It works perfect.

The automatic BGA soldering rework station ZM-R7850A video Link:

https://youtu.be/np53061kuBM

Specifications and technical parameters ZM-R7850A

1. Power: AC 380V /AC220 50/60Hz Best BGA rework station

2. Total Power: Max 8800W Best BGA rework station

3. Top heater power: 1000W Best BGA rework station

4. Bottom heater power: 1200W Best BGA rework station

5. Bottom preheating power: 6600W Best BGA rework station

6. Control part power: 200W Best BGA rework station

7. Temperature accuracy:±2℃ Best BGA rework station

8. Mounting accuracy: ±0.01mm Best BGA rework station

9. Mounting pressure: <0.2N Best BGA rework station

10. Top heater heating temperature: 400℃(Max) Best BGA rework station

11. Max PCB size: Max 640mm×520mm;Min10mm ×10mm Best BGA rework station

12. BGA chip size: 0.8mm×0.8mm—80mm×80mm Best BGA rework station

13. Size: L840mm×W960mm×H1600mm Best BGA rework station

14. Sensor: 5pcs Best BGA rework station

15. Weight: 100kg Best BGA rework station

16. Color: White Best BGA rework station

This machine ZM-R7850A is suitable for small and medium patch device rework (SOP, SOJ, QFP, QFN, BGA, PLCC, SCP...)

Q: What kind of company will need the desktop high precision computer control Optical BGA rework station? Best BGA rework station

R: There have no specific definition. But this full automatic BGA rework station ZM-R7850A has been sold to many company to repair the high value motherboard, they strict requirements for the rework quality and efficiency and they have stable enough quantity that need to be repaired. It is a machine worth investment, because it can be used for 6-10 years if you use it in the proper way.

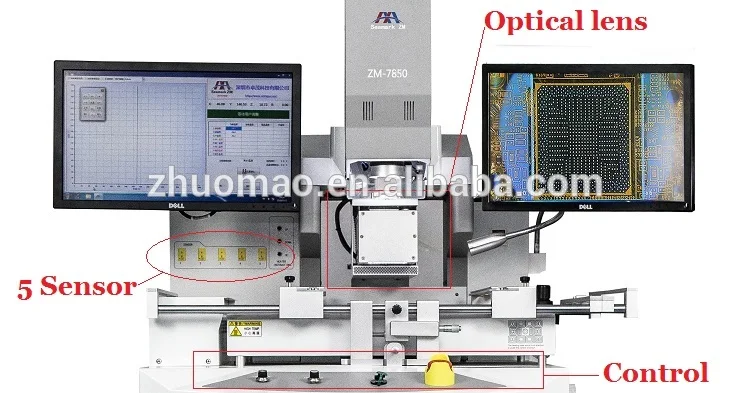

ZM-R7850A 2.jpg

Advantage of the Optical BGA rework station ZM-R7850A:

Select high-precision K-type sensor, to achieve accurate monitoring of the temperature of PCB, BGA,automatic curve analysis. Built-in three-level smoke purification system filters and purifies the toxic gases generated during operation. Mounting head 360 degree electric rotation. Imported ceramic heaters are used to make the PCB preheat more uniform and prevent deformation. It is suitable for large-scale PCBA rework Best BGA rework station

ZM-R7850A 7 .jpg

Main features of Optical BGA rework station ZM-R7850A:

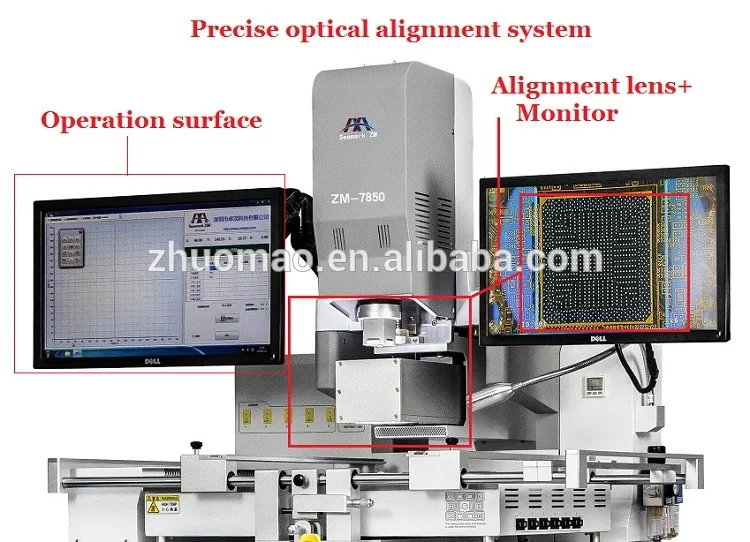

1. Precise optcial alignment system:

The top and bottom heaters of ZM-R7850 can heat PCB from upper and bottom at the same time, and large preheating area can prevent the PCB board from deformation. The top and bottom heaters work independently, controlled by software, it makes the lead-free repair easily.

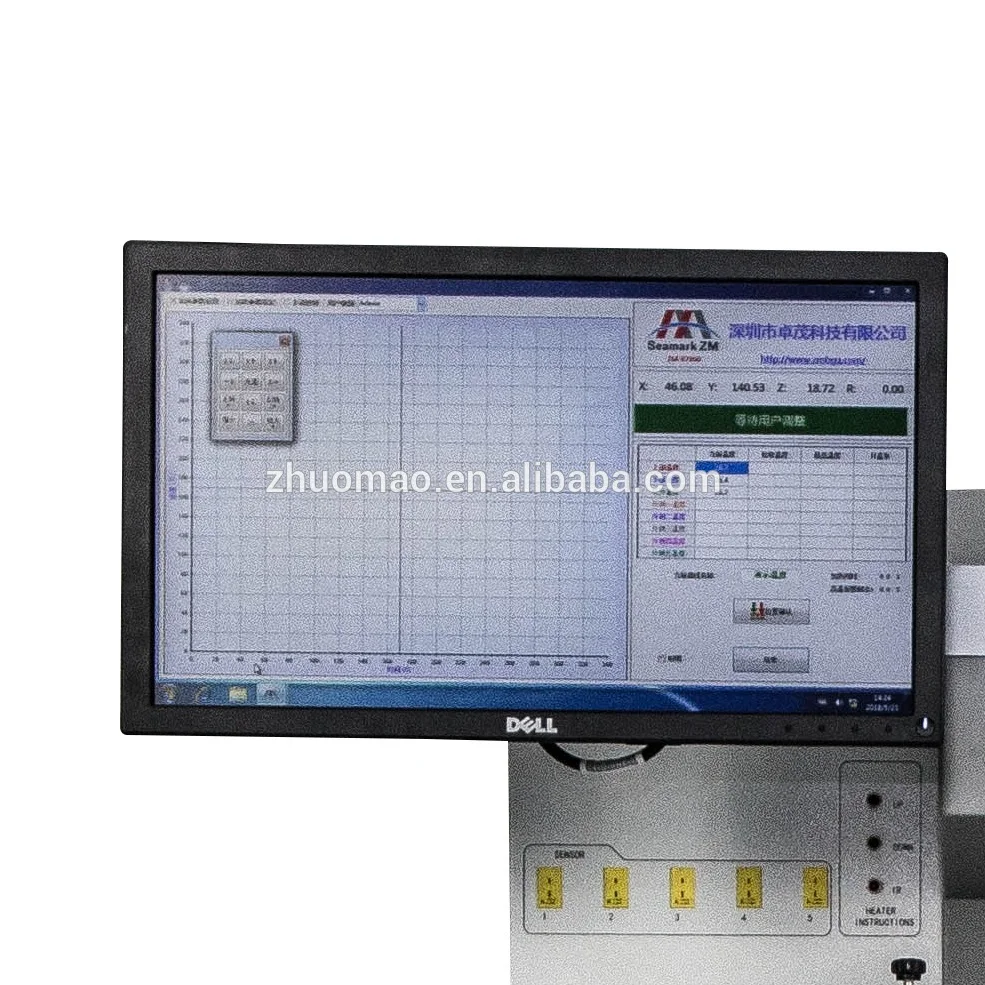

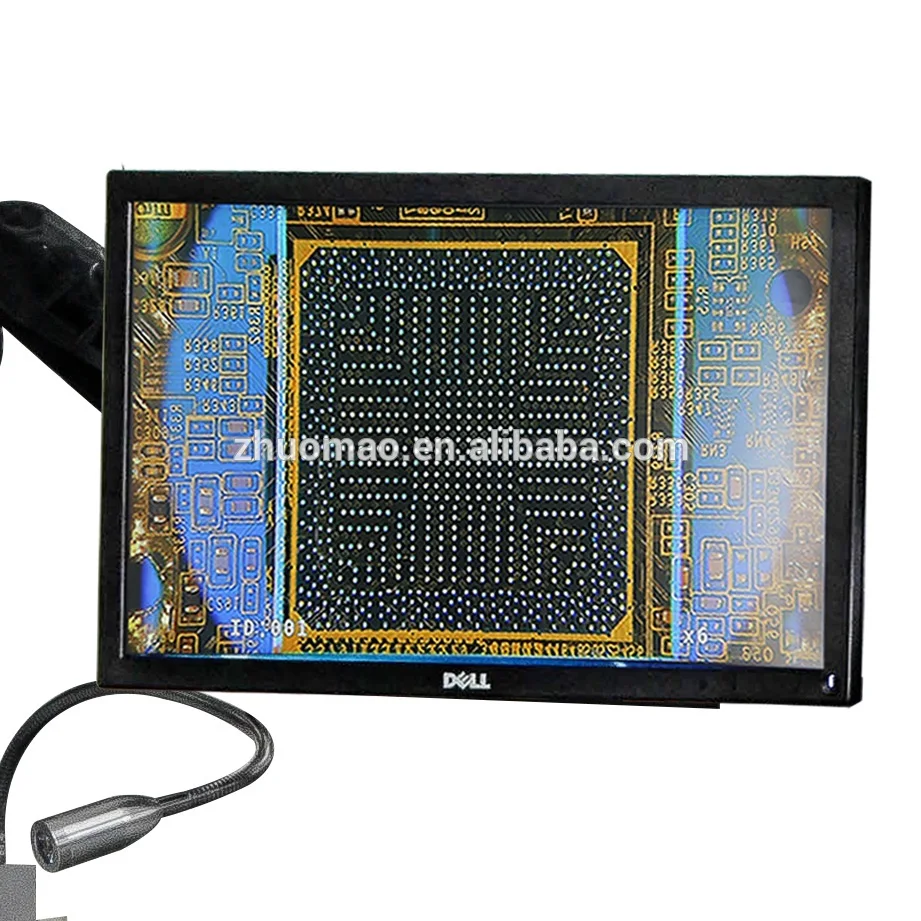

Left monitor for operation surface Right monitor for alignment system

ZM-R7850A 8 .jpg ZM-R7850A 9 .jpg

2. Five external temperature sensor ports:

The external sensors can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time. Best BGA rework station

10 temperature zone control, in line with lead-free repair process. The upper hot air heating system adopts a ceramic honeycomb heating system and the heat energy conversion is highly efficient. Infrared heating system adopts imported ceramic heater to make PCB warm up more evenly. Best BGA rework station

3. HDMI high-definition digital imaging system (system magnification up to 300X)

High-definition optical alignment system, PC control X, Y direction movement alignment, mounting head 360-degree electric rotation, HDMI high-definition optical alignment system, electric X, Y-direction movement, all-round observation of components, to eliminate the "observation of blind corners" omission Problems, accurate component placement. Best BGA rework station

The laser positioning is configured to achieve quick conversion for different rework products without setting up cumbersome parameters. Best BGA rework station

4. Superior safety functions.Best BGA rework station

With CE certification; after desoldering and soldering, there is alarming. when temperature goes out of control;the circuit will automatically power off, it is of double over-temperature protection function.Temperature parameter has a password to avoid from arbitrary changes, with superior safety protection functions, can protect PCB board components and the machine from damage at any abnormal situation. Best BGA rework station

Packing & Shipping of ZM-R7850A BGA Rework Station:
1. Standard export wooden package for bga rework station.Best BGA rework station
2. Delivery within 10 business days after payment confirm; Best BGA rework station
3. Shipping by air or by sea. Best BGA rework station
4. Loading Port: Shenzhen or Hongkong. Best BGA rework station

BGA rework machine and X-RAY inspection machine ranges from low to high level:

Seamark ZM Company Introduction:

https://youtu.be/SQx3hsAiEHg

We have different ranges of bga rework station for your selection.
We can customize the BGA VGA LED SMD rework station according to your requirements.hot air soldering station price

Why Choose us: Best BGA rework station

1. 16 years experience of LED BGA rework station and X-ray inspection machine.
2. All BGA rework station models with CE certificate. Best BGA rework station
3. High reputation around the world. Best BGA rework station
4. Professional service and technology support. Best BGA rework station
5. Competitive price with good quality. Best BGA rework station
Our Service: Best BGA rework station

1. Your inquiry will be replied in 12 hours. Best BGA rework station
2. Offer free spare parts and service within one year of warranty.
3. Technology Support Provide Demo operation videofor training.
4. Professional after-sales service team.Best BGA rework station
5. Give great discount to AGENCY to ensure agents profit.

Company introduction: Best BGA rework station

Shenzhen Zhuomao Technology CO., Ltd, a 16-year professional manufacturer and exporter of LED BGA rework station, Glue dispensing robot, X-ray inspection machine. We are a high-tech enterprise including R&D, production, Sales and After sales service.Best BGA rework station

Currently, our machine have been sold around Europe, Asia, Australia, Oceania and Southeast Asia, Middle East and other countries and regions. We are the vendor of FOXCONN, HUAWEI, FLEX, NVIDIA, LENOVO, PANASONIC, HISENSE, SANMINA-SCI, GIGABYTE, SAMSUNG, and so on.Best BGA rework station

High quality assurance is our task and also what we are doing now.

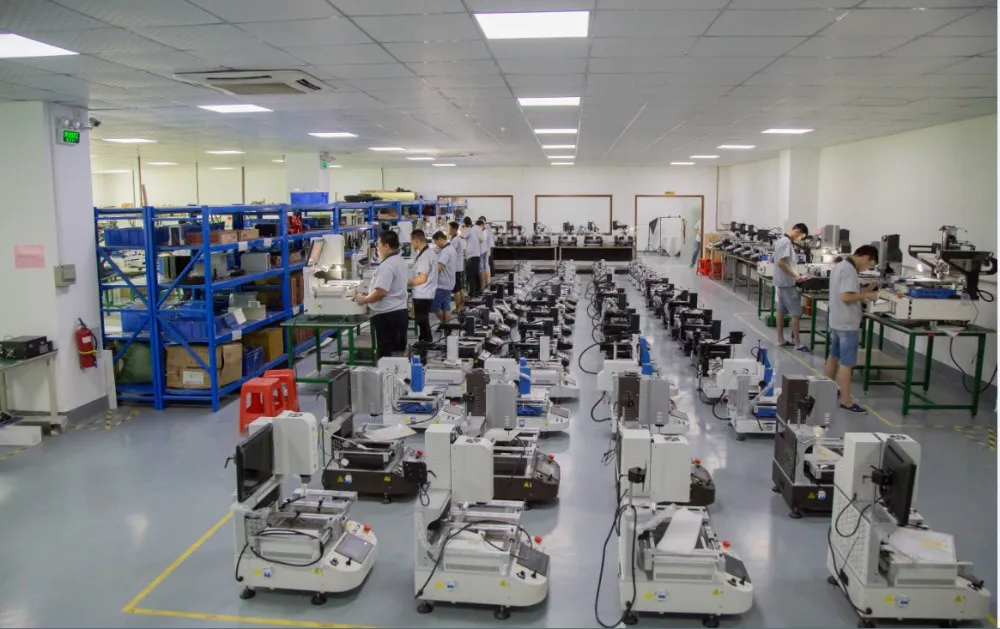

Company photo: hot air soldering station price

Newest Technology automatic optical alignment used bga rework station ZM-R6823 motherboard ic reballing kit .jpg

Certifications

All BGA rework Station is approved by CE and ISO Certification. We also get the certification of National High-Tech Enterprise, "Seamark" Brand Registation ,Software copyright, and machine design paten, etc. Best BGA rework station
