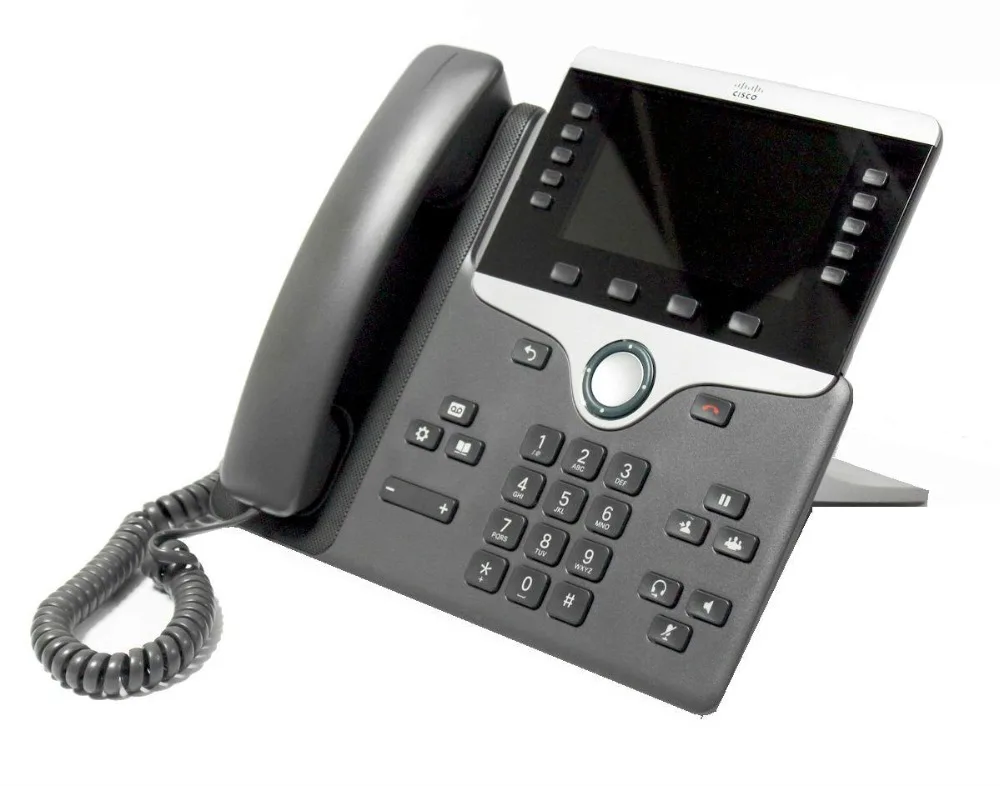

Новый 8851 IP видео телефон
160,00 $ - 200,00 $
Шлюз iBeacon LTE сотовый шлюз IoT
- Категория: VoIP Products >>>
- Поставщик: KKM Company Limited
Сохранить в закладки 1600227196376:
Описание и отзывы
Характеристики
Product Description
KKM IoT Beacon Gatweay with LTE/GPS support
KG01 Gateway
● Support Wi-Fi / Ethernet / Cellular
● Support iBeacon/Eddystone/Kensor and other BLE device
● Support HTTP/HTTPS, MQTT/TLS MQTT
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload
● Support HTTP/HTTPS, MQTT/TLS MQTT
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload
● Optional 4G LTE module & GPS module
● Web portal for configuration
● CE/FCC certified
● CE/FCC certified
Description
KG01 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG01 gateway support cellular (3G/4G), WiFi, WiFi hoppen, or Ethernet network connection.
It can be powered by DC 5V, or POE (802.3af).
It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.
It can be powered by DC 5V, or POE (802.3af).
It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.
Manufacturing Technique
General Specification
● Waterproof design
● Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
● Operating temperature:-25°C ~65°C
● Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
● Operating temperature:-25°C ~65°C
BLE Specification
● Support BLE4.2 and BLE5.0
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 260 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 260 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)
Wi-Fi Specification
● Update to 300Mbps
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration

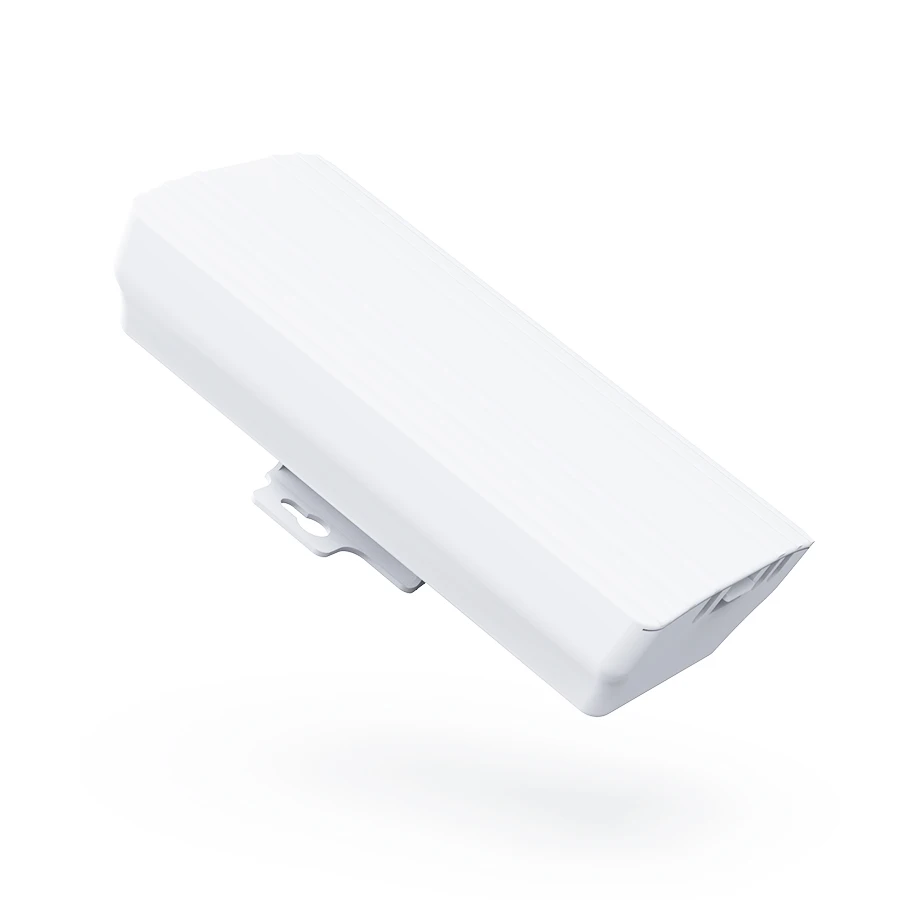

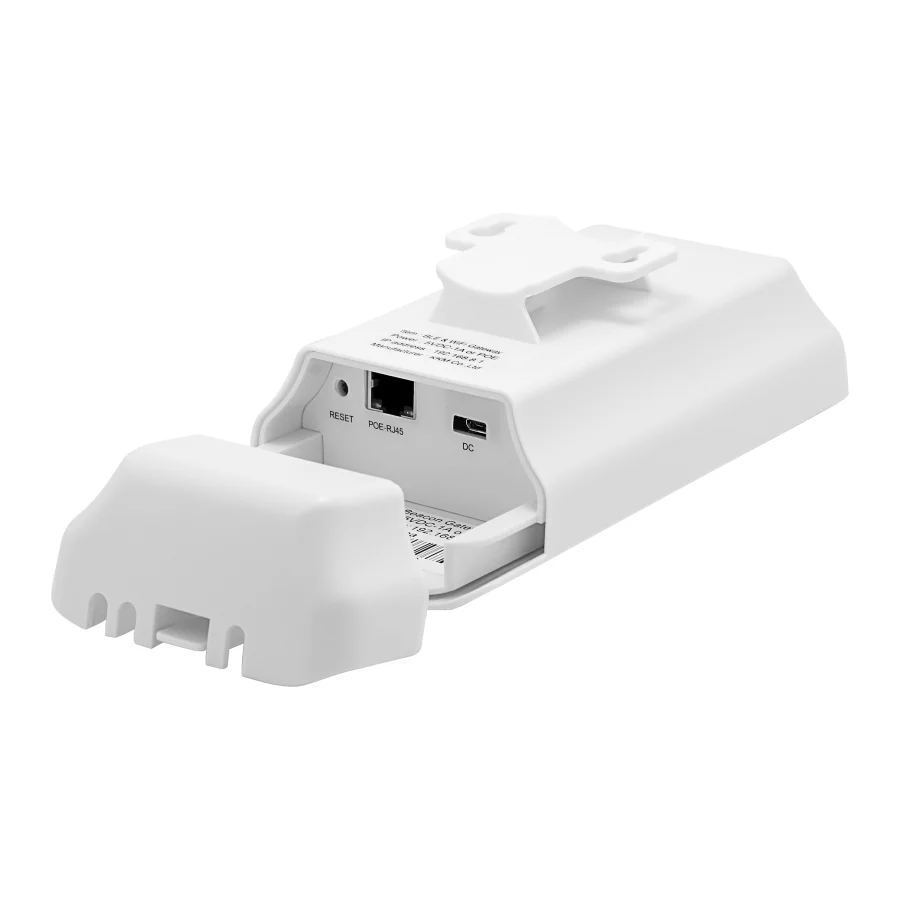

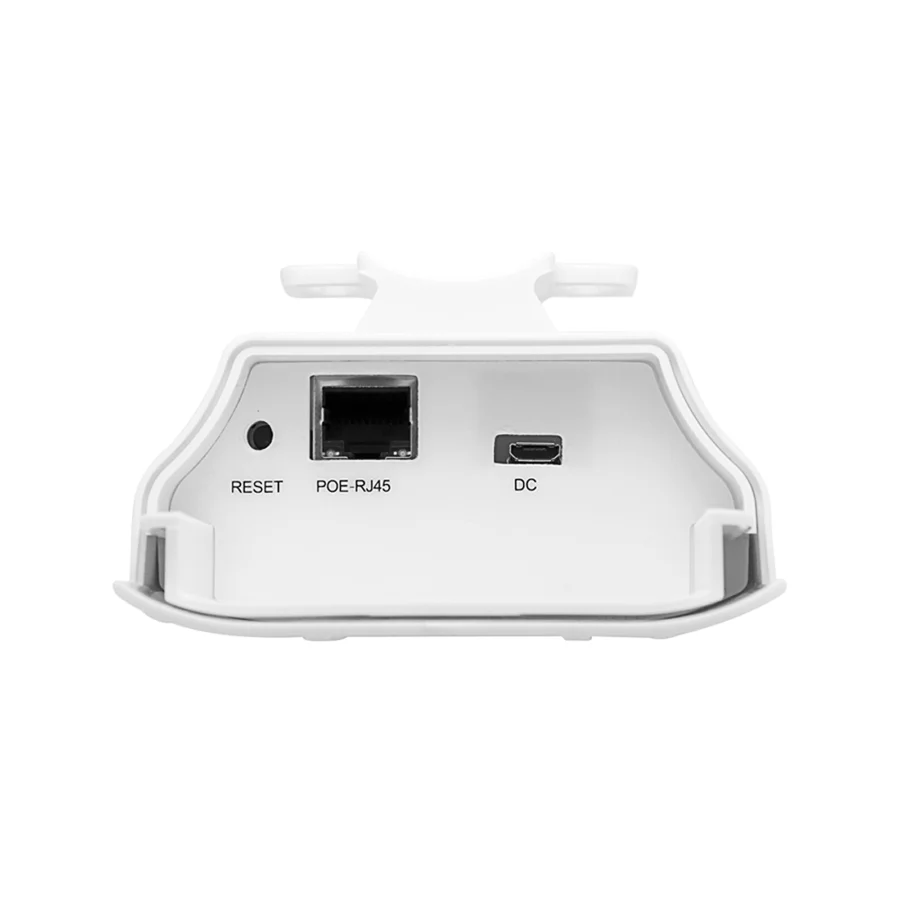

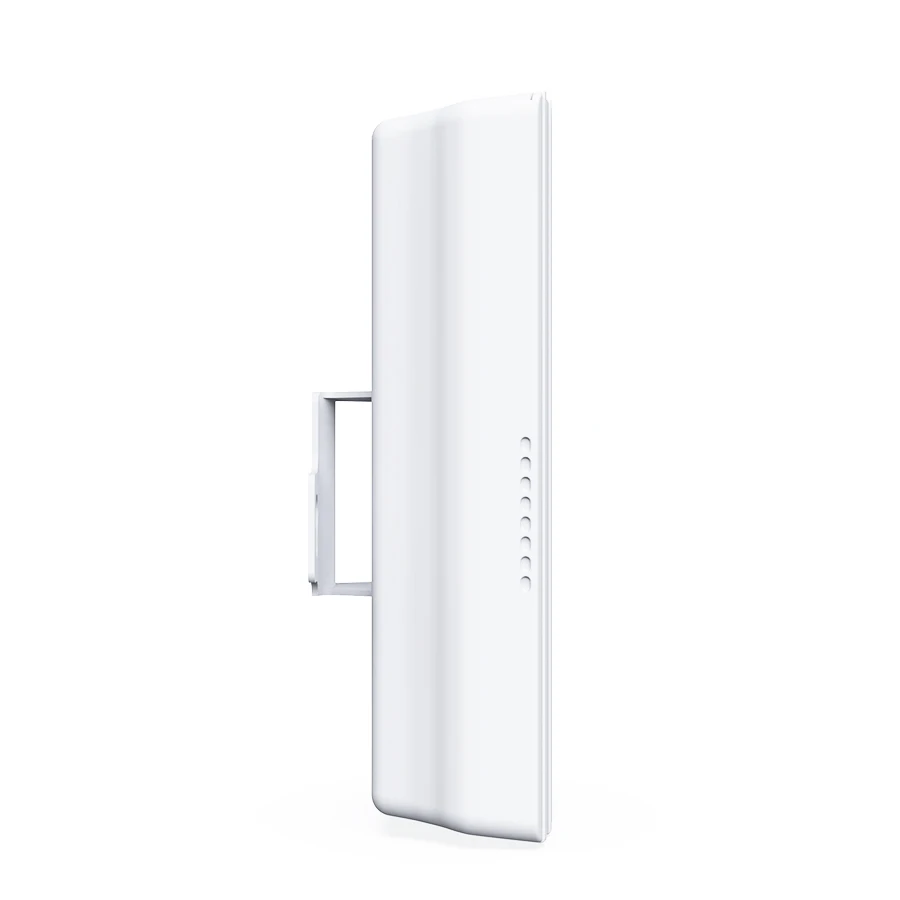

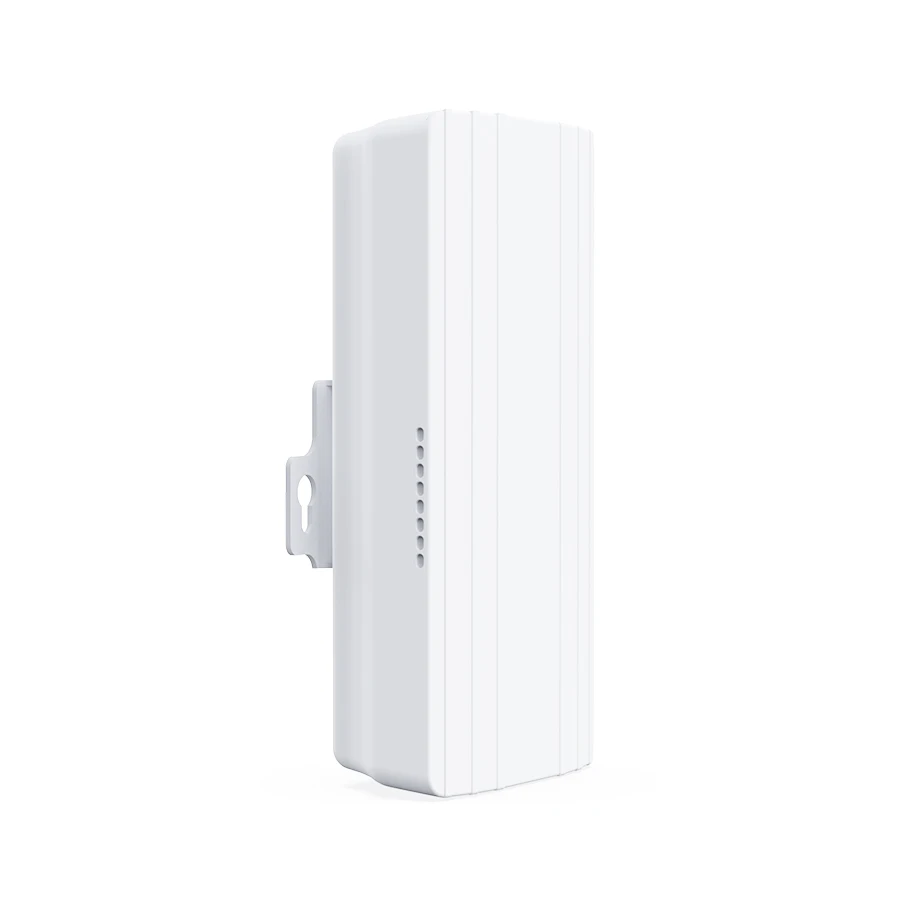

Details Images
Specifications
Size | 173*90*45mm | Weight | 150g | ||
Material | Industry use plastic | Transmitting Protocol | HTTPS MQTT | ||
Scanning Ability | >260 beacons per second | Waterproof | IP53 with smart outdoor design | ||
Indicator | RGB LED indicator | BLE Chipset | nRF528 serie | ||
Wireless Distance | BLE4.0/BLE4.1/BLE4.2/BLE5.0 up to 150m (The working distance will be effected by surrounding environment) | ||||
Transmitting way | Cellular (USB dongle for 3G/4G), ETH RJ45, WiFI, WiFi hoppen | ||||
Working Temp. | -40°C ~+70°C | Storage Temp. | 10°C ~+25°C, ≤65%RH | ||
Product Usage
How It Works
KGateway can detect, collect and upload the data of Bluetooth in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.
K1：asset management
K21: beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon
K21: beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon
K5：Wristband Beacon, support vibration, rechargeable
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon
Application
iBeacon/Eddystone/BLE tag receiver
Asset tracking
Temperature&humidity tracking and monitoring
Advertisement
Indoor navigation & mapping
Industrial automation
Trade Show management
Company Introduction
Founded in 2008, KKM is one of the top IoT product manufacturer in China. We specialized in iBeacon/Eddystone beacon, Bluetooth Gateway, Bluetooth Key Finder, ESL, Smart lock etc. We export more than 2,000,000 IoT products every year.
Our Strength:
* Experienced and professional hardware & software R&D team. We have our own mold workshop. We provide turn-key solution on from prototype to productions. * We are High-tech enterprises. We are also member of SIG, our product is BQB certified.
* We have over 50 patents. We also respect and protect our clients’ intellectual property as we understand the importance of intellectual property.
* We are ISO9001 certified, our products are all FCC, CE and RoHS qualified.
* We are original manufacturer with our own R&D team. Our R&D team located in Shenzhen, We have factory located both in Shenzhen and Dongguan. As original factory, we provide a competitive service & cost for you.
Our Strength:
* Experienced and professional hardware & software R&D team. We have our own mold workshop. We provide turn-key solution on from prototype to productions. * We are High-tech enterprises. We are also member of SIG, our product is BQB certified.
* We have over 50 patents. We also respect and protect our clients’ intellectual property as we understand the importance of intellectual property.
* We are ISO9001 certified, our products are all FCC, CE and RoHS qualified.
* We are original manufacturer with our own R&D team. Our R&D team located in Shenzhen, We have factory located both in Shenzhen and Dongguan. As original factory, we provide a competitive service & cost for you.
FAQ
1.-Can I get some samples?
-Yes, sample orders are welcome.
2. -Could I use my own LOGO or design on goods?
-Yes, customized logo and design on mass production are available.
3.-What is the delivery time?
-A week for sample;7-30 days for mass production.
4. -Can I trust you?
-Absolutely yes. We are"Alibaba" verified supplier, manufacturer with experience of 7 years. We only provide products with
excellent quality. And our quality meets CE, FCC, RoHS or EMC Standard.
5. -May I visit your factory?
-Sure, welcome at any time.We can also pick you up at airport and station.
-Yes, sample orders are welcome.
2. -Could I use my own LOGO or design on goods?
-Yes, customized logo and design on mass production are available.
3.-What is the delivery time?
-A week for sample;7-30 days for mass production.
4. -Can I trust you?
-Absolutely yes. We are"Alibaba" verified supplier, manufacturer with experience of 7 years. We only provide products with
excellent quality. And our quality meets CE, FCC, RoHS or EMC Standard.
5. -May I visit your factory?
-Sure, welcome at any time.We can also pick you up at airport and station.
