Печатная плата для защиты аккумулятора печатная зарядки
- Категория: >>>
- Поставщик: Xiamen Winwin Electronic Co. ltd.
Сохранить в закладки 1600227370286:
Описание и отзывы
Характеристики
Company Profile
Was founded in year of 2010 .With being OEM manufacturer specializing in PCB&PCBA Sensors etc with 11-year,nowadays,we have built up our strong product research and development center and we are devoting ourselves to electronics smart product. combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers one stop Service
requirements – from front end engineering through to in time deliveries.PCB Service
Winwin offers pcb production services from1~20Layer For Rigid,1~4Layer for flexible,1~16layer Rigid-Flex pcb.The materials includes standard FR4, High TG FR4,
Aluminum,Polyimide and your Request !
Aluminum,Polyimide and your Request !
Components sourcing
Winwin offers electronics components souring service ., All IC chips , transistors , crystals .… are new and original . The quality of all components can be assured after 10years experience ,High quality and Low cost
Certifications
Components Cooperation
Feedback From Customers
Specification
Layer count | 1-28L,HDI |
Material | FR-4, High TG FR4, aluminium, FPC |
Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880) | |
Max board dimensions | 800mm*620mm |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board cutting | Shear,V-score,tab-routed,counter sunk |
Board thickness | 0.2~8.0mm, Flex 0.1~0.25mm |
Thickness Tolerance | ±10% |
Min line width / space | 3mil/3mil |
Minimum Drilling Hole (Mechanical) | 0.1mm |
Minimum laser hole | 0.075mm |
Blind Hole/buried plate | YES |
Hole Position/hole Tolerance | PTH:±0.076MM |
NPTH:±0.05mm | |
InnerLayer Copper Thickness | 0.5-3 oz |
OutLayer Copper Thickness | 0.5-4 oz |
Impedance control tolerance | ±10% |
Surface finish | HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP... |
Solder mask | Double-sided green,red,white,blue,black,etc |
Silkscreen | Double-sided or single-sided in white,black,or negative |
PCB Testing | E-test, Flying probe test |
Acceptable File Format | Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD |
Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Types of PCB assembly | SMT (Surface Mounted Technology) |
THT (Through Hole Technology) | |
Mixed (surface mount and through hole) technology | |
Cable assembly | |
Component | Passive Component: small as 01005, 0201 |
BGA, uBGA, QFN, POP, SOP,SSOP,PLCC,LGA | |
Fine Pitch Parts: 0.25mm fine pitch parts | |
Max Component Height: 25mm(SMT), Top 120mm/Bot 15mm (Wave-Solder) | |
Component Package | Reels, cut tape, Tube and tray, Loose parts and bulk |
Board Dimension | Min Board Size: No Limited |
Max Board Size: 680 x 500mm | |
Board Shape | We can assemble boards in Rectangular, Circular and irregular |
Board Type | Rigid PCB, Flexible PCB, Rigid-flex PCB |
Assembly process | Leaded Lead-Free (RoHS) |
Design file format | Gerber RS-274X BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid(Pick-N-Place/XY file) |
Electrical testing | X-ray Inspection AOI (Automated Optical Inspection) Functional testing |
Certificate | ISO13485, IATF16949, ISO9001,ISO14001 |
Quality Standards | IPC-A-600/IPC-A-610 compliance |
Type of Service | Turn-key, partial turn-key or consignment |
Sub-assembly | Plastic case,metal case,screen |
Silkscreen | Double-sided or single-sided in white,black,or negative |
PCB Testing | E-test, Flying probe test |
Acceptable File Format | Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD |
Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Our Advantages
Shipping & Payment
FAQ
1, What service do you have?
We provide A kinds of PCB/PCBA/Components soucing /Heatsink / different kinds of sensors Etc
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control,IOT,Smart Home,Military.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 5 PCS, sample and mass production all can support.
Похожие товары

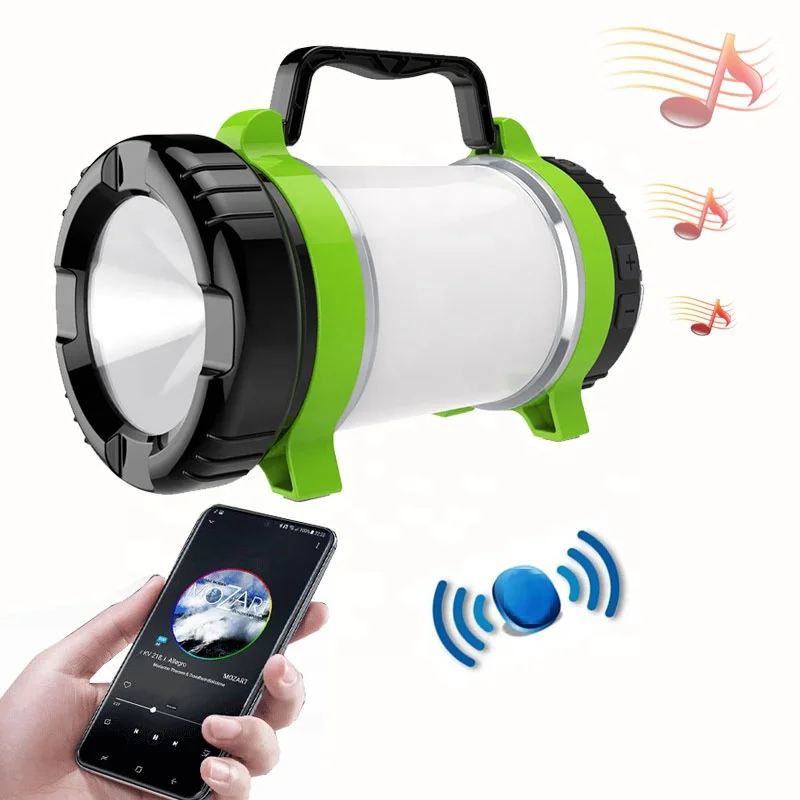

Портативный беспроводной динамик, фонари для кемпинга с беспроводным динамиком, сигнальная лампа, Кемпинговый светодиодный фонарь, водонепроницаемый мобильный внешний аккумулятор
14,00 $ - 20,00 $

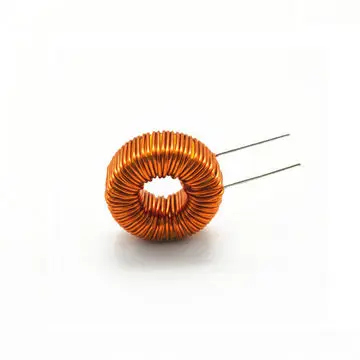

Тороидальный индуктор общий режим дроссель высокого тока индукторы дроссели/индуктивность индуктора/тороидальный индуктор
0,38 $ - 0,45 $
Китайский производитель, регулируемый ремешок из 100% полиэстера, тканый ремешок для транспортировки
0,18 $ - 0,185 $
Тату-наклейки для бровей
0,65 $ - 0,85 $

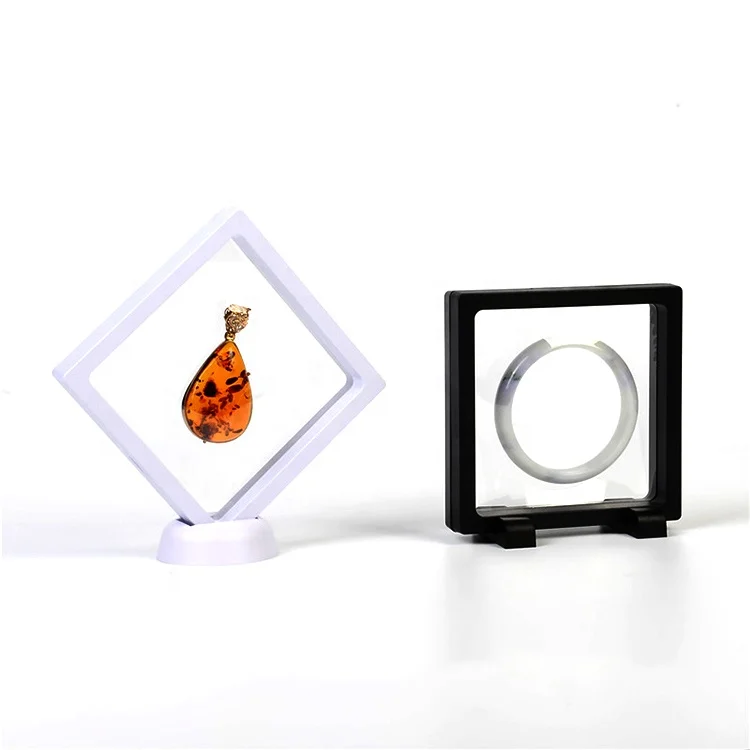

Пылезащитный дисплей Ювелирная подвеска плавающая полиэтиленовая пластиковая
0,37 $ - 0,45 $
Оригинальная интегральная схема чипа памяти 7208L20JG со стандартной

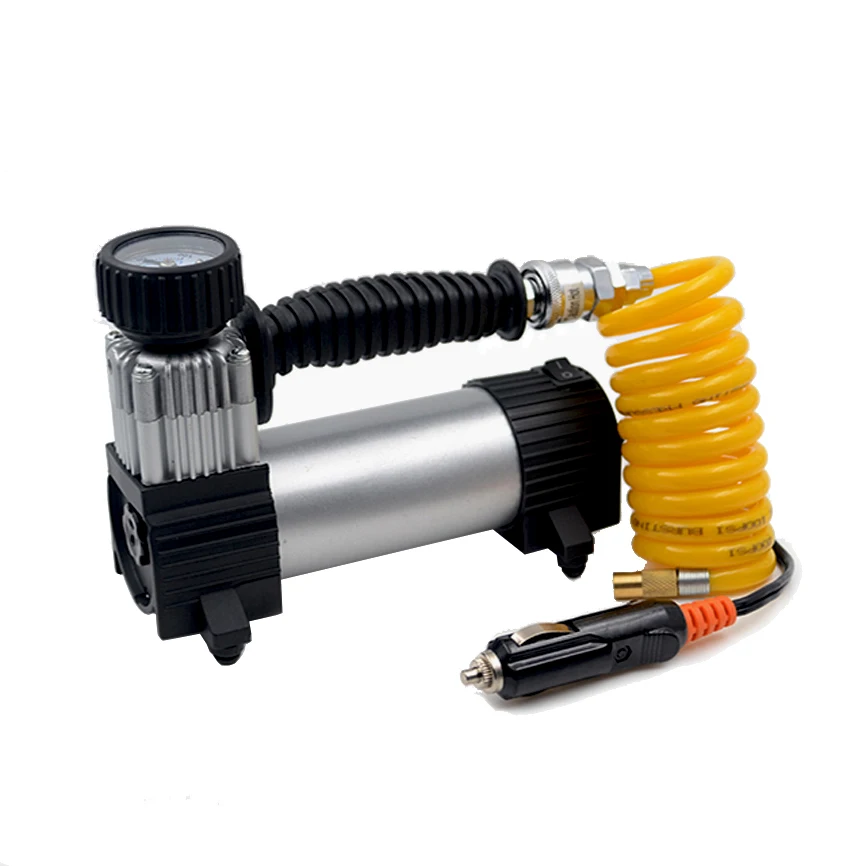

12 В постоянного тока машина для накачивания шин надежное качество 100psi 7 бар ручной воздушный
