Портативный детектор оксидов азота газа
- Категория: >>>
- Поставщик: Yantai Stark Instrument Co. Ltd.
Сохранить в закладки 1600228019734:
Описание и отзывы
Характеристики
Product Description

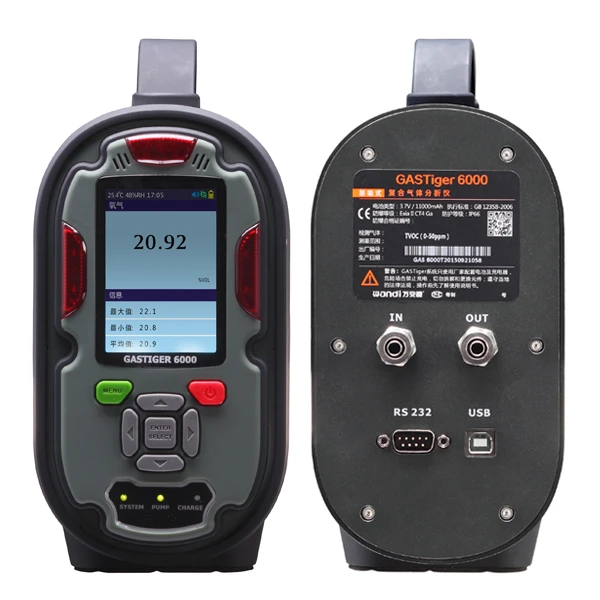

GASTiger6000 pump suction portable nitrogen oxides gas detector adopts imported high performance sensor, is an intelligent high-performance detection alarm that can continuously detect and monitor nitrogen oxides gas concentration and with function of people falling alarm. It is built-in temperature and humidity sensors, display temperature and humidity real-time. GASTiger6000 wireless function allows the security personnel can get a real-time equipment data and alarm status in any place. Visual data displays, large 2.3 inch full-color screen and quicker response time help improve personnel safety and protection to a whole new level.
Main Features
1. Imported high-performance sensor, 2~3 years long service life.
2. Active pump suction, short response time, embedded 32-bit ultra-low power microprocessor, small error and high resolution.
3. Built-in temperature and humidity sensors, real-time display temperature and humidity.
4. Intelligent temperature, humidity and zero point compensation algorithm, 3 to 8 level of the target-point automatic calibration function by software, ensure the accuracy of measurement results; auto detection working status of various
sensors and components.

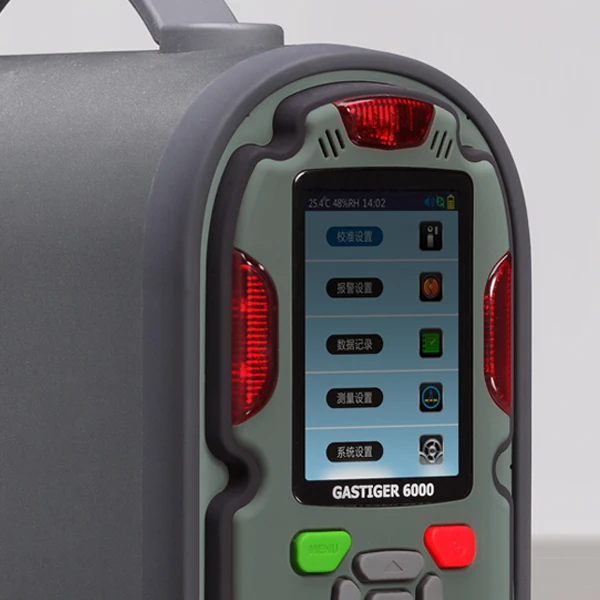

5. 2.3 inch full-color screen, large and clear back light ensure measurement information can be displayed in any lighting
conditions, simple UI color icon menu, 7 buttons navigation friendly user interface, shows the design of humanization,
international.
6. Support free switch of PPM, %VOL, mg/m3, mg/L concentration unit, support Chinese and English interface free switch.
7.Standard 11000 mAh capacity lithium battery, more than 32 hours continuous working time, support mobile power supply and charging, USB port mobile phone charger compatible.
8.First class mechanical design, high strength abrasion resistant polycarbonate enclosure, rugged, waterproof and
anti-corrosion, anti-electromagnetic radiation; reasonable scientific gas chamber design, ensure sensors are not affected by environment; IP66 protection degree.
9. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery.

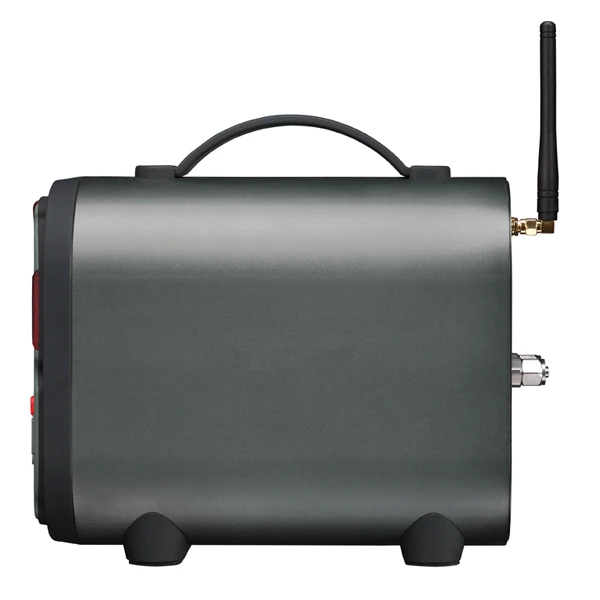

10. RTU short distance wireless transmission or any place that unlimited distance of GPRS wireless transmission modes are both available through the built-in wireless module. Sending the real-time detection results and alarm status to security center;
11. Support USB data download, support micro-portable printer, bluetooth wireless printing.
2. Active pump suction, short response time, embedded 32-bit ultra-low power microprocessor, small error and high resolution.
3. Built-in temperature and humidity sensors, real-time display temperature and humidity.
4. Intelligent temperature, humidity and zero point compensation algorithm, 3 to 8 level of the target-point automatic calibration function by software, ensure the accuracy of measurement results; auto detection working status of various
sensors and components.
5. 2.3 inch full-color screen, large and clear back light ensure measurement information can be displayed in any lighting
conditions, simple UI color icon menu, 7 buttons navigation friendly user interface, shows the design of humanization,
international.
6. Support free switch of PPM, %VOL, mg/m3, mg/L concentration unit, support Chinese and English interface free switch.
7.Standard 11000 mAh capacity lithium battery, more than 32 hours continuous working time, support mobile power supply and charging, USB port mobile phone charger compatible.
8.First class mechanical design, high strength abrasion resistant polycarbonate enclosure, rugged, waterproof and
anti-corrosion, anti-electromagnetic radiation; reasonable scientific gas chamber design, ensure sensors are not affected by environment; IP66 protection degree.
9. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery.
10. RTU short distance wireless transmission or any place that unlimited distance of GPRS wireless transmission modes are both available through the built-in wireless module. Sending the real-time detection results and alarm status to security center;
11. Support USB data download, support micro-portable printer, bluetooth wireless printing.
Technical Parameters
Name | Portable nitrogen oxides gas detector |
Model | GASTiger6000 |
Detection gas | Nitrogen oxides (NOx) gas |
Working principle | Electrochemical, infrared, TCD, PID, catalytic combustion (optional) |
Detection range | 0~1ppm, 0~10ppm, 0~50ppm, 0~100ppm, 0~200ppm, 0~500ppm, 0~1000ppm, 0~2000ppm, 0~5000ppm, 0~10000ppm, 0~50000ppm 0~100%LEL, 0~5%VOL, 0~10%VOL, 0~30%VOL, 0~100%VOL (optional) |
Resolution | 0.01ppm(0~100ppm); 0.1ppm(0~1000ppm); 1ppm(>1000ppm); 0.1%LEL; 0.01%VOL |
Sampling method | Active pump suction, built in air pump can open or close independently Flow speed: 500mL/min |
Accuracy | ≤±3% F.S. |
Repeatability | ≤±1% |
Zero drift | ≤±1%(F.S./year) |
Response time | ≤20s(T90) |
Recovery time | ≤30s |

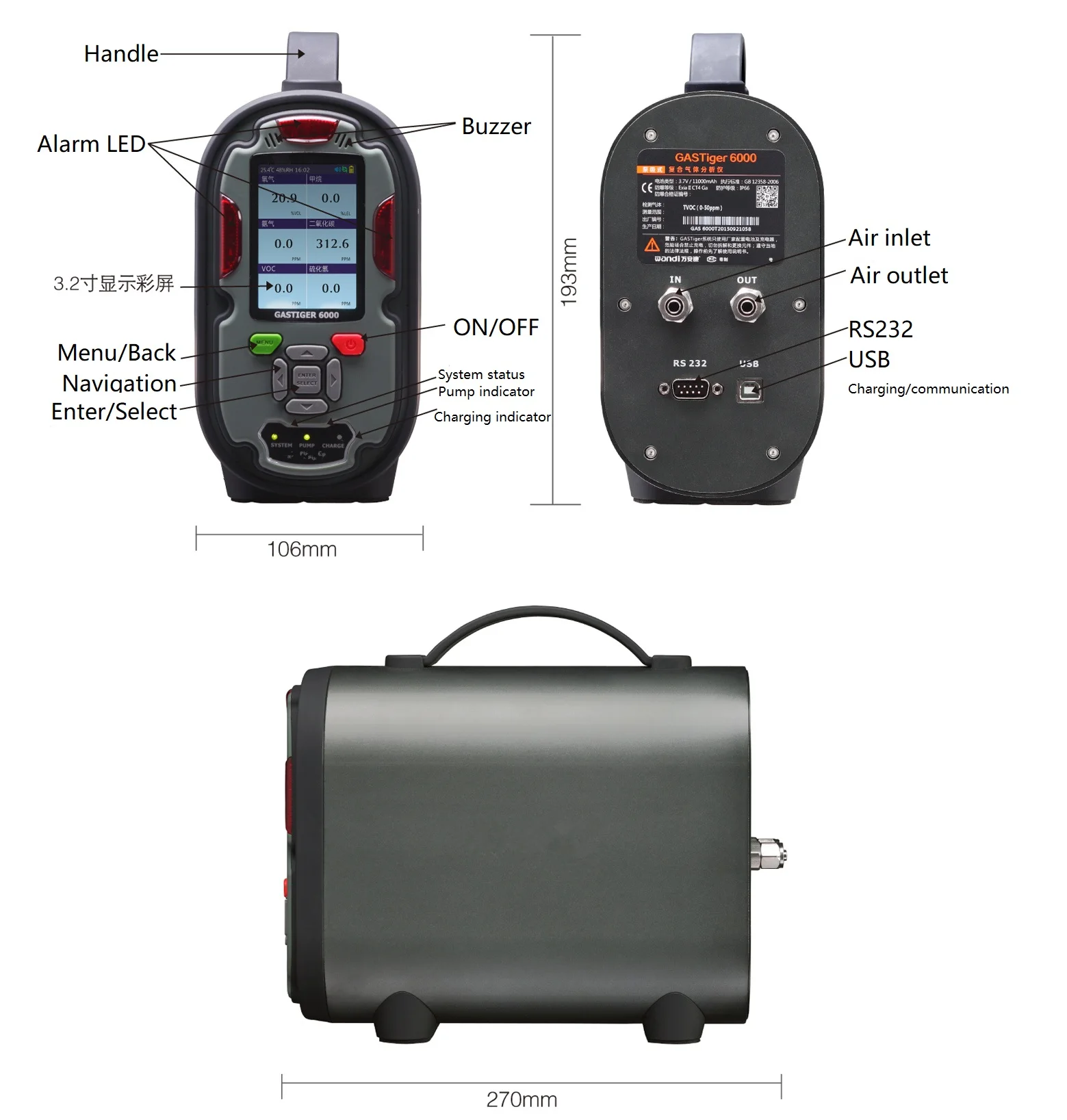

Dimensions | 270mm×193mm×106mm(L*H*W) |
Shell material | Engineering plastics + 304 stainless steel + high-strength wear-resistant and corrosion-resistant aluminum alloy |
Weight | 2.5Kg |
Battery | Standard 11000 mAh capacity lithium battery, more than 24 hours continuous working time, charging time less than 9 hours, support mobile power supply and charging, USB port mobile phone charger compatible. |
Charger | USB quick charger |
Alarm method | Sound alarm 95 dB@30cm, red LED alarm light, personnel falling alarm, short distance wireless and long distance GPRS alarm. |
Alarm value setting | A1 alarm value, A2 alarm value TWA, STEL and low concentration alarm value can be set individually. |
Screen | 2.3 inch TFT |
Backlight | Manual, automatic when alarming |
Button | 7 buttons navigation |
Direct reading | Measured value, data logging status, pump working status, environment temperature and humidity, maximum value, minimum value, average value |
Data storage | Auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery. |
Data transmission | Support USB and RS232 serial port measurement data download and transmission, support GPRS wireless transmission or short-distance RTU433 wireless transmission (optional) |
Data print | Support micro-portable printer, bluetooth wireless printing.(optional) |
Calibration | 2 to 4 level of the target-point automatic calibration, can set the calibration certified value, zero setting. |
Explosion proof | ExdⅡCT4 Ga (Intrinsically Safe) |
Protection class | IP66 (water and dust proof) |
Operation mode | User mode, administrator mode |
Working temperature | -40℃~70℃ (If match with high temperature sample handles, can measure up to 800℃) |
Working humidity | 0-95%RH (Non-condensing) |
Standards | GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010 |
Patent certificate | Patent No.: ZL 2015 3 0122378.4 |
QA | One year, maintenance free in warranty time |
GASTiger6000 Standard Configuration
Name | QTY |
GASTiger6000 host | 1 |
Large capacity lithium battery(built in) | 1 |
Sampling handle (0.4 m) | 1 |
RS232 cable | 1 |
Temperature and humidity sensor (built in) | 1 |
USB charger/USB data cable | 1 |
User manual | 1 |

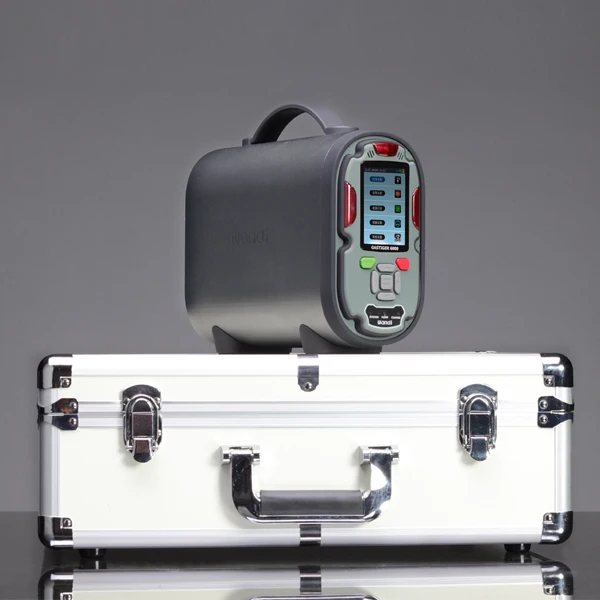

Aluminum alloy instrument case | 1 |
Certificate/Warranty card | 1 |
GASTiger6000 Optional Accessories
Name | QTY |
Mini bluetooth wireless printer (103mm×77.4mm×36mm) | 1 |
TF storage card | 1 |
Software of gas monitoring and management system | 1 |
RTU-433 short-range wireless module | 2 |
GPRS wireless module | 2 |
Bluetooth module | 1 |
Application
Company Profile
Yantai Stark Instrument Co., Ltd. is dedicated in industrial process automation sensors and instrument since its establishment for decades. The main products are Gas Analysis Instrument, Water Analysis Instrument, Flow Instrument, Level Instrument, Temperature Instrument, Pressure Instrument and other field instruments. By offering a super qualified products and one-stop-service, Stark has been worked in industries as wide-spread as oil gas, water wastewater, chemical petrochemical in more than 80 countries, and will take further efforts to become closer to its customers to respond quickly and effectively to their demands. Stark is making constant efforts to establish strong partnerships with distributors world widely, integrating itself into the local innovation system and meanwhile contribute to global technological innovations customer focused, Stark will continuously be committed process automation sensors and instrument, playing an indispensable role in supporting world industries more intelligent and efficient.
Why Choose Us
Contact Us
FAQ
Q: How long will you give me the reply?
A: We will contact you in one hour as soon as we can.
Q: Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you. We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment?
A: We accept T/T, PayPal, Western Union, Credit Assurance.
Q: What is the lead time?
A: Sample needs 2-5 days,We usually ship by DHL, UPS, FedEx or TNT, mass production time needs 7-15 days for order.
The specific price is subject to the parameters, please contact us for the quotation.
A: We will contact you in one hour as soon as we can.
Q: Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you. We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment?
A: We accept T/T, PayPal, Western Union, Credit Assurance.
Q: What is the lead time?
A: Sample needs 2-5 days,We usually ship by DHL, UPS, FedEx or TNT, mass production time needs 7-15 days for order.
The specific price is subject to the parameters, please contact us for the quotation.
