Изолированная сэндвич панель на крышу из Пура высокое качество лидер продаж классический металлический шкаф для хранения и традиционное 5 лет

Изолированная сэндвич панель на крышу из Пура высокое качество лидер продаж классический металлический шкаф для хранения и традиционное 5 лет

Категория: >>>
Поставщик: Changhzhou Yuyan Refrigeration Technology Co. Ltd.

Цена:25,00 $ - 27,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Series	Sandwich Panel Series
Supply capacity	1500000 M2/Year
Application	Refrigeration Industry, Cold Room Project, Agricultural Industry, Food Industry, Restaurant & Chemical Industry
Model	PUR-S-P-50 PUR-S-P-75 PUR-S-P-100 PUR-S-P-120 PUR-S-P-150 PUR-S-P-200
Keyword	PUR Sandwich Panel

Specifications

Available Thickness (MM): 50, 75, 100, 120, 150, 200
Panel Available Length: 500mm - 12000mm
Panel Standard Width: 1120mm
Surface of Panels:To be plating 0.4mm, 0.5mm or 0.6mm thickness pre-painted white hot galvanized steel sheet, aluminum stucco steel sheet or 304 stainless steel sheet.
Color: Standard Grey White 9002 (RAL);
Lacquer: Polyester Coating 25 um or PVDF Coating 25 um
Protection Film:\t20 Micron Thickness of Polyvinyl Chloride (PVC) Film
Pressure: 0.10Mpa
PU Foam Density: 40 - 45 KGS/M3
Fire Rating: B2 Grade

Function

Excellent Insulation Effect
Featured Materials
Easy to Assemble & Disassemble

Company Profile

Changzhou Yuyan Refrigeration Technology Co., Ltd.

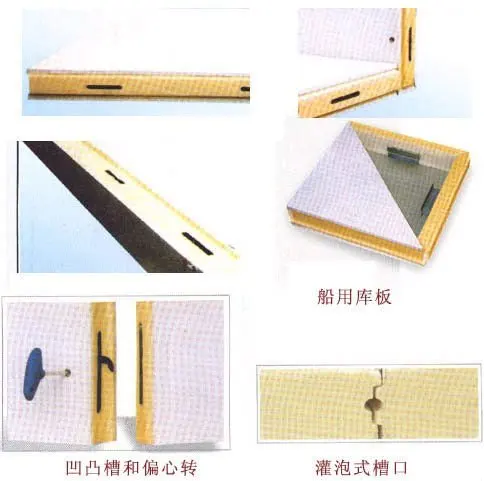

Is a cold storage plant and the overall energy efficiency solutions provider and one of large energy-saving manufacturers of cold storage panel. The sandwich panel for cold room is using Polyurethane(PUR) or Polyisocyanurate(PIR) materials for the core and the surface of panel using PPGI Steel Sheet, 304 Stainless Steel Sheet, 316 Stainless Steel Sheet or Aluminum Embossed Stucco Sheet which can effectively reduce the heat generated due to the temperature difference between inside & outside and to achieve maximum efficiency refrigeration system. The scientific connecting method for the panel is by tongue-and-groove dry joint by cam lock which will have the good sealing performance and easy accessibility to ensure the excellent aesthetics for the cold storage installation.

Exhibition

Certifications

Production Process

Our Advantages

1. Focus on refrigeration industry more than 15 years and make our products by heart.
2. Strong R&D department to make sure reasonable design and excellent quality.
3. Professional engineers and technician with the rich experience on Refrigeration Industry.
4. 24 hours online service and after-sales service
5. High efficiency team work full of love & responsibility
6. Excellent Insulation Effect by the featured raw material

Package & Shipment

FAQ

Q1: What is your MOQ?
A: The MOQ for PIR or PUR Sandwich Panel by Full-Automatic Production Line is 1000 M2 and by Semi-Automatic Production Line is 50 M2 only.

Q2: What is the available size of the Sandwich Panel?
A: The standard width by Full-Automatic Production Line is 1120mm and by Semi-Automatic Production Line is 1000mm and the length is by customized.

Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.

Q4: Can I get a sample of panel for quality check?
A: Sample is available.

Q5: How can I get a price of needed Cold Room?
A: Please give the exactly size and cooling temperature for Cold Room. We can give you a detail quotation based on your requirements.

Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding. If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Q9: Do you supply other products? Do you also supply accessories?
A: Yes, we can also supply other goods, such as Condensing Unit, Cold Room Door, Cold Room Evaporator & Refrigeration Spare Parts. We can supply the above products with the competitive price & good quality.

Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, but I can provide a regular size quotation.
