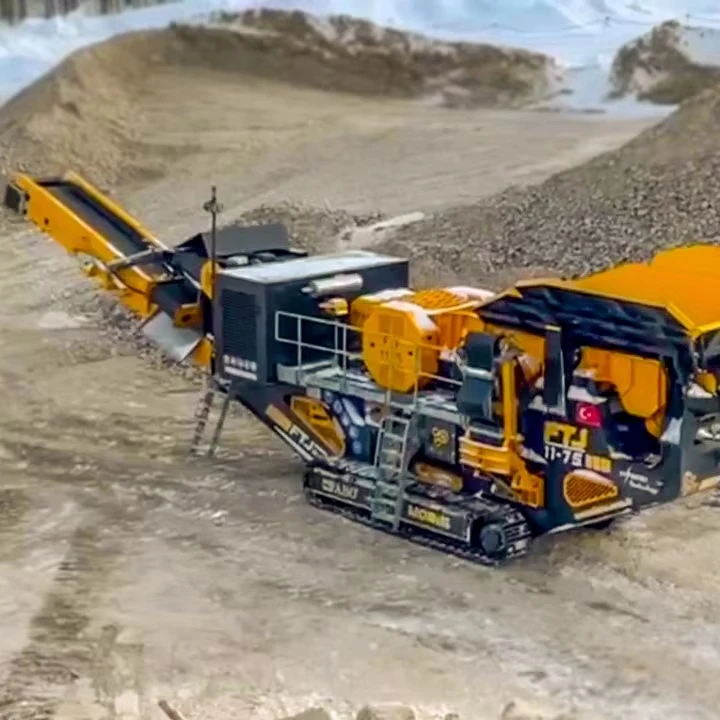

Гибридная гусеничная щековая дробилка FTJ 11-75 имеется в наличии
63 139 780,00 ₽
Новый Стиль 250 300 tph дробилка мобильный песок Вибрационный экран вибратор гравийная установка цена
- Категория: >>>
- Поставщик: Henan Shibo Mechanical Engineering Co. Ltd.Henan Ltd.
Сохранить в закладки 1600229854539:
Описание и отзывы
Характеристики

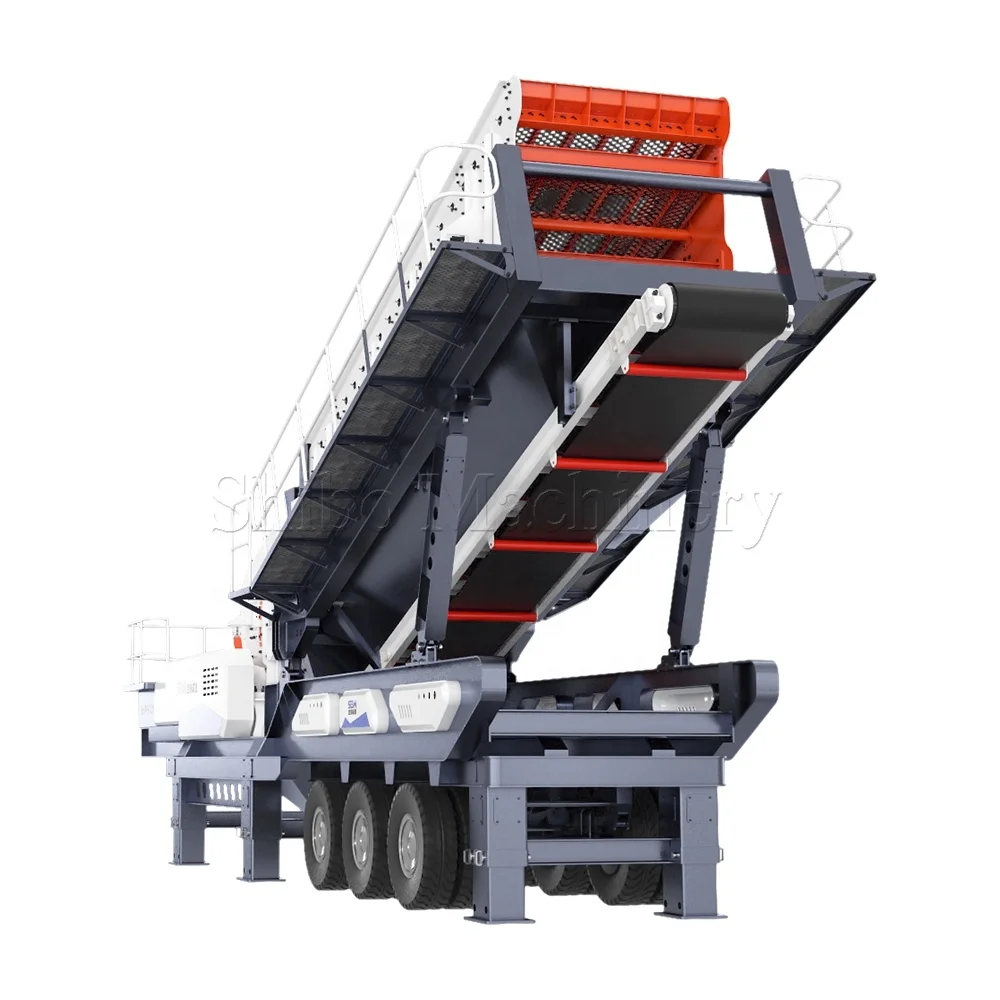

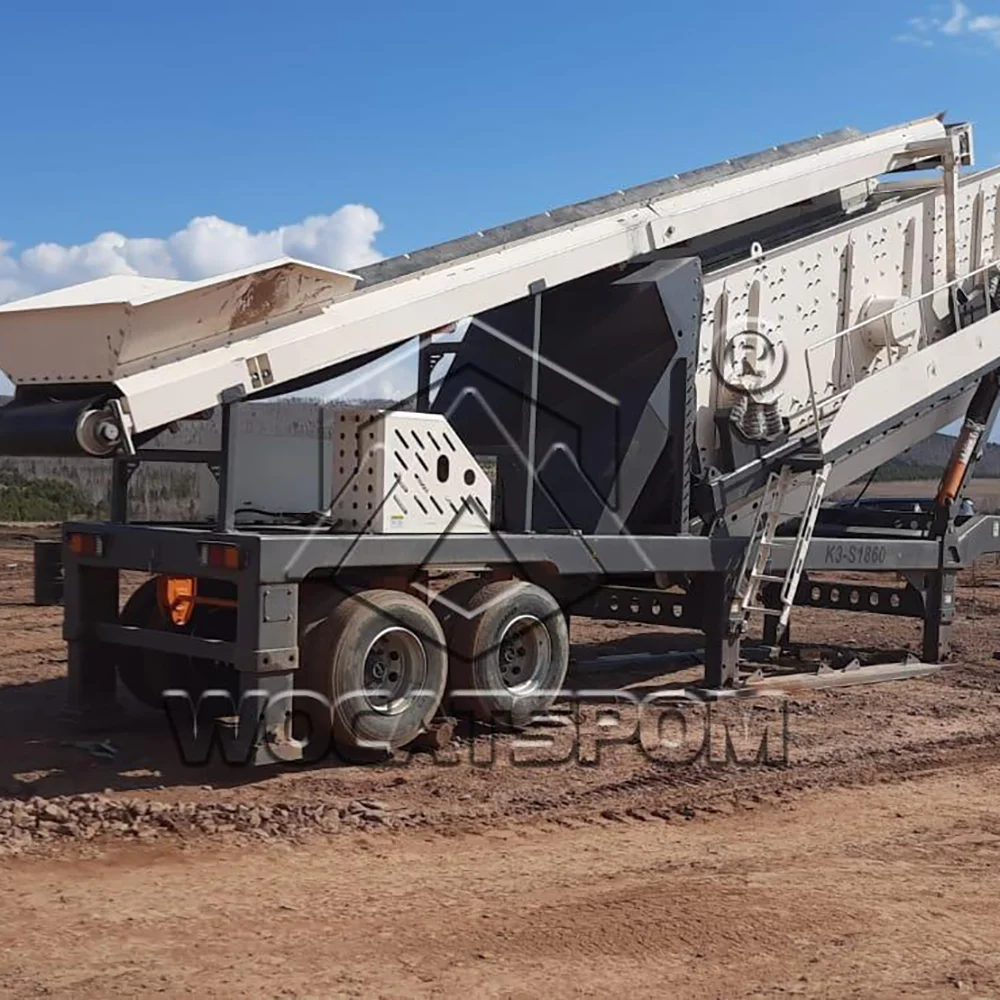

250-300 tph Sand Screening Plant Mobile Vibrating Screen Price
The mobile vibrating screening and crushing plant is used for crushing and screening almost all types of natural rock and in recycling. The classifying and coarse screens are available in a double- or triple-deck version, with hydraulic or diesel-electric drives. It can work with the primary jaw crusher, secondary cone crusher and impact crusher or can be used as a classifier for final product.
Product Description
Standard Model | Screen Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-S1860 | 3YZK1860 | ≤400 | 65-586 | 10500×2700×4200 |
S-S2160 | 3YZK2160 | ≤400 | 81-720 | 10500×3000×4500 |
S-S2460 | 3YZK2460 | ≤400 | 100-810 | 10500×3200×4500 |
Model | Device Configuration | Max feed size (mm) | Mesh Size(mm) | Processing Capacity(t/h) | Transporation Dimension (mm) |
S5X18L | 5X1860 | 400 | 5-80 | 75-600 | 17700 x 3200 x 3700 |
S5X21L | 5X2160 | 400 | 5-80 | 85-700 | 17700 x 3500 x 3700 |

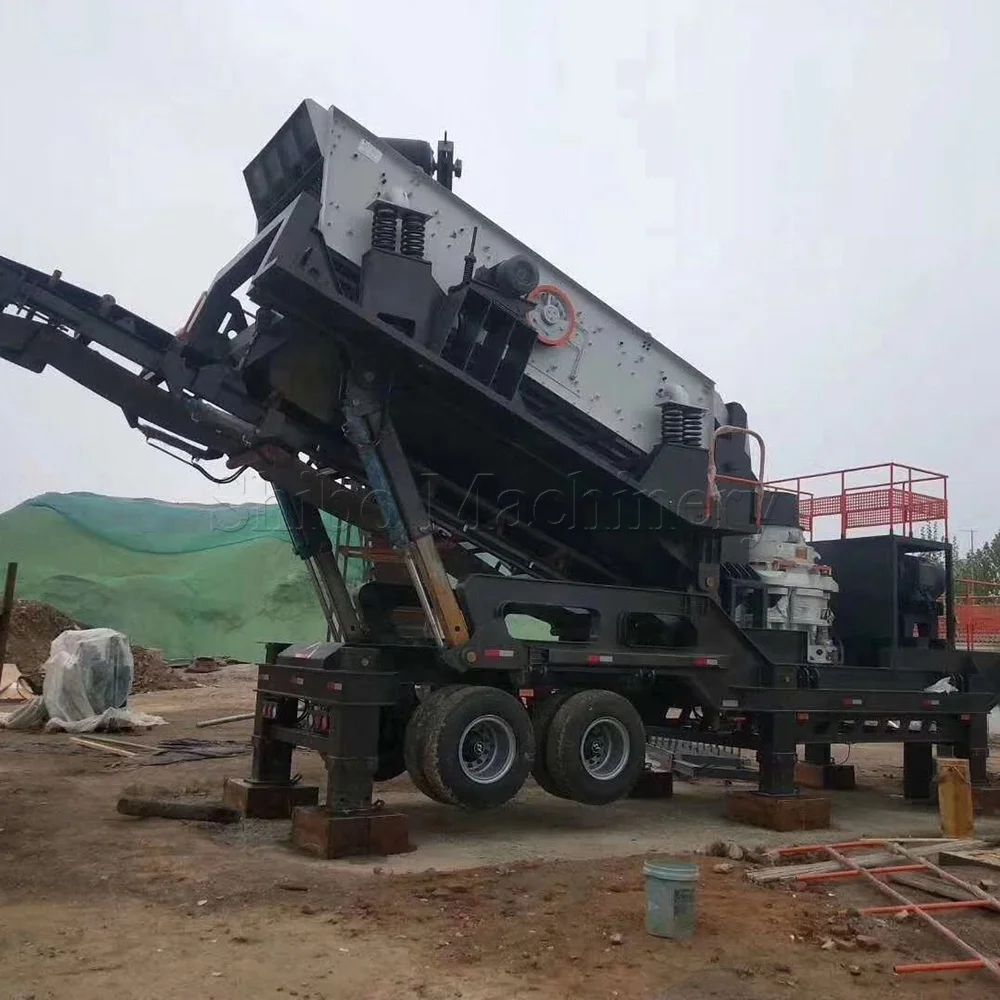

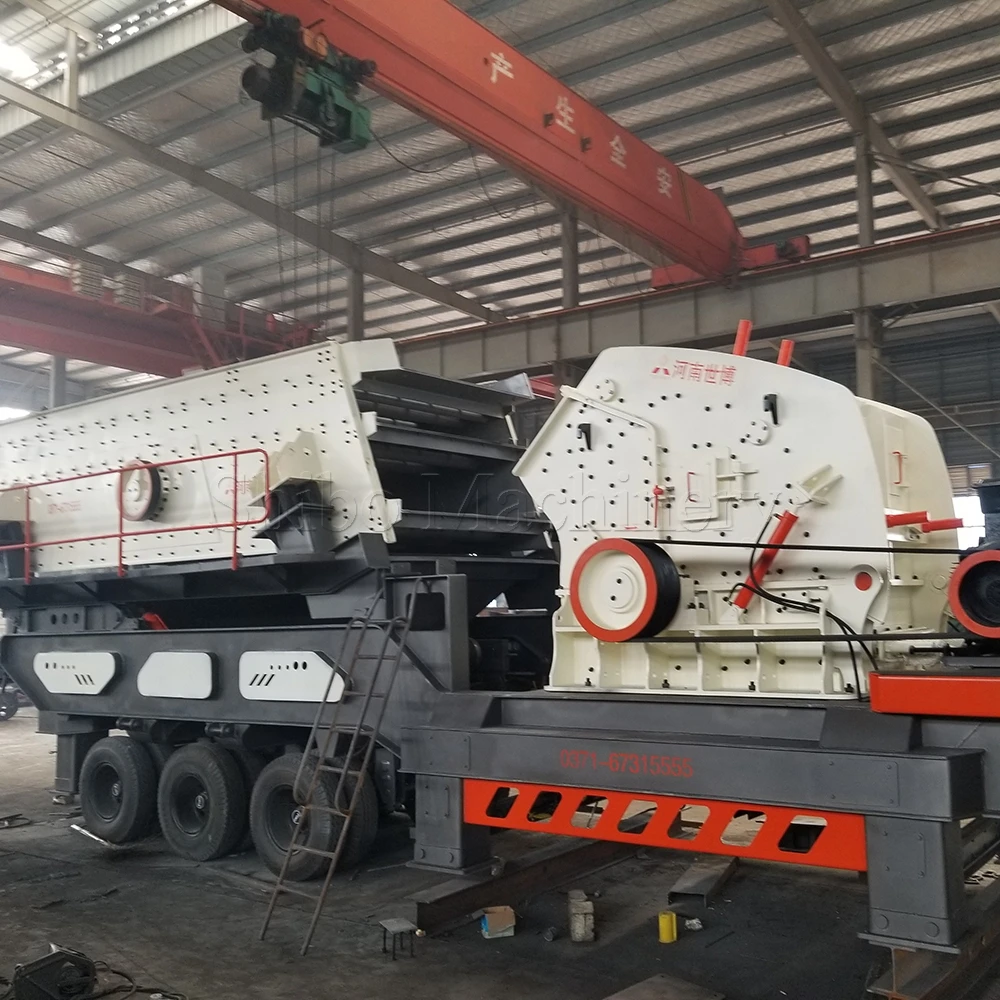

Mobile Crushing and Screening Plant
Usually the mobile screening plant works with crusher and sand making machine to composte mobile crushing and screening plant. Being able to quickly and easily move each machine around a job site by remote control enhances operator flexibility. Allowing for a more efficient use of time and resources, improving your bottom line.
StandardModel | Screen Model | Crusher Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-CS75 | 3YZK1848 | CS75 | ≤160 | 59-163 | 12600×2800×4400 |
S-CS110 | 3YZK1860 | CS110 | ≤178 | 100-200 | 13800×3000×4400 |
S-CS160 | 3YZK2160 | CS160 | ≤188 | 132-253 | 13800×3000×4400 |
S-CS220 | 3YZK2160 | CS220 | ≤230 | 215-330 | 14500×3000×4500 |
Standard Model | Screen Model | Crusher Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-PF1214 | 3YZK1860 | PF1214 | ≤300 | 100-200 | 14500×2900×4500 |
S-PF1315 | 3YZK2160 | PF1315 | ≤350 | 130-280 | 15200×3000×4500 |
S-PF1320 | 3YZK2460 | PF1320 | ≤500 | 180-400 | 15200×3000×4500 |
Standard Model | Screen Model | Crusher Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-HQ300 | 3YZK1848 | SHQ300 | ≤160 | 65-168 | 12600×2800×4400 |
S-HQ400 | 3YZK1860 | SHQ400 | ≤230 | 105-205 | 13800×3000×4400 |
S-HQ500 | 3YZK2160 | SHQ500 | ≤240 | 180-290 | 14500x3000x4600 |
Standard Model | Screen Model | Crusher Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-HP100 | 3YZK1860 | SHP100 | ≤140 | 75-140 | 13800×2900×4300 |
S-HP200 | 3YZK2160 | SHP200 | ≤185 | 145-250 | 14200×3000×4500 |
S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
Standard Model | Screen Model | Crusher Model | Feeding Size(mm) | Capacity(t/h) | Overall Dimension(mm) |
S-H420 | 3YZK1848 | SH420 | ≤240 | 85-170 | 12600×2900×4400 |
S-H430 | 3YZK1860 | SH430 | ≤360 | 120-345 | 13800×3000×4500 |
S-H440 | 3YZK2160 | SH450 | ≤450 | 255-605 | 14800×3200×4600 |
Standard Model | Screen Model | Sand Maker Model | Feeding Size(mm) | Capacity(t/h) |
S-V7611 | 3YZK1548 | VSI7611 | 35 | 120-180 |
S-V8518 | 3YZK1848 | VSI8518 | 40 | 200-260 |
S-V9526 | 3YZK1860 | VSI9526 | 45 | 300-380 |
S-V1140 | 3YZK2160 | 5X1140 | 50 | 450-520 |
S-5V7615 | 3YZK1548 | 5X7615 | 35 | 150-280 |
S-5V8522 | 3YZK1848 | 5X8522 | 40 | 240-380 |
S-5V9532 | 3YZK1860 | 5X9532 | 45 | 350-540 |
S-5V1145 | 3YZK2160 | 5X1145 | 50 | 500-640 |
Application
1. It is widely used in various crushing and screening processes;
2. Screening of materials in quarries and mining areas and screening of aggregates in crushed asphalt and concrete mixing stations;
3. Solid waste resources utilization, such as house demolition, road concrete recycling material screening;
4. Material screening in other industries.
2. Screening of materials in quarries and mining areas and screening of aggregates in crushed asphalt and concrete mixing stations;
3. Solid waste resources utilization, such as house demolition, road concrete recycling material screening;
4. Material screening in other industries.

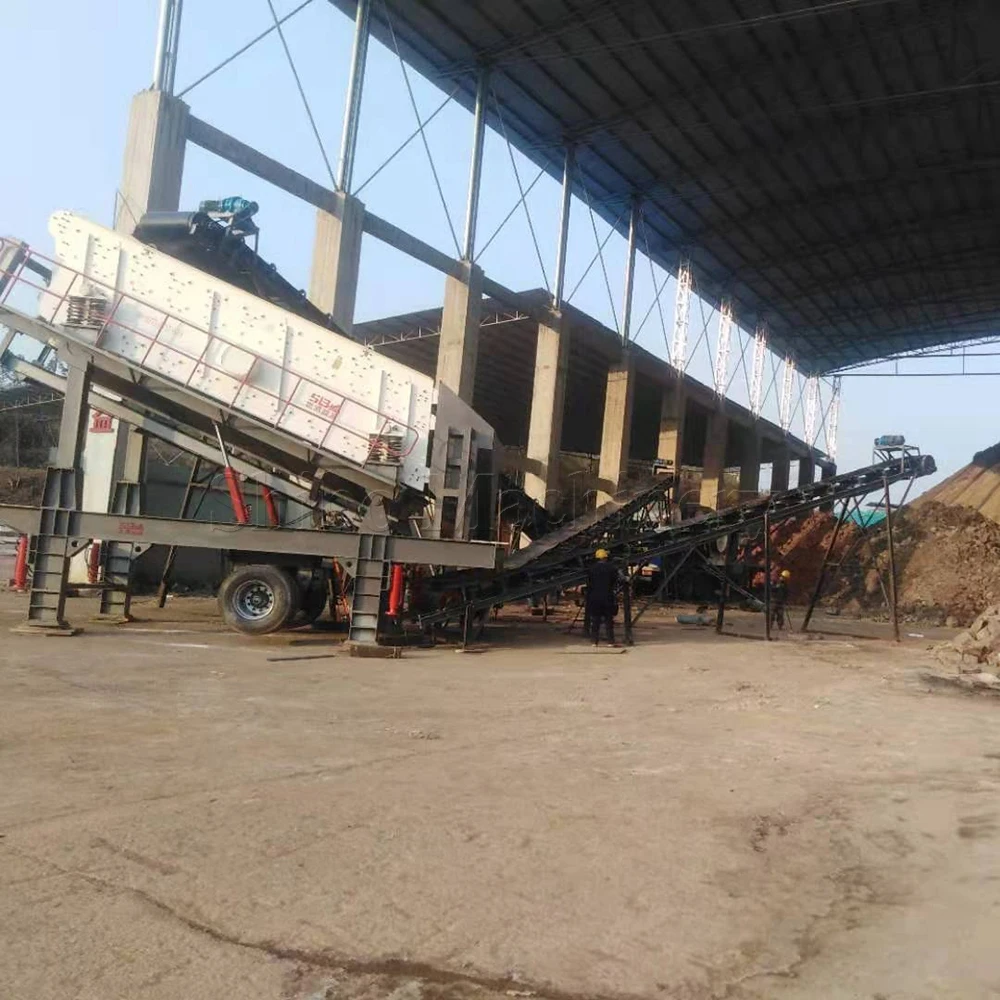

Project Case
The Mobile crusher has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
Company Introduction
Henan Shibo Mechanical Engineering Co., Ltd. offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.
Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
* How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
* How about price?
We are factory and be able to give you the reasonable price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
* Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
* How about price?
We are factory and be able to give you the reasonable price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
* Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.
Похожие товары

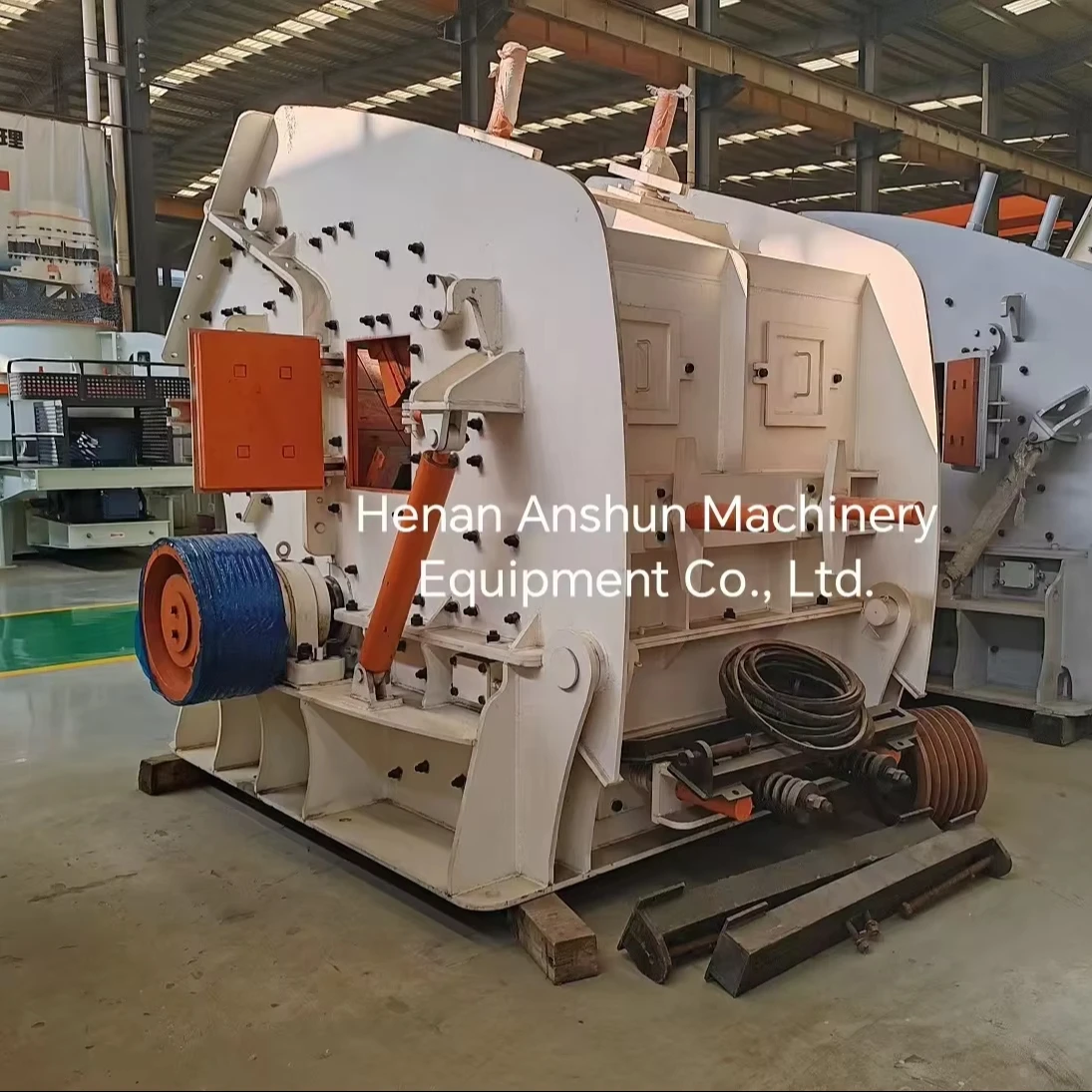

Вторичная дробильная машина каменная ударная Дробилка мощная горнодобывающая Дробильная дробилка заводская цена
4 144 265,56 ₽
Мобильная камнедробилка EC300 портативная дробилка для крупных пород камня распродажа
39 778 061,40 ₽

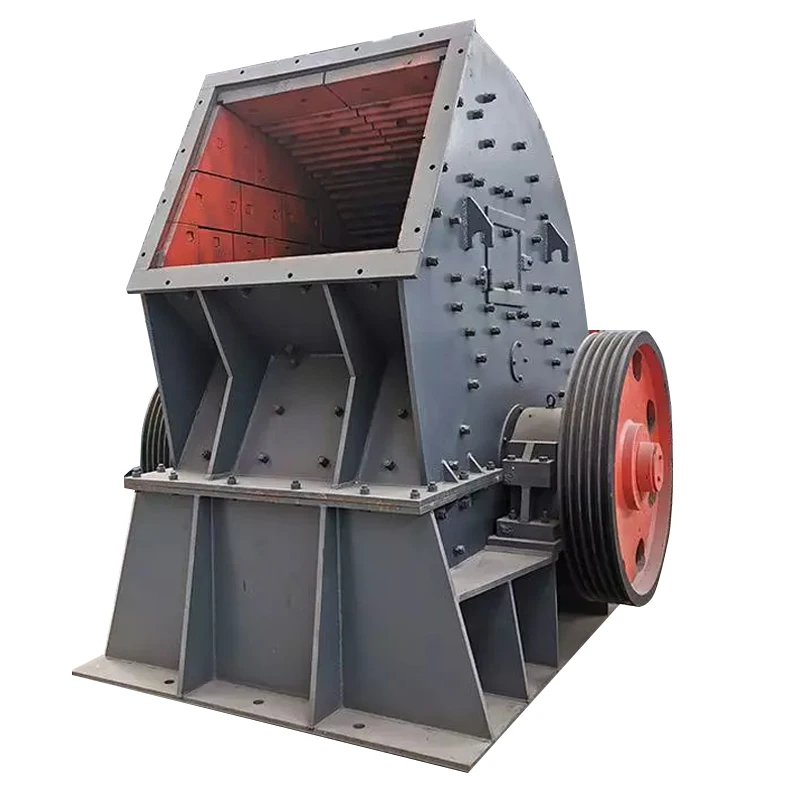

Сверхмощная промышленная камнедробилка молотковая дробилка
1 377 595,20-1 549 794,60 ₽

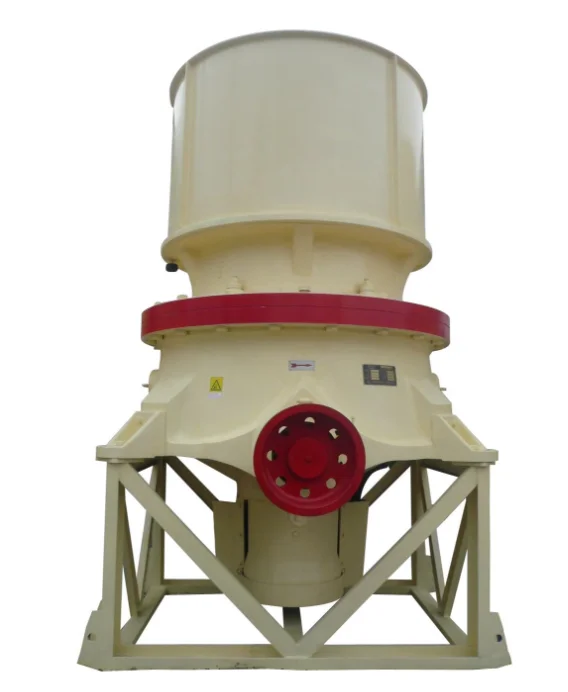

Сверхмощная одноцилиндровая Гидравлическая Конусная Дробилка из известняка и базальта для вторичного дробления

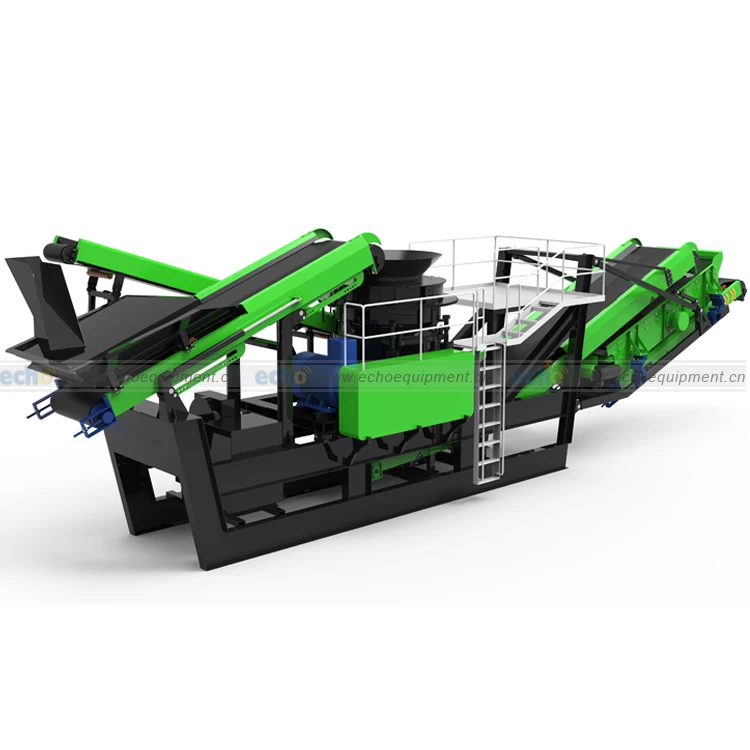

Полный комплект сверхмощных известняковых базальтовых каменных Щековых Дробилок и конусной дробилки 500 т/ч большой мощности мобильных дробильных установок для продажи

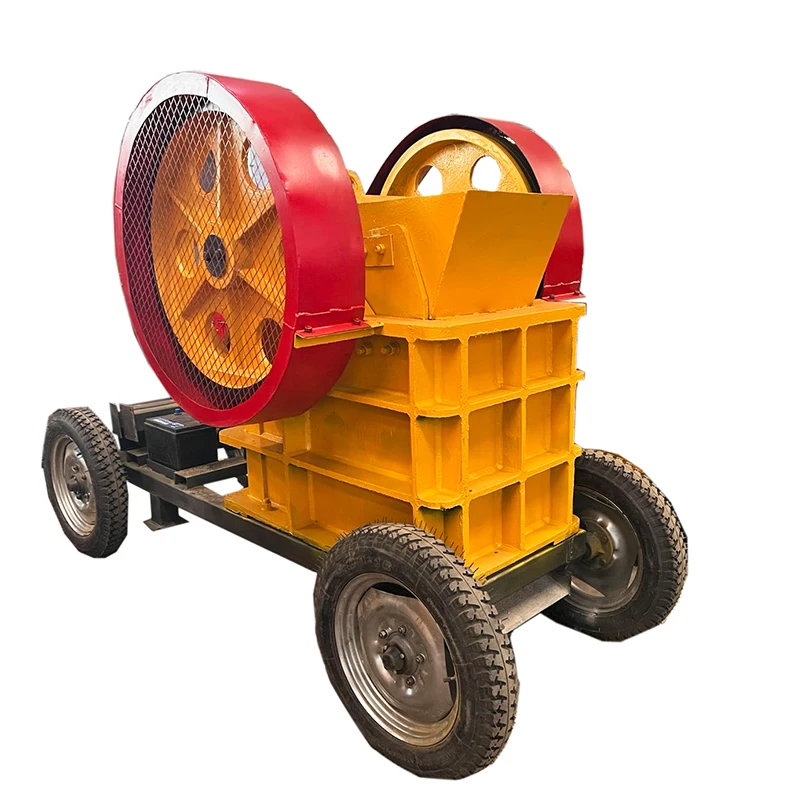

Мобильная щековая дробилка небольшая портативная для камня
