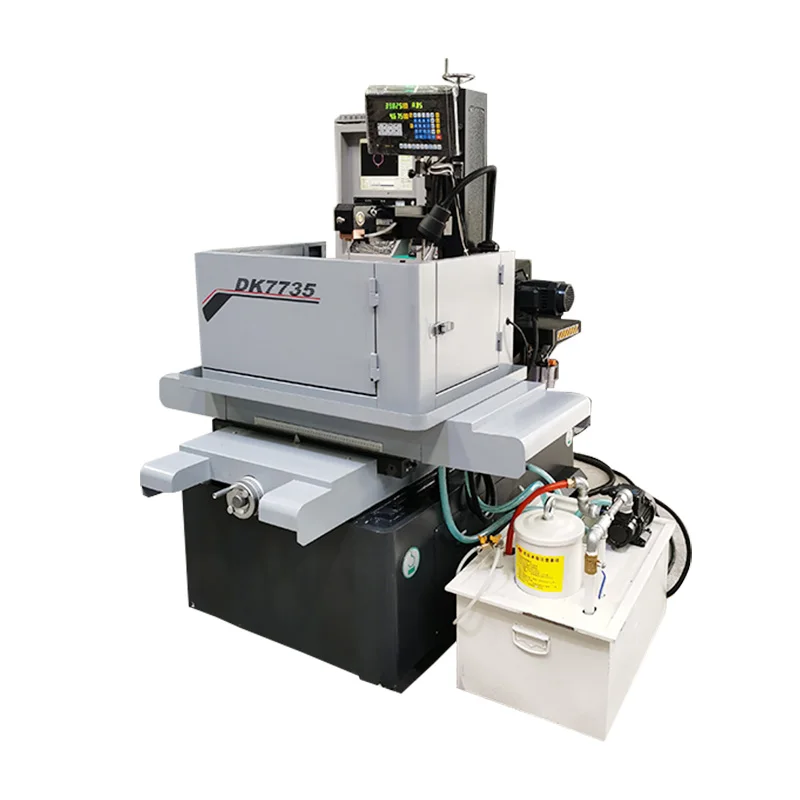

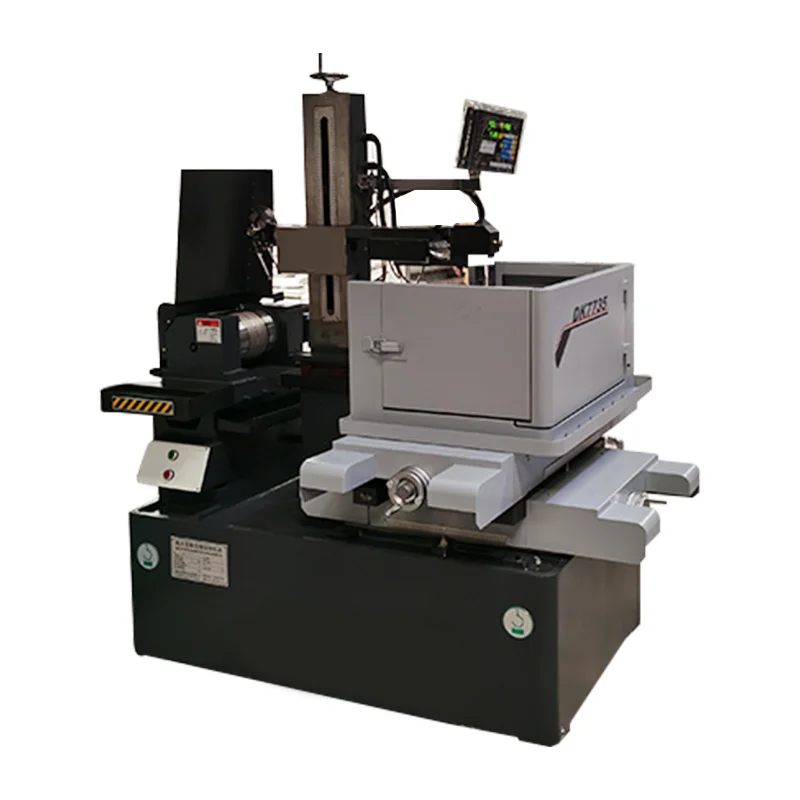

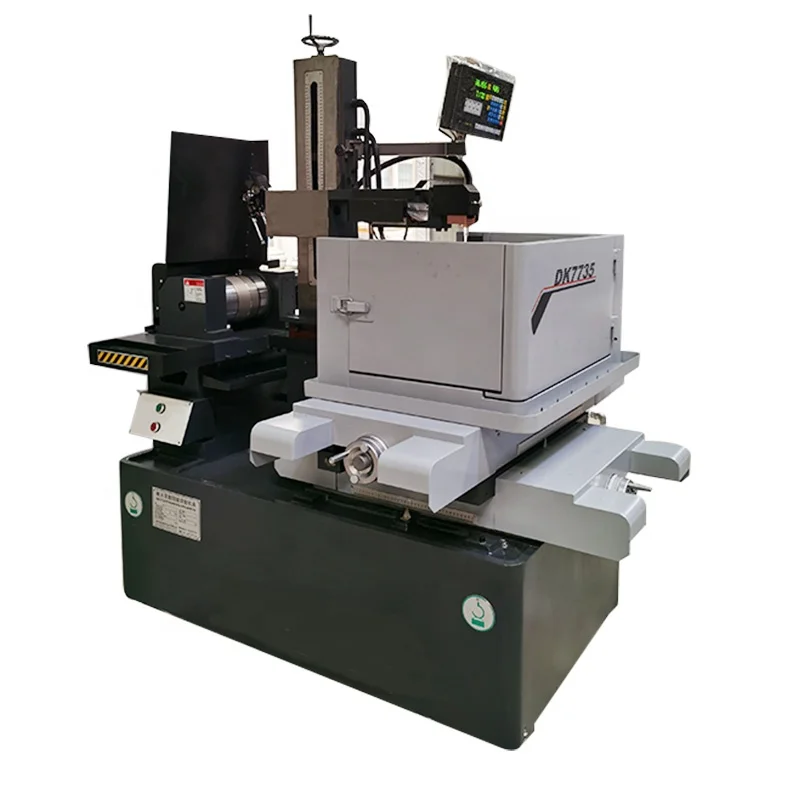

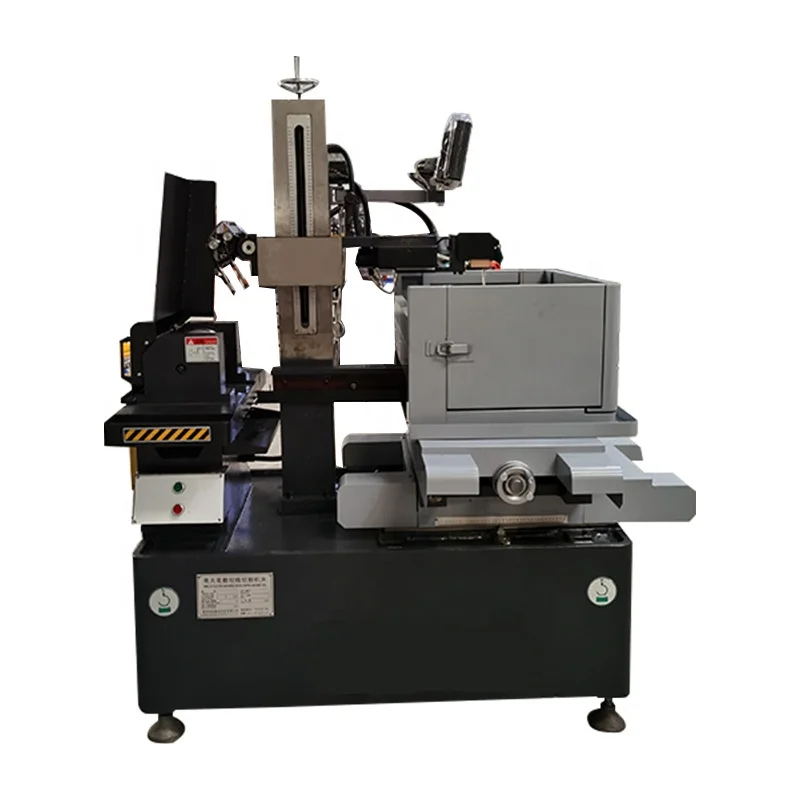

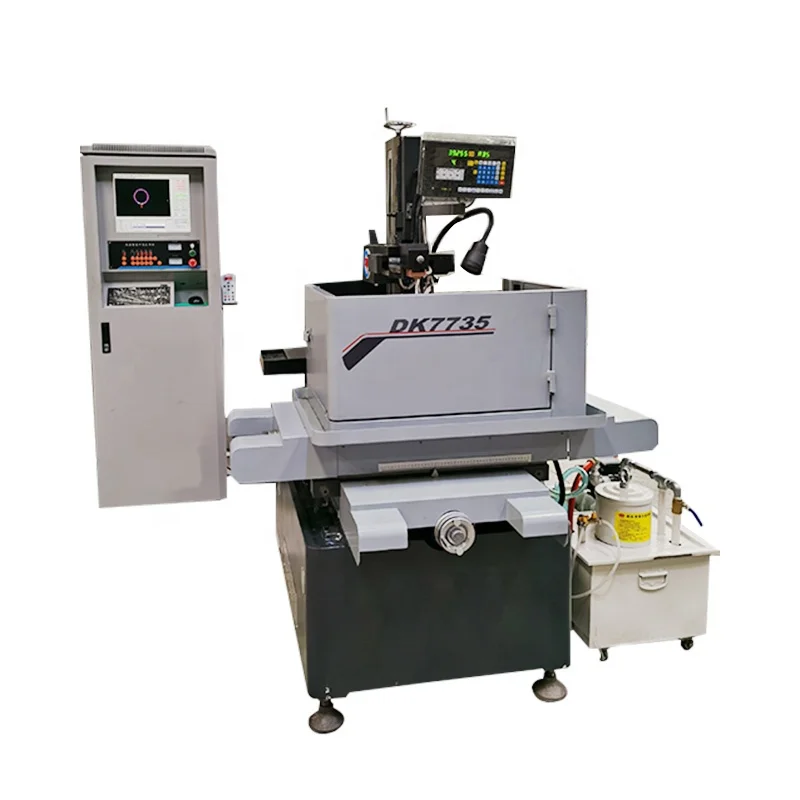

Высокоскоростная мини машина для резки проволоки DK7763 Edm
- Категория: >>>
- Поставщик: Taizhou Aris Import& Export Co. Ltd.
Сохранить в закладки 1600231427402:
Описание и отзывы
Характеристики
This serial product lies in the fact that it has no special requirements to the processed metal material properties. It can
process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials,various magnet steel fragile materials, uneasily-clamped thin wall spares etc. The machine bed are castings by FC-35 resin sand to keep durability and precision. Narrow pulse width, high current characteristics of high-frequency power supply to ensure the cutting of the workpiece surface quality. The series of machines use the imported linear guide rails to ensure high precision, the stability, long-term reliability. Narrow pulse width, high current characteristics of high-frequency power supply. By using CAD, it is very easy to learn and operate machine, and Auto CAD system can screen and monitor the processing track chart, kinetic wire motor, pump hign-frequency power,etc.
process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials,various magnet steel fragile materials, uneasily-clamped thin wall spares etc. The machine bed are castings by FC-35 resin sand to keep durability and precision. Narrow pulse width, high current characteristics of high-frequency power supply to ensure the cutting of the workpiece surface quality. The series of machines use the imported linear guide rails to ensure high precision, the stability, long-term reliability. Narrow pulse width, high current characteristics of high-frequency power supply. By using CAD, it is very easy to learn and operate machine, and Auto CAD system can screen and monitor the processing track chart, kinetic wire motor, pump hign-frequency power,etc.
Item/Model | DK7725K | DK7735K | DK7745K | DK7750K | DK7763K | ||||
Table size(W*D) | 400x580mm | 440x680mm | 540x760mm | 640x1020mm | 750x1140mm | ||||
Table travel(X*Y) | 250x320mm | 350x450mm | 450x550mm | 500x630mm | 630x800mm | ||||
Table travel(U*V) | 70x70mm | ||||||||
Max.workpiece weight | 400kg | 600kg | 700kg | 800kg | 1500kg | ||||
Max.thickness of workpiece | 400mm | 600mm | 600mm | ||||||
Max.taper angle | ±6°/80mm | ||||||||
Z axis lifting method | manual | ||||||||
Diameter of molybdenum | φ0.15~φ0.20mm (recommend φ0.18mm) | ||||||||
Max.wire feed rate | 1~11.4m/sec 7 levels adjustable | ||||||||
Machining precision | ≤0.015mm | ||||||||
Max.machining speed | ≥220mm²/min | ||||||||
Surface roughness | Ra≤2.5μm | ||||||||
Motor type | X、Y、U、V axis: stepper motor drive | ||||||||
Axis controlled | 4 axis simultaneous move,stepper motor | ||||||||
Min.control pace | 0.001mm | ||||||||
Power supply | 380VAC/50Hz | ||||||||
Max.working current | 12A | ||||||||
Power consumption | 0.56kW | ||||||||
Working liguid | JR3A | ||||||||
Water tank | 55L | ||||||||
Filtering mode | Paper filter/Italy | ||||||||
Controller | X8-HL | ||||||||
Machine weight | 1100kg | 1300kg | 1600kg | 2300kg | 3000kg | ||||
Machine dimensions | 1420*1040*1700mm | 1550*1170*1700mm | 1800*1380*1700mm | 2600*2300*2100mm | 2250*3300*1950mm | ||||
Q1: Could I visit your factory ?
A1:Of course,Yes! Warmly welcome all customers from all over the world to visit our factory.
Q2:What’s your MOQ?
A2:Our MOQ is one set for each machine
Q3:Could you pls use our own brand on your machine ?
A3:Yes,we can do it according to your request.
Q4:Could you pls modify and produce machines according to our designer ?
A1:Of course,Yes! Warmly welcome all customers from all over the world to visit our factory.
Q2:What’s your MOQ?
A2:Our MOQ is one set for each machine
Q3:Could you pls use our own brand on your machine ?
A3:Yes,we can do it according to your request.
Q4:Could you pls modify and produce machines according to our designer ?
A4:Of course,yes,but order quantity each model more than 6 sets.
Q5:Could you pls supply technical guidance ?
A5:Yes.You can come to our factory to study in China, and we can also dispatch our engineer go to your country and assist you on installation and operation. But all accommodation charge and Round trip tickets should be stand by the buyer
Q6:How can I get technical support if I buy your machine?
A6:We have detailed instructional videos, even if novices can operate by watching the videos
Q7:How about after-sales service?
A7:Free replacement of damaged parts during the warranty period,replacement at cost price after the warranty period;
If any problems,we will provide you with solutions quickly by shooting videos or other ways.
Q8:Whats your fast delivery time ?
A8:If have stock, we can arrange shipment by 15 days ,after we received your advanced deposit.
Generally delivery time around 30 days, not include national holiday.
Q9:What is your terms of payment?
A9:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
Q5:Could you pls supply technical guidance ?
A5:Yes.You can come to our factory to study in China, and we can also dispatch our engineer go to your country and assist you on installation and operation. But all accommodation charge and Round trip tickets should be stand by the buyer
Q6:How can I get technical support if I buy your machine?
A6:We have detailed instructional videos, even if novices can operate by watching the videos
Q7:How about after-sales service?
A7:Free replacement of damaged parts during the warranty period,replacement at cost price after the warranty period;
If any problems,we will provide you with solutions quickly by shooting videos or other ways.
Q8:Whats your fast delivery time ?
A8:If have stock, we can arrange shipment by 15 days ,after we received your advanced deposit.
Generally delivery time around 30 days, not include national holiday.
Q9:What is your terms of payment?
A9:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
