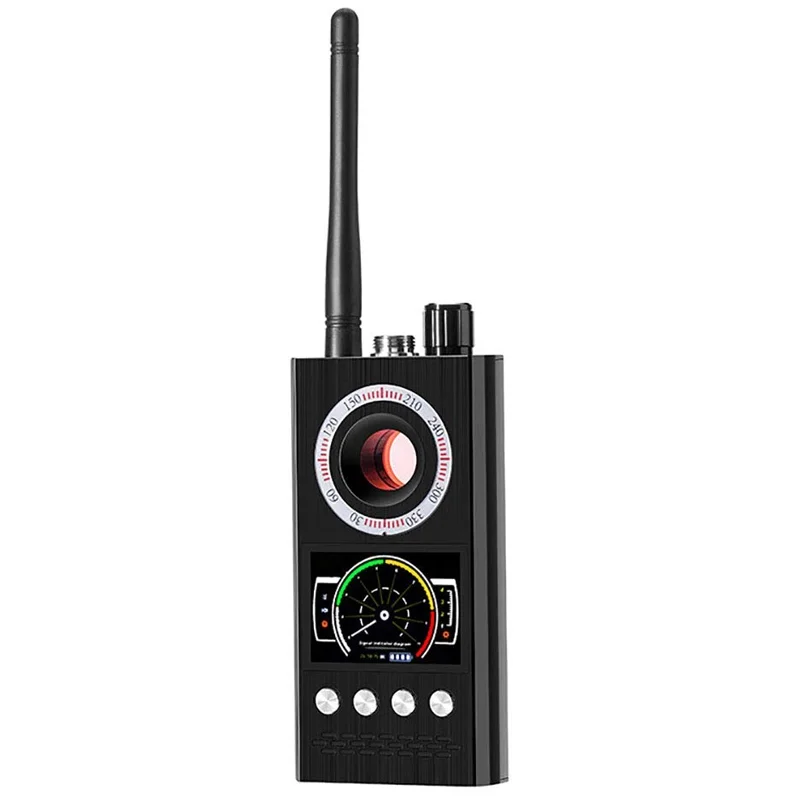

Беспроводной сигнальный детектор K68, антиcandid с камерой и GPS-трекером
33,00 $ - 36,40 $
Нет Moq 1280*800 1280x800 10 1 дюймовая сенсорная панель 50pin TFT ЖК дисплей модуль с емкостным сенсорным экраном
- Категория: >>>
- Поставщик: Shenzhen Elsun Technology Co. Ltd.
Сохранить в закладки 1600232042846:
Описание и отзывы
Характеристики
Super Surprise
Only one film Can change your screen display and image defects
First:The TVA film（ Improve viewing angle and CR ratio）
Seamless Effect Adhesive
We are the sole agent of these new material in China, in the future, we will supply these materials to more and more customers.
Product Description
Module Display Main Parameters | ||
Item | kingtech 10.1 inch ips1280x800 display | |
Model No. | PV10109LZR40G | |
Resolution | 1280 x 800 | |
Outline Dimension | 229.80(W) x 149.00(H) x 5.95(T) | |
Active Area(mm) | 216.96(W) x 135.60(H) | |
Interface | 8-BIT LVDS Interface | |
Viewing Angle | All | |
LED life | 50000h | |
Display Mode | Transmissive / Normally Black | |
Operating Temperature | -30℃ to +80℃ | |
Storage Temperature | -30℃ to +80℃ | |
Brightness | 1000nits | |
Touch screen | I2C / USB capacitive touch screen | |
Board | HDMI board | |
CONVERT BOARD DETAIL
Convert Board Parameters | ||
Item | Specification | |
Input Resolution | 1080P(WUXGA) max @60Hz | |
Output Resolution | 1920P(WUXGA) max @60Hz | |
Outline dimension | 93(W)x85(H)x1.3(H) | |
Main control | Mstar TSUMU58CDT9-1 | |
Clort | 24BitTrue color processing | |
Support voltage | DC 12V (+/-1V), current minimum 4A, minimum recommended 48W power adapter | |
Work temperature | -20℃~70℃ | |
Input | 1 way HDMI, 1 way VGA | |
Screen voltage | 2.5V | |

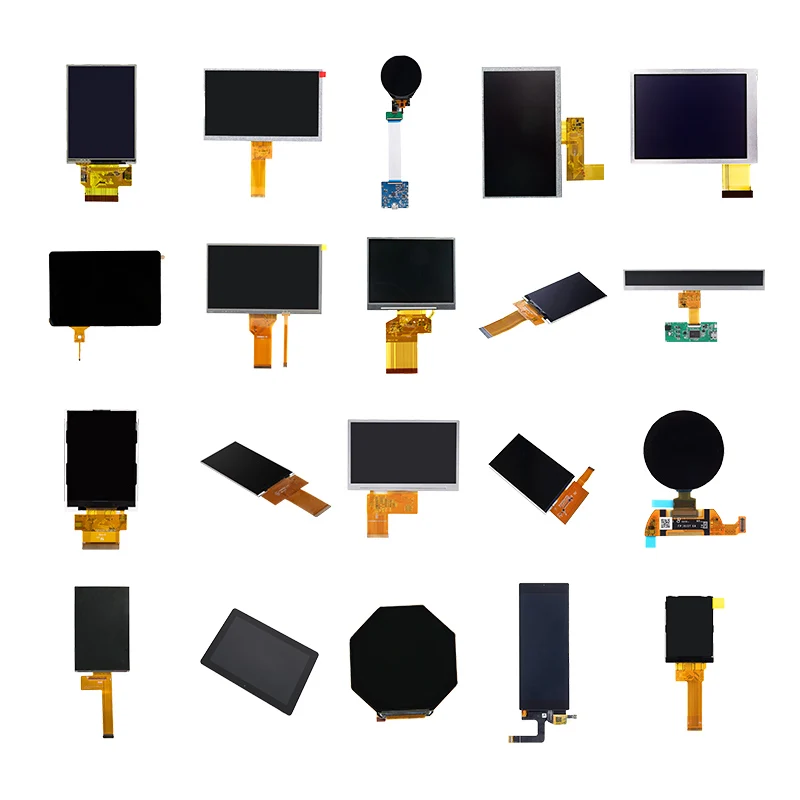

More Customized Products
Size and Feature | Model No | Resolution | Interface | Brightness | Viewing angle | With /Without TP |
1.39" OLED Round with Board | 454*454 | MIPI/SPI | 350 | All | With TP | |
2.0" Sunlight readable IPS | 240*320 | 4SPI+16-bit RGB interface | 1000 | All | Without TP | |
2.4" | 240*320 | 8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4 | 180 | 6 O'clock | With TP | |
2.4" Sunlight Readable IPS | 240*320 | 16-bits MPU | 200 | All | With TP | |
2.8" IPS | 240*320 | i80-system 8/16/18-bit MCU interface | 400 | All | With TP | |
2.8" IPS | 240*320 | 4-lines_8bit / 3-lines_9bit SPI | 200 | 12 O'clock | With TP | |
3.2" | 240*320 | MPU 8 / 16 bit | 160 | 6 O'clock | Without TP | |
3.34'' Round | 320*320 | MIPI | 600 | 12 O'Clock | Without TP | |
3.4'' Round With Driver Board | 800*800 | MIPI 3 lane | 350 | All | With TP | |
3.5" | 320*240 | 24BIT RGB+SPI | 290 | 12 O'Clock | With TP | |
3.5" IPS | 320*480 | MPU 16-bit | 230 | All | With TP | |
3.5" Sunlight Readable IPS | 320*480 | 16-Bit MCU | 1000 | All | With TP | |
3.5" Transflective Sunlight readable | 480*640 | 3-wire SPI + RGB interface | 120 | All | Without TP | |
4.3" | 480*272 | 24 BITS RGB | 280 | 12 O'Clock | With TP | |
4.3" IPS | 480*800 | 3-wire/4-wire SPI + RGB interface | 300 | All | With TP | |
4.3" Sunlight readable | 480*272 | 24-Bit RGB 8-Bit RGB | 800 | 12 O'clock | With TP | |
4.82'' Bar type | 480*1120 | MIPI DSI | 280 | All | With TP | |
5.0" OLED | 1080*1920 | MIPI-4 Lanes | 380 | All | With TP | |
5.0" Sunlight Readable With Driver Board | 800*480 | 24-bit Parallel RGB | 500 | 12 O'Clock | With TP | |
7.0" IPS | 800*1280 | MIPI-4 Lanes | 500 | All | Without TP | |
7.0" IPS With Driver Board | 1024*600 | TTL(RGB interface) | 450 | All | With TP | |
7.0" Sunlight readable With Driver Board | 800*480 | 24-bit Parallel RGB Interface | 400 | 12 O'Clock | With TP | |
7.0" Sunlight readable With Driver Board | 800*480 | 24-bit Parallel RGB Interface | 300 | 12 O'clock | With TP | |
7.0" Sunlight Readable With Driver Board | 1024*600 | LVDS | 500 | 12 O'Clock | With TP | |
8.0" IPS | 800*1280 | MIPI 4 LANE | 380 | All | With TP | |
8.0" IPS | 1200*1920 | MIPI | 500 | All | With TP | |
10.1" IPS With Driver Board | 1280*800 | LVDS Interface | 350 | All | With TP | |
10.1" IPS | 800*1280 | MIPI VIDEO MODE | 330 | All | With TP | |
10.1" IPS | 1200*1920 | MIPI | 500 | All | With TP | |
10.1" IPS With Driver Board | 1280*800 | LVDS Interface | 500 | All | With TP | |
10.1" Sunlight Readable IPS | 1280*800 | LVDS Interface | 1000 | All | With TP | |
10.4'' Sunlight readable Bar Type With Driver Board | 1024*100 | TTL(RGB interface) | 950 | All | With TP |
Company Profile
Kingtech has been specializing in TFT LCD display and touch screen since 2003. More than 90% of our business is custom made display modules for projects such as industrial devices, medical and smart home applications.Our mission is to provide customer one-stop solution. With LCD display and touch screen as our product center, great trust is built with our customers.
Our Advantages
1.One-stop Solution
(1)LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3)LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.
(4)LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5)LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6)Complete solution. We can also customize plastic frame to contain our display.
2.We have multiple certifications
3.Products quality assurance
(1)High-quality raw material supplier ：
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials：
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
4.Production and R & D capabilities, supporting small order quantities and full customization
Our Facrory
Our Production Process
Our Exhibition and Our Team
FAQ
1.How do you guarantee the quality?
We pass ISO900, ISO14001 and TS16949 certificates.Strict quality control Inspection is done in FOG==>LCM==>LCM+ RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC
2.Do you have any MOQ limit?
No, small quantity order is also welcome!
3.How can you guarantee stable supply?
1)We have very good source. We always check and choose the most stable supply LCD panel in the beginning.
2.Do you have any MOQ limit?
No, small quantity order is also welcome!
3.How can you guarantee stable supply?
1)We have very good source. We always check and choose the most stable supply LCD panel in the beginning.
2)When EOL happens,usually we will get notification from original manufacturer 3-6 months in advance. We prepare another LCD brand solution as replacement for you or recommend you to do last buy if your annual quantity is small or even tool up a new LCD panel if your annual quantity is big.
4.Why are Kingtech’s products higher in price?
1)Most of our projects are industrial applications, not consumer.
4.Why are Kingtech’s products higher in price?
1)Most of our projects are industrial applications, not consumer.
2)The material we are using are all A grade from formal channels,with strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject.
3)Every single piece display will be inspected carfully for more than 5 times. Reliability test will be done for all new projects.
Похожие товары

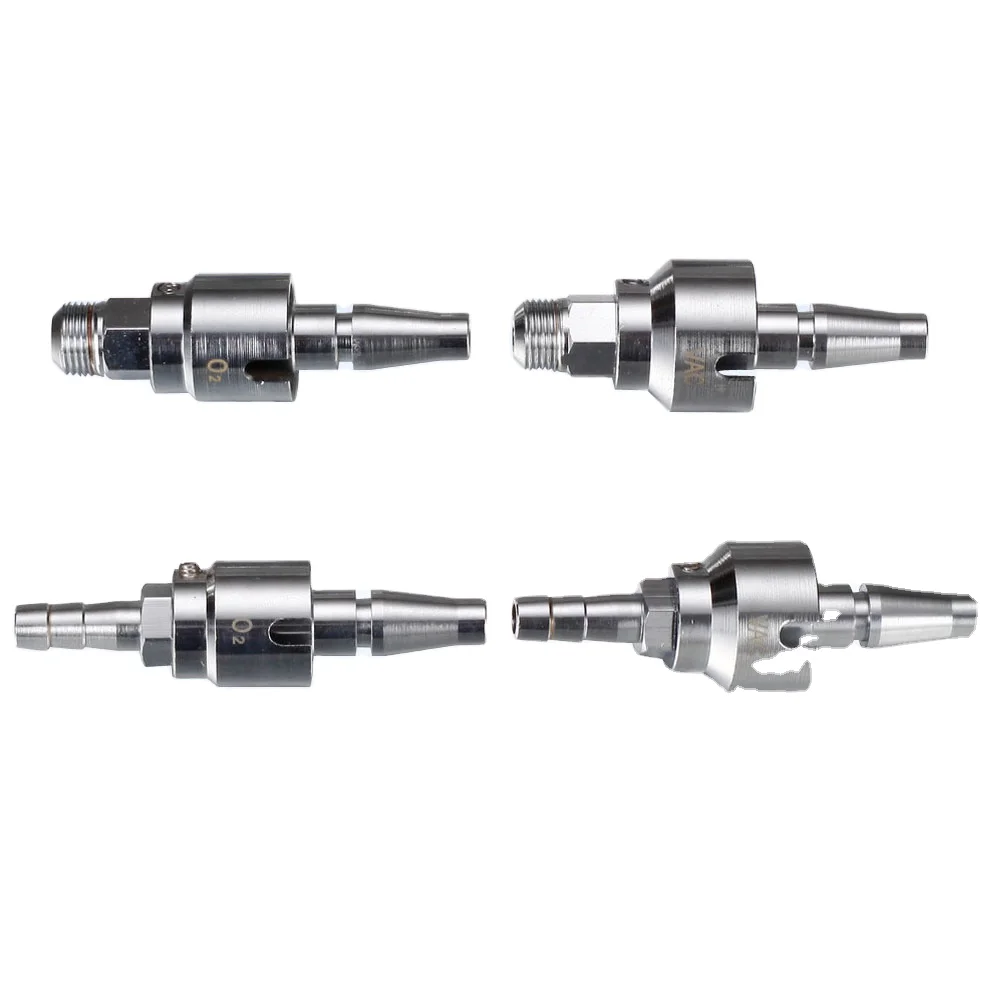

Лидер продаж, 2021, медицинский зонд и пробка для расходомера и газовых выходов различного типа

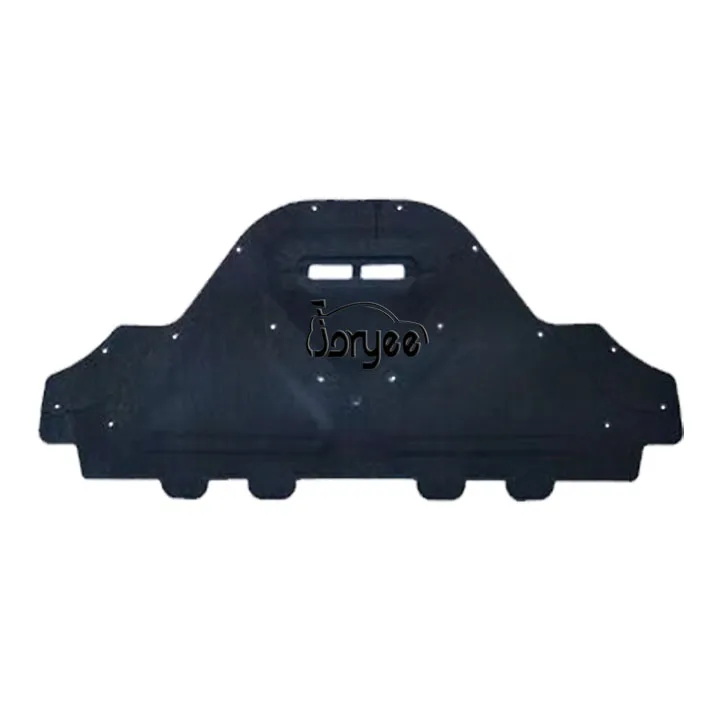

Звукоизоляционная накладка на капот автомобиля, теплозащита для Porsche Macan GTS 2014-2016, алюминиевый защитный коврик для капота, часть крышки двигателя
38,00 $ - 50,00 $

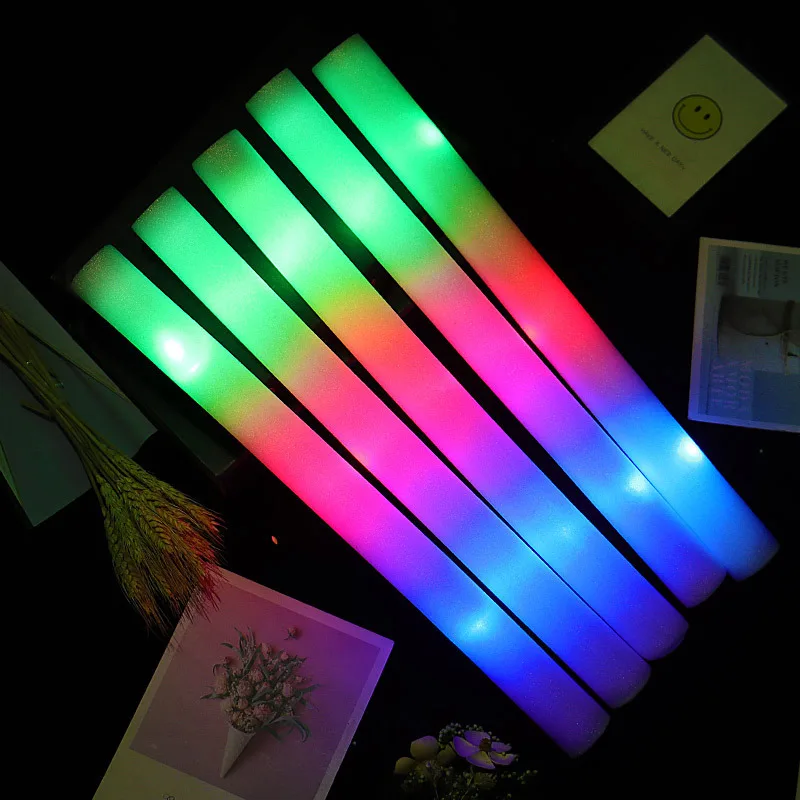

Гигантский 18 дюймов пены светящиеся палочки Марди Гра партии товары светодиодные световые палочки светятся дубинки светятся в темноте сувениры для концерта
0,17 $ - 0,22 $

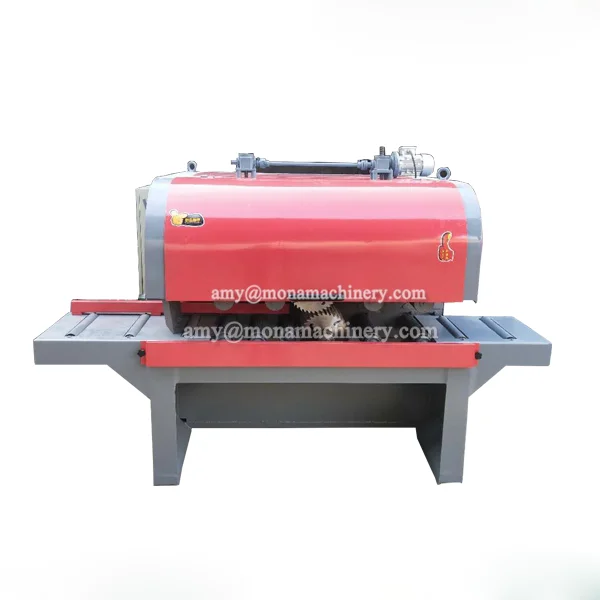

Круглая древесина круглая пиловая машина для разрезания древесины цена деревообрабатывающий

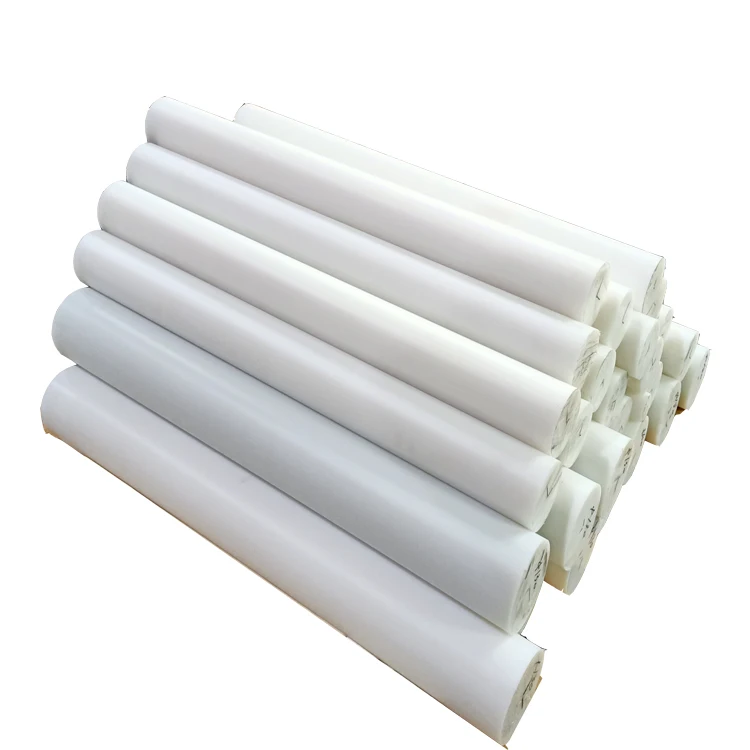

Лидер продаж, полиэтилен высокой плотности 15-500 мм, противоударный стержень Uhmwpe Hdpe, гибкие пластиковые стержни
2,50 $ - 3,50 $

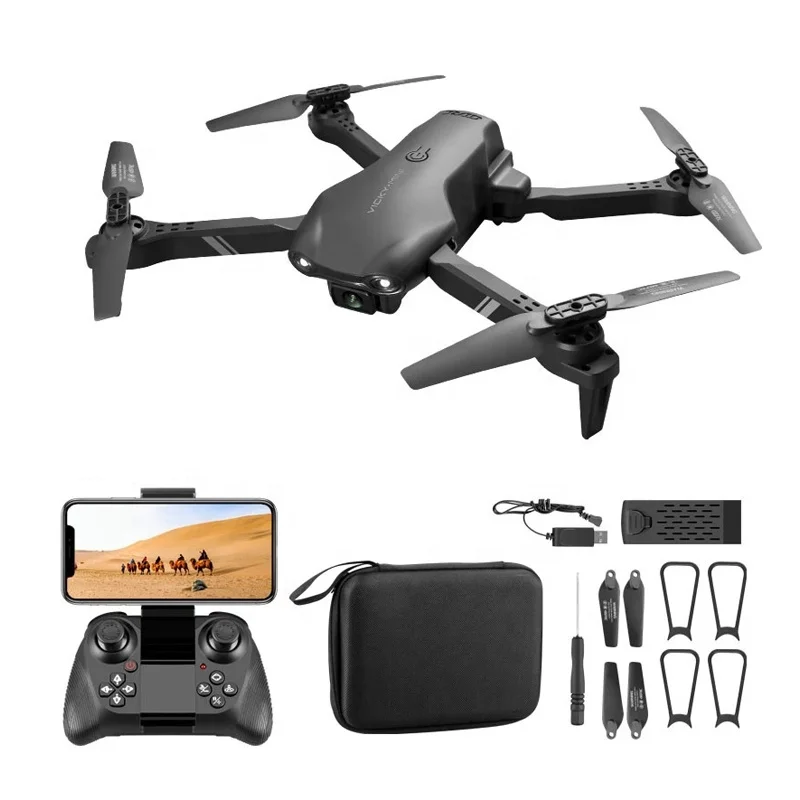

Мини-Дрон с широкоугольной HD-камерой 6K 1080P, Wi-Fi, Fpv

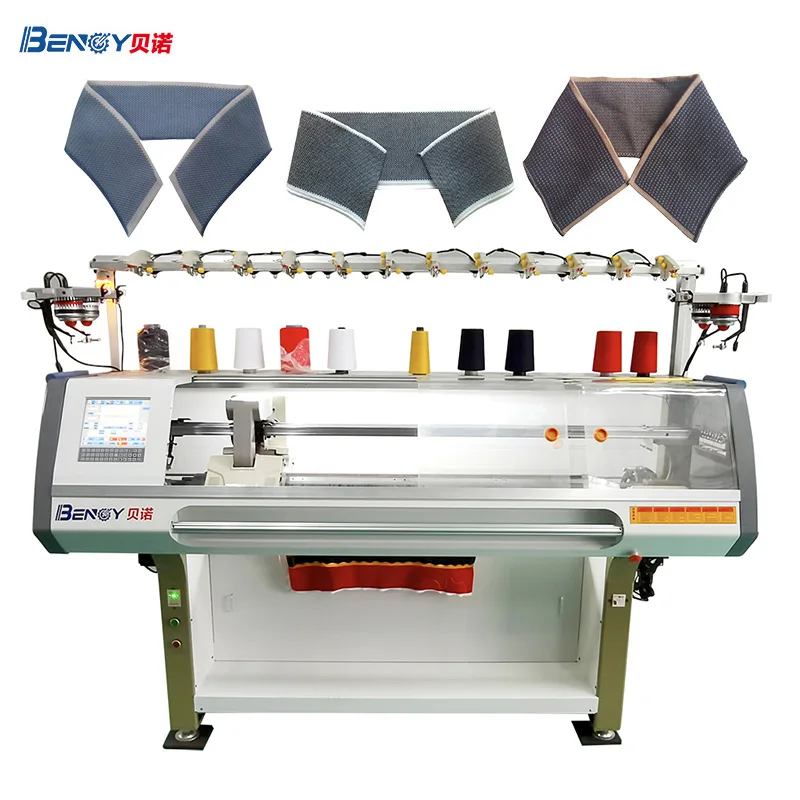

Компьютеризированная плоская вязальная машина для домашнего использования с 416 спицами
