240*120 мм P3 внутренняя Гибкая Светодиодная панель экран мягкий светодиодный модуль

Сохранить в закладки 1600232742660:


Цена:14,00 $ - 15,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

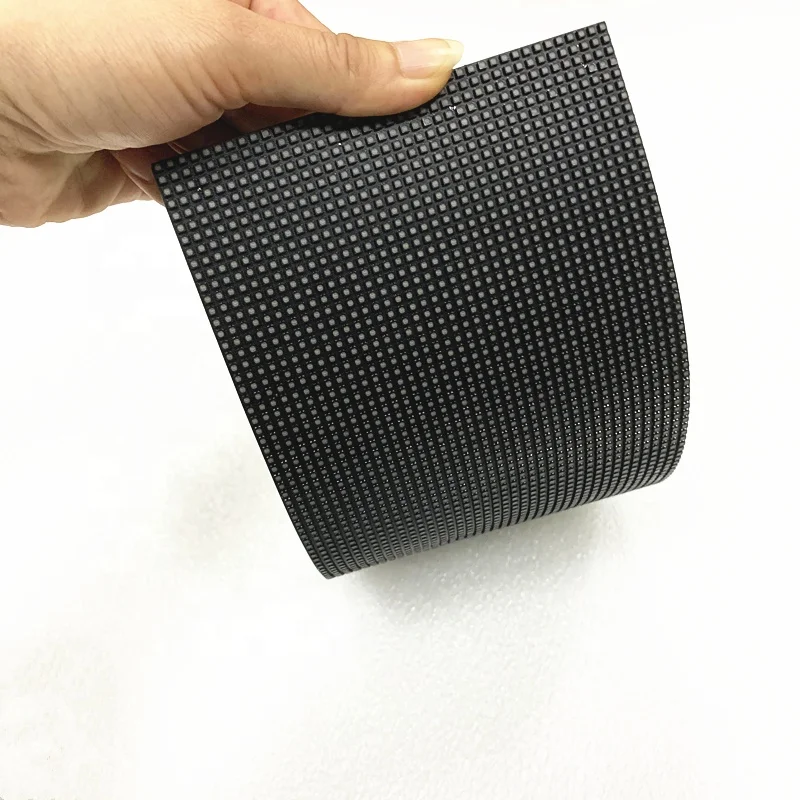

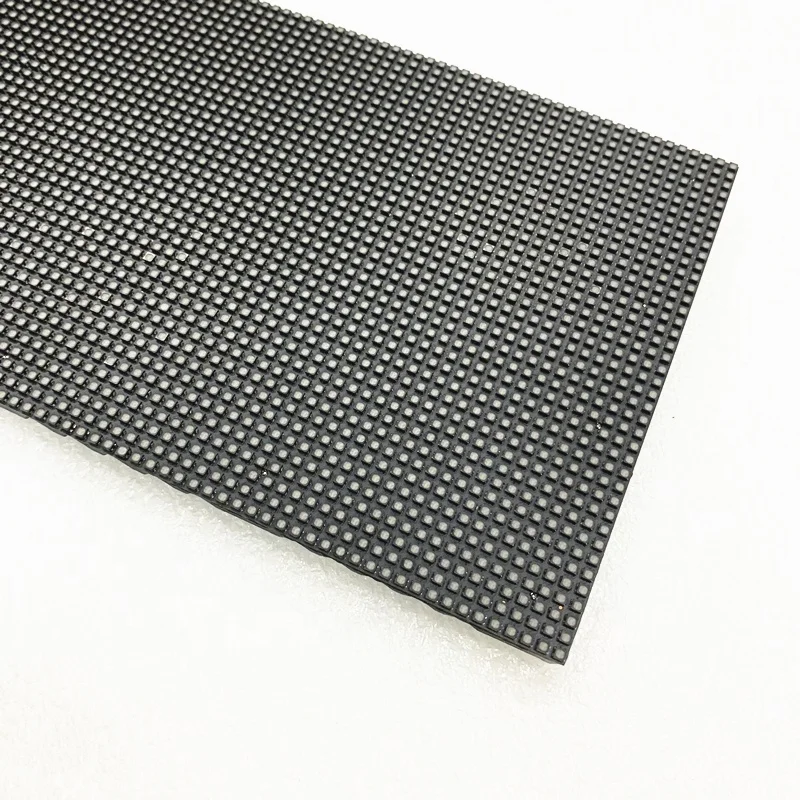

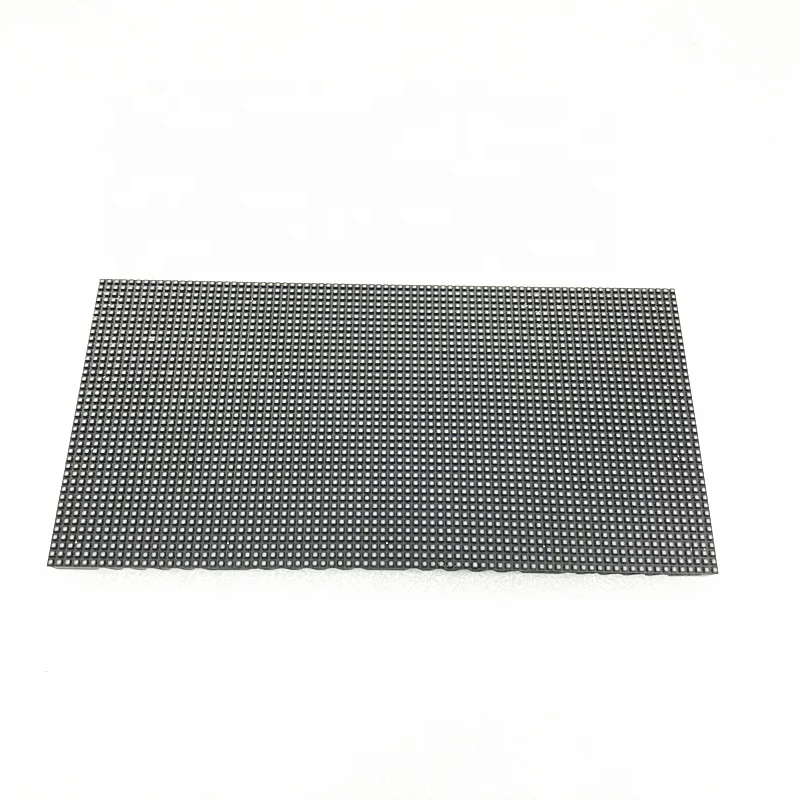

Flexible LED Display is also called as flexible LED screen or soft LED display or soft LED screen. the main feature of those LED display is that the LED panel is soft, flexible. Compare to indoor fixed LED display and outdoor fixed LED display, the flexible LED panel can be any designed, bend and swing to do any shape LED video wall as you want.




Our Advantages








High Flexibility

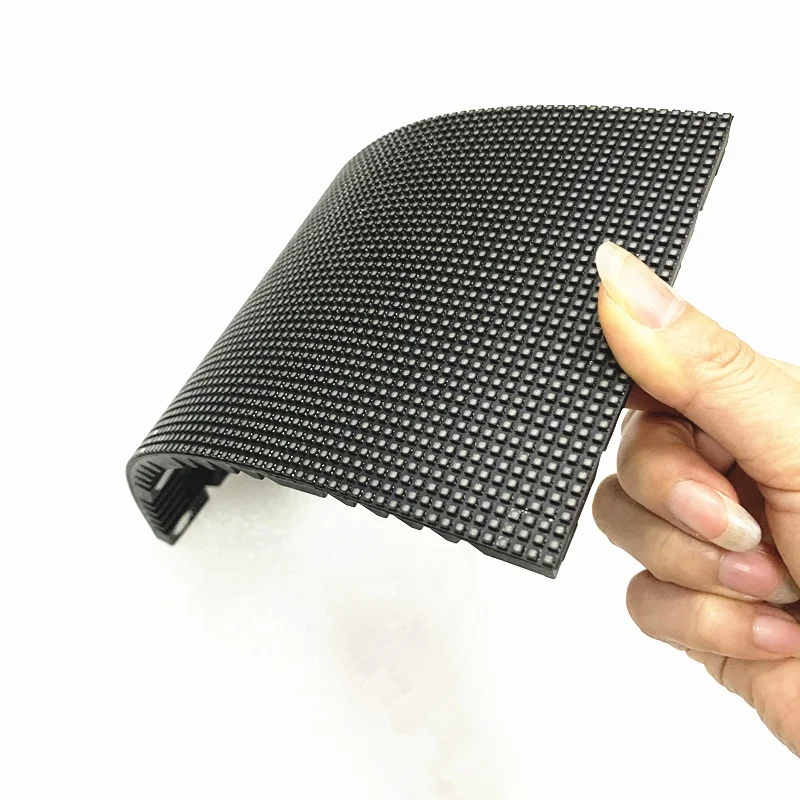

Benefit of the special material silicone mask. One of the main features of the flexible LED Panel is its ability to bend without breaking. Excellent flexibility, stable and high quality to make more complicated shapes for the LED display as customer’s requirements.





Ultra-thin, Ultra Light
Unlike the common PCB made LED display modules , flexible LED display panel is only weight 75g without bottom frame and mask, the weight is only 150g with bottom frame and mask. Super thin and Super soft can reduce the LED display structure load capacity greatly.




Front Service
flexible LED screen panel adapts ultra strong magnet install to make LED display is available for front maintenance. Quick and convenient for installation. Assembling the modules just a few seconds without any tools easily. Save you time and labor greatly.


Customized Shape
Flexible LED sign can be customized any shape as customer’s need. We have a range of sizes to meet led display requirements. Such as ball LED display, cube LED display, cylindrical LED display, round LED display, Oval LED display, wavy LED Screen and so on.




Wide Application

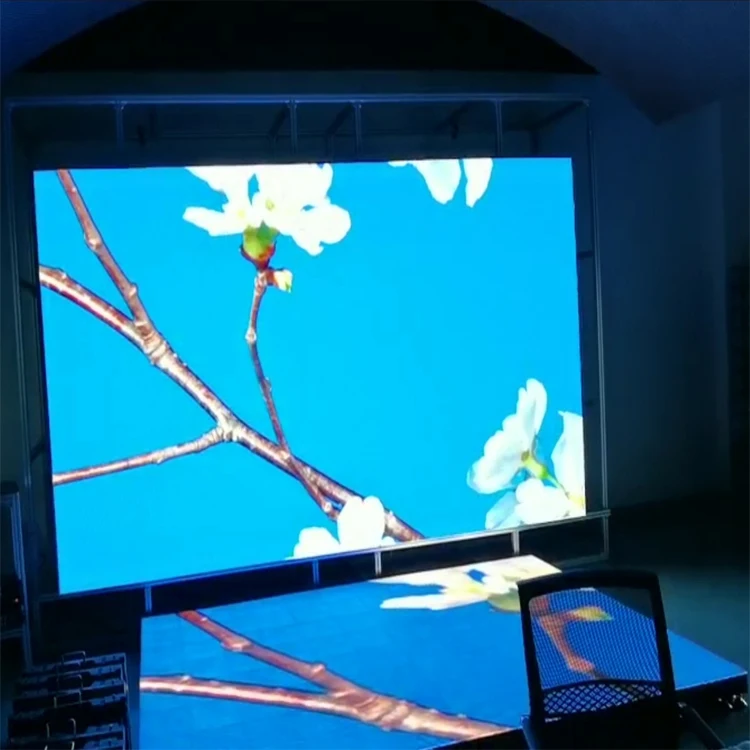

Flexible LED video wall can be used in various fields and application, such as shopping center, mall, bar, disco, stage, indoor building, outdoor building, television, exhibition, show. especially for all kinds of irregular buildings, UNIT flexible LED screen is suitable very well.




Connect and Control System




Specification


Module Number
PH1.875
PH2
PH2.5
PH3
1.Pixel Pitch
1.875mm
2mm
2.5mm
3mm
Physical Density
284444 pixels/m2
250000 pixels/m2
160000 pixels/m2
111111 pixels/m2
Led Arrangement
SMD1515
SMD1515
SMD1515
SMD2121
Module Resolution
128*64 pixels
120*60 pixels
96*48 pixels
80*40 pixels
Module Dimensions
240*120 mm
240*120 mm
240*120 mm
240*120 mm
Cabinet Resolution
A/N
A/N
A/N
A/N
Cabinet Dimensions
custom size
custom size
custom size
custom size
Cabinet Weight
A/N
A/N
A/N
A/N
Brightness
800nits
800  nits
800 nits
800 nits
Max Power Consumption
45w/panel
45w/panel
45w/panel
45w/panel
Ave Power Consumption
15w/panel
15w/panel
15w/panel
15w/panel
Viewing Angle
160°(W) 160°(H)
160°(W) 160°(H)
160°(W) 160°(H)
160°(W) 160°(H)
Operating Power source
110-240V AC 50-60Hz
110-240V AC 50-60Hz
110-240V AC 50-60Hz
110-240V AC 50-60Hz
Operating Temperature
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
Refresh Rate
3840Hz
3840Hz
3840Hz
3840Hz
IP Rating
IP65
IP65
IP65
IP65
Signal Input Source
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Verification
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE


Customer Praise




Packing & Delivery


Packaging and Shipment
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing

Shipping Method:by Express (DHL/FEDEX/UPS etc) door to door

by ocean (cheap method) to sea port

by air to airport

Pls inform airport name and sea port name if you want we check the shipping cost for you!



Company Profile




Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display.

Our products has passed CE, ETL, FCC, CCC and RoHS certificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.

Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.






FAQ


Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5:What about the warranty?
A:Two year warranty
