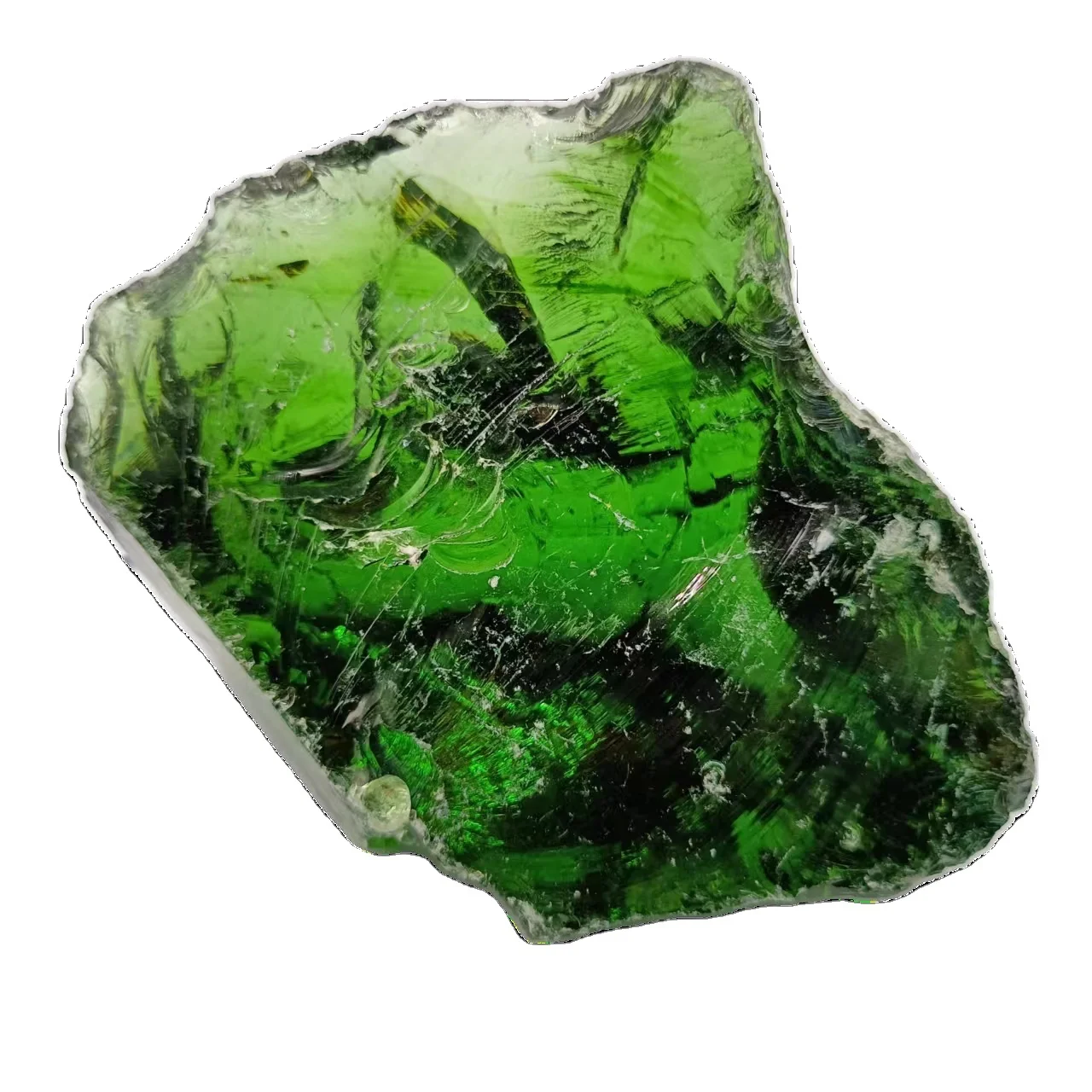

Нестандартные камни из дробленого стекла для камина
41 022,53 ₽ - 43 757,36 ₽

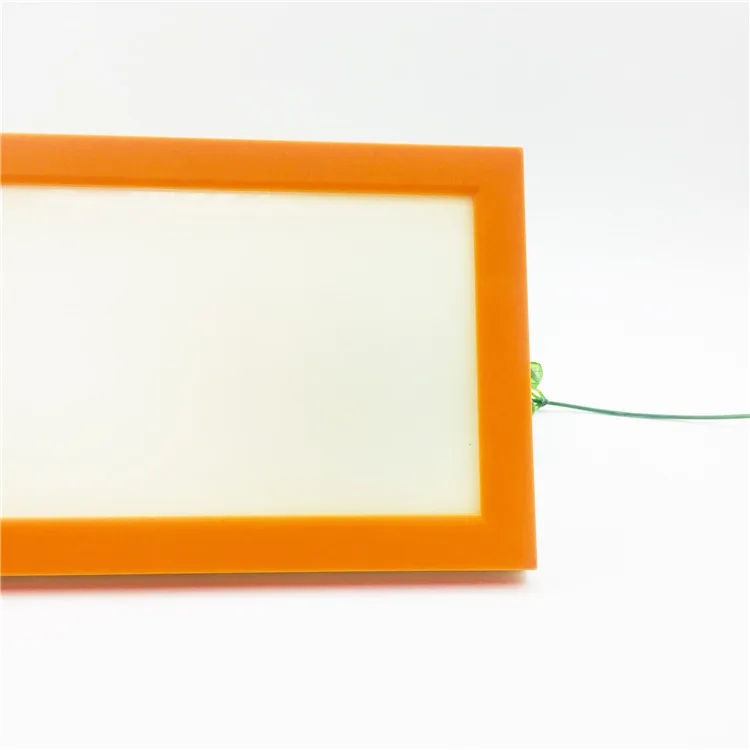

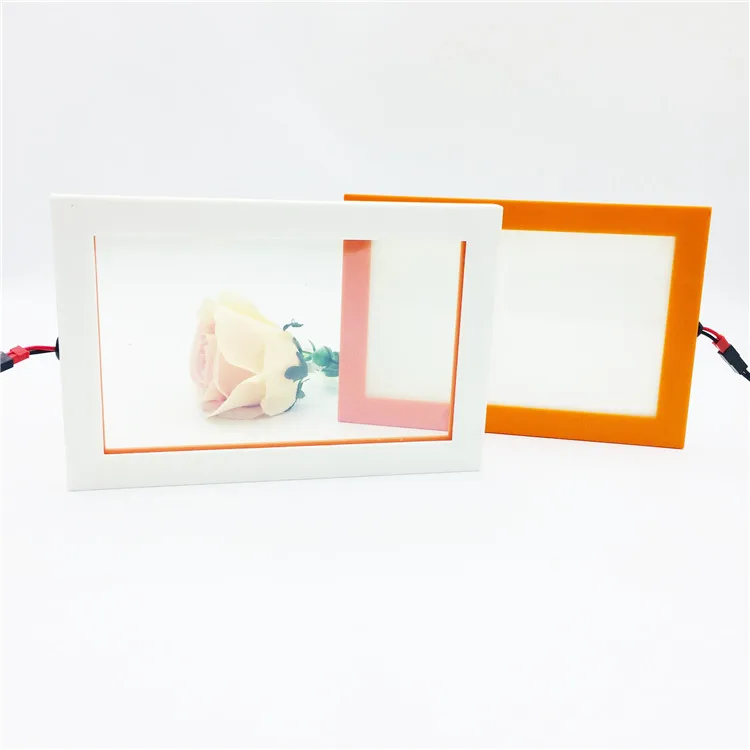

Высококачественное черное электрическое переключаемое умное стекло PDLC smart film
- Категория: >>>
- Поставщик: Dongguan Better Glass Tech Co. Ltd.
Сохранить в закладки 1600236197010:
Описание и отзывы
Характеристики
Product Parameters
Temperature | storage | -20°c to 60°c | |
operation | -10°c to 50°c | ||
driving voltage | 65±5 volts AC | ||
current | less than 20 MA/SQF(215 MA/m²) | ||
power consumption | less than 0.5watt/SQF(5W/m²) | ||
on-off | 20ms | ||
off-on | 200ms | ||
haze | <7% | ||
visible light transmission | >87% | ||
view angle | 140° | ||
scattering effectiveness | approx.1 inch | ||
solar heat gain | coefficient off-state <0.10 | ||
SHGC | on-state 0.40-0.60 | ||

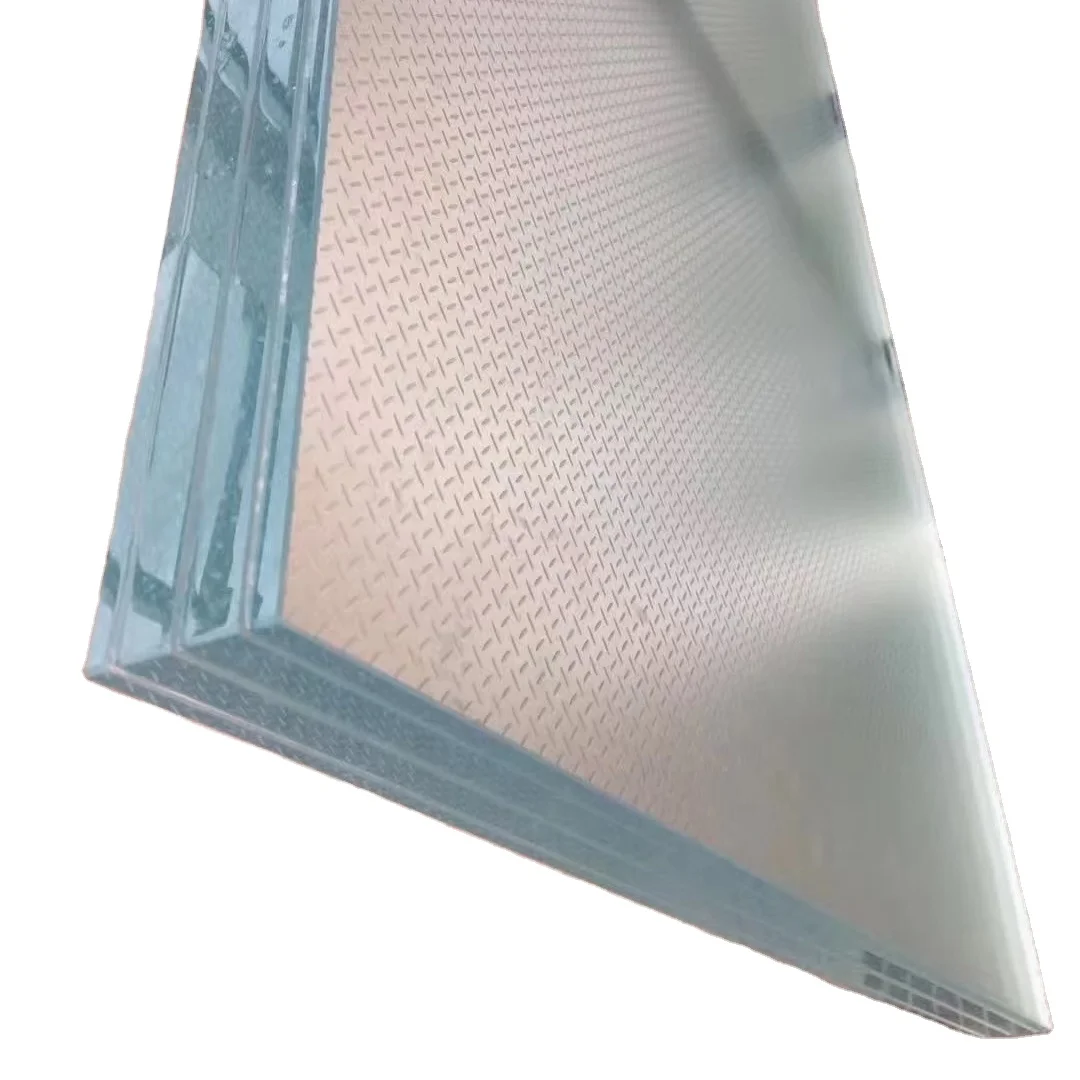

Glass type | (all laminated) annealed glass or tempered safety glass | ||
Thickness | 4+4mm,5+5mm,6+6mm,8+8mm,10+10mm(laminated) | ||
Size(max) | 1800mm*3660mm in maximum | ||
More than 10 years (indoors)(when used,installed,and stored properly per the usage,storage and installation specifications referenced herein) | |||
Quality Assurance Policy.
We promise to provide a 10-year warranty for all laminated glass produced by BTG.
BTG BETTER GLASS produce laminated glass by high quality adhesive interlayer and advanced bond technology. Tempered laminatedglass is produced by adhering two or more pieces of tempered glass together by inyerlayer film like PVB/SGP/EVA. The interlayerfilm will continue to hold the glass together in the event that it is struck or dropped.Company Profile
Our company BTG group has been specializing in the processing of architectural glass for more than 20 years and is rooted in China's famous world manufacturing base in Dongguan City, Guangdong, China.After years of development, it has grown into a large-scale glass manufacturer with customers all over the world. our company is fully equipped, the staff positions are fully and reasonable, the production capacity is stable with quality guaranteed, the certification is complete, and the service is prompt and thoughtful. Company with CE, ISO, CCC, BS6206, SGCC, CSI certificate etc.
Factory Equipment List
Machine Name | Origin | Qty | Years of service | Capacity | Size limit/Feature |
Full-automatic cutting machine | Italy | 3 | 1 | 8000 Sqm/day | Max.3300x8000mm |
Driller | Italy | 4 | 1.5 | 5000Sqm/day | Max.3300x8000mm |
Edging machine | China | 3 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Cleaning machine | China | 4 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Water jet cutting | Germany | 1 | 1 | 1000 Sqm/day | Max.2500x3000mm |
Tempered glass furnace | China | 2 | 1.2 | 6000Sqm/day | Min Radius 750mm |
Laminated dust-free workshop | China | 2 | 1 | 5000Sqm/day | Max.3300x8000mm |
Autoclave machine | China | 1 | 1.3 | 4500Sqm/day | Max.3300x8000mm |
Automatic Insulating Glass gluing line | China | 2 | 1 | 6000Sqm/day | Max.3300x8000mm |
Ceramic glass digital printer | Israel | 1 | 1 | 300Sqm/day | Max.2500x8000mm |
Sewage treatment equipment | China | 3 | 1 | 300 ton/day | Sustainable/Recycle |
Curved glass machine | China | 2 | 1 | 1000Sqm/day | Min.R=750mm |
1. We are one of the biggest glass factory in China with over 20 year glass production experience, have advanced machines and experienced technicians.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
Optional solutions for smart switchable glass
Glass choice: clear glass, ultra clear, tinted glass, fire-proof glass, Low-e glass
Glass thickness: 5+5, 6+6, 8+8, 10+10, 12+12
Process type: insulated, curved tempered, laminated glass, silk screen printing, blind pattern, etc.
Cutting shape: square, diamond, trapezoid, round, arc
How to install Adhesive smart switchable film
After our client place an order for the self-adhesive smart switchable film, we will have specific video and picture installation instructions to ensure your smooth installation. At the same time, we have the following colors are available for the self-adhesive smart switchable film.
Step1
Step2
Step3
Step4
Step5
Step6
Installation method of the self-adhesive smart switchable film:
Step 1. Prepare the necessary tools for filming
Step 2. Spray water on the surface of the glass and wipe off the water
Step 3. Put the self-adhesive film in the position to be pasted, and determine the position of the wire
Step 4. Slowly tear off the protective film on the inner side, tearing and sticking can be done at the same time. If bubbles appear, can uncover and re-stick to ensure that the film and the glass fit perfectly.
Step 5. Connect the two wires of the film to the power supply, and remotely test the power-on and power-off effect.
Step 1. Prepare the necessary tools for filming
Step 2. Spray water on the surface of the glass and wipe off the water
Step 3. Put the self-adhesive film in the position to be pasted, and determine the position of the wire
Step 4. Slowly tear off the protective film on the inner side, tearing and sticking can be done at the same time. If bubbles appear, can uncover and re-stick to ensure that the film and the glass fit perfectly.
Step 5. Connect the two wires of the film to the power supply, and remotely test the power-on and power-off effect.
Customer praise
BTG not only has good products, but also good services. We adhere to the principle of customer first & quality first.
BTG not only has good products, but also good services. We adhere to the principle of customer first & quality first.
Product Applications
Based on numerous advantages, Smart switchable glass is widely used in areas where required sturdy yet and aesthetics.
1.Flat smart switchable glass for Office

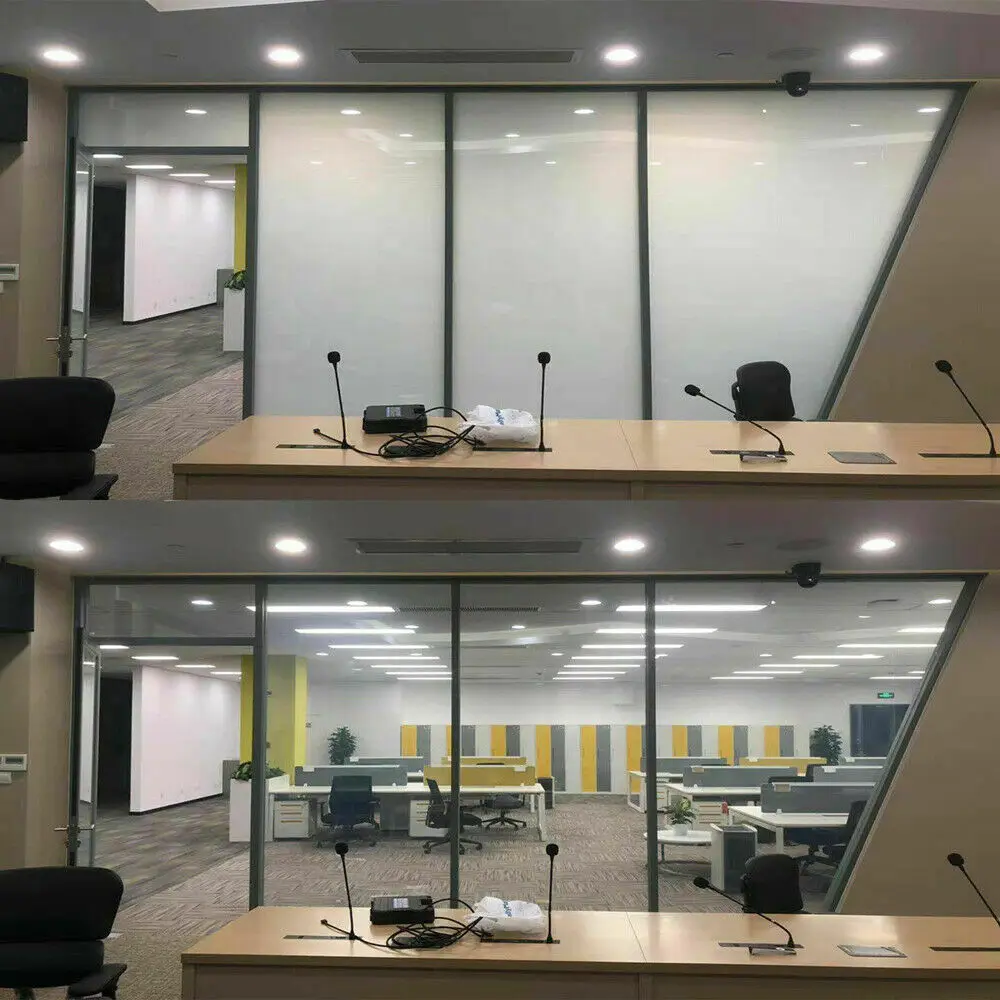

2. Curved smart switchable glass for Meeting room
3. Smart switchable glass for Hospital
4.Smart switchable glass for Bathroom
5.Smart switchable glass for Door
6. Smart switchable glass for Window
Smart switchable Glass Features:

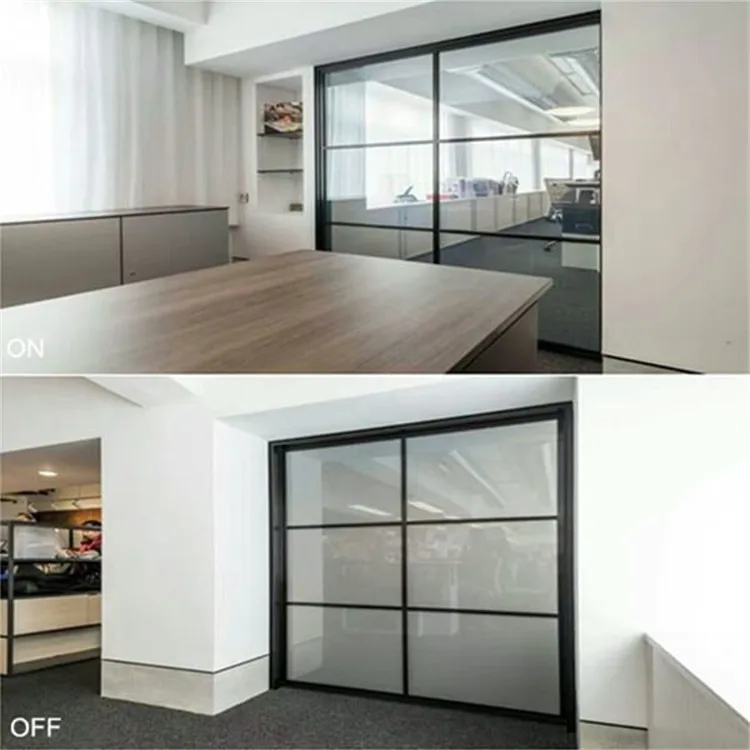

1. The transmittance of the glass can be controlled by electrical switching; it's transparent when power on, and hazy when poweroff. 2. Security, magic glass has the characteristics of laminated glass, when glass is broken; it won't hurt people, because the
fragments will be sticked on the magic film. 3. Noise-proof, the magic film &EVA film have the function of proofing voice,
preventing ultraviolet radiation, and over 90%
ultraviolet radiation can be prevented 4. Glass can be tempered, insulated, drilled holes etc 5. Can be used as screen projection
6. Louver smart switchable glass accepts customization
Our Certificates
Packing & Delivery
Wooden crates packing option
BTG use 12mm thick recycled hardwood board, no fumigation, hard plastic safety corner,plastic film covering the glass to avoid dirt, with a desiccant inside, to ensure that the glass is dry and not moldy during transportation.
Individual carton packaging options.
BTG use 5mm thick environmentally friendly corrugated boxes, 10mm thick foam board lining, 10mm thick recycled hardwood boards around the four sides of the glass to prevent damage to the edges, free transportation,suitable for retail storage of glass tabletops, shower rooms and other products
L-shaped iron frame packaging.
Welded iron frame, fixed with plastic-steel belt, built-in forklift space, can be quickly loaded and unloaded as a whole, which is convenient for stocking at the construction site.
FAQ
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more quantity, the better price.
Q: Could I have a small sample to verify the quality?
A : Sure, we welcome sample to be tested and checked quality.
Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production lines, and discussing orders in our office.
Q: Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).
Q: How do you control the quality of your products?
We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find little problem, we will replace the glass, to make sure every piece glass go to warehouse is in good condition.
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more quantity, the better price.
Q: Could I have a small sample to verify the quality?
A : Sure, we welcome sample to be tested and checked quality.
Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production lines, and discussing orders in our office.
Q: Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).
Q: How do you control the quality of your products?
We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find little problem, we will replace the glass, to make sure every piece glass go to warehouse is in good condition.
Похожие товары
Высококачественное прочное стеклянное украшение с краской для выпечки уникальный плоский узор интеллектуальная стеклянная пленка дизайн стены кухни ванной комнаты
470,40 ₽ - 492,28 ₽

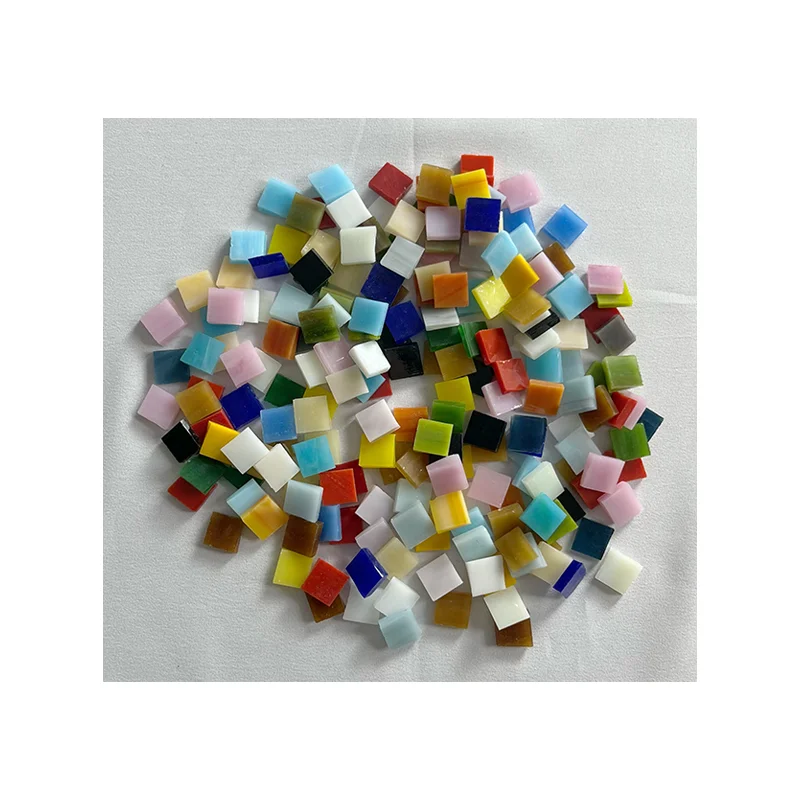

Смешанные тонированные стеклянные изделия для рукоделия, оптовая продажа, мозаика из стекла, многоцветная мозаика ручной работы, многоцветная стеклянная мозаика
1 093,94 ₽ - 1 312,73 ₽

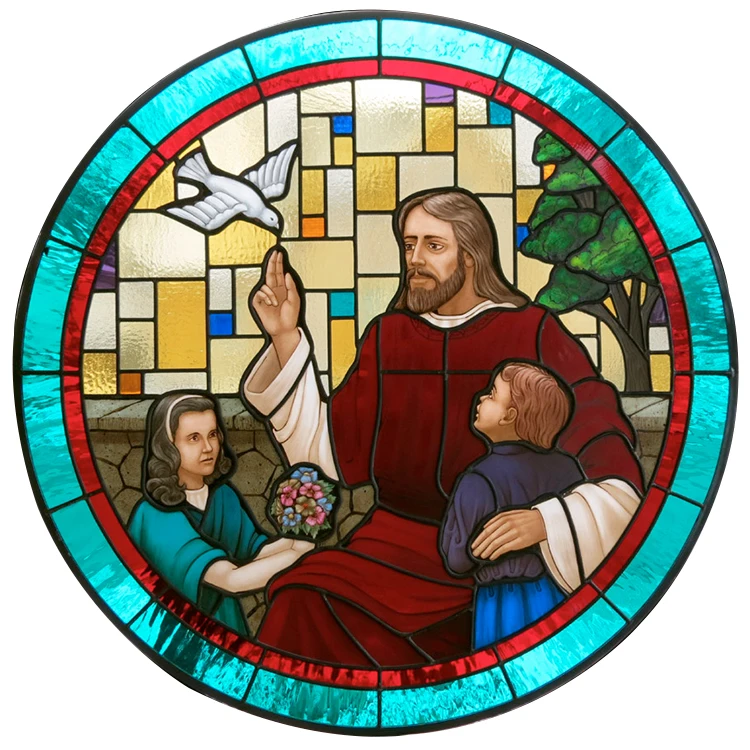

Церковное витражное окно, Заводские узоры и формы под заказ, декоративное свинцовое стекло, круговое окно по оптовой цене
