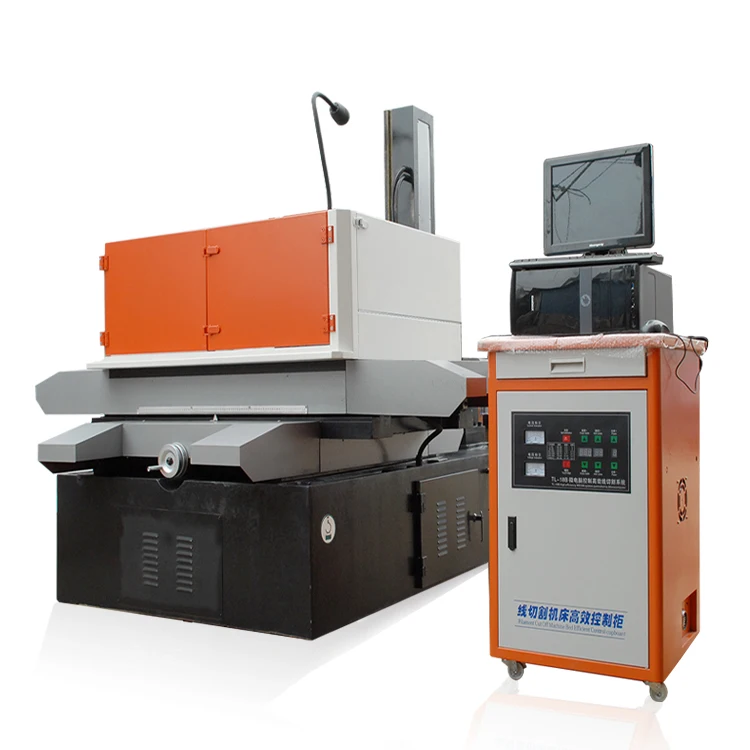

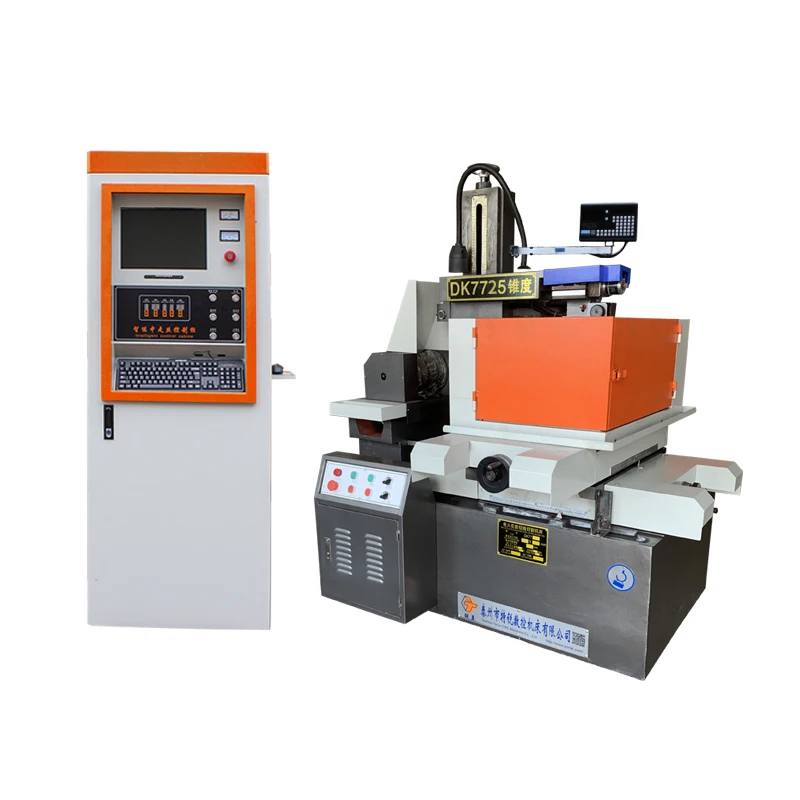

EDM станок проволочный с ЧПУ

Описание и отзывы

Характеристики

Advantages of KD500L:

1. 5+1 control, X, Y, U, V, Z and wire drum with AC servo motor control.

2.Optional X and Y axis with linear motor and linear scale to realize closed-loop control.

3.Innovative short span of wire path, fixed wire drum, no longitudinal movement, just rotating

4.Servo motor-controlled wire tension system, command from PLC.

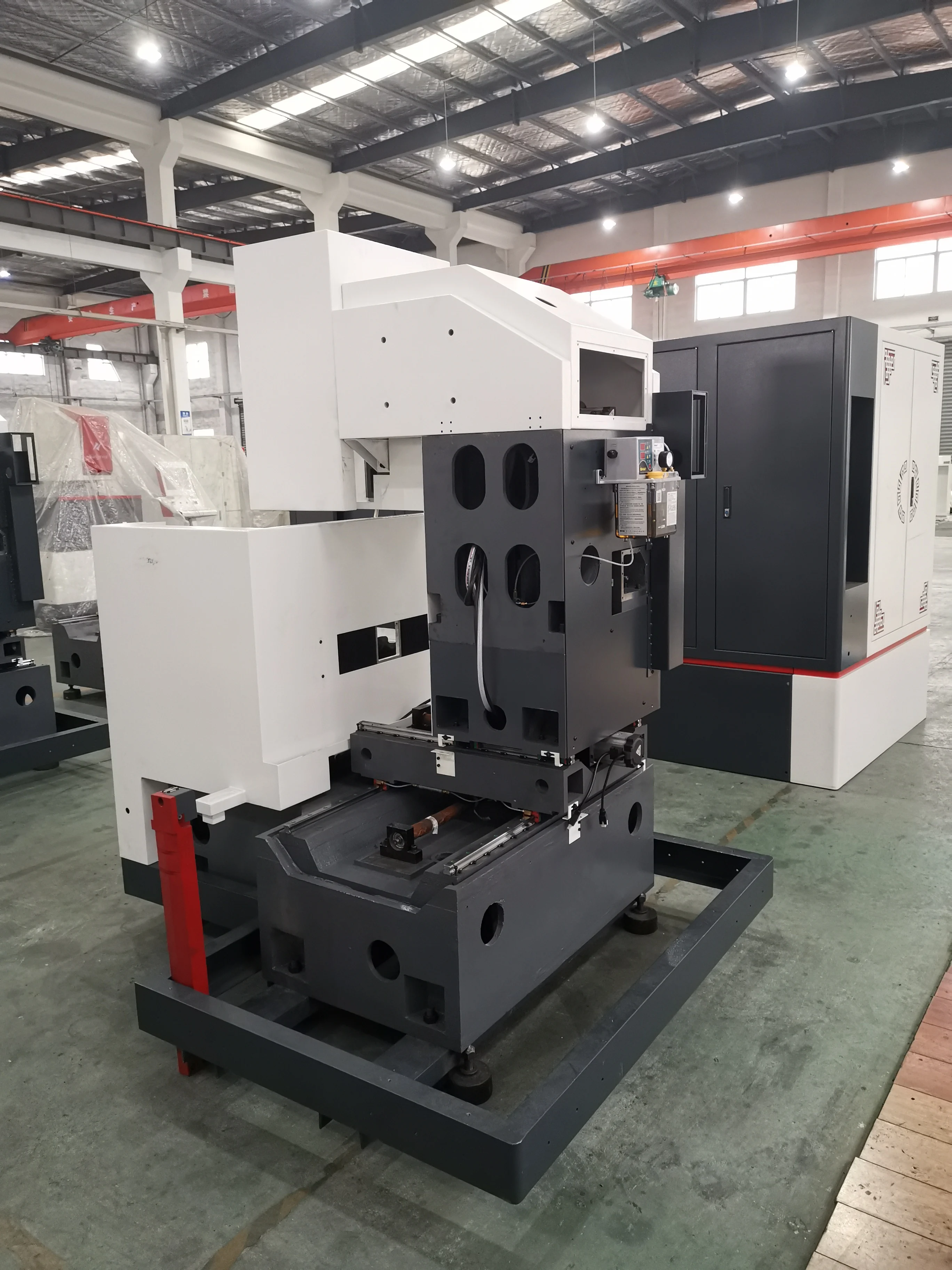

5.Fixed working table, column moves, excellent dynamic accuracy and stability, heavy load capacity.

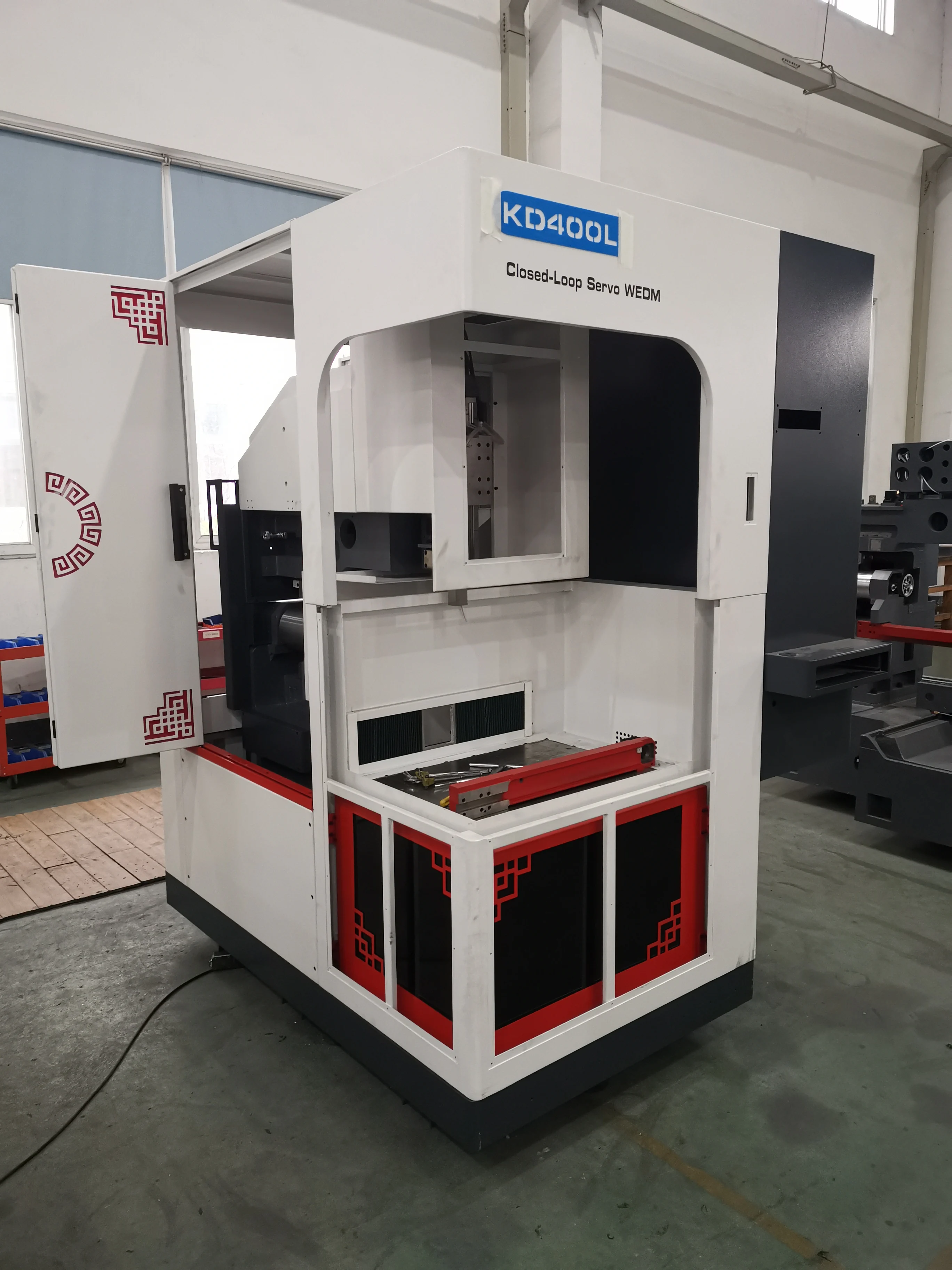

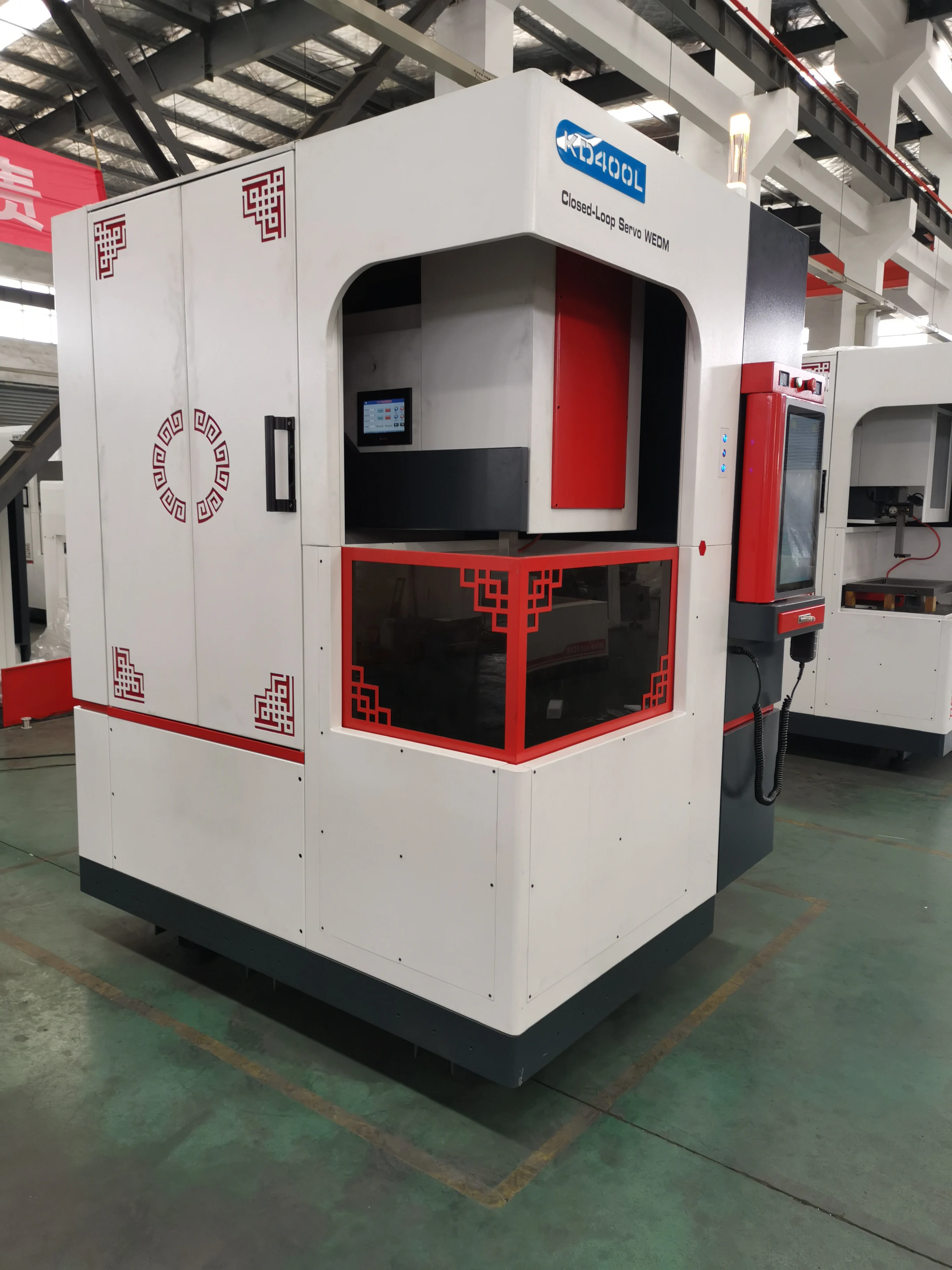

6.Modernized fully closed sheet metal design.

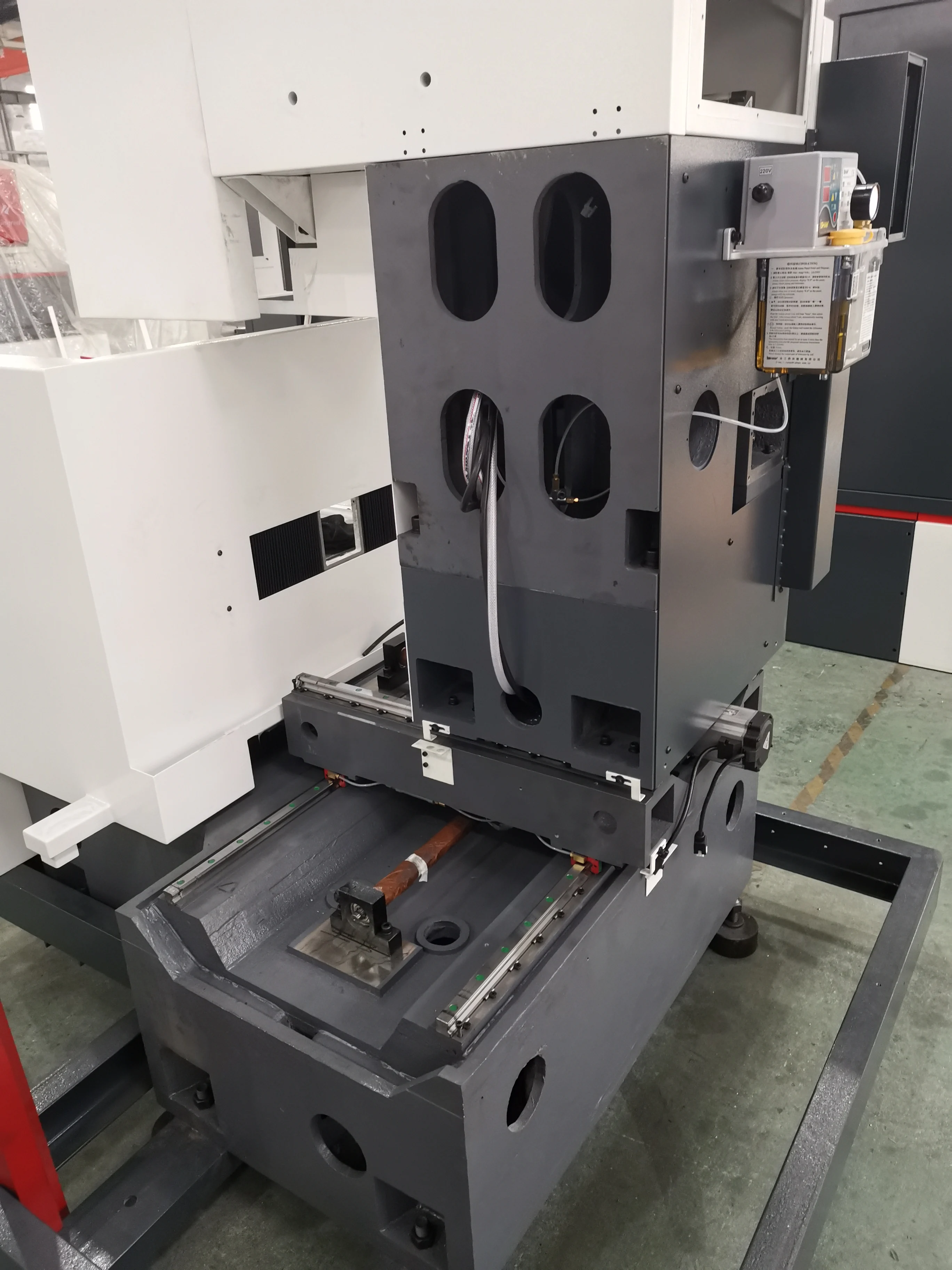

7.The machine bed is designed with a box structure and reinforced rib support, which has good rigidity and better mechanical structure stability.

8.KCUT adopts graph drive technology, generate cutting track automatically with simple setting, reduce time of programming, increase manufacturing efficiency, reduce possibility of mistakes by operator, and save producing cost.

9.Multiple axes simultaneous control to simplify programming of complicated taper cutting task.

10.Fully support complete servo control, to satisfy trend of market of high accuracy cutting.

11. PLC control, no more PCBs are used, simplified wiring system, less malfunction. And PLC is very power and has good scalability

EDM control system:

1.It supports graph-based automatic programming, operator does not need to know programming codes, in practical operation, operator needs to load DXF file created by other software then postprocess in KCUT to create cutting track according to instructions in software.

2.Multiple machining modes, flexible for different purposes, for example, single segment cutting, continuous cutting, forward cutting and backward cutting.

3.XYUVZ can realize 5-axis simultaneous control, drive type could be stepping drive or servo drive, all 5 axes can be monitored in real-time in main interface of cutting.

4.KCUT shows present machining position, coordinate, finished percent of task and left time to go in real-time. Operator can judge actual cutting status according information in GUI, which could be zoomed according to operator.

5.Standard taper control system to realize cutting of equal-degrees taper, variable-degrees taper and abnormity (up-down different profile taper). Multiple axes simultaneous control makes complicated taper cutting much easier and efficient.

6.Standard with multiple cuts capacity to get better surface finish and cut accuracy.

Specification:

Professional Factory:

Marketing:

Strict Quality Control with Advanced Test Instrument:
