Горячий Солнечный водонагреватель использовать для домашней установки резервуар воды внутри комнаты без трубы 50L до 300L
- Категория: >>>
- Поставщик: Shenzhen Jinsdon Lighting Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600238907977:
Описание и отзывы
Характеристики
This is new develop product in market , But now it is sell well in some country, Popular in the future
PV Solar Water Heater :Convert solar energy into electric energy, and then electric energy into heat energyTraditional Solar Water Heater: Convert solar energy directly into heat energy
The advantage of new solar water heater :
1. The water tank can installed inside the house, Not rooftop. Connect the solar panels to the water tank with wires
2. Instead of first cold and then hot, Hot water directly. Don't waste water.
3. Can be connected to the AC mains supply to auxiliary heating power.
4. Don't worry about the water pipes freezing and hot water not coming out.
5. Because the traditional solar water heater is placed on the rooftop, The wind and sunshine often cause problems.The solar panels are placed outside without affecting performance, and the tanks are placed inside, Keep temp. Low maintenance cost.
6. Long service life: solar panels can last 25 years and water tanks 10 years.
7. Triple vulnerability protection, safe and reliable.
8. Support wifi wireless connection to the mobile phone, keep track of the running state at any time
9. Can connect main power if not enough sunshine.
10. Temperature can be adjustment and max is 88 degrees Celsius
1. The water tank can installed inside the house, Not rooftop. Connect the solar panels to the water tank with wires
2. Instead of first cold and then hot, Hot water directly. Don't waste water.
3. Can be connected to the AC mains supply to auxiliary heating power.
4. Don't worry about the water pipes freezing and hot water not coming out.
5. Because the traditional solar water heater is placed on the rooftop, The wind and sunshine often cause problems.The solar panels are placed outside without affecting performance, and the tanks are placed inside, Keep temp. Low maintenance cost.
6. Long service life: solar panels can last 25 years and water tanks 10 years.
7. Triple vulnerability protection, safe and reliable.
8. Support wifi wireless connection to the mobile phone, keep track of the running state at any time
9. Can connect main power if not enough sunshine.
10. Temperature can be adjustment and max is 88 degrees Celsius
Installation show

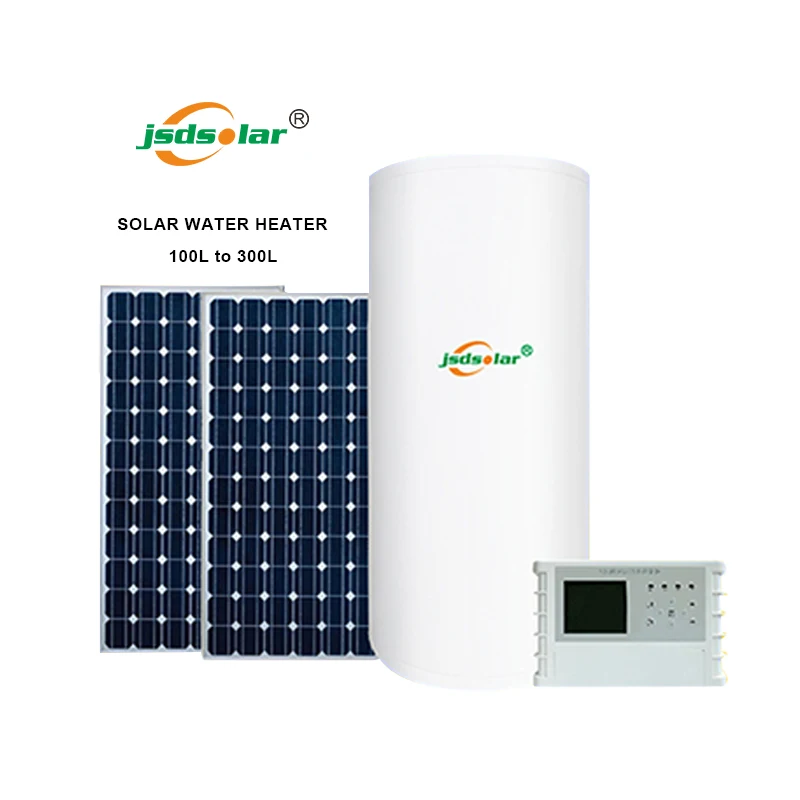

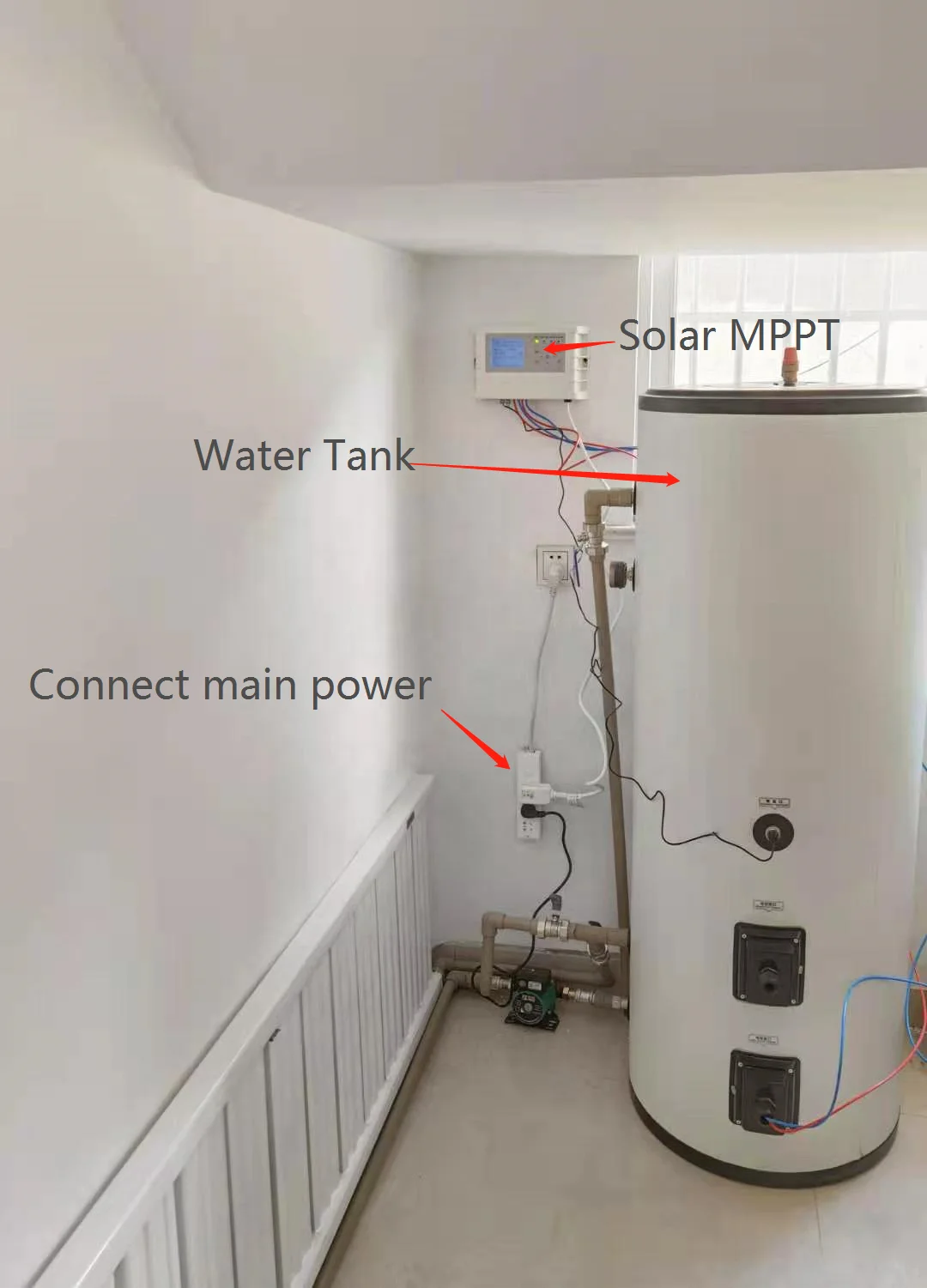

Below is 100L to 300L PV water heater installation on the ground

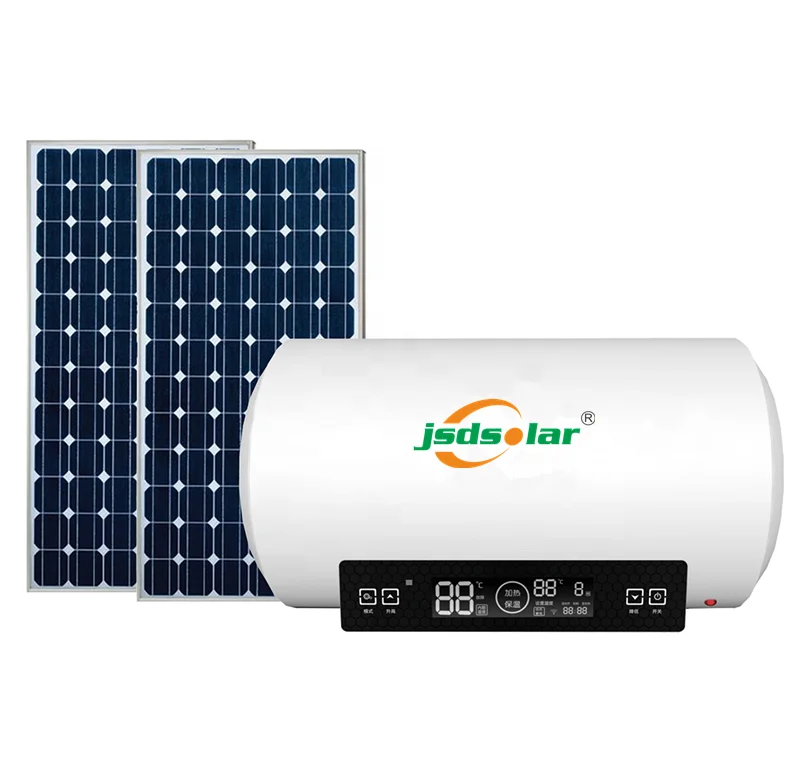

Below is 50L to 80L PV water heater installation on wall
Specification
Model | SWH-V100L | SWH-V150L | SWH-V200L | SWH-V300L | ||||
Volume | 100L | 150L | 200L | 300L | ||||
Solar | ||||||||
Solar Max Output Power | 2400W | |||||||
recommeded solar panel | 1000W | 1200W | 1500W | 2400W | ||||
heating time 40℃ | 4 hours | 5 hours | 5.5 hours | 5hours | ||||
annual solar power harvest | 1460KWH | 1752KWH | 2190KWH | 3504KWH | ||||
solar input voltage | 40V-150Vdc | |||||||
mppt range | 20V-145Vdc | |||||||
AC | ||||||||
AC heater power | 2000w | 2000w | 2000w | 3000w | ||||
AC voltage | 220V | |||||||
Physical | ||||||||
Monitoring | wifi setting and monitoring | |||||||
Protection | over temperature protection, leakage protection | |||||||
Inner tank material | Enamel | |||||||
package dimension | φ470*500*1000 | φ470*500*1475 | φ4560*500*1135 | φ560*500*1810 | ||||
gross weight | 20kg | 27kg | 35kg | 47kg | ||||
certificate | CE,IEC62109 | |||||||
Recommend Products
Company Profile
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent |
Our Service
Samples, OEM and ODM, Warranty and After-Sale Service:
* Welcome Solar Power water heater Sample Test;
* OEM & ODM is welcomed;
* Warranty: 2 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more
detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
* Welcome Solar Power water heater Sample Test;
* OEM & ODM is welcomed;
* Warranty: 2 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more
detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
Exhibition
Certificate
FAQ
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:10-15days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,L/C,West Union
5- What is your MOQ?
1 set .
6- What is your Packing?
LCL order/Sample order in wooden box Package Full container order in Standard quality export carton with PE Foam Protection.
7 -What is your FOB Port?
We accept FOB Shenzhen.
Похожие товары

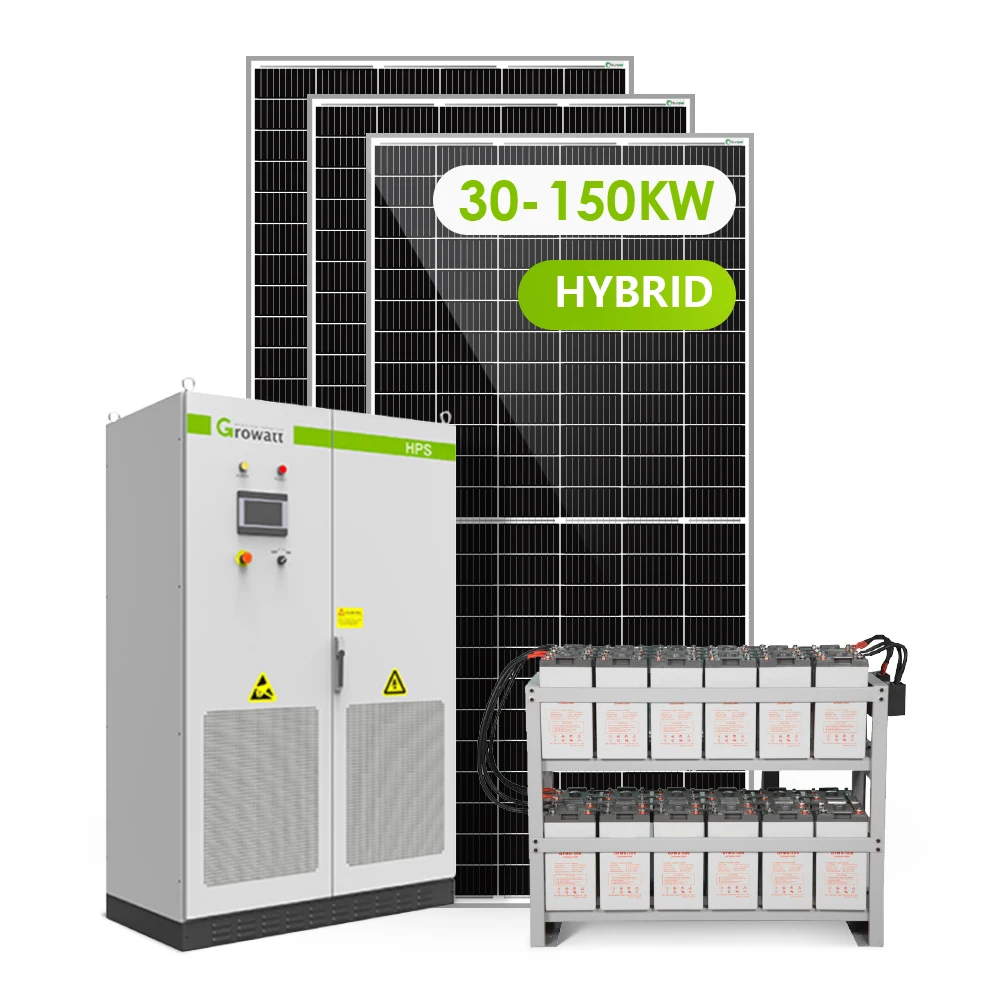

Трехфазный комплект солнечной энергетической системы 30 кВт 50 100
0,20-0,30 $
Комплект солнечных батарей с литиевой батареей 50 кВт 100 150 полная Коммерческая гибридная фотоэлектрическая система питания
0,25-0,40 $
GCSOAR 800 Вт Солнечная Монтажная система балкона подключи и играй все в одном солнечная энергетическая с гибкой солнечной панелью Balkonkraftwerk
460,00-500,00 $

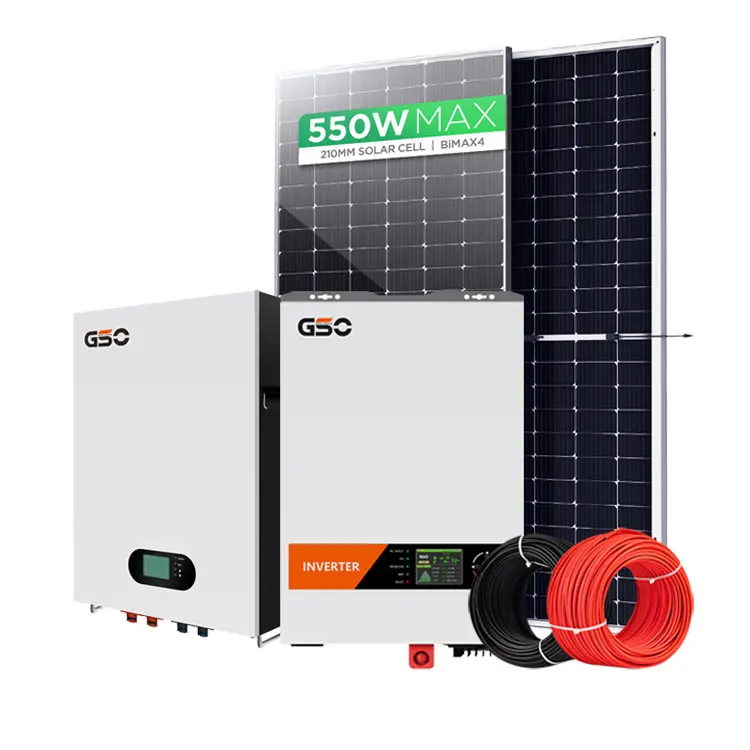

5 кВт 8 10 15 20 гибридная Солнечная энергия вся электрическая настенная домашняя система ddp доставка
5 435,00-5 500,00 $

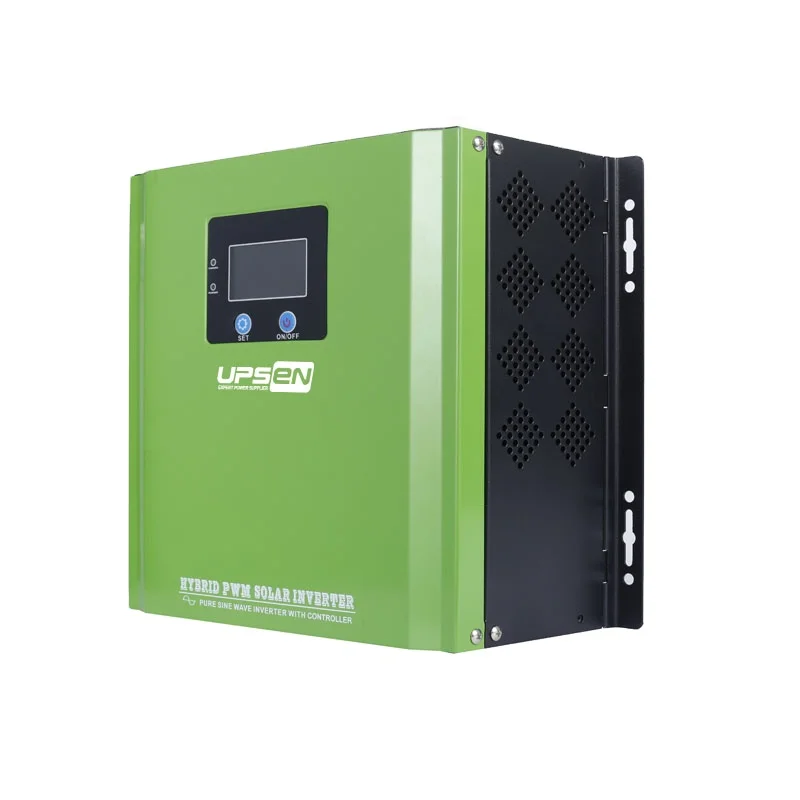

Инвертор солнечной энергии с чистой синусоидой и зарядным устройством переменного тока солнечным контроллером для энергетической системы
73,00-77,00 $

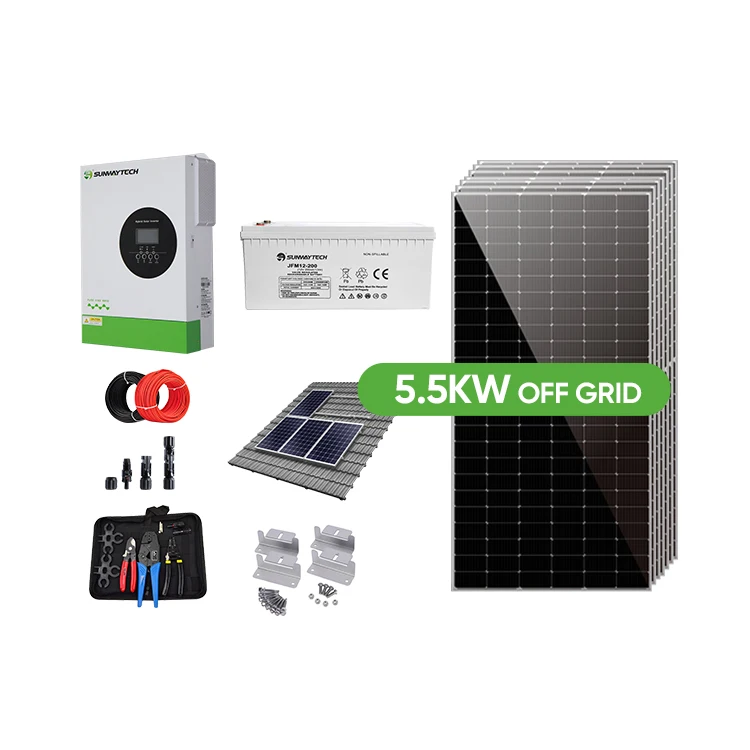

Power Dream 12 кВт комплект солнечных батарей монокристаллическая Солнечная система питания с литиевой батареей и инвертором 6 MPPT контроллер
0,20-0,50 $

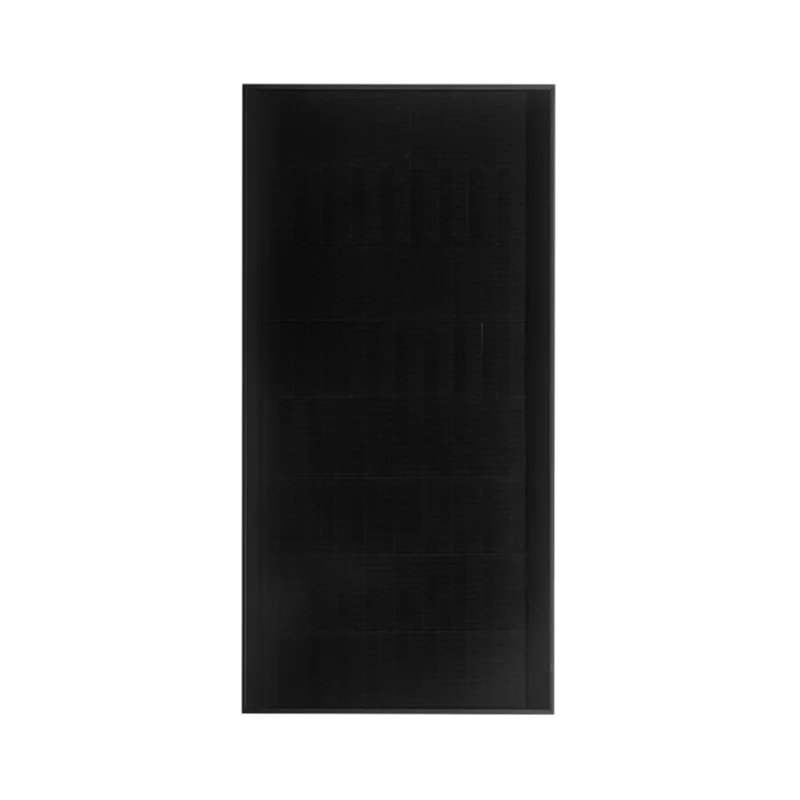

Yonz черная солнечная энергетическая система интегрированная PV одиночные модули крыши черепица фотоэлектрическая Солнечная кровельная плитка
