От ведущего китайского бренда FX450A числового программного управления для 4 оси портальная плазменная машина резки

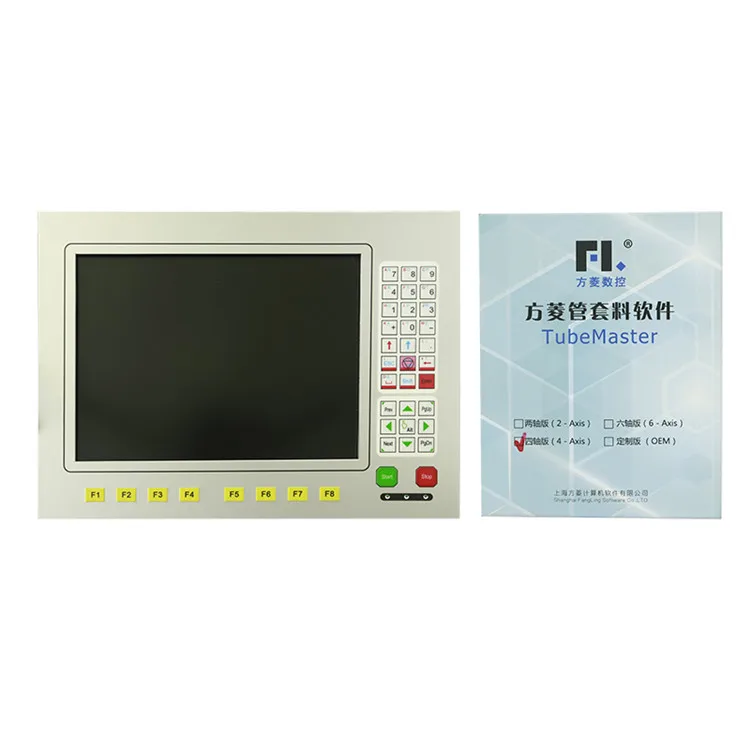

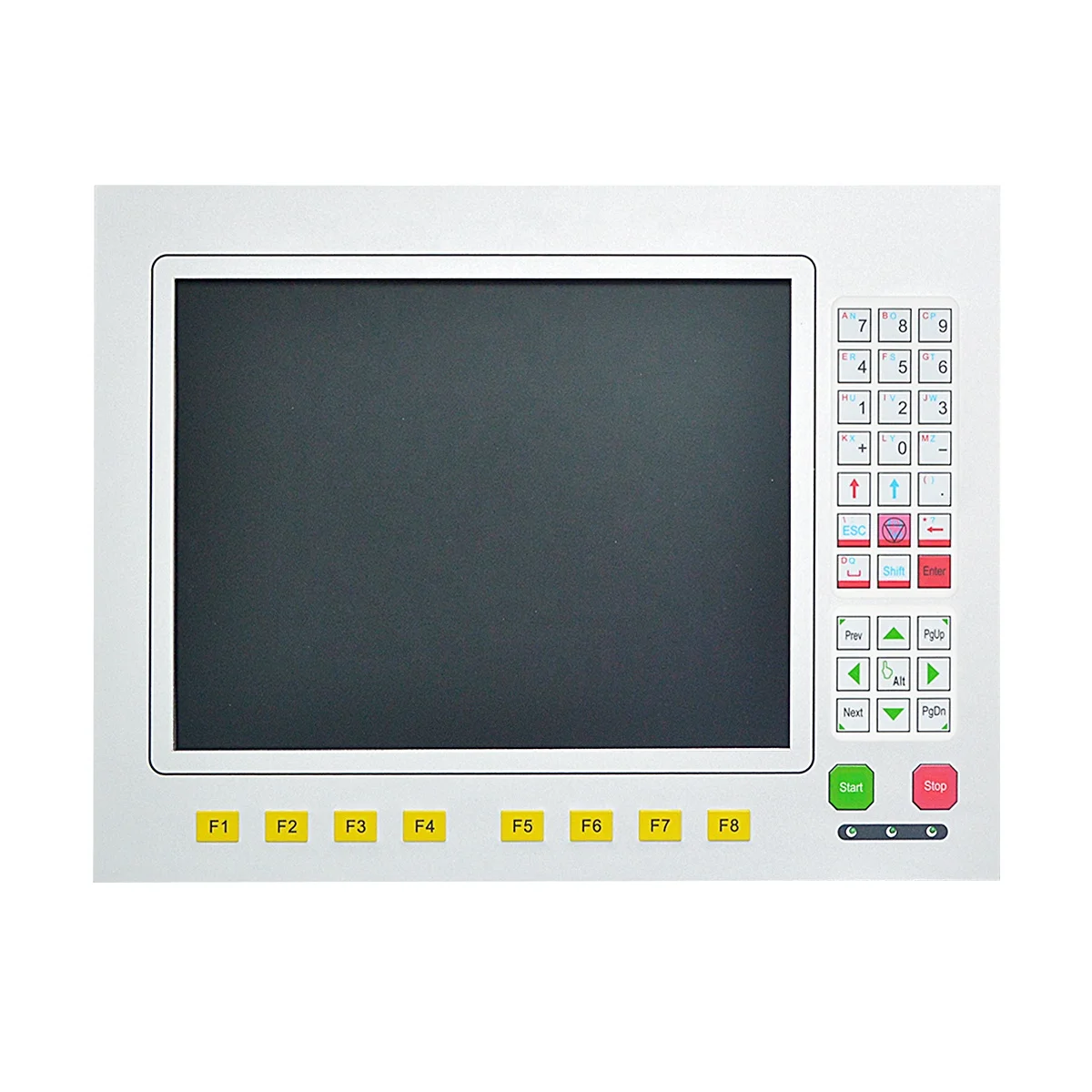

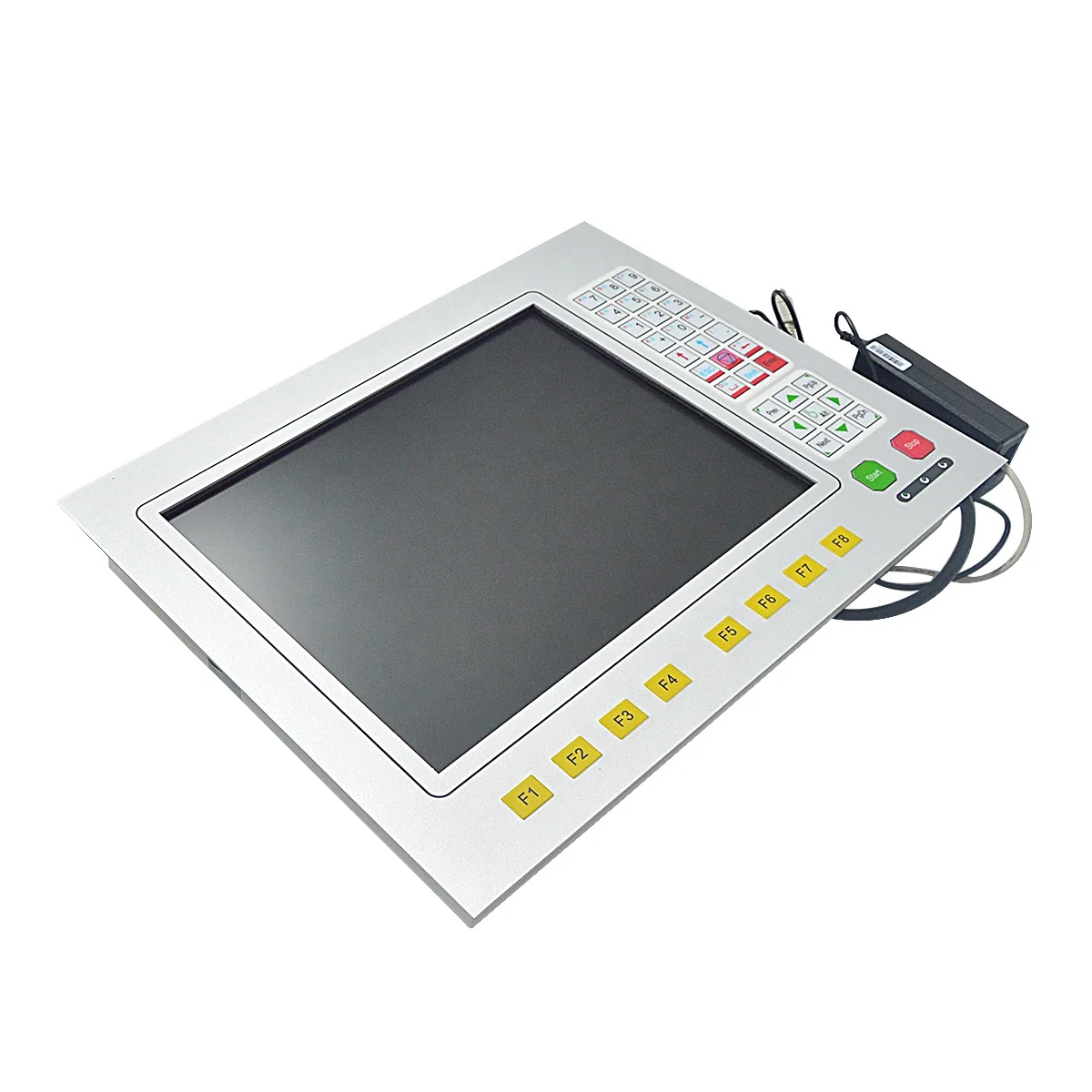

This product adopts four axis digital position control mode, which is apt to the application of flame, plasma or laser cutting. This series is suitable for all 4-axis CNC machines which support position control mode.

This controller is very light and handy and it is very easy to operate. The controller provides menu or illustration for all the operations for the convenience of users. All key switches are human oriented designed, and they are very convenient and comfortable.

Characteristics

1) Chinese/English/French/Portuguese/Russian/Denmark/Korean language menu, the menu can be switched only by one key. In addition to Arabic, other languages are all available.

2) Support plate cutting and pipe cutting, four axis welding, etc..

3) Support the EIA code (G code) and various FastCAM,FreeNest,SmartNest,IBE software. Support G code with suffix such as TXT,CNC,NC,MPG,B3.

4) Compact keyboard design and easy to input files.

5) Self-diagnostic function, to diagnose the key status and all the IO status, facilitate inspection and debug.

6) System can be upgraded by USB interface easily, and we provide lifetime upgrade service.

7) Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode.

8) Flame and Plasma are separated in the control IO ports.

9) Support THC, two-level preheat, three-level pierce in flame mode.

10) Automatically memorize the working situation and the last cutting point when power off.

11) "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong.

12) Set up different administration authority and the corresponding password to safeguard the interests of equipment manufacturers.

13) Support P2P mode or BCD (8421) mode remote controller
