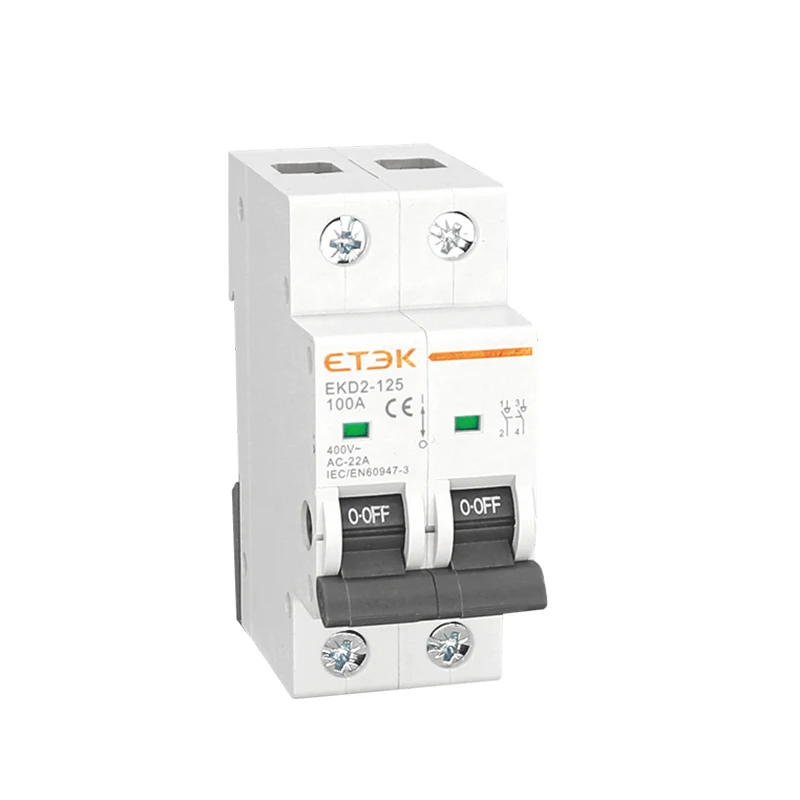

ETEK EKD2 125 Американская классификация проводов 2р 100A экономический тип изоляция рубильник

Описание и отзывы

Характеристики

Free samples can be provided !!!

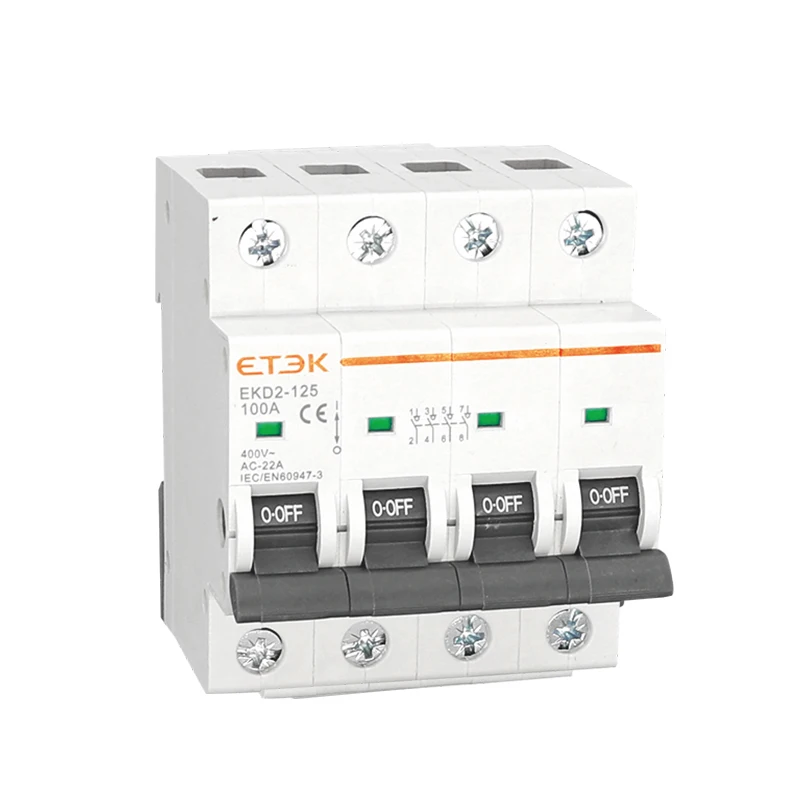

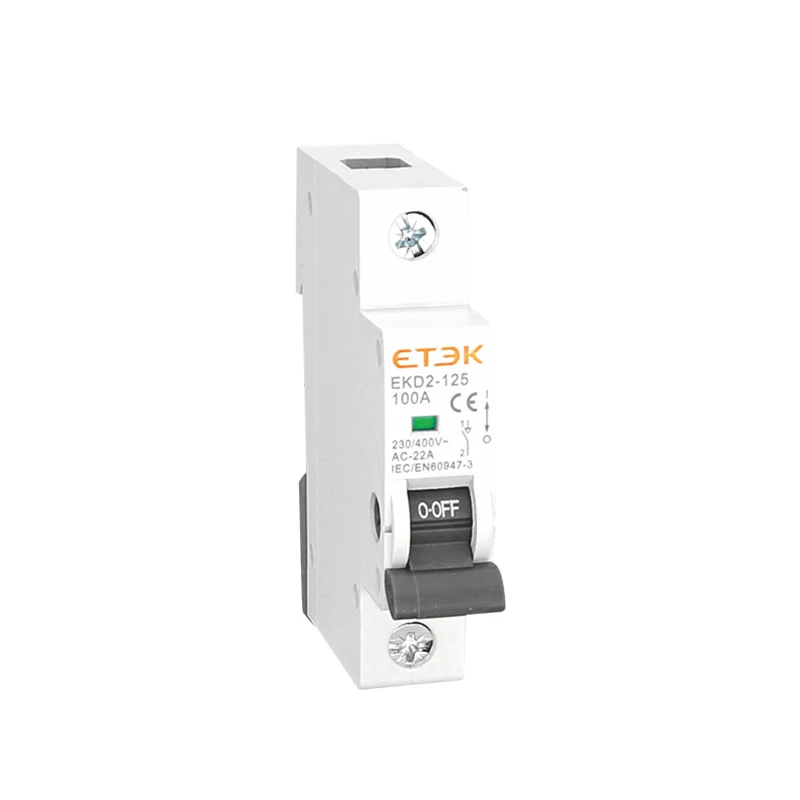

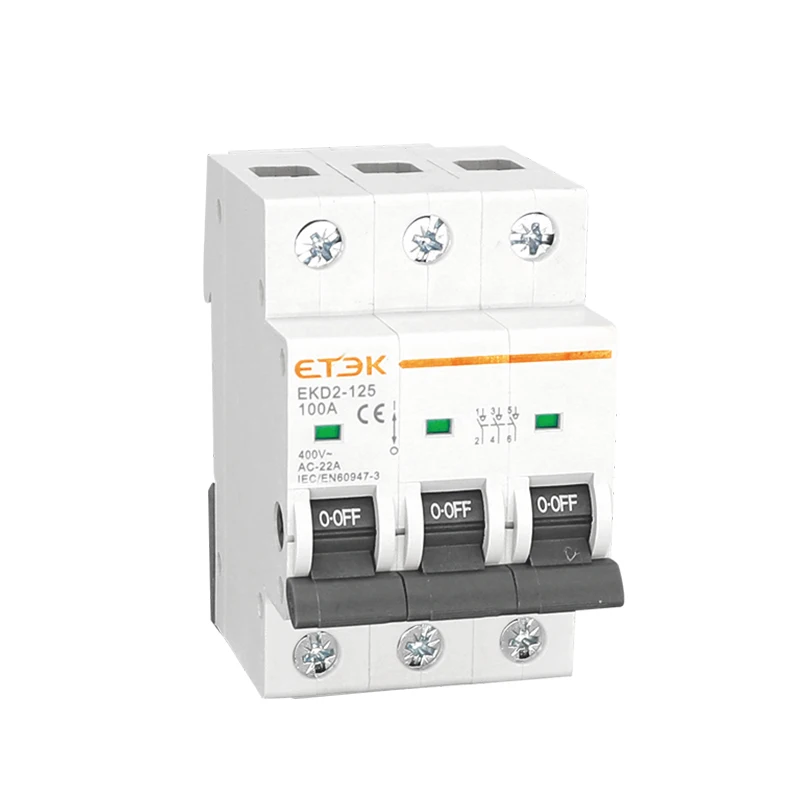

Description For EKD2-125 Economic Isolation Switch

1. Technical Data

Electrical Features

 Rated voltage Ue: 240/415V
 Rated current le: 32, 40, 50, 63, 80, 100,125A
 Rated frequency: 50/60Hz
 Rated impulse withstand voltage (1.2/50)Uimp: 4000V
 Rated short-time withstand current lcw: 12le, 1s
 Rated making and breaking capacity: 3le, 1.05Ue, cosφ=0.65
 Rated short circuit making capacity: 20le, t=0.1s
 Dielectric test voltage at ind. Freq. for 1min: 2.5kV
 Insulation voltage Ui: 500V
 Pollution degree: 2
 Uilization category: AC-22A

Mechanical Features

 Electrical life:1,500
 Mechanical life:8,500
 Protection degree: I P20
Contact position indicator:handle with Red/Green mark
 Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
 Storage temperation: -25ºC...+70ºC

Installation

 Terminal connection type: Cable/Pin-type busbar
 Terminal size top/bottom for cable: 50mm2   18-2AWG
 Terminal size top/bottom for busbar: 50mm2   18-2AWG
 Tightening torque 3.5 N*m  30In-Ibs.
 Connection: From top and bottom

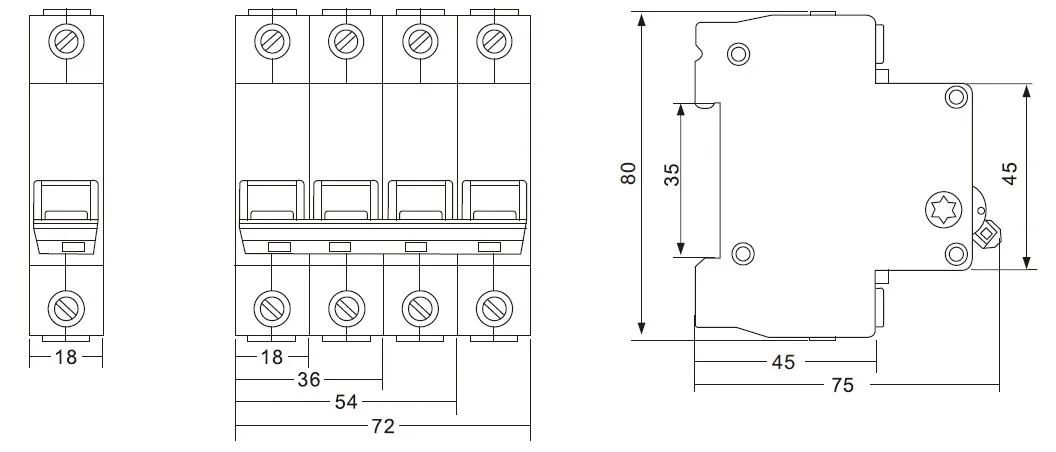

2.Overall and installation dimension (mm)






3. Feature Products




4. Company Profile

Zhejiang ETEK Electrical Technology Co.,Ltd. was founded on Janurary of 2011,which has more than 200 empolyees now.It is a professional manufacturing company engaging in R & D,production and sale of high and low voltage electrical products,such as Terminal distribution electrical appliance,industrial distribution electrical appliances,industrial control electrical appliance,DC systems distribution appliances,etc.It possesses three major manufacturing departments and one import & export trading company.The three manufacturing departments are terminal distribution electrical appliances manufacturing department,industrial distribution electrical appliances manufacturing department and industrial control electrical appliances manufacturing department.

The series of products manufactured by the company are mainly sold to international market.All of the products produced are in strictly accordance with international IEC/EN standards and China's GB standards.Most of these products have gained TUV and INTERTEK issued CCC,CE,TUV,SEMKO,EAC,SAA,INMTRO,ISO9001-2008 certificates and CB test reports.The products are sold to more than 50 countries and regions throughout the world,such as UK,France,Australia,Russia,Ukraine,Turkey,Brazil and so on.The quality of the products has been widely praised by the majority of users.

5.Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.


6.Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable


7.Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

8.Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.


9.FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
