EDM станок с ЧПУ сверлильный

Описание и отзывы

Характеристики

 Advantages of DC435A/B/C:

1.Can drill deep hole with diameters 0.1mm ~ 3mm for C type, 0.2mm ~ 3mm for B type, 0.3mm ~ 3mm for A type

2.The speed of drilling hole is 30mm~60mm depth per minute (it is different for different material).

3.Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.

4.Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum, and hard alloy etc.

5.Can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes.

6.The working water can be normal water or saponification fluid and no pollution is brought.

7.The operation is easy and convenient

8.X, Y, Z three axes digital display with scale.

9.X, Y, Z three axes control

Features:

1. The system adopts touch screen industrial control computer and Win7 operating system. It runs fast and can process massive data at the same time.

2. With rich data interface, the system can directly import data and edit it through U disk, network port, and wireless to produce the most reasonable processing route.

3. Support X.Y.Z three-axis CNC machining, suitable for plane and arc hole drilling. (Optional) It can be installed to realize W.C five-axis CNC processing, suitable for uneven workpieces with steps, and a rotary table for processing round workpieces and inclined holes.

4. Comes with an expert process library, just enter the workpiece material, electrode diameter, processing requirements and other conditions, the processing parameters are automatically retrieved, and the hole processing parameters can also be manually adjusted.

5. Equipped with automatic centering, automatic edge search, and automatic workpiece surface search.

6. Precise depth control, automatic detection of electrode loss, and electrode loss can also be set manually.

7. Automatic detection of penetration, depth coordinate can also be set manually.

8. The XY axis has a closed-loop function, which can achieve high-precision positioning.

9. XYZ three-axis precision ball screw, Taiwan silver linear guide.

10. Hand-in-one integrated processing method, the X and Y axes are automatically locked after positioning and can be unlocked manually.

11.  In order to ensure the quality of the aperture, the electrode tubes with specifications below 0.3mm are selected for manual processing.

Specification:

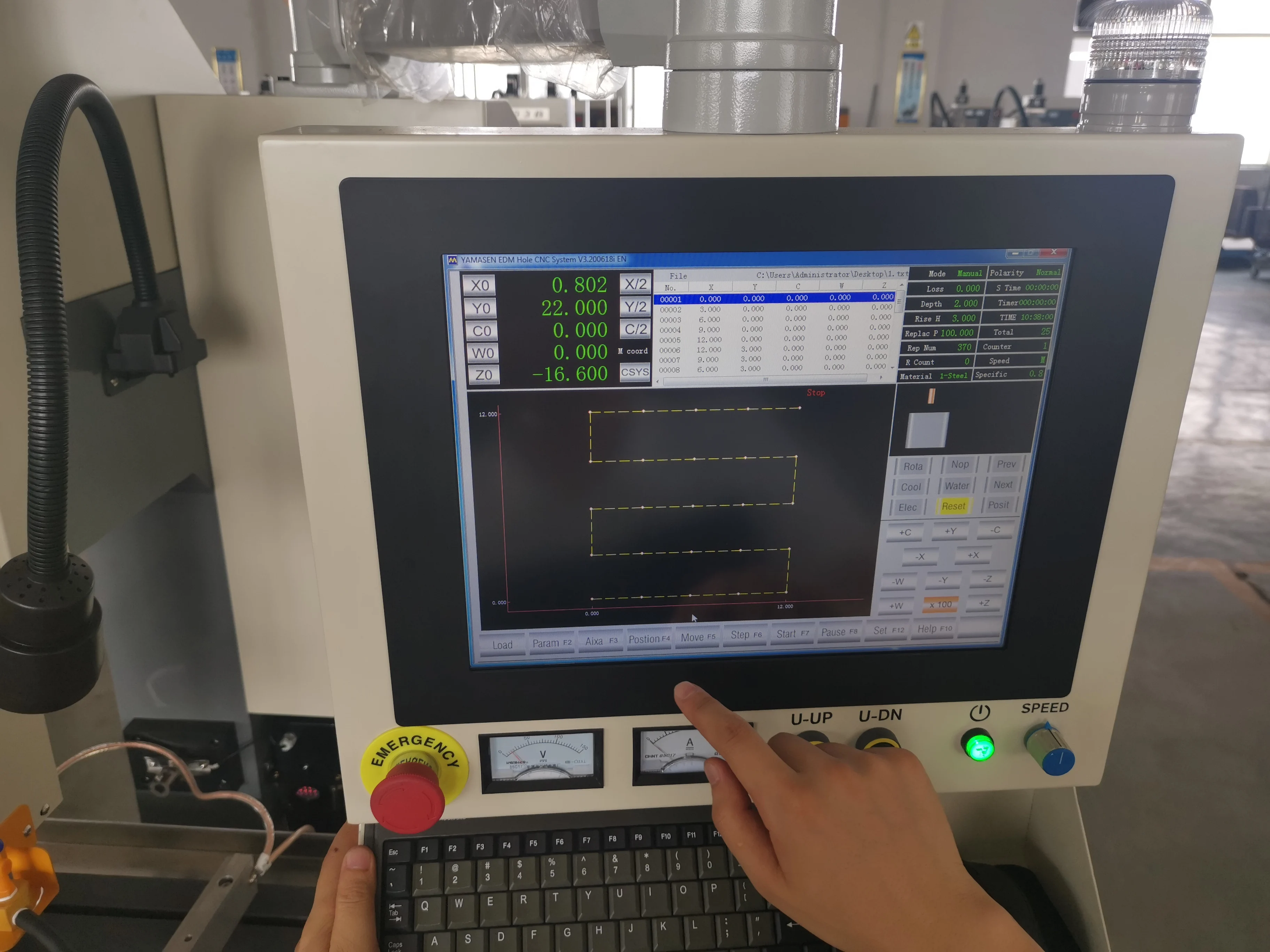

CNC EDM Drilling Machine Software:

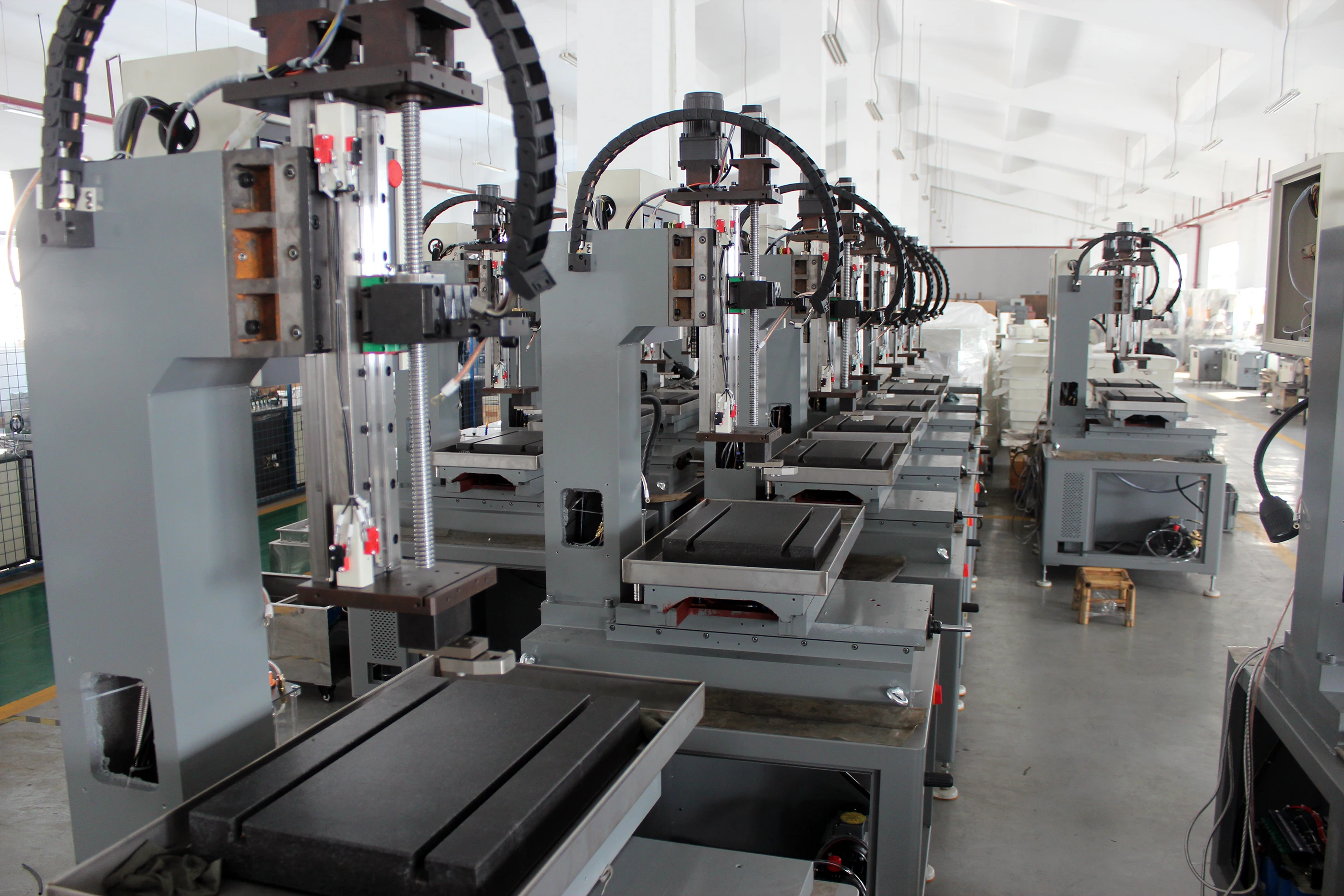

Professional Manufacturing Plant:
