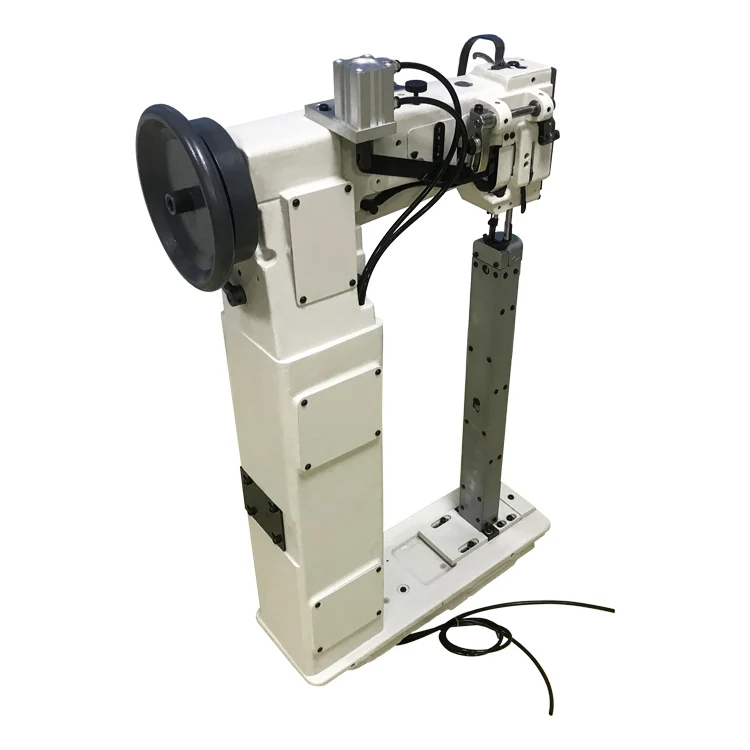

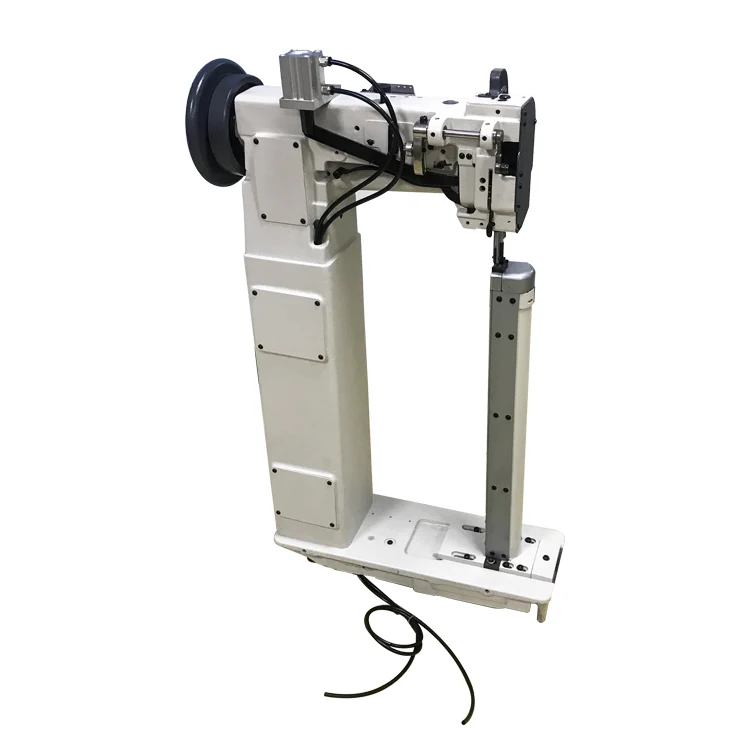

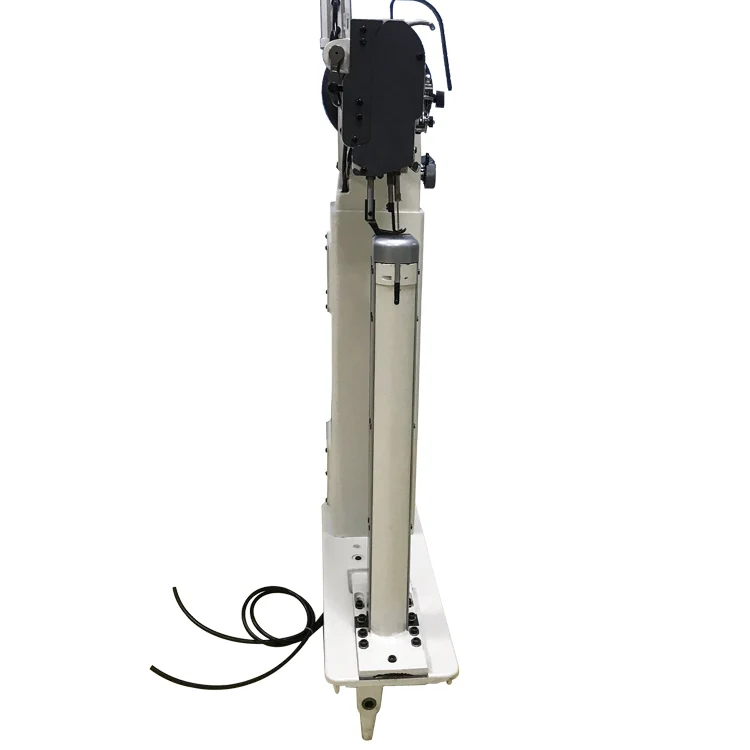

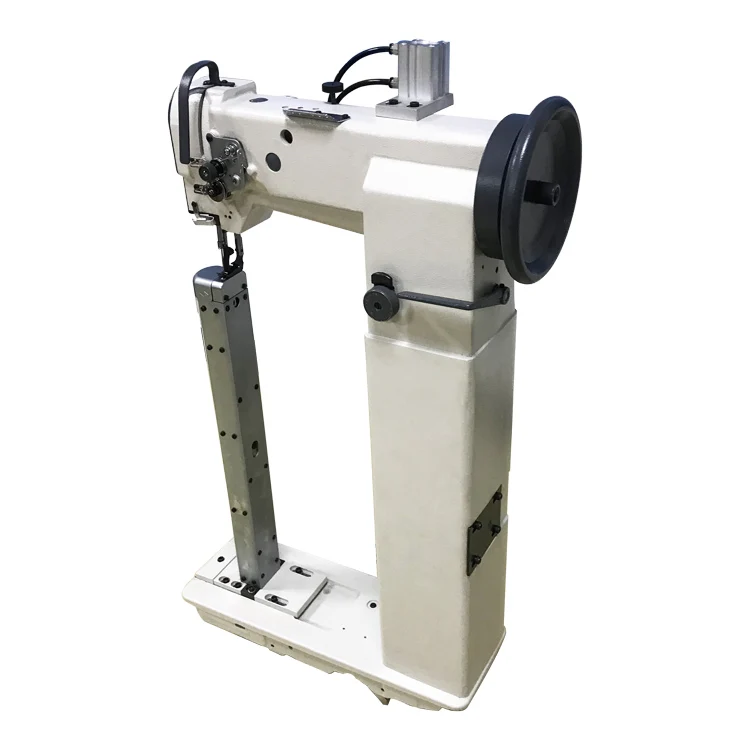

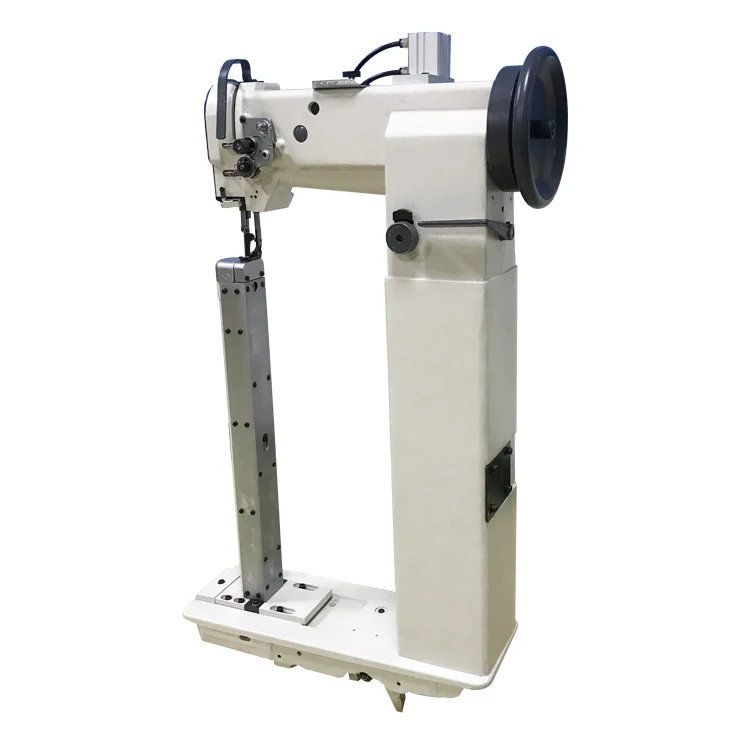

8366 high post bed industrial sewing machine for ABS / PC luggage & beauty case.






Product Character





1. This machine is a vertical post bed sewing machine, specially designed for ABS luggage suitcase manufacturing, with solid structure and novel shape.





2. Take up the thread with sliding bar to form a double line lock type thread track, and the upper and lower shafts are driven by synchronous toothed belt.





3. Presser foot, feeding teeth, needle synchronous feeding, lever needle distance adjustment mechanism.





4. High pressure foot stroke, high pressure foot lift clearance and large stitch length, matching with the cylindrical sewing table.





5. It is suitable for sewing heavy bags, suitcases and mattresses, especially for the peripheral operation of bags.








Technical data





















































































Condition



New



Brand Name



Good Time



Type



Industrial sewing machine



Model



GT-8366 Square kettle canister post sewing machine



Place of Origin



Guangzhou, China (Mainland)



Stitch Formation



Lock stitch



Mechanical Configuration



post-bed top & bottom feed



Max Sewing Speed



1600-2500r.p.m /min



Height of Presser Foot



15mm



Stitch Length



0-8mm



Canister reactor diameter



45mm



Motor power



750W electronic energy save motor



Post high



550mm



Width



250mm



Feed Mechanism



Compound feed



Certification



CE



Color



White



Needle



DP x 17 (#20-#25)



Gross Weight



120KG












Detail Image


 8366 post bed 12





Feeding parts: teeth, presser foot, needle, three synchronous feeding. The thick sewing material is smooth and the stitch is beautiful !





8366 post bed 11





Square cauldron, more suitable for sewing thick material, comfortable and convenient operation.





8366 post bed 10





Suitable for sewing boots, ABS / PC trolley case, golf bag and other products.





8366 post bed 9





Shuttle bed parts: high quality large rotary shuttle, no wool, no take-up, continuous thread, wear resistance.





8366 post bed 5





Cylinder parts: pneumatic presser foot lifting, convenient for workers to operate.











8366 post bed 6





There are four different operating spaces for you to choose from:





1. post high: 703mm, width: 480mm;


2. post high: 550mm, width: 250mm;


3. post high: 250mm, width: 250mm;


4. post high: 180mm, width: 250mm.





8703C post bed 11











8703C post bed 2





The diameter of the kettle canister is 47mm.











8366 post bed 3





Right and left kettle canister for optional.





8366 post bed 1





There are 750W, 950W, 100W electronic servo motor for optional.








Recommended Products








































Application display


This series of post bed seiwng machine is specially made for sewing thick raw materials, such as boots, ABS / PC trolley case, golf bag and other leather handbag products.





Luggage suitcase


Wide Application








Company Information


-1_02


1_07





Production-Line-2


Show RoomProduction--Line-4








FAQ




-1_03




Q1. Are you a factory?
  Re. Yes.  we are both a trading company an
d a factory, and we only focus on excellence sewing machine.


Q2.How about your machine quality?


  Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.


Q3. How about your price?


  Re. Our price not expensive, but also not very cheap, in general, quality is better than price


Q4. How long could your sewing machine be used?
  Re. Generally, more than 6 years.


Q5. What is the shipping port?
  Re. We ship the goods via Guangzhou port or as you like


Q6. How about payment ?


  Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment


Q7. Can you do OEM or ODM for us?


  Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.


Q8. Can you supply spare parts?


  Re. Yes, of course we can.


Q9.  What guarantee you can supply ?


Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
