Custom 5m EV зарядный кабель 32A портативный ccs1 ev для электромобилей

Сохранить в закладки 1600242987859:


Цена:320,00 $ - 350,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.



Product Description


Custom 5m EV charge cable 32A portable ev charger for fast charging CCS electric car







7.4W PORTABLE CHARGER:





*Adjustable current

Customers could adjust different current as required.

6A/8A/10A/13A/16A/20A/32A,there is always one for you.

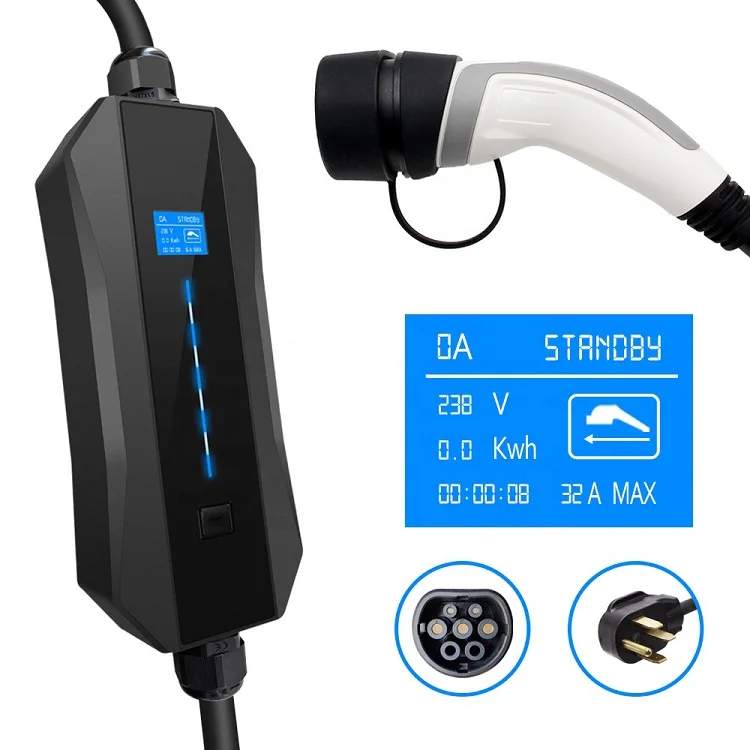

*LED display

LED display could you show all real-time charging status,including time,voltage,current power and temperature



*Smart inegrated control-box

The inside integrated circuit board is equipped with protection outomatically device,it can send the instruction to keep the normal work,such as over-current&over-temperature.



*High security assurance

Approved the strictly test of TUV authority,including water-proof test, cush test, high&low voltage test, high&low temperature test and etc to ensure safe amd realiable use.




PRODUCT PARAMETER:






























































Product model



PC0732LA Portable EV Charger



Install



Portable Plug and play



Standard



SAE J1772,IEC 82572,EN 62196-2,IEC 61851-1



Rated Voltage



120/250V



Rated Frequency



50Hz/60Hz



Adjustable Current



8A/10A/13A/16A/20A/32A



Rated power



7.4KW



Charging cable length



5m or customization



Operating temperature



-30℃ to 65℃



Storage temperature



-40℃ to 80℃

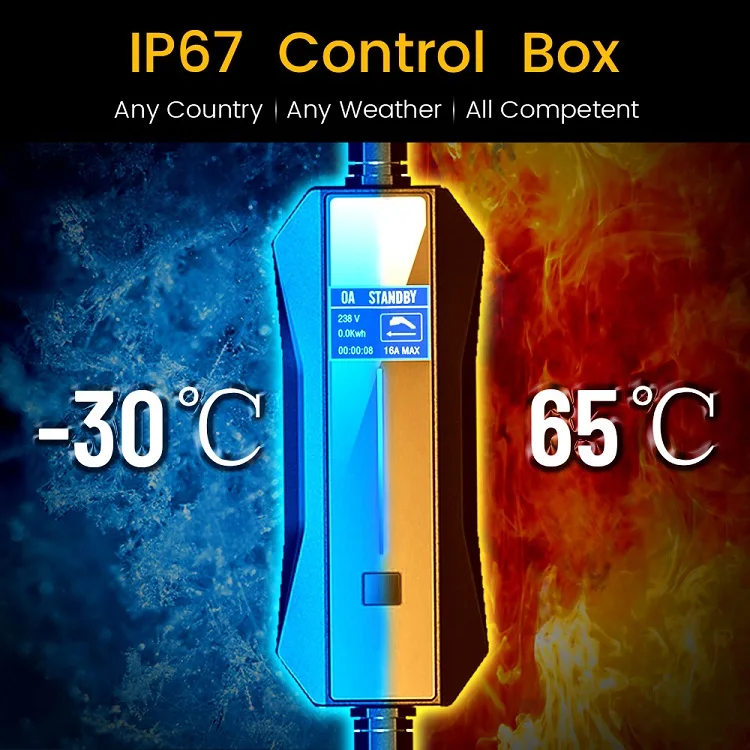

Protection class



IP67



Control Box size



255*109*55mm



Weight



4.0KG



Protection



1.Short circuit protection


2.Leakage current protection


3.Over voltage and under voltage protection


4.Over and under frequency protection


5.Over current protection


6.Over temperature protection


7.Ground protection


8.Lighting protection



SUPPORT CAR:


.jpg









Company Information














Packaging & Shipping


1. During the transportation process, the charger body package should be firmly sealed and the loading and unloading direction should be identified by a solid wooden packing box. The charger should not be stored upside down. Corresponding tightening measures should be taken during transportation to avoid strong vibration and bumps that damage the outer packaging of the equipment.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to+40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.





FAQ


8FAQ


Q1. Are you a factory or trading company?


A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.


Q2.What is the warranty?


A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of delivery.


Q3. What is your terms of packing?


A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q4. What is your terms of payment?


A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q5. What is your terms of trade?


A: EXW, FOB, CFR, CIF, DAP,DDU,DDP


Q6. How about your delivery time?


A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q7. Can you produce according to the samples?


A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q8. What is your sample policy?


A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q9. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.


Q10.Whats the difference between Movable Charger and Wallbox Charger?


A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.


10
