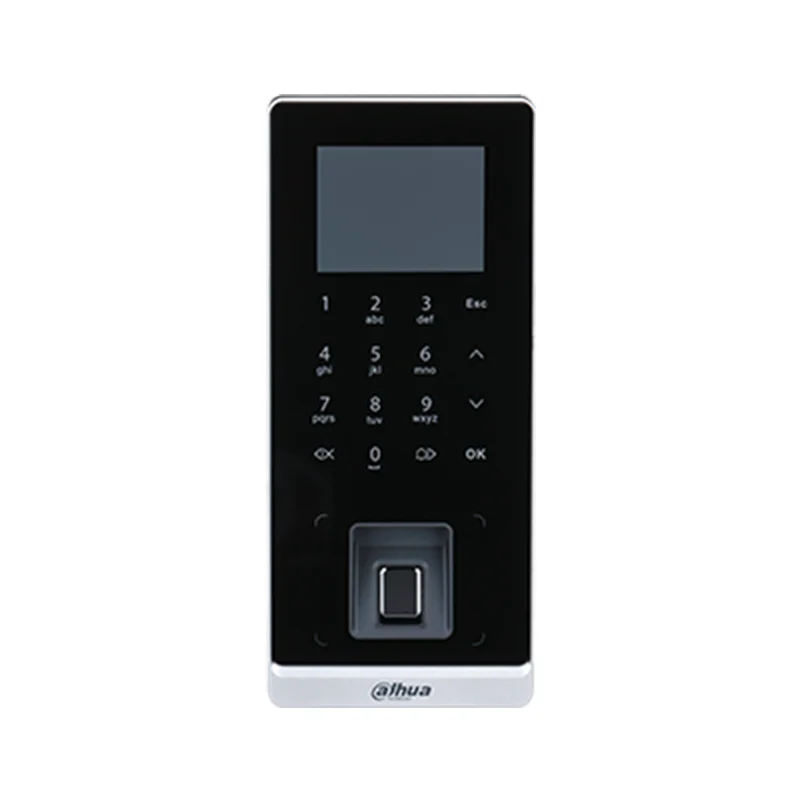

ASI2212H-W умная охранная система периметра P2P AI дверной Звонок функция сетевой видеорегистратор Dahua контроллер доступа для
94,00 $ - 98,00 $
Контроллер доступа на 2 двери TCP/IP с бесплатным
- Категория: Other Access Control Products >>>
- Поставщик: S4a Industrial Co. limited
Сохранить в закладки 1600243763044:
Описание и отзывы
Характеристики
TCP/IP 2 doors access control board access controller with free sdk
Product Description
| What is Access Control? |
Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely. |

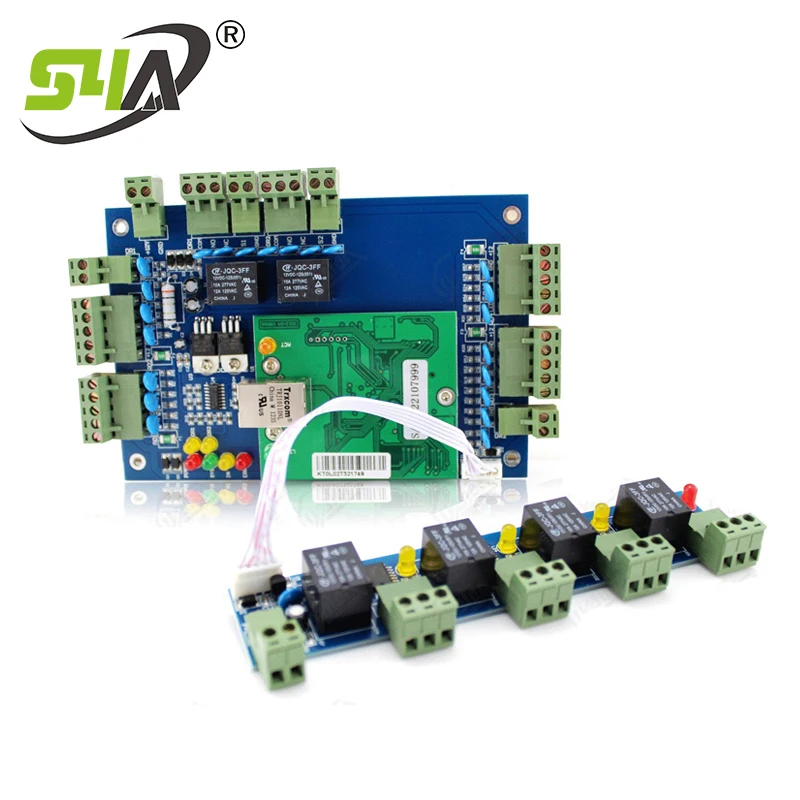

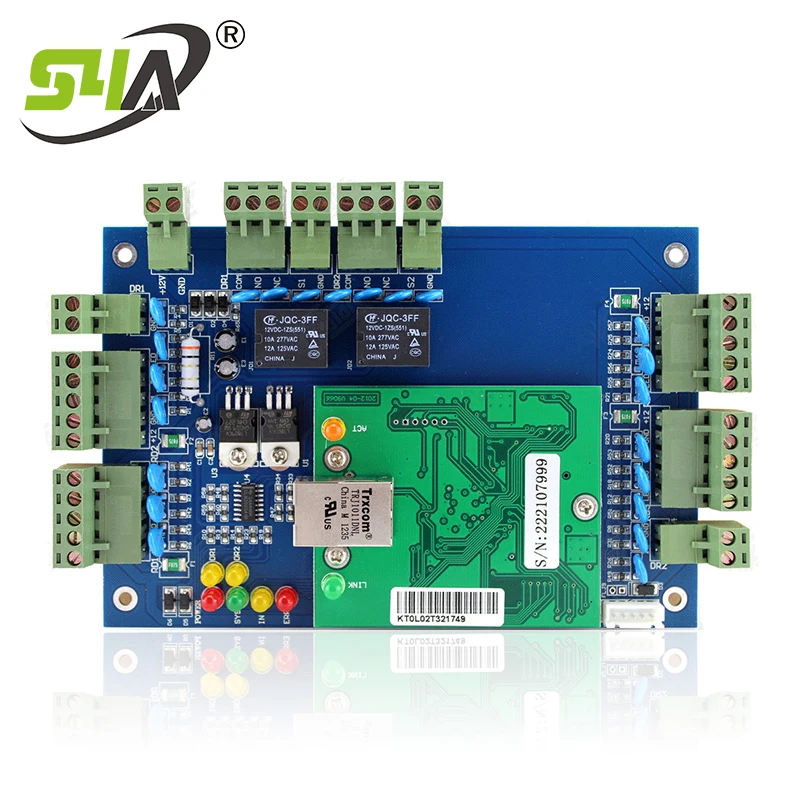

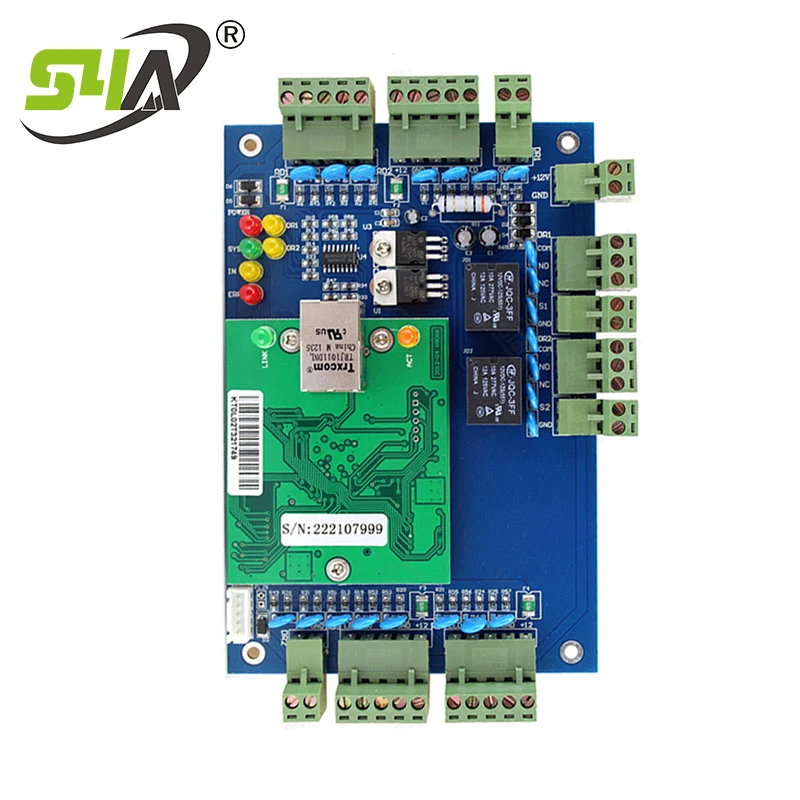

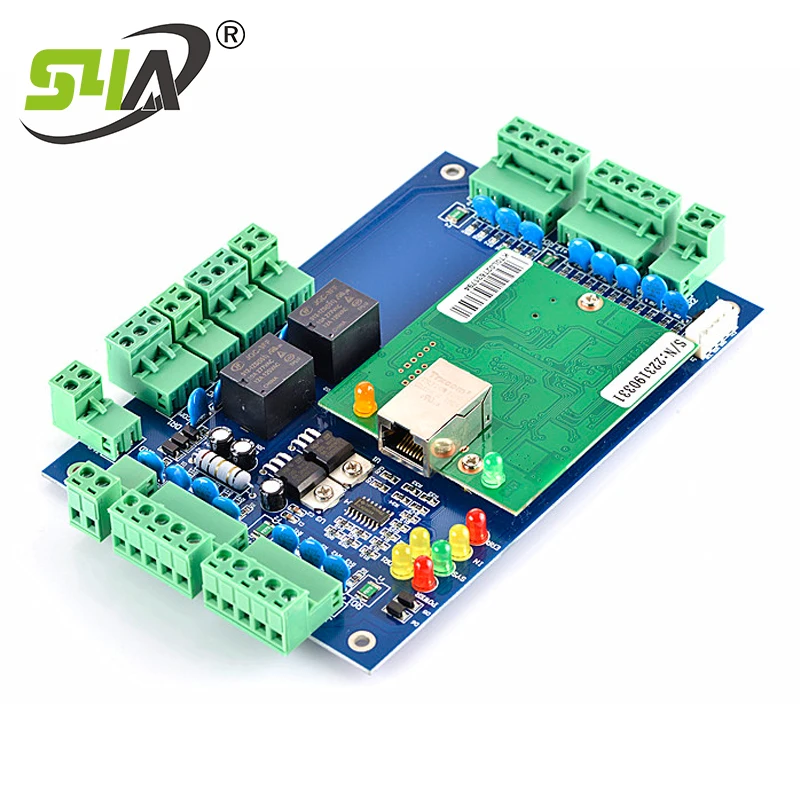

2 Door network access control board ACB-002
Specification for ACB-001, ACB-002, ACB-003
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping the card or get in by swiping a card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping a card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get out the door by button |
Size of PCB board | 160mm*106mm | 160mm*106mm | 160mm*106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
Door Controlled | 1 door | 2 doors | 4 doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
Operation Temperature | -40℃~70℃ | ||
Operation Humidity | 10-90 % RH , No Condensation | ||
Q ' ty of users | 20,000 Users | ||
Q ' ty of Event Buffers(offline) | 100,000 event buffers | ||
Power interruption protection measure | High-Speed Memory, Records never lose | ||
Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
Max Distance between Controllers | TCP/IP: Depends on net coverage area | ||
Package included: | PCB board, software, manual, certificate. carton | ||
Alarm for long time door open, illegal break-in, intimidate | Yes | ||
Fire and alarm linkage | If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
A Compulsive open and close door at a long time | Yes | ||
Open door in the remote distance | Yes | ||
Interlock | No | Yes | Yes |
Anti pass back and tail | Yes | Yes | Yes |
Multi-card open door | Yes | ||
Open a long time at a specified time | Yes | ||
Electronic map | Yes | ||
Urgency locking | Yes | ||
First card unlocking | Yes | ||
Unlock based on internal and external validation | Yes | ||
Keypad (card+passwor, supper password) | Yes | ||
Our Services
Our service - NO EXCUSE
All technical issues must be solved within 12 hours.
All emails must be replied within 2 hour at working time,
and it must be replied within 24 hours at non-working time.
Pay attention to when buying?
Payment method
We accept TT, Paypal, Western Union
Shipment
1. Normally 1-3 working days after receipt of payment. If it is out of stock, we need a little time to process and we will leave notice or messages for that.
2. We do not pay for the customs tax charge from local customs.
Warranty Policy
S4A offer you free warranty
ACB series control board,UHF long range card reader,
Within 2year quality guarantee.
Why Choose S4A?
S4A obtained more than 9 years experience in
Door access control systems and solutions,
we did many project in local market,
if you need diagram or wiring, just email or call us back at anytime.
we will send relevant according to your request.
In shenzhen ,we have 2office, as :Crypton Electronic Co.Ltd
S4A Industrial Co.Limited
Also we have 1branch office in Doha-Qatar,
also selling door access control systems and provide technicial support.
if you need local installation, we are happy to serve you..
Company Information
Contact Us - Danny Zeng
Message us via whatsapp link:
https://api.whatsapp.com/send?phone=8613632646185
Send your Inquiry Details in the Below,
Click "Send" Now!
Free samples are available to test and check...
Похожие товары

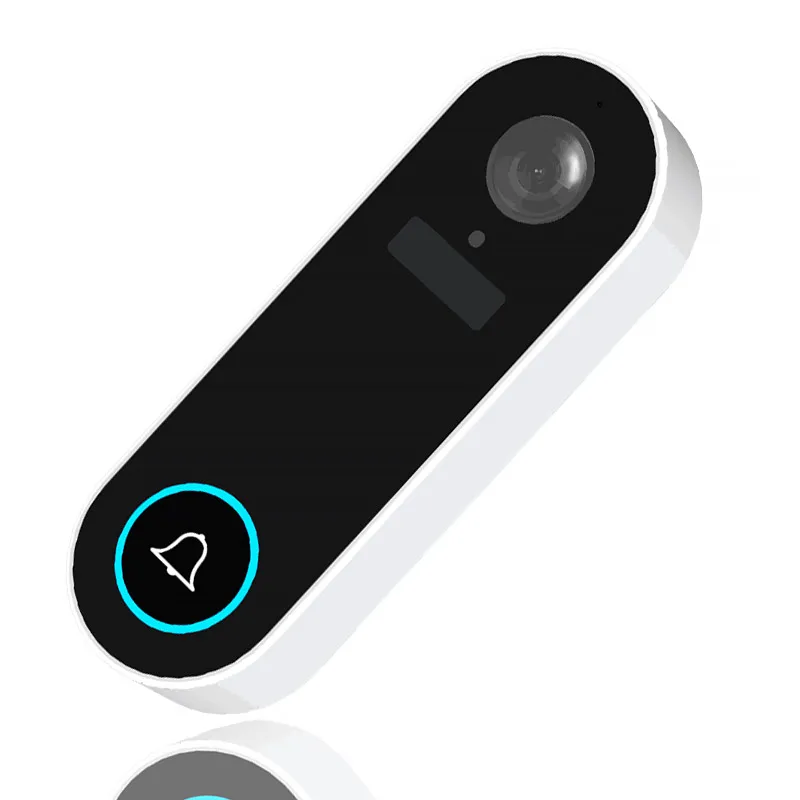

Улучшенный беспроводной дверной звонок 2021 водонепроницаемое видео 1080P HD датчик движения карта памяти SD 32 ГБ умный
31,20 $ - 33,65 $

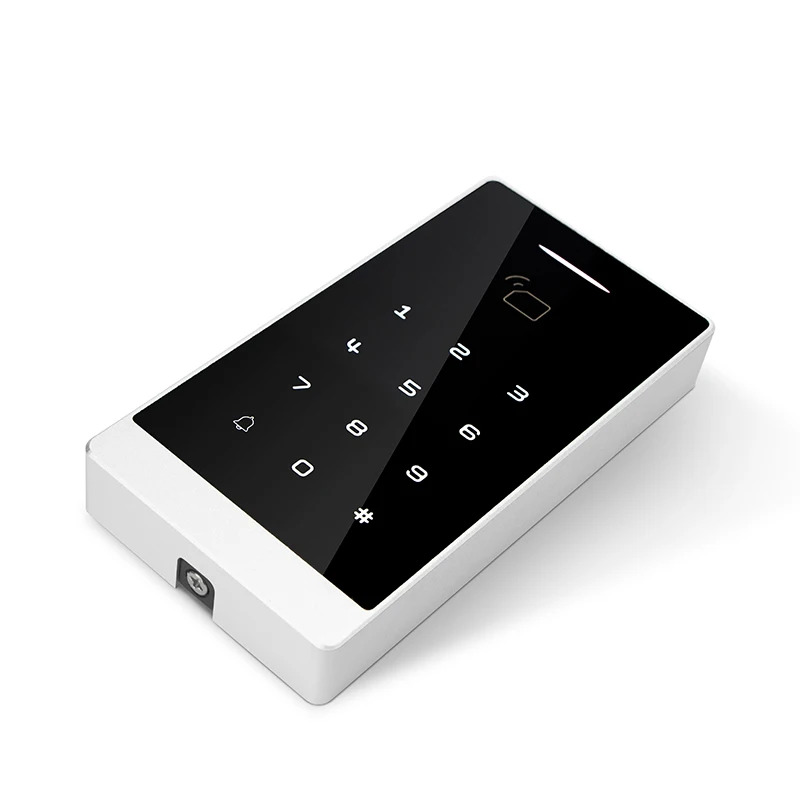

IP67 Водонепроницаемый сенсорный экран с подсветкой RFID автономный контроллер доступа 125 кГц контроль 1000 Пользовательский
15,40 $ - 16,00 $

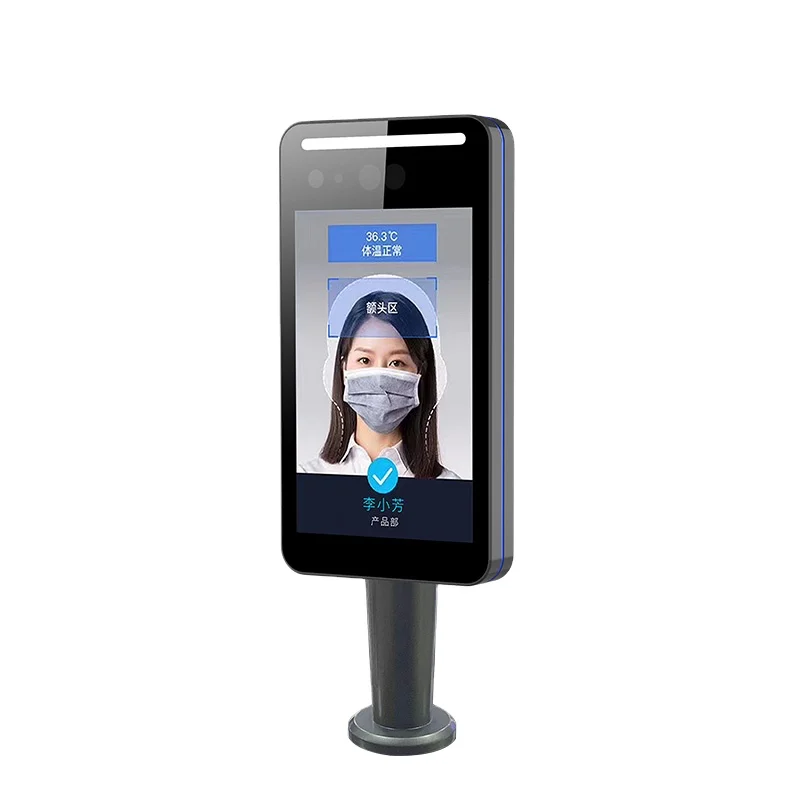

Высокая безопасность отпечатков пальцев беспроводной сети системы контроля доступа модуль распознавания лица
210,00 $ - 235,00 $
125 кГц ID автономная система контроля доступа IP67 водонепроницаемая карта управления RFID
9,00 $ - 11,00 $
Керамическая UHF RFID антенна 0-5 5 дБи с индивидуальными разъемами низкомощный качественный пассивный считыватель модуль для бесплатного SDK & test
13 56 МГц NFC 2 12*12 мм метка 216 микрочип для домашних животных RFID
0,30 $ - 0,80 $

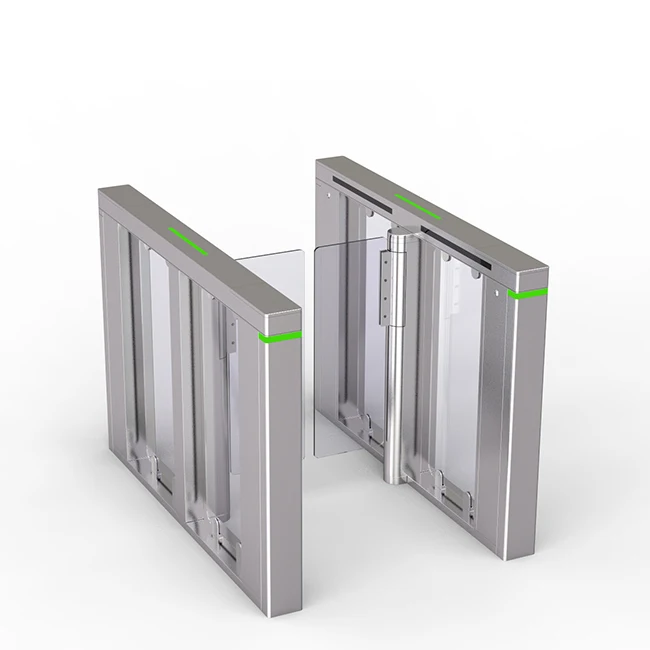

2022 karsun Новый турникет для распознавания лица механизм ворот быстрая безопасность
