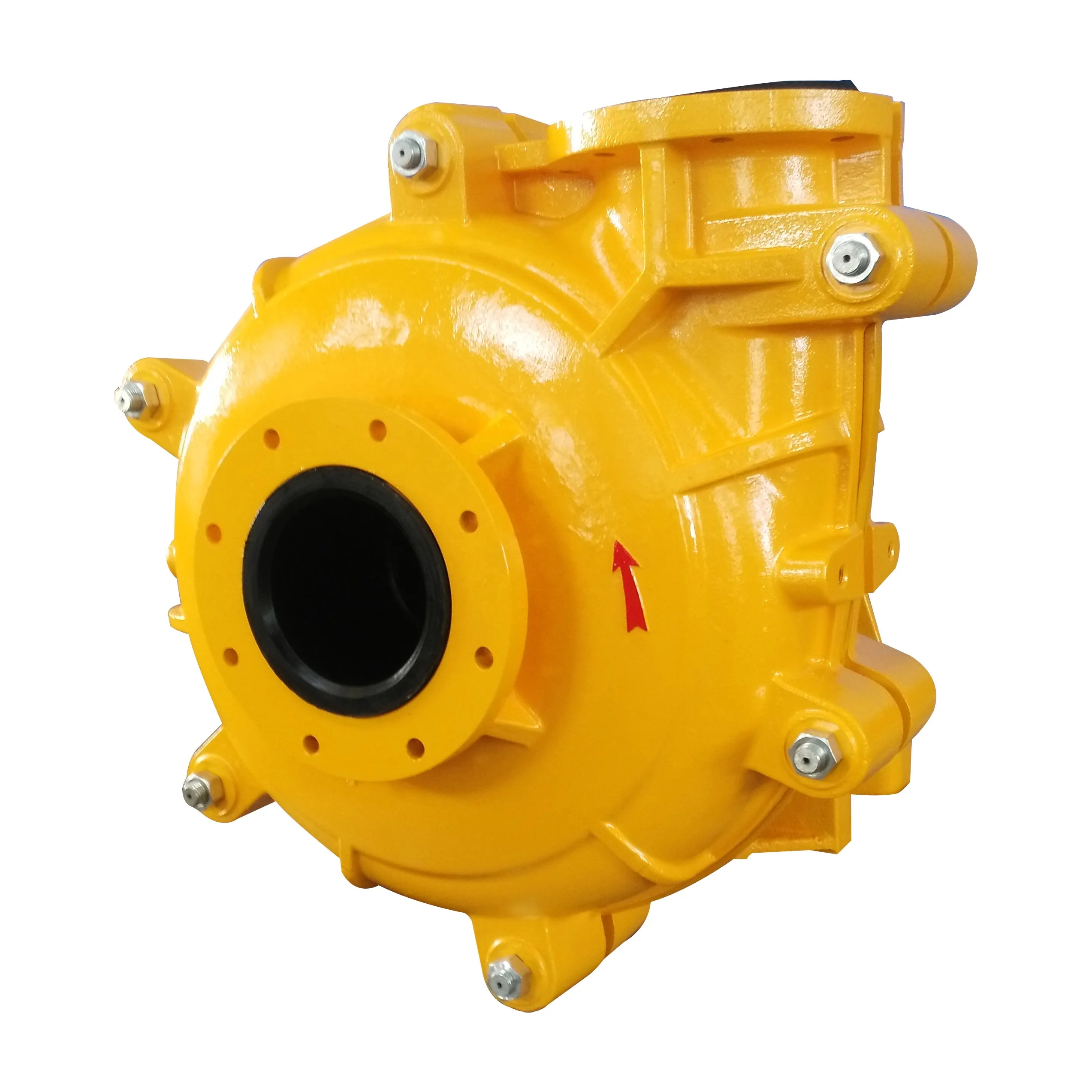

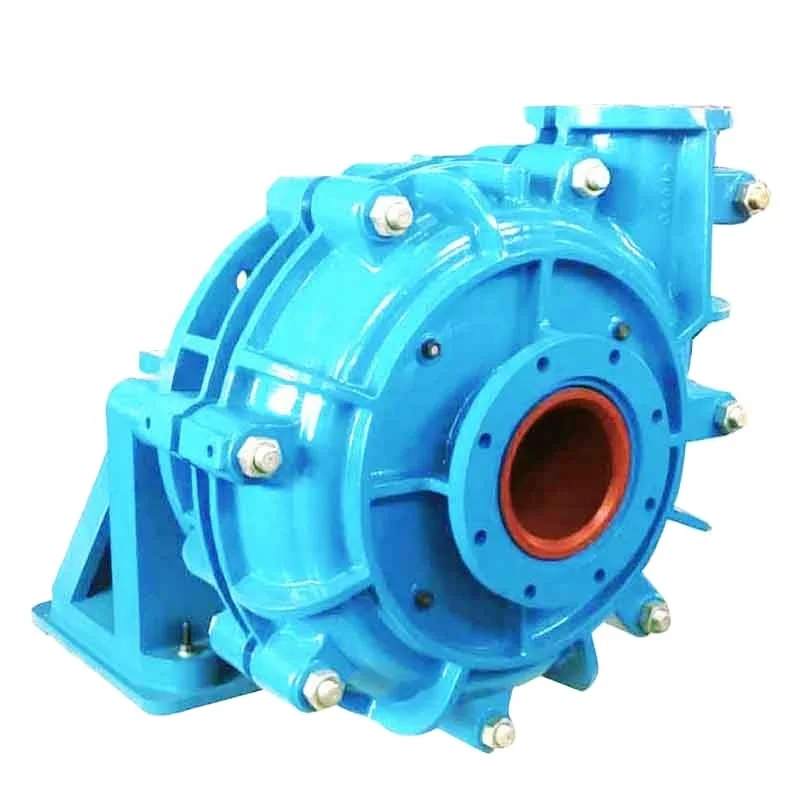

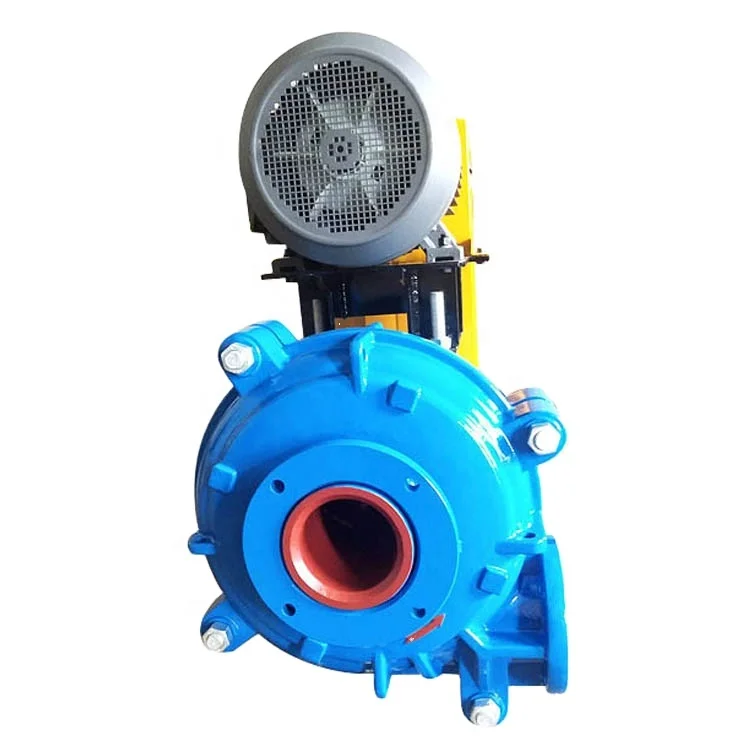

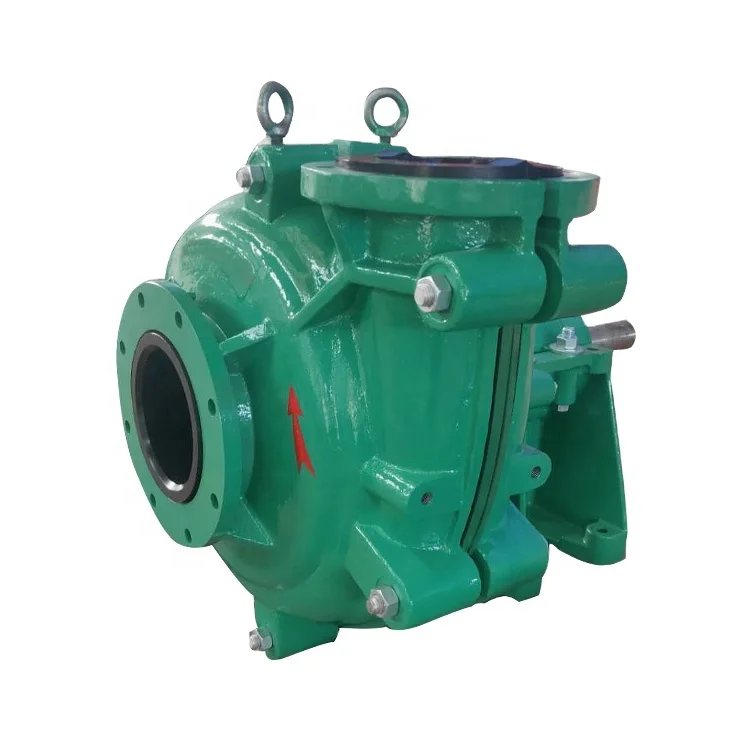

High performance CE certified allen sherman hoff slurry pumps
Product Description
Our slurry pumps are suitable for pumping slurry with hard particles and in high density in industrial sectors as of metallurgy, mining, coal, power generation and building material. These pumps can also be applied multi-staged in series. They are classified into three types: M. HA. HH.
The M.HA. HH type slurry pumps are those of cantilever, horizontal and centrifugal ones, whose shafts can be sealed by packing seals or by centrifugal type seals. The positions of the pump outlet can be positioned at an interval of 45°according to different requirements, so eight different angles can be applied by rotation in installation.
The M. HA type slurry pumps have pump bodies (volute liners, front and back liners) that consist of replaceable wear-resistant metal liners or wear-resistant rubber liners, and impellers can also apply wear-resistant metal material or wear-resistant rubber material. The HH type slurry pumps only apply wear-resistant metal material as their pump bodies and impeller.
Performance Parameters
Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
Capacity/Q m³/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
1.5X1-NP-NAH | 15 | 12.6--28.8 | 6--68 | 1200--3800 | 40 | 2--4 | 5 | 152 |
2X1.5-NP-NAH | 15 | 32.4--72 | 6--58 | 1200--3200 | 45 | 3.5--8 | 5 | 184 |
3X2-NP-NAH | 30 | 39.6--86.4 | 12--64 | 1300--2700 | 55 | 4--6 | 5 | 214 |
4X3-NP-NAH | 30 | 86.4--198 | 9--52 | 1000--2200 | 71 | 4--6 | 5 | 245 |
6X4-NP-NAH | 60 | 162--360 | 12--56 | 800--1550 | 65 | 5--8 | 5 | 365 |
8X6-NP-NAH | 300 | 360--828 | 10--61 | 500--1140 | 72 | 2--9 | 5 | 510 |
10X8-NP-NAH | 560 | 612--1368 | 11--61 | 400--850 | 71 | 4--10 | 5 | 686 |
12X10-NP-NAH | 560 | 936--1980 | 7--68 | 300--800 | 82 | 6 | 5 | 762 |
14X12-NP-NAH | 560 | 1260--2772 | 13--63 | 300--600 | 77 | 3--10 | 5 | 965 |
16X14-NP-NAH | 1200 | 1368--3060 | 11--63 | 250--550 | 79 | 4--10 | 5 | 1067 |
20X18-NP-NAH | 1200 | 2520--5400 | 13--57 | 200--400 | 85 | 5--10 | 5 | 1370 |
Company Information
Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-HA(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers’ technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, North America, South America,Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
1. greater reliability and durability
2. high quality and efficiency
3. wear resistant and anti corrosion
4. best service
Workshop Show:
Packaging & Shipping
FAQ
Q1. What is your product range?
A: Centrifugal pump, slurry pump, sand pump ,gravel pump, Dredging pump, clean water pump, sewage pump, chemical pump, single stage pump, double suction pump, industry pump, paper pulp pump, mud pump, Sludge pump ,etc
Q2. Are you a manufacturer?
A:Yes, Our Factory located in Shijiazhuang , Hebei , China . Welcome to visit.
Q3. What information should I let you know if I want to get a quotation?
A: Usage , Pump capacity, pump head , Slurry SG, The More the Better.
If you are using slurry pump, Please let me know the type you are using now.
Q4. What the the MQQ?
A: 1 set
Even 1 piece pump spare
Q5. How the Delivery terms?
A:By sea.By plane, as customer's request
Q6. How to gurantee the quality.
A: All our pump and spare parts pass ISO 9001:2008 and CE certificate. Warranty time is 12 month.
We want establish long term cooperation, Quality is our life.
Q7. Delivery time
A: For the Common Slurry pump and spare parts , the delivery time within 7-15 days.
Q8. Package
A: wooden box of seaworthy packing with plastic inner
Q9. Payment Term
A: TT, Alibaba Trade Assurance, LC or negotiate.
