HY-R29 Ferrite Differential Mode Magnetic Ring Inductance Winding Machine

 Brand new operating system, with magnetic ring automatic feeding, automatic winding, reclaiming and other functions
 PLC wide screen man-machine interface
 Integrated wire feeding structure, more stable wire feeding
 Winding belt structure protection, increase belt life
 Independent storage line speed and length control
 Independent winding speed and lap control
 With the current operating status display function, the production status is clear at a glance
 Programmable stepping motor drives the iron core to rotate in any direction
 The controller can store 1000 winding programs, and each winding program can edit 10 different winding steps to meet different    product requirements
 Built-in imported high-speed fiber optic coil number sensor, with even number display, intuitive and convenient adjustment, accurate and stable advantages
 Variable line pitch control, from sparse wiring to micro-precision wiring can be programmed to achieve a predetermined effect
 Driven by a servo motor, the wire storage has high precision and stable speed, and the speed of wire storage and arranging is switched smoothly.
 The efficiency can reach 400-800PCS/hour

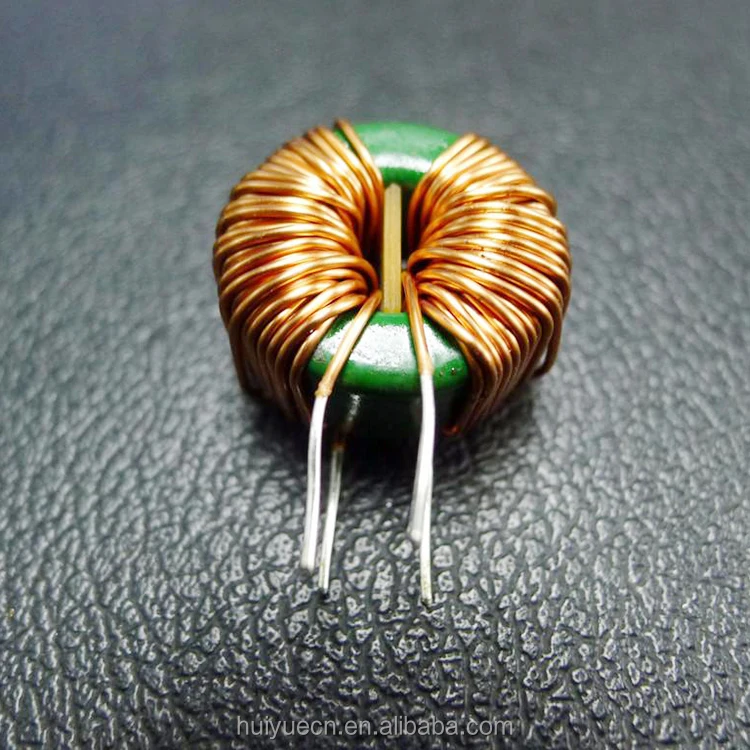

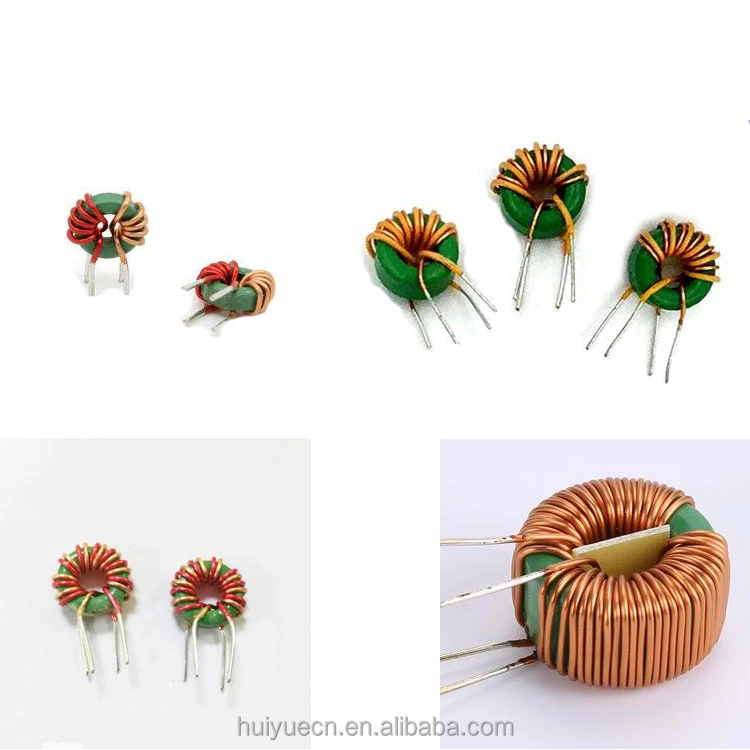

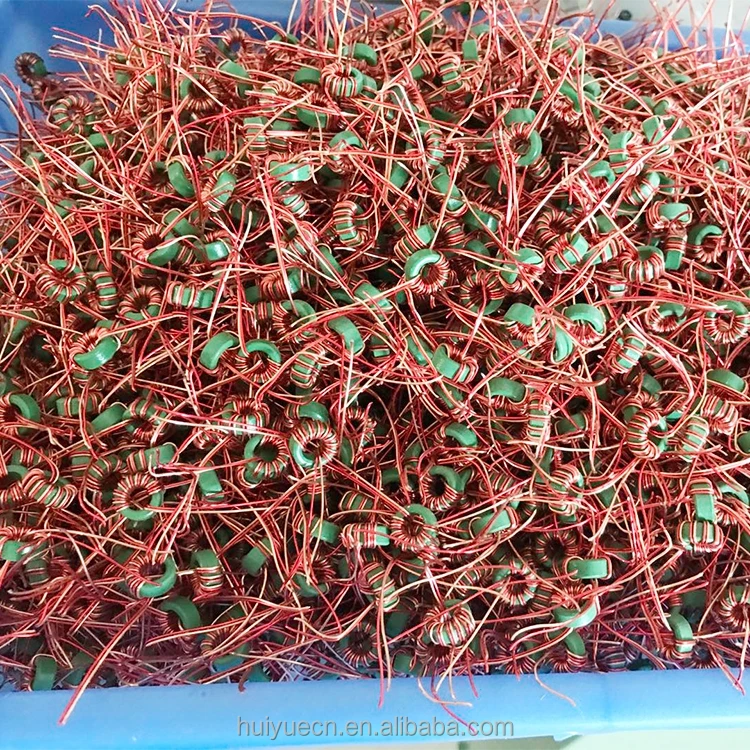

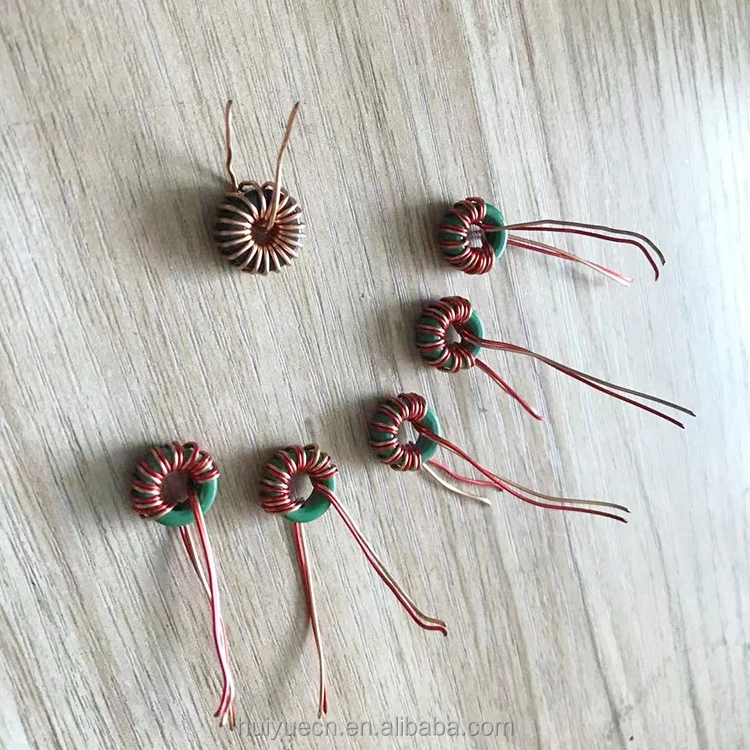

Automatic magnetic winding machine is an automatic high-end winding machine developed for the common mode inductance of the magnetic ring.
This model can help the production meet the requirements of high-yield and high-quality products without high cost.
A fully automatic winding machine designed for the small inner and outer diameters of miniature magnetic cores, thin wires and magnetic rings, which are difficult to pick and place by hand.
Its main functions are: automatic magnetic ring feeding, automatic wire feeding, automatic winding, automatic trimming, automatic wiring and other functions.
The production process does not require manual participation, which greatly increases the efficiency of production workers. At the same time, it ensures the stable quality of the produced magnetic core.
The control system with PLC and man-machine interface as the core makes the control circuit simple, easy to operate, stable performance, and retains the consistent ease of use of the machine.

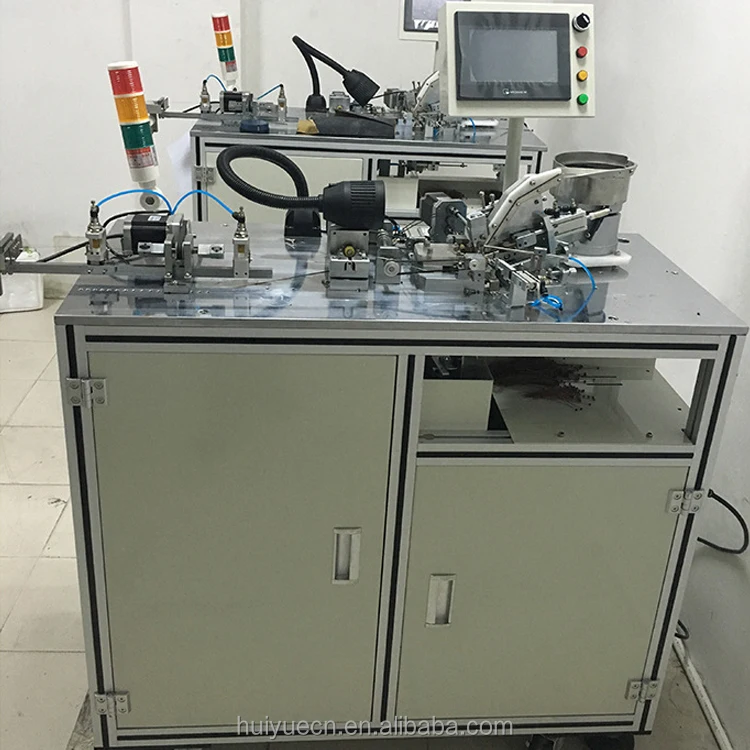

Ferrite Differential Mode Magnetic Ring Inductance Winding Machine

Ferrite Differential Mode Magnetic Ring Inductance Winding Machine

Wooden packing

24 hour online technical support and 100% quality warranty for 12 months except consumable parts.

Our vision : created a century brand success for centuries

Our mission : to promote the progress and development of the most cost-effective automation technology

Our values : customer first, teamwork, loyalty, dedication, passion, dedication

Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being

Our quality policy : quality is life, progress endless; service is fundamental, innovation to win

Our commitment : no excuses

Our two style : serious, fast

Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues

Dongguan Huiyue Automation Equipment Co., Ltd. FAQ:

Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
