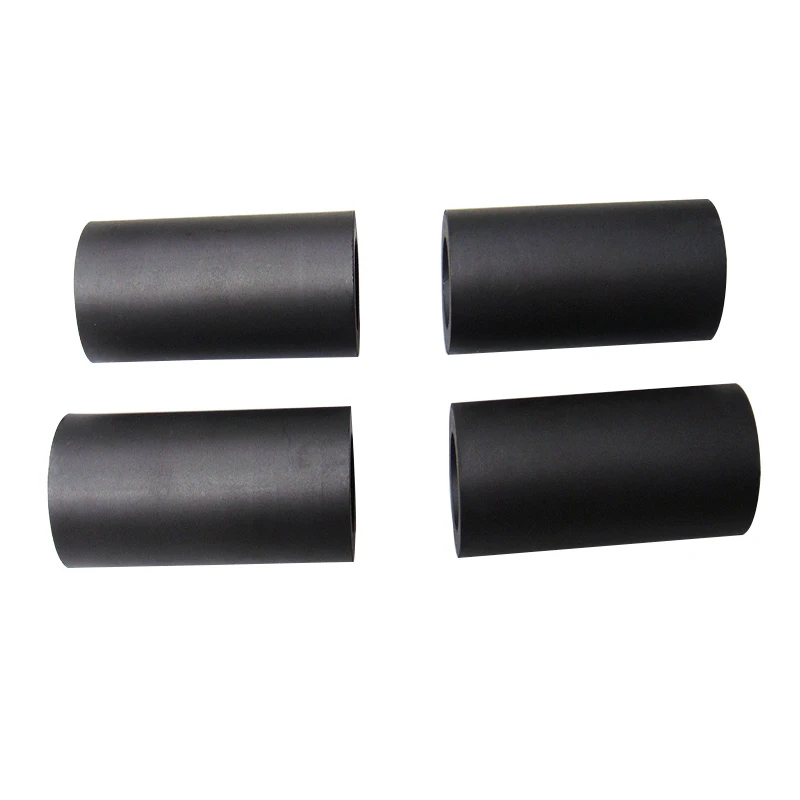

Станок с ЧПУ OEM пластиковая прокладка pom нейлоновая трубка огнестойкая
- Категория: Plastic Tubes >>>
- Поставщик: Guangzhou Engineering Plastics Industries (group) Co. Ltd.
Сохранить в закладки 1600247417783:
Описание и отзывы
Характеристики
Products Description
Prouduct Parameters
The Main Properties Of PEEK
property | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
2 | Water absorption(23℃ in air) | % | 0.20 | 0.14 | 0.14 |
3 | Tensile strength | MPa | 110 | 130 | 90 |
4 | Tensile strain at break | % | 20 | 5 | 5 |
5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
10 | Rockwell hardness | -- | M105 | M102 | M99 |
PEEK Material Characteristics
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)
4.Chemical resistance (corrosion resistance)
5.Flame retardant (can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)
4.Chemical resistance (corrosion resistance)
5.Flame retardant (can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
Product Display
Besides, PEEK can be used to produce some exact medical equipments for the OPS and dentistry,
which can annihilate bacterium and can be used time after time, the most important application
of PEEK, which is used to produce the artificial bone instead of metal. The artificial bone, which is
made of PEEK, has the good performance of light-weight, non-toxic and good-chemical-resistance
and so on, and can integrate with the organism of human body. So PEEK is also successfully
applied in medical industries.
which can annihilate bacterium and can be used time after time, the most important application
of PEEK, which is used to produce the artificial bone instead of metal. The artificial bone, which is
made of PEEK, has the good performance of light-weight, non-toxic and good-chemical-resistance
and so on, and can integrate with the organism of human body. So PEEK is also successfully
applied in medical industries.
Customized Service
NO.1 Mail samples
Customized samples, our engineers can make exactly the same products according to the samples you provide, measure the specifications and test the product materials.
NO.2 Provide Drawings
We support CAD drawings, PDF files, 3D formats for customization, such as STP, STEP, X-T, etc.Confidential handling of products according to your needs.
NO.3 Provide Photos
If there are only photos and no detailed drawings and samples, you can provide detailed size specifications of the product, and we can also help you process and produce the product.
Customized samples, our engineers can make exactly the same products according to the samples you provide, measure the specifications and test the product materials.
NO.2 Provide Drawings
We support CAD drawings, PDF files, 3D formats for customization, such as STP, STEP, X-T, etc.Confidential handling of products according to your needs.
NO.3 Provide Photos
If there are only photos and no detailed drawings and samples, you can provide detailed size specifications of the product, and we can also help you process and produce the product.
Finished Product Display
We support customized screw, gears, bushings, valve seats, seal, special-shaped pieces of PEEK injection products, tolerance is not more than 0.03 mm.
We are a company that focuses on the research, manufacture, and sale of engineering and high-performance plastics. At the same time, we offer machined plastic components. If you have any problems or want to get the quoted price of any plastics or machined components, please feel free to contact us. Our engineers will reply to you as soon as possible.
Product Advantages
PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics.It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.
Guandong Engineering Plastics Industries (Group) Company, has studied and applied this
material in many industries for many years. Due to very good processing properties, it can be
filled with carbon fiber and MoS2 etc. to improve lubrication performance and mechanical
strength further.
Guandong Engineering Plastics Industries (Group) Company, has studied and applied this
material in many industries for many years. Due to very good processing properties, it can be
filled with carbon fiber and MoS2 etc. to improve lubrication performance and mechanical
strength further.
Heat-resistance
PEEK has a higher glass transition temperature and melting point(334°C). It is one of the reasons that it can be a reliable application in the requirement ofthe heat.Its heat load variable-tem perature can be 316°C ，continuous use temperature is 260℃.
Self-lubricating
PEEK has outstanding sliding characteristics in all plastics;it is suitable for stringent requirements for low coefficient of friction and resistance to friction used. Especially the self-lubricating properties of PEEK will be better if it is modified by carbon fiber and graphite mixed in the proportion of each of them.
PEEK has a higher glass transition temperature and melting point(334°C). It is one of the reasons that it can be a reliable application in the requirement ofthe heat.Its heat load variable-tem perature can be 316°C ，continuous use temperature is 260℃.
Self-lubricating
PEEK has outstanding sliding characteristics in all plastics;it is suitable for stringent requirements for low coefficient of friction and resistance to friction used. Especially the self-lubricating properties of PEEK will be better if it is modified by carbon fiber and graphite mixed in the proportion of each of them.
Chemical Resistance
PEEK has excellent chemical resistance. In ordinary chemicals, it can be dissolved or damaged only by concentrated sulfuric acid; its corrosion resistance is similar to those of steel and nickel.
Hydrolysis Resistance
PEEK and its composites will not be affected chemically by water and high
pressure steam. The products that are made from this material will maintain the outstanding characteristics in continuous use in high temperature and high pressure water
PEEK has excellent chemical resistance. In ordinary chemicals, it can be dissolved or damaged only by concentrated sulfuric acid; its corrosion resistance is similar to those of steel and nickel.
Hydrolysis Resistance
PEEK and its composites will not be affected chemically by water and high
pressure steam. The products that are made from this material will maintain the outstanding characteristics in continuous use in high temperature and high pressure water
Company Profile
About Us
Guangdong Engineering Plastics Industries (Group) Co.,Ltd. We have the professional engineer teams and sales teams, and we have technology and experiences in engineering plastic industry for more than 15 years! Our company is located in Huangpu District,Guangzhou City, China, where the logistics is developed! With the rich experiences and technology for manufacture, design,research and development ability, support personalized customization.
Test Creatificate
Factory Tour
The plant covers an area of 10,000 square meters, and the production equipment includes Haas imported from the United States, CNC machining centers, wire cutting, spark machines, punching machines, injection molding machines, CNC engraving and milling
machines, CNC gear hobbing machines, CNC lathes, CNC milling machines, grinding machines and other machinery equipment .
machines, CNC gear hobbing machines, CNC lathes, CNC milling machines, grinding machines and other machinery equipment .
Our company is developing in the mode of quality for survival,brand for development and customer's demand,welcome new and old customers to visit our factory for guidance
Our Exhibition
The company has rich experience, strong strength and participated in many high-end exhibitions;Many partners from other countries are visiting.
Q1. We don't have drawings, can we produce according to the samples we provide?
A1. OK
Q2. How to customize plastic parts?
A2. Customized according to drawings
Q3. Can I make a sample for testing first?
A3. OK
Q4. How long is the proofing cycle？
A4. 2-5 days
Q5. What are your processing equipment？
A5. CNC machining center, CNC lathe, milling machine, engraving machine,
injection molding machine, extruder, molding machine
injection molding machine, extruder, molding machine
Q6. What craftsmanship do you have for processing accessories？
A6. According to different products, different processes are used, such as
machining, extrusion, injection molding, etc.
machining, extrusion, injection molding, etc.
Q7. Can injection products be surface treated? What are the surface
treatments?
treatments?
A7. OK. Surface treatment: spray paint, silk screen, electroplating, etc.
Q8. Can you help assembling the product after it is made？
A8. OK
Q9. How much temperature can the plastic material withstand？
A9. Different plastic materials have different temperature resistance, the
lowest temperature is -40℃, and the highest temperature is 300℃. We
can recommend materials according to the working conditions of your
company.
lowest temperature is -40℃, and the highest temperature is 300℃. We
can recommend materials according to the working conditions of your
company.
Q10. What certifications or qualifications does your company have？
A10. Our company’s certificates are: ISO, Rohs, product patent
certificates, etc.
certificates, etc.
Похожие товары
Полипропиленовые трубы и фитинги для подачи горячей/холодной

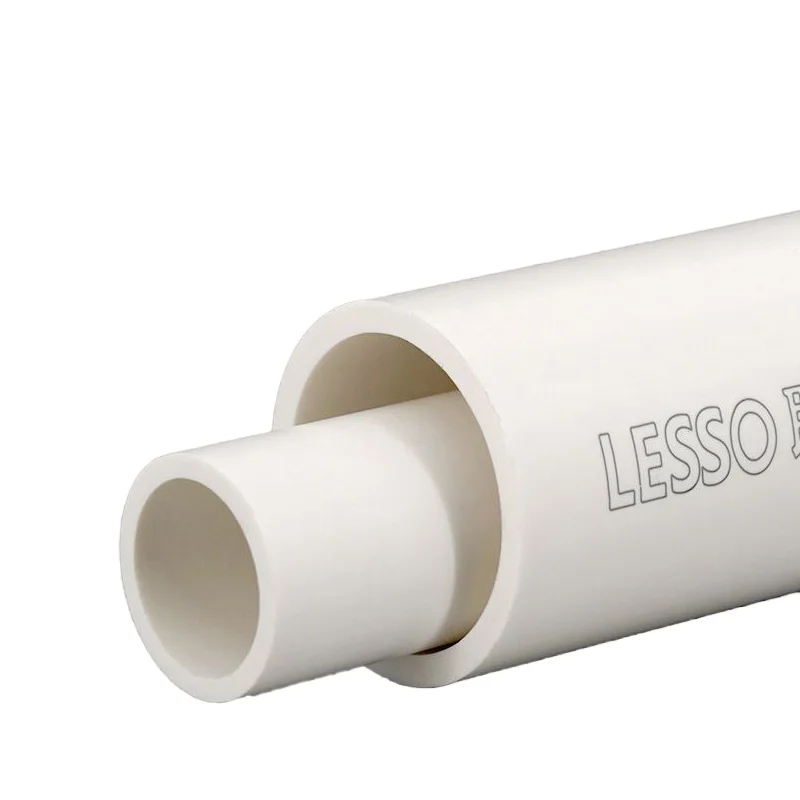

Оптовая продажа пластиковых ASTM D1785/2466 ПВХ график 40 2-дюймовый трубы для

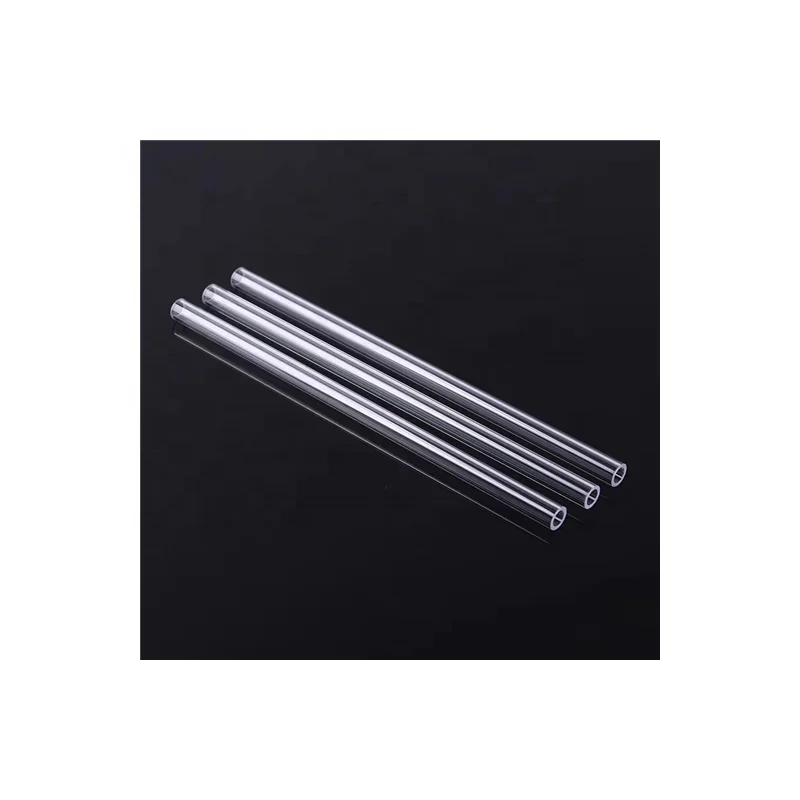

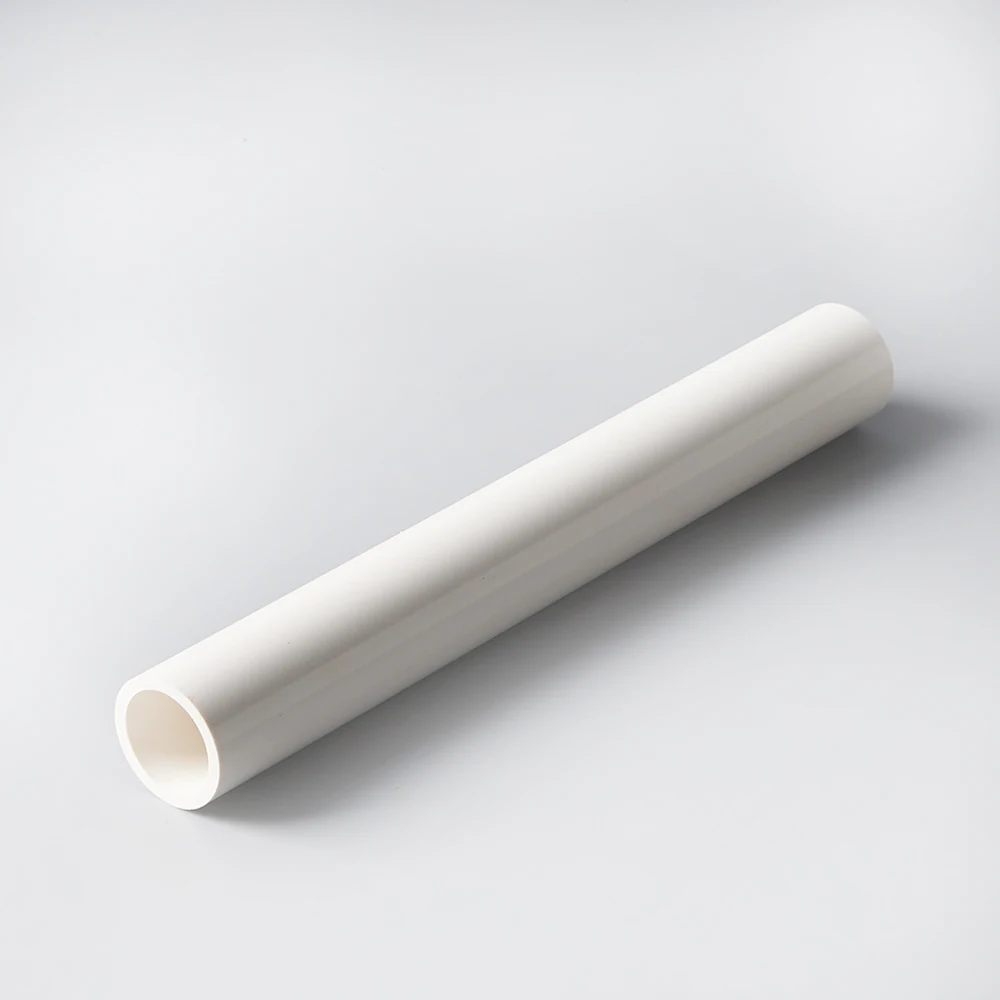

Заводская прозрачная пластиковая трубка PETG 16 мм 14
0,50 $ - 0,60 $

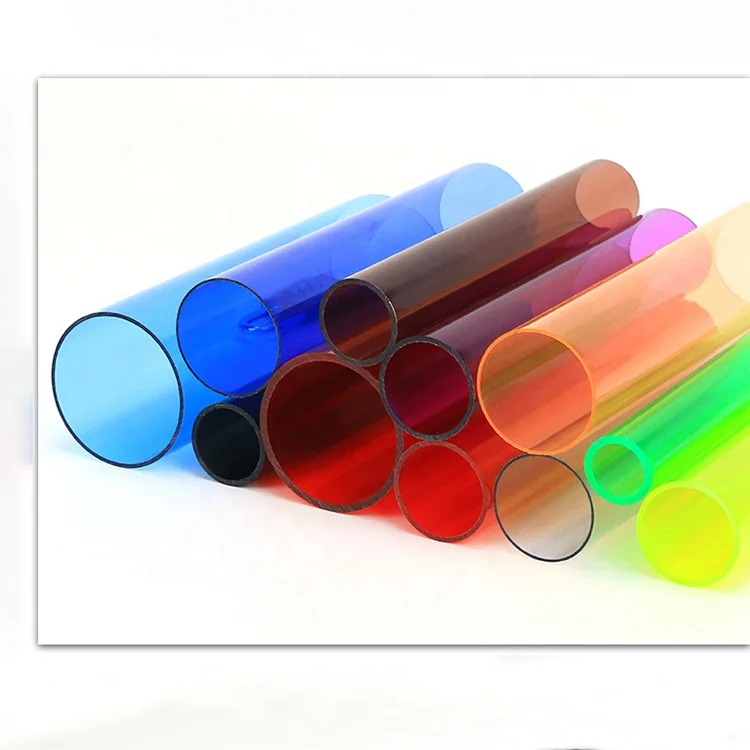

Высокоглянцевая жесткая Акриловая поверхность трубы полые Гибкие прозрачные/Красочные Литые акриловые трубки
1,00 $ - 1,45 $

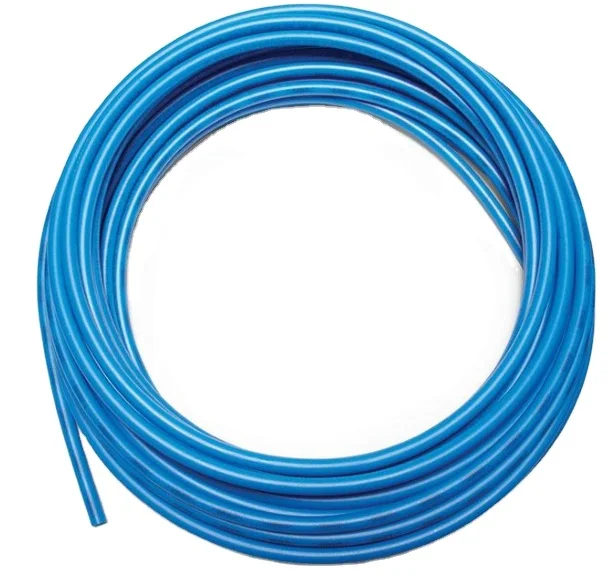

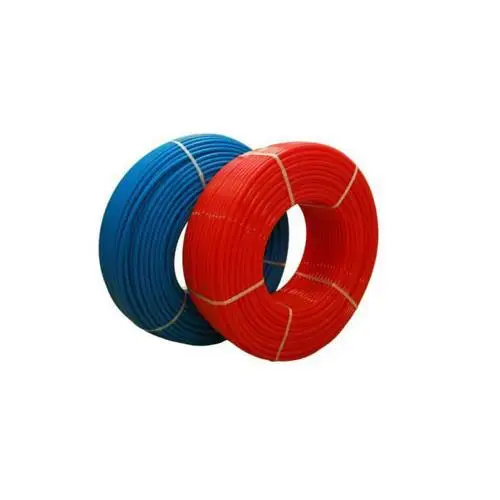

Пластиковая труба pex a b pert от 16 мм до 32 для системы отопления пола и подачи

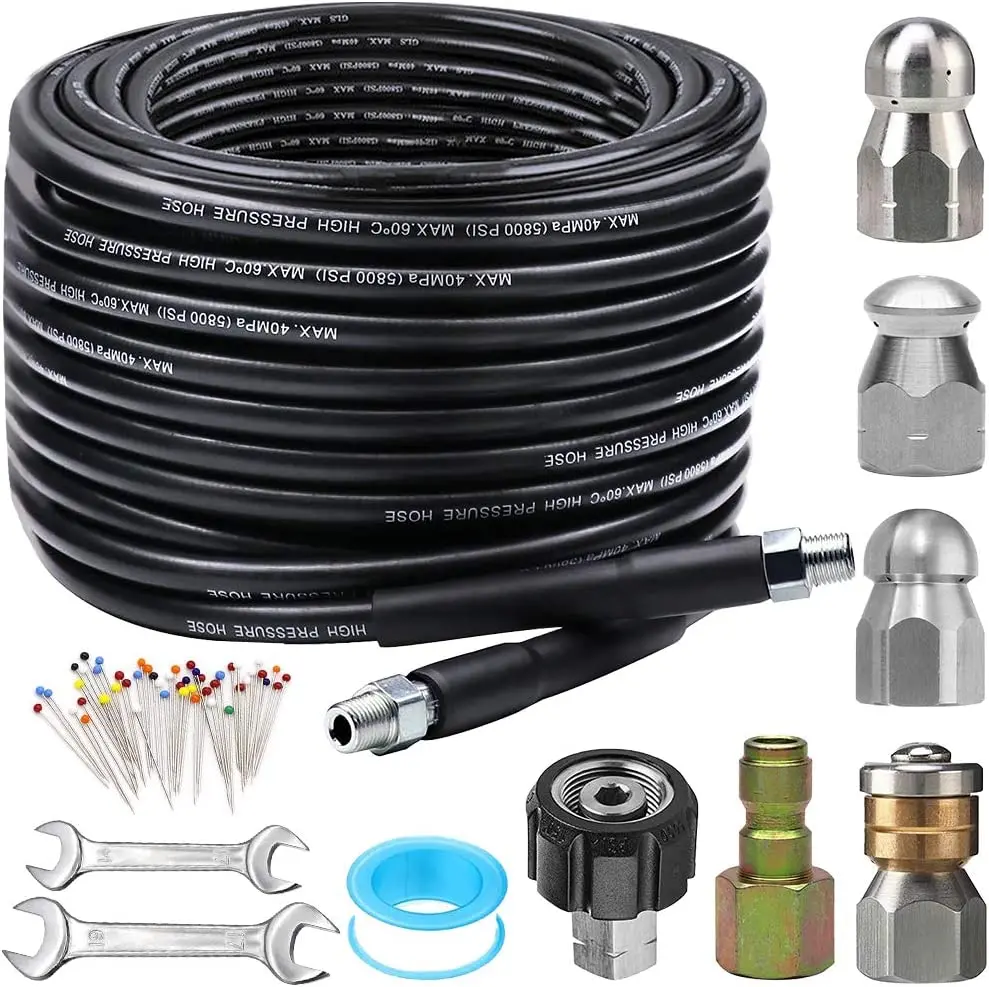

5800psi 100 футов сопло высокого давления дренажный шланг для очистки
