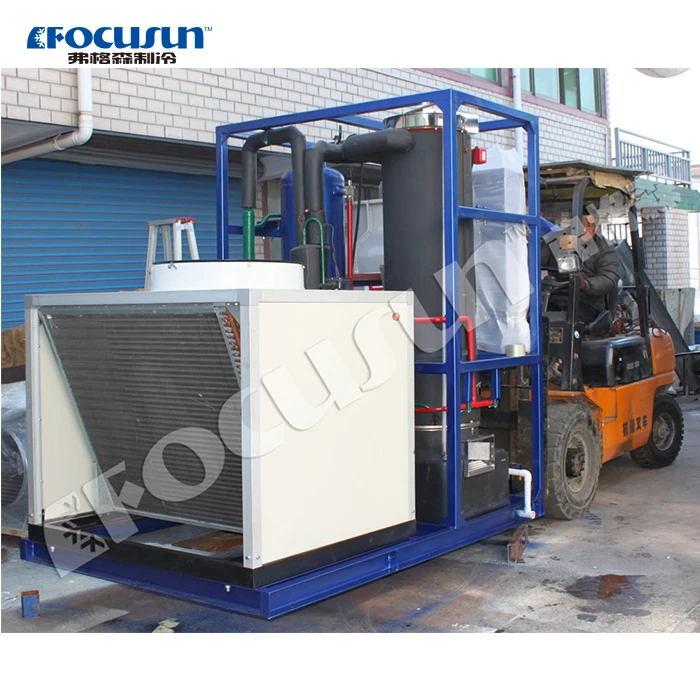

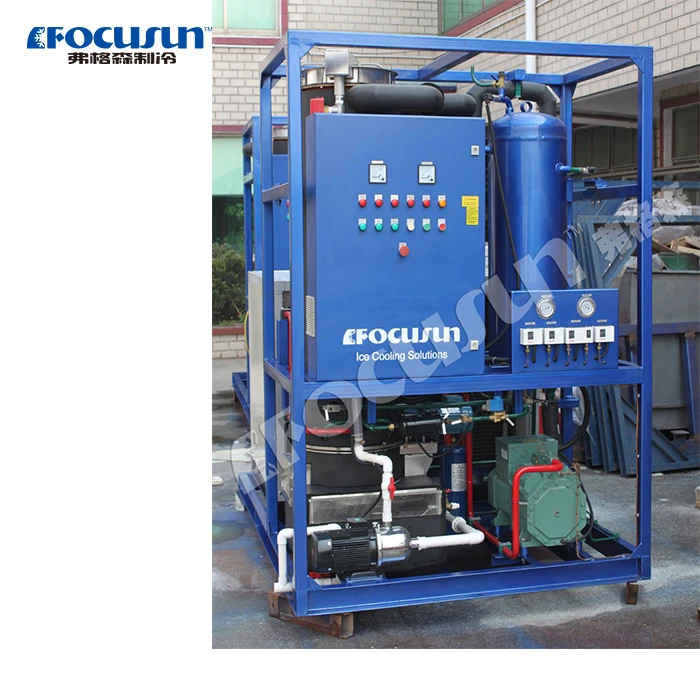

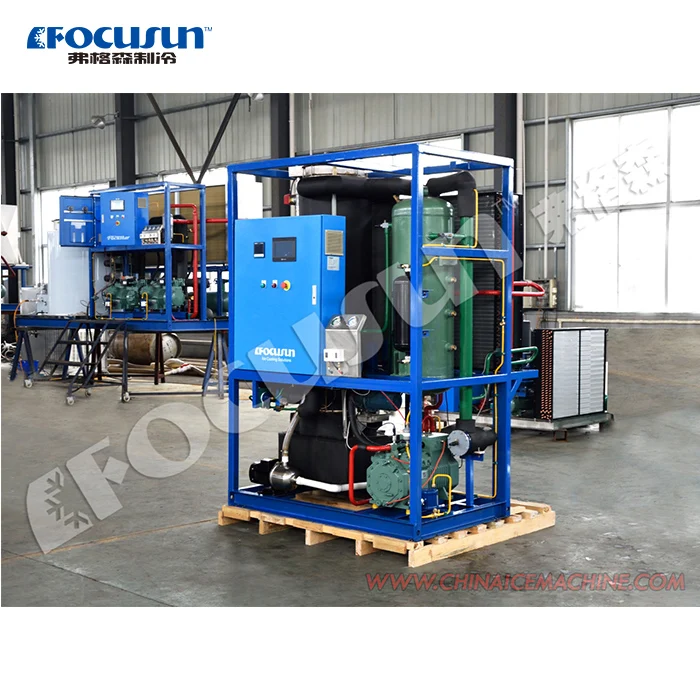

3 тонны машина льда трубки цилиндрической формы для холодных напитков или рыболовную Focusun бренд

FOCUSUN---Cooling Technical Master Since 1929, Germany

Focusun is a pioneer in ice cooling techlonogy and manufacture worldwide. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 150 countries around the world. Now we have a factory of 36,000 square meter in Taizhou, Jiangsu province, China.

Focusun (shanghai) Refrigeration Equipment is founded in 2008. In fact, our activity in refrigeration technology is dated back to 2002. In 2012. Focusun(Shanghai) is authorized by Kulinder Incorporation(Germany) to deal with all business, D&M and promotion in China and granted the full right to use the brand of Kulinder, Focusun, pictures and the copyright of design &manufacture in China.

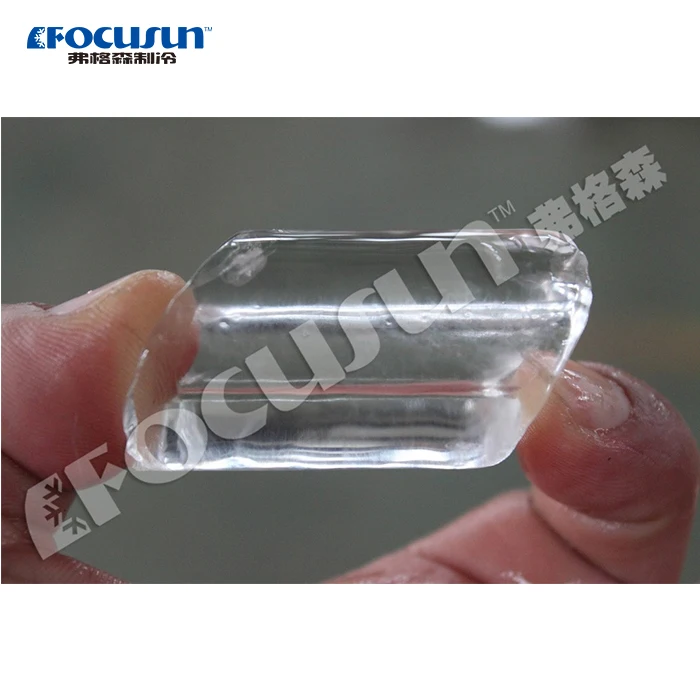

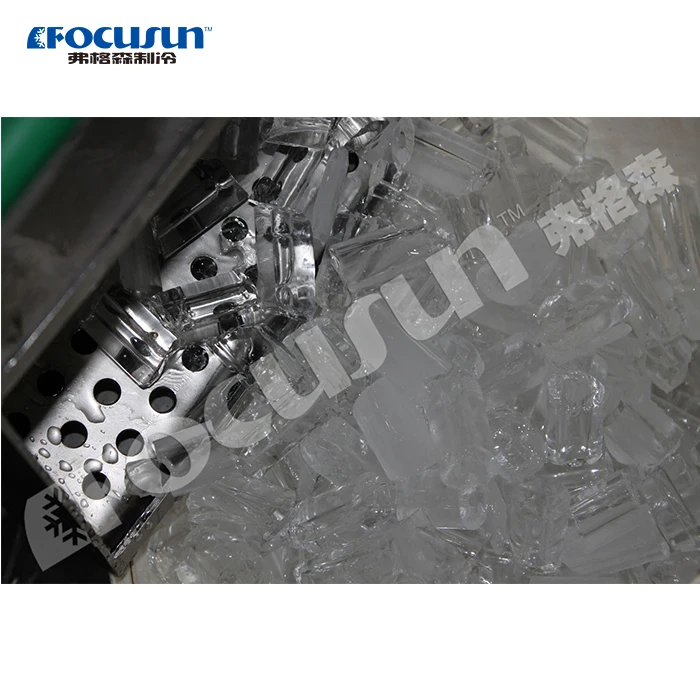

Focusun is proud as a inventor of industrial tube ice machine for human assumption. Since then, we designed and developed 4 external diameter 21, 28, 34 and 38 mm of tube ice machine. Especially, the 38 mm large external diameter was developed recently, meeting the demands for the production of large diameter cylindrical ice. it is built smartly and concretely with remote control, famous brand configuration, thick material and advance industrial craft.

Usage: ube ice machine is both used in customer consuming and cooling systems, and it's also widely used in restaurants, fast-food stores, supermarkets, healthcare centers, schools, Night clubs & bars, meat plant

This tube ice machine is sanitary. All surfaces that contact with water (including the cover) are stainless steel.

Subject\tUnit\tTechnical parameter
Power supply\tVoltage/Phase/Frequency                                           380V/3P/50Hz

Refrigerant                                                                                                R22 or R404A

Capacity\tKg/day                                                                                     3000

Temperature\tAmbient temperature\t℃                                                  35

Water inlet temperature\t℃                                                              20

Operating power\tTotal running power\tKw                                            11.03

Installment power\tKw                                                                      13.5

Compressor\tManufacturer                                                                    Bitzer

Refrigeration capacity\tKw                                                                      36.4

Cooling way                                                                                                Air cooling

Dimension size of ice maker\t(L×W×H)(mm)                                       1700×920×2200

Weight of unit operating weight of tube ice maker Kg                     1250

Salient Features of Big Capacity Tube Ice Machine:

- Capacities offered: 1, 000Kgs/24H to 60, 000Kgs/24H.

- Simple design/engineering.

- No requirements of skilled workers.

- High durability, minimal maintenance.

- High energy efficiency.

- SS304 stainless steel tube ice machine

- Water Distributors: Made up of elastic material which creates a continuous and uninterrupted peripheral seal between the tube ends and water distributor.

- Refrigerant: R22/R404a

- Freezer: High quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.

- Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of cutter and using a switch on the control panel that controls this function.

- Cutter Motors: Built with heavy duty design to give years of reliable ice-cutting service

- Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.

- Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.

Cube ice machine

91.8% Response Rate

ice Packing machine

91.8% Response Rate

Block ice machine

91.8% Response Rate

Dear Customer,
If you are interested in our tube ice machine, please don't hesitate to send us your enquiry. We are surely to give feedback within 24hours. No matter you are new in the ice business or have rich experience. We always welcome your great ideas or comments to discuss further.
We are sincere to work with you and your company for mutual !

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
