Professional manufacturers Agriculture Arch film single span greenhouse
Product Description
The greenhouse is composed of pillar, anchor,support, pressure line, shed head side frame.
Through the implementation of the invention, the greenhouse constructed is composed of a series of steel pipes, steel wires and accessories,and has the characteristics of small investment,quick effect, good benefit, labor saving and easy to move, etc.
How to build a Simple Single Span Green House?
1.As Agriculture Arch film single span greenhouse choose good land and ensure it length and width.
2.As Agriculture Arch film single span greenhouse choose main frame material,rectangular tube or circles?
Single Span Green House circles pipe
Single Span Green House rectangular tube
3.please see Agriculture Arch film single span greenhouse showpicture
4.The Agriculture Arch film single span greenhouse construction method and steps are as follows:
(1) Planning orientation: according to the size and trend of the plot area, planning the orientation, length and width of
the greenhouse;
the greenhouse;
(2) buried anchor: on the planned plot, along the things on both sides of the border to play two rows of line
pressing anchor pit, 80 cm deep pit, the pit 40 cm in diameter, two rows of anchor hole distance of 13.5 m, symmetry, 25 per row,pits and pit 2 meters north-south spacing, close to plot the north and the south edge of the first line and
pressing anchor pit, 80 cm deep pit, the pit 40 cm in diameter, two rows of anchor hole distance of 13.5 m, symmetry, 25 per row,pits and pit 2 meters north-south spacing, close to plot the north and the south edge of the first line and
last line anchor pit deep 100 cm;After the anchor pit is played, the buried anchor line is buried. When the anchor is buried,
one end of the annulus is exposed to the ground by 5 ~ 10 cm, so as to serve as a visible sign when the soil is cultivated after unloading the shed. The other end of the annulus is buried in the pit with long bricks, and the anchor is stepped on and pressed tightly.Line pressing buried anchor, dig two rows in two rows of line pressing anchor inside anchor pit support line, two rows of anchor pit supporting line 12 meters away things, parallel arrangement, 24 per row, pits and pit 2 meters between the north and south spacing, just between the two line pressing, pit depth, crater diameter and line pressing anchor pit, dig into shore line anchor, after anchoring the same method and line pressing;Thrust
(3) the pillars: the thing between lateral support line anchor pit, from progressive symmetrical in both sides insert the column, side column spine, waist, waist column and the distance of 2.5 meters,spine edge column with waist column
2.1 meters, the boundary line of column and brace anchor 1.4 meters, the side column about 60 Angle with the ground,
after plug in the spinal column, waist, side column and brace line anchor in a straight line;
(4) fixed support line: pull the support line on the anchor, side column, waist column and middle spine of the support line, and fix the two ends well to keep the support line in a tight state;
(5) the installation of the side frame: two side frames are installed at the southern and northern ends of the planned plot. The side frame should be aligned with the support line. The inner side is supported by the appropriate length of the pillar, and the outer side is tensioned with the wire.
(6) buckle shed film: after the work done buckle shed film, buckle shed film to choose in the morning windless weather;Shed film after pulling, to the north and south ends of the edge frame outside the shed film buried in the soil, and keep the surface of the shed things do not leave wrinkles, north and south collapse tight state;
(7) fixed pressure line: buckle shed film, every two support line in between the
shed film with pressure line tension, the shed film pressure, made of internal support and external pressure type.
shed film with pressure line tension, the shed film pressure, made of internal support and external pressure type.
5.The Agriculture Arch film single span greenhouse covering material choose
PO/PE film
thickness:80/100/120/150/200 mircon
black and white film
.thickness:80/100/120/150/200 mircon
6. Agriculture Arch film single span greenhouse ventilation system
SIDE OR ROOF VENTILATION
MANUAL OR ELECTRIAL ROLL UP WINDOW

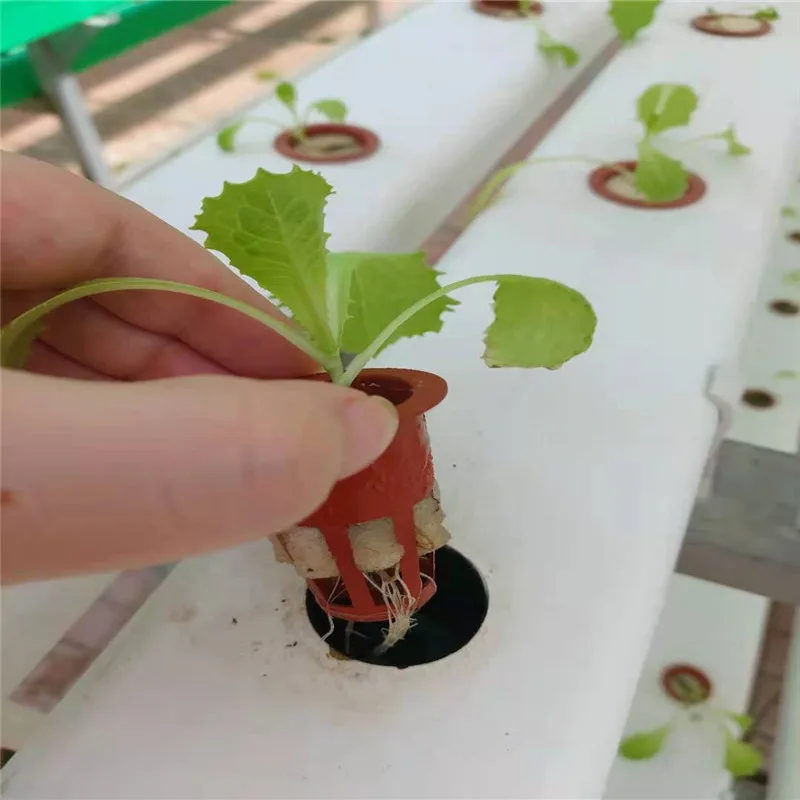

7. Agriculture Arch film single span greenhouse can choose system and hydroponic system
Specification
item | value |
Size | Small |
Type | Plastic Shed |
Cover Material | Film |
Model Number | JD |
Place of Origin | China |
Brand Name | JD |
Product name | GREEN HOUSE |
Material | Hot dipped Galvanized Steel |
Features | Easy Assembly/cheap |
Structure | Stable Structure Easily Assembled |
Optional system | Hydroponic Growth System Etc |
Span Width | 6m/6.2m/6.4m/8m/9.6m/10.8m/12m |
covering material | PO/PE |
Function | Warm Reservation |
Length | Client Request |
Ventilation | Roof Ventilation+side Ventilation |
Packing & Delivery
Company Profile
Greenhouse for sale China JDWS greenhouse
Our company is located in the qingzhou City, shandong province, China. We design, manufacture and sale complete agricultural facilities solution for global horticultural and agricultural customers. Our main products comprise Glass Multi-Span Greenhouse, PC-sheet Multi-Span Greenhouse, Plastic-film Multi-Span Greenhouse, Plastic Shed, and Solar Greenhouse etc. Moreover, we also have Greenhouse Materials, they can match all the kinds of greenhouse. Greenhouse materials comprise Skeleton System, Aluminum-Profile System, Covering System, Shading System, Ventilation System, Cooling System, Heating System, Seedbed System & Irrigation System, Hydroponics System.
More and more companies have built up cooperation with our company based on the advantages of the quality and price of our products. The quality policy of our company is "Superiority and Sincerity". We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001: 2008 in the past of more than ten years from the construction of our factory. Our operation principle is "Continuous Creation of Value for Our Clients". We are making persistent efforts based on the demands from our clients, and promoting quality of the products and reducing the costs continuously, so as to supply products of high performances cost ratio. We are now applying professional technology and considerate service to make great partners, cooperating with all of you. Welcome to our company!
Our company is located in the qingzhou City, shandong province, China. We design, manufacture and sale complete agricultural facilities solution for global horticultural and agricultural customers. Our main products comprise Glass Multi-Span Greenhouse, PC-sheet Multi-Span Greenhouse, Plastic-film Multi-Span Greenhouse, Plastic Shed, and Solar Greenhouse etc. Moreover, we also have Greenhouse Materials, they can match all the kinds of greenhouse. Greenhouse materials comprise Skeleton System, Aluminum-Profile System, Covering System, Shading System, Ventilation System, Cooling System, Heating System, Seedbed System & Irrigation System, Hydroponics System.
More and more companies have built up cooperation with our company based on the advantages of the quality and price of our products. The quality policy of our company is "Superiority and Sincerity". We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001: 2008 in the past of more than ten years from the construction of our factory. Our operation principle is "Continuous Creation of Value for Our Clients". We are making persistent efforts based on the demands from our clients, and promoting quality of the products and reducing the costs continuously, so as to supply products of high performances cost ratio. We are now applying professional technology and considerate service to make great partners, cooperating with all of you. Welcome to our company!
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(23.00%),Eastern Europe(15.00%),North America(9.00%),Southeast Asia(9.00%),Mid East(8.00%),Central America(8.00%),Africa(5.00%),Oceania(4.00%),Western Europe(4.00%),Southern Europe(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(3.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Greenhouse
4. why should you buy from us not from other suppliers?
We design, manufacture and sale complete agricultural facilities solution for global horticultural and agricultural customers. Our main products comprise Glass Multi-Span Greenhouse, PC-sheet Multi-Span Greenhouse, Plastic-film Multi-Span Greenhouse.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2017,sell to Domestic Market(23.00%),Eastern Europe(15.00%),North America(9.00%),Southeast Asia(9.00%),Mid East(8.00%),Central America(8.00%),Africa(5.00%),Oceania(4.00%),Western Europe(4.00%),Southern Europe(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(3.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Greenhouse
4. why should you buy from us not from other suppliers?
We design, manufacture and sale complete agricultural facilities solution for global horticultural and agricultural customers. Our main products comprise Glass Multi-Span Greenhouse, PC-sheet Multi-Span Greenhouse, Plastic-film Multi-Span Greenhouse.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары

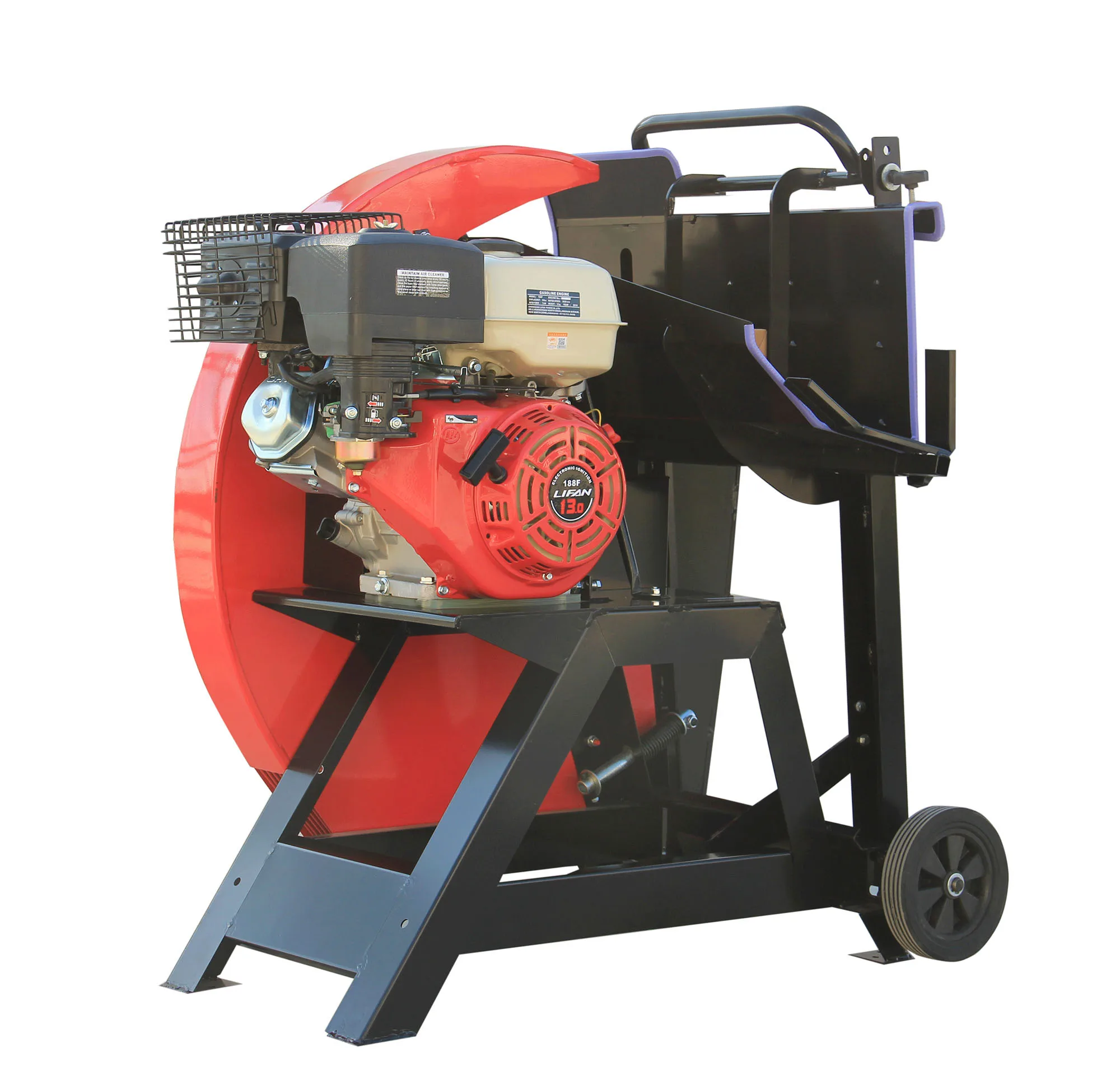

Циркулярная машина с бензиновым двигателем 23B 15hp, горизонтальная электрическая ручная Деревообработка, автоматическая резка лезвий, пилы по дереву CE
