Привод клапана с электроприводом DN50 для питьевой воды 2 дюйма 24 В

Описание и отзывы

Характеристики

Product Description

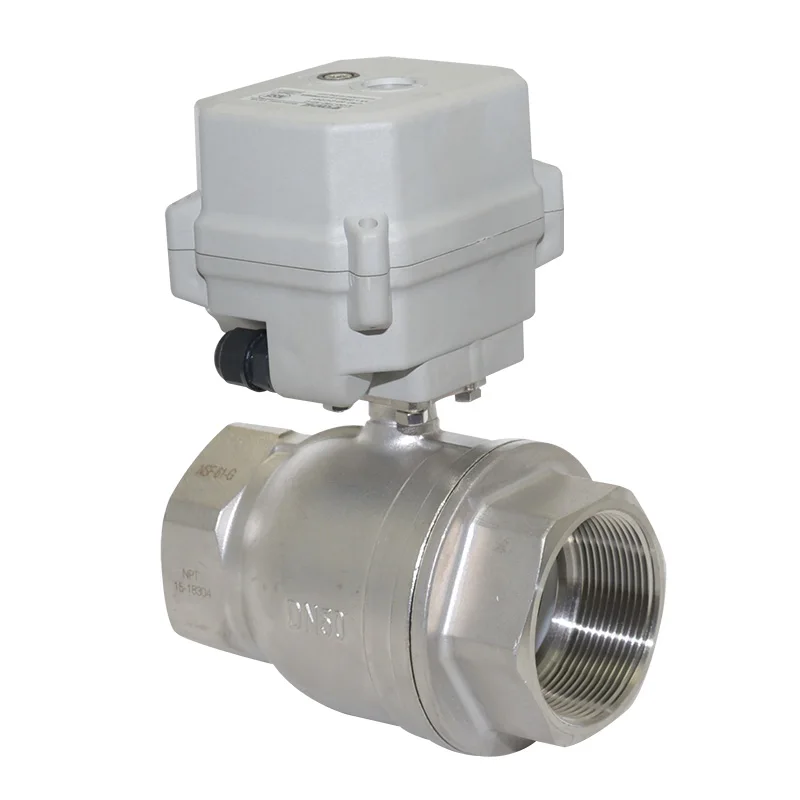

Tonheflow New product A150-T50-S2-B 2 inch DN50 DC24v CR501 motorized ball valve

Product size	NPT/BSP 2"
Maximum working pressure	1.0MPa
Circulation medium	Fluid, Air
Rated voltage	DC24V/DC12V
Wiring control methods	CR501
Working current	≤ 1.5A
Open/close time	≤ 10 Sec
Life time	50000 times
Valve Body material	Stainless Steel 304 NSF approved
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	15 Nm
Cable Length	0.5m
Environment temperature	-15℃~50℃
Liquid temperature	2℃~120℃
Manual override	Yes
Indicator	Yes
Protection class	IP67
Connection Standard	ISO5211  F03 F04  F05

Specifications:






Wiring diagram



Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.



Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage DC12v or DC24v

3, wire control CR501

4, actuator cable length 0.5m or 1.5m?

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.

Tonheflow is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
