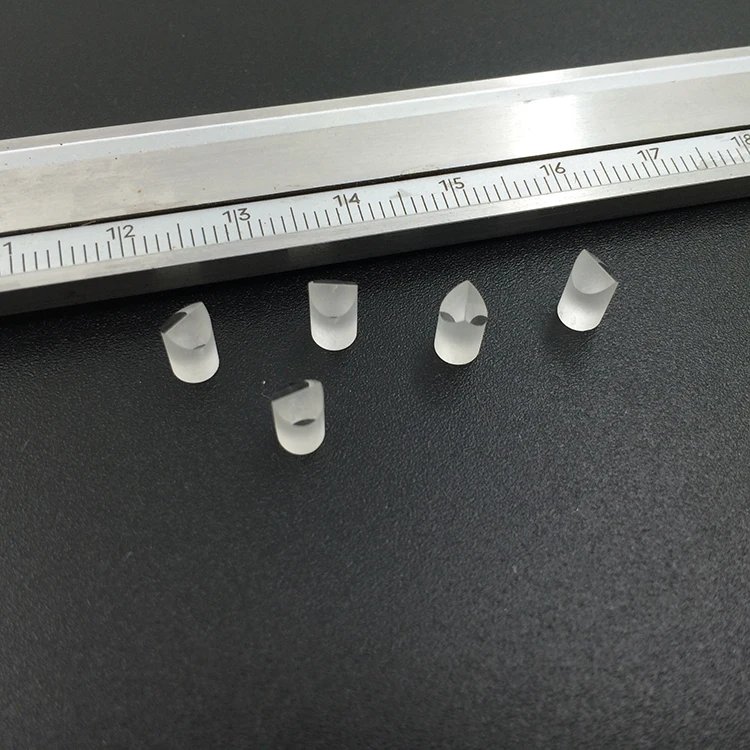

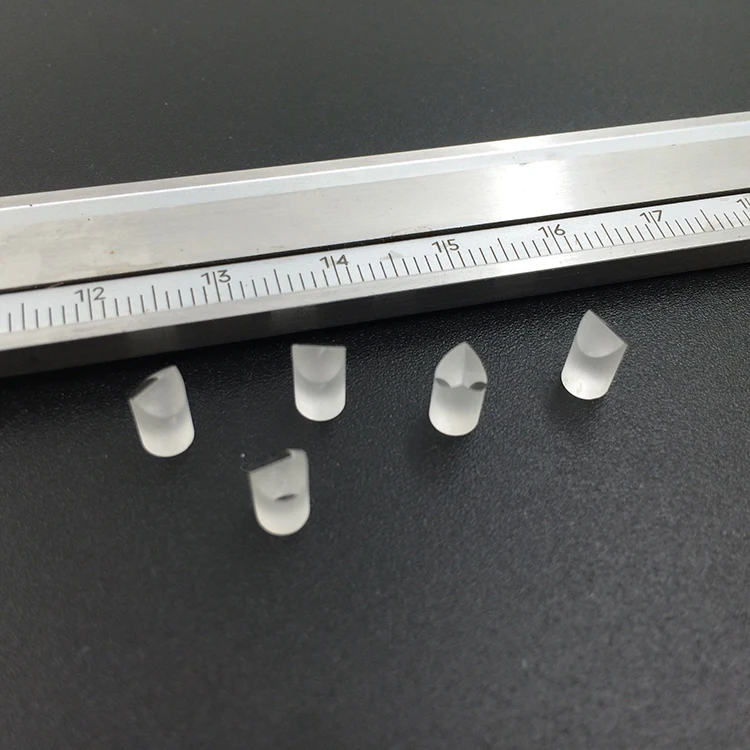

Оптовая продажа оптическое стекло K9 powell линза лазерной указки

Оптовая продажа оптическое стекло K9 powell линза лазерной указки

Категория: Prisms >>>
Поставщик: Sichuan Yasi Optics Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Wholesale optical glass K9 powell laser pointer lens

Product show

Product Description

PRODUCT DESCRIPTION

The Powell lens resembles a round prism with a curved roof line. The lens is a laser line generator, stretching a narrow laser beam into a uniformly illuminated straight line.It has an advantage over cylindrical lenses because latter one produces a poorly illuminated line, limited by the non-uniform Gaussian laser beam. Huge spherical aberration redistribute light along the line, decreasing the light in the central area while increasing the light intensity at the line's end. The outcome of a Powell lens is uniformly illuminated line used in alignment, all forms of machine vision applications,and construction and process control.

FEATURE

1. Generates uniform laser line

2. Accurate Fan angle

3. Excellent uniformity

4. AR coating is available

5. Custom made lenses also available

PARAMETER

Powell lens
Technical Parameter	Tolerance Range
Lens diameter	9 mm
Diameter tolerance	+0/-0.05mm
Fan angle	5°,10°,20°,30°,45°,53°,60°,70°,75°,85°,90°,96º
Angle toerance	±1°
Line Intensity Uniformity (Pmax. – Pmin.)	≤10%, ≤25%, ≤35%, ≤45%
Wavelength range	450 - 900
AR coating	Up on request
Substrate	K9,fused quartz ,Caf2 or other crystal material
For custom size, pls click here to contact with us for quotation THE SCHEMATIC
