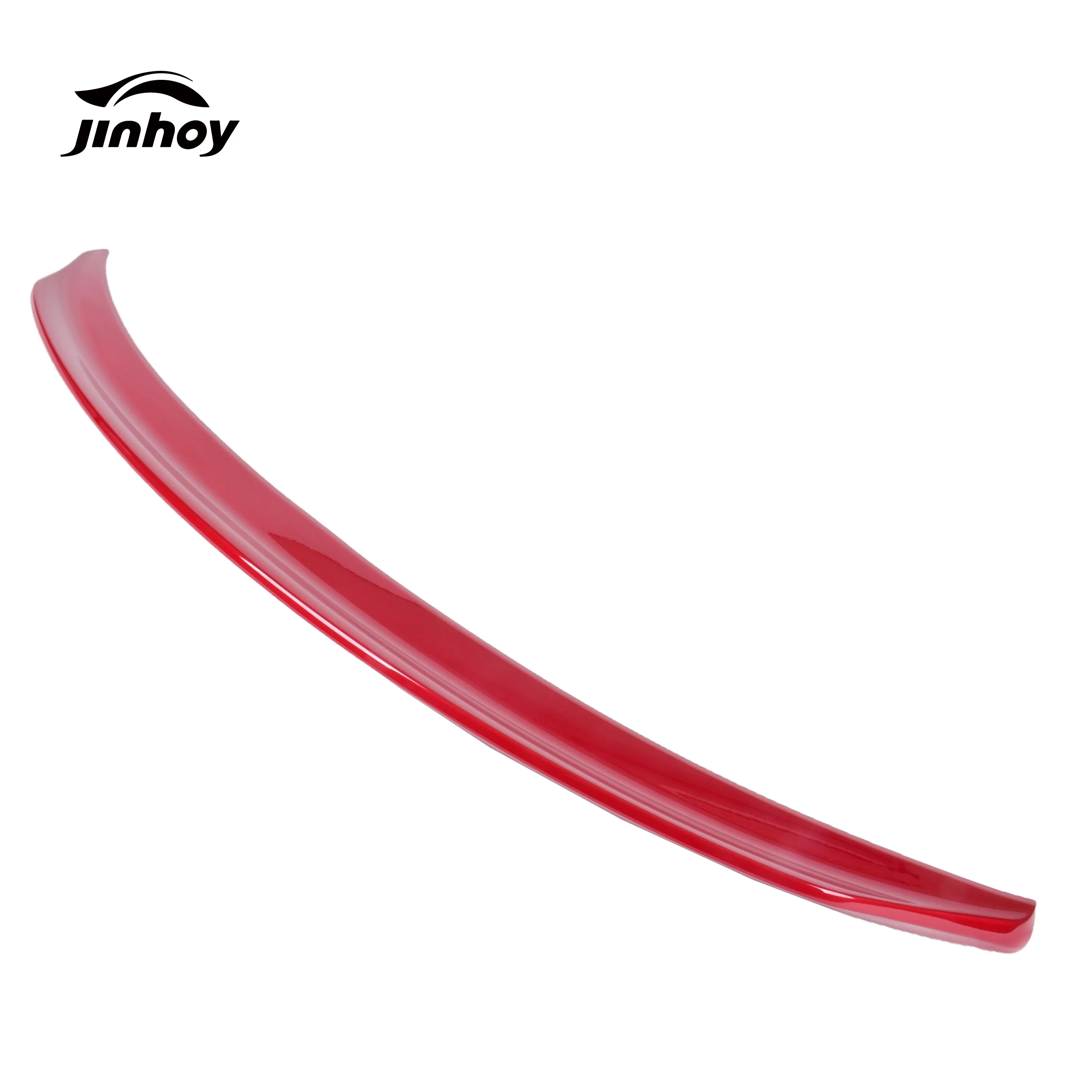

Спойлер из АБС-пластика Красного цвета J-style для модели 3 tesla
68,00 $ - 70,00 $
Оптовая продажа под заказ импортный нагревательный провод электрический сопротивление трубчатый нагреватель картриджа
- Категория: >>>
- Поставщик: Xinghua Yading Electric Heating Appliance Co. Ltd.
Сохранить в закладки 1600250631364:
Описание и отзывы
Характеристики
Product Paramenters

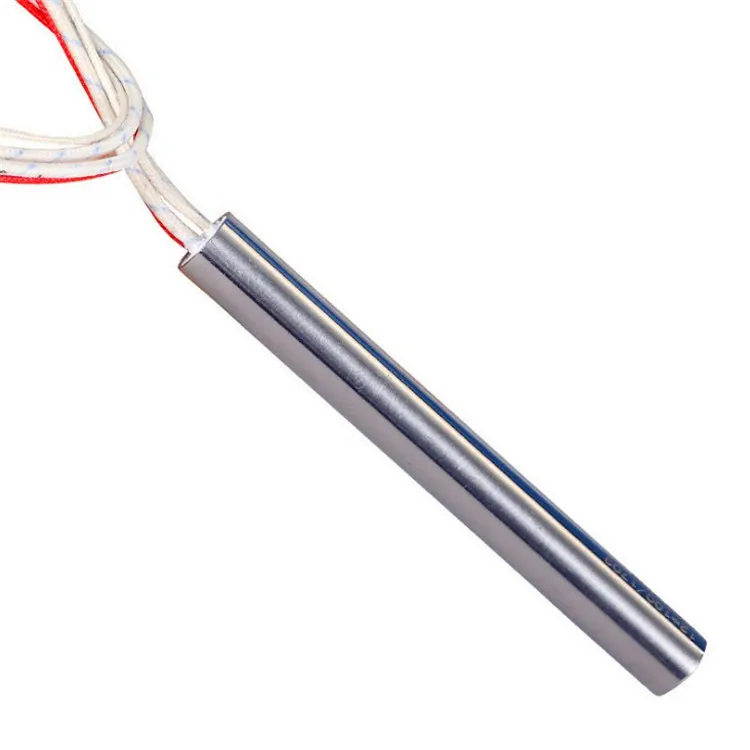

Name | Catridge heaters |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | 380V,240V, 220V,110V,36V,24V or 12V |
Max operating temp | 650ºC |
Length tolerance | ± 1mm |
Camber tolerance | 1.7 mm per meter (0.020 inches per foot) |
Diameter tolerance | The diameter of each end may be different +0.05mm -0.1mm (+.002" -.004") |
Standard Unheated Area | 5-10mm |
Internal thermocouple | type J or K |
Thermocouple Location | Disc End, Sheath, Center of Heater |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Diameter | from 3.0mm to 30mm |
Products Description
Mould Cartridge Heater are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks.
Usage two
Cartridge heaters are capable of operating at temperatures of up to 800℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
How to order?
A:Diameter -see specifications for assistance
B:Overall sheath length-mesaured in inches or millimeters from end toend of heater sheath
C:Lead length-specify in mm or inches
D:Termination Type
E:Vlotage-specify
F:Wattage:specify
G:Special modifications-specify as required
Size | Class A | Clsaa B | Size | Class A | Class B | |
6*60 | 100w | 80w | 14*200 | 600w | 400w | |
6*100 | 150w | 100w | 14*250 | 700w | 500w | |
6*150 | 250w | 200w | 16*100 | 350w | 250w | |
6*200 | 300w | 200w | 16*120 | 400w | 300w | |
8*50 | 100w | 80w | 16*150 | 450w | 350w | |
8*100 | 200w | 150w | 16*200 | 600w | 450w | |
8*150 | 300w | 200w | 16*250 | 700w | 500w | |
8*200 | 400w | 300w | 16*300 | 800w | 600w | |
10*50 | 120w | 100w | 18*100 | 350w | 250w | |
10*100 | 250w | 200w | 18*150 | 450w | 350w | |
10*150 | 350w | 250w | 18*200 | 700w | 450w | |
10*200 | 450w | 300w | 18*250 | 800w | 600w | |
12*50 | 150w | 120w | 18*300 | 1000w | 800w | |
12*100 | 300w | 200w | 20*100 | 400w | 250w | |
12*120 | 350w | 250w | 20*150 | 600w | 300w | |
12*150 | 400w | 300w | 20*200 | 800w | 500w | |
12*200 | 500w | 400w | 20*300 | 1200w | 800w | |
14*100 | 300w | 250w | 20*400 | 1800w | 1000w | |
14*150 | 450w | 350w | 20*450 | 2000w | 1200w |
Application
* njection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Company Profile
XING HUA YADING ELECTRIC HEATING ELEMENTS COMPANY LIMITIED Is one of the earliest professional manufacturers of electric heating element in china .The company is located in Jiangsu province ,transportation is very convenient. We cherish the opportunity to develop, full of passion and challenges in twenty-first Century.
XING HUA YADING ELECTRIC HEATING ELEMENTS COMPANY LIMITIED engaged in the electric heating industry for 30 years. Mainly engaged in the develop , product and sales of electric heating element, (YADING) brand stand for good quality, high reliability, stability and strong.
The company has a full set of production equipment and perfect detection means; a pioneering, enterprising management, scientific research, production team; a set of strict quality assurance and sales service system. Never stop the development of electric products and production of high difficulty special electric heating element, and constantly improve the quality and the expansion of domestic and foreign markets.we have cooperate more than 25 countries ,such as USA .Germany , Italy Brazil, Turkey .Mexico ,Peru .England , India ,Lebanon ..And so on .
XING HUA YADING ELECTRIC HEATING ELEMENTS COMPANY LIMITIED engaged in the electric heating industry for 30 years. Mainly engaged in the develop , product and sales of electric heating element, (YADING) brand stand for good quality, high reliability, stability and strong.
The company has a full set of production equipment and perfect detection means; a pioneering, enterprising management, scientific research, production team; a set of strict quality assurance and sales service system. Never stop the development of electric products and production of high difficulty special electric heating element, and constantly improve the quality and the expansion of domestic and foreign markets.we have cooperate more than 25 countries ,such as USA .Germany , Italy Brazil, Turkey .Mexico ,Peru .England , India ,Lebanon ..And so on .
Packaging & Shipping
Похожие товары

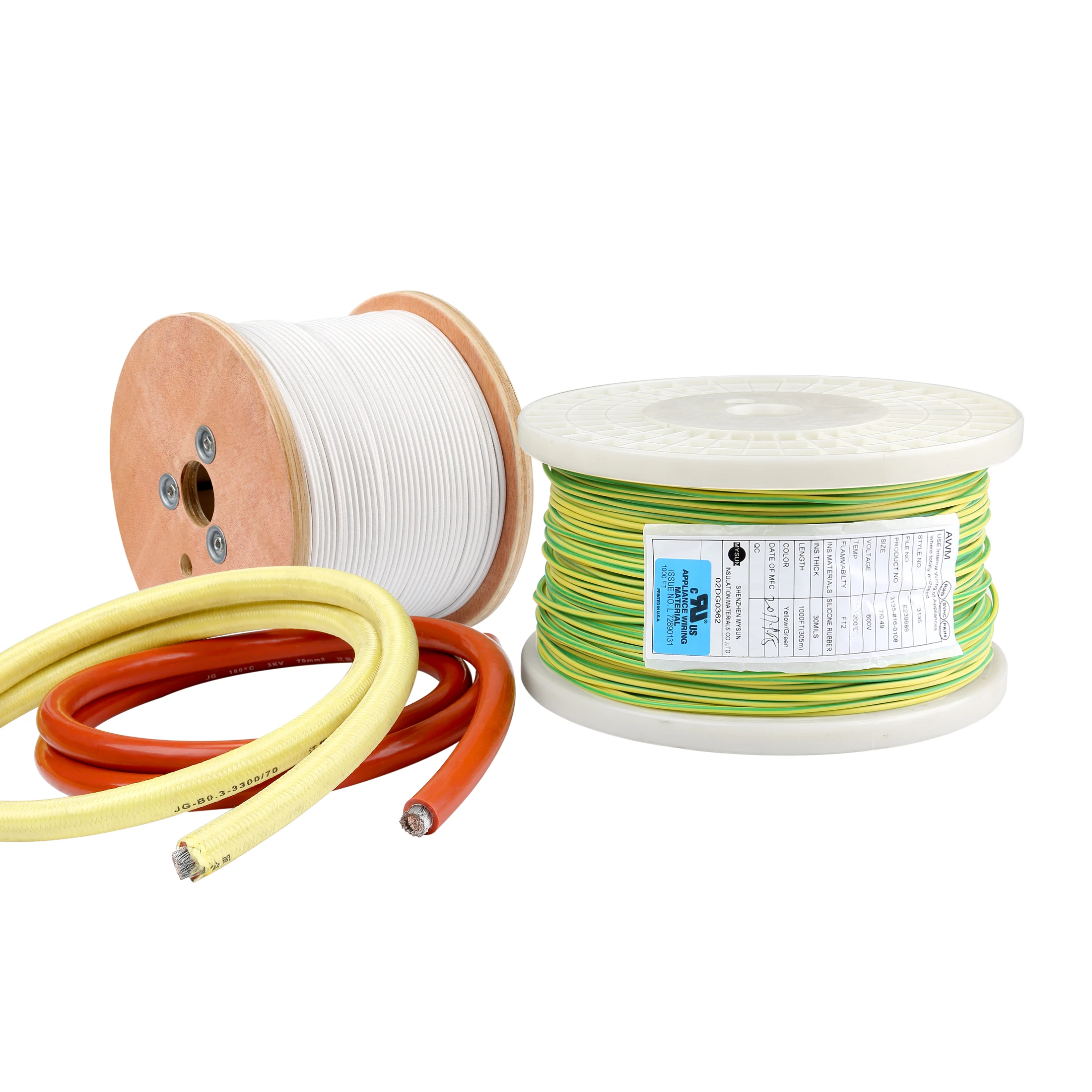

Электрические провода и кабели силиконовая Луженая Медь 450/750V 180C для бытовой техники/освещения/нагревателя 0,50-2.50mm2 Электрический провод
0,05 $ - 0,32 $
Бесплатный образец 12AWG электрический провод для электрического нагревателя

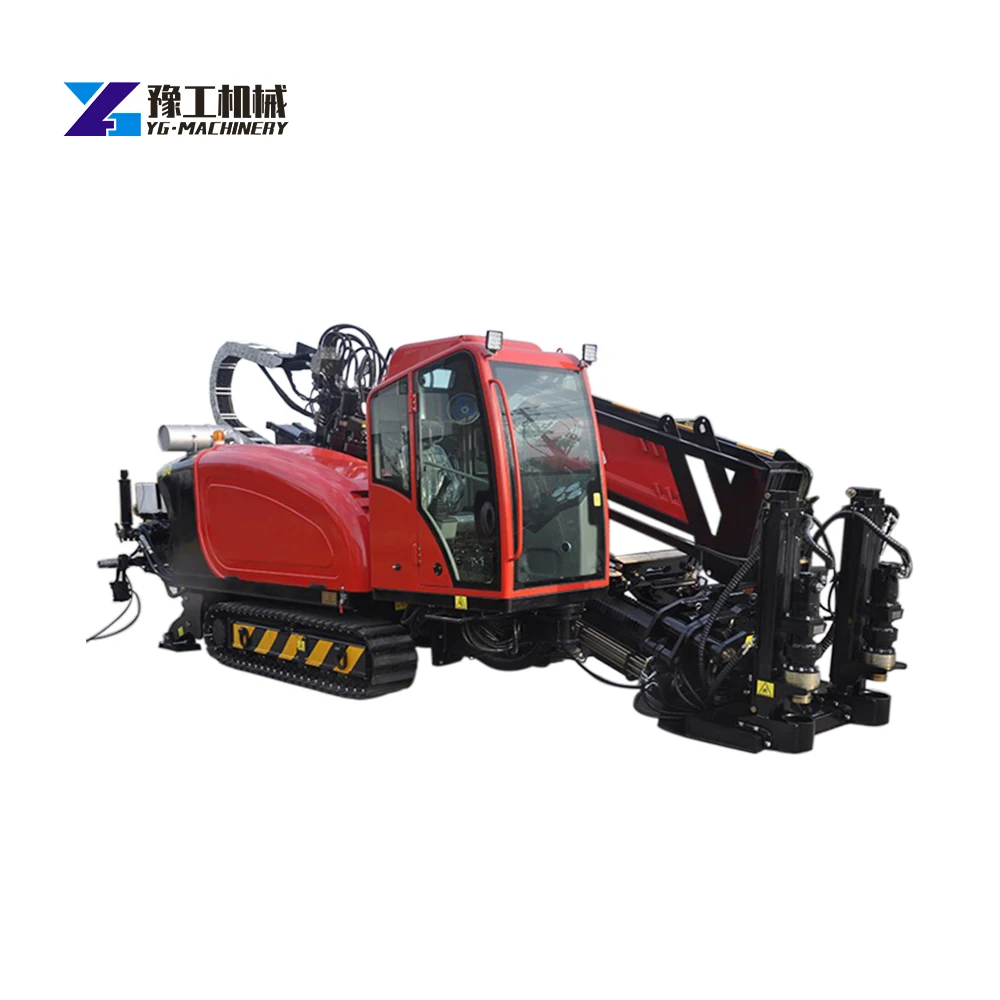

horizontal directional ground hdd drilling rig machine
