HIWIN 7 мм линейная направляющая MGN7HZ0CM из нержавеющей стали
- Категория: >>>
- Поставщик: Nanjing Tibiai Import And Export Trade Co. Ltd.
Сохранить в закладки 1600252794485:
Описание и отзывы
Характеристики
Product Description

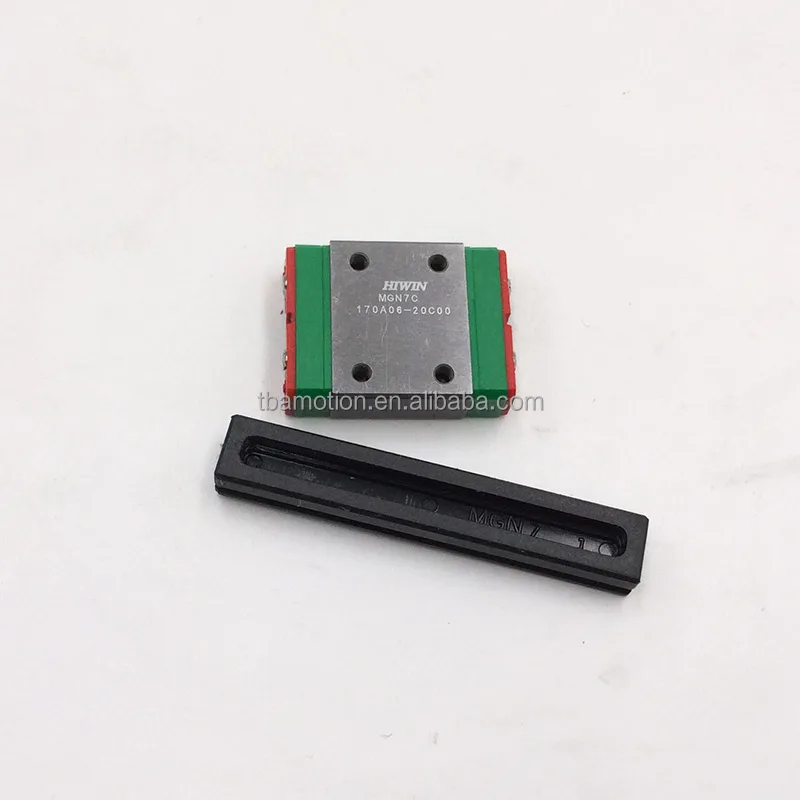

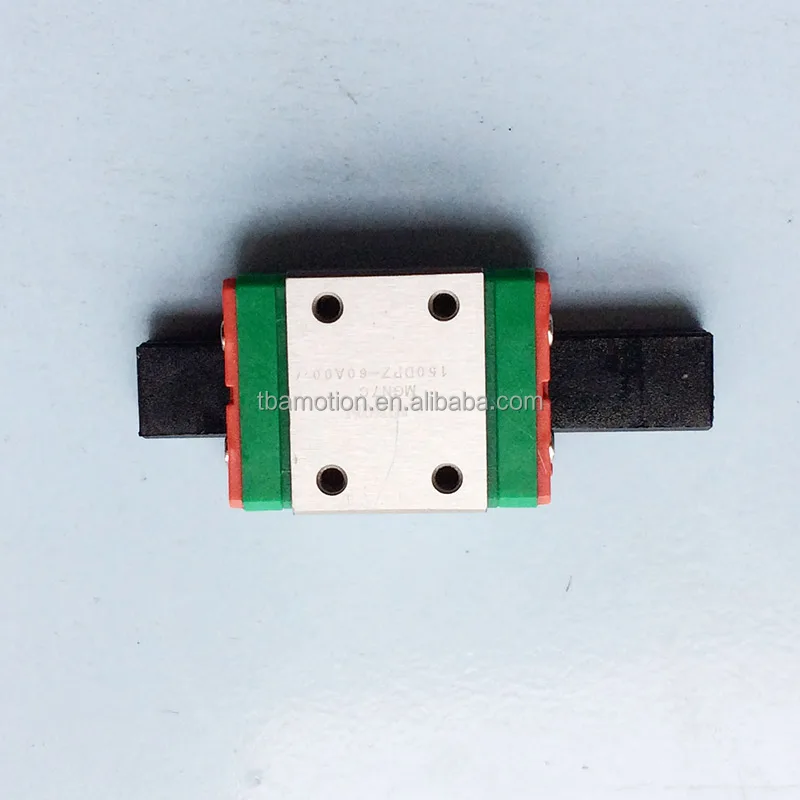

HIWIN MG Series Miniature Linear Guideway
MG Series linear guideway can be classified into non-interchangeable and interchangeable types, which are the same size.The interchangeable type is more convenient due to replaceable rails; however, the precision is less than non interchangeable type. With strict dimension and quality control, the interchangeable type linear guideways are a suitable choice for customers when rails don’t need to be paired. The model number contains information for the size, type, accuracy, preload, and so on.
1. Tiny and light weight, suitable for miniature equipment.
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are
Linear Guide Application | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction works , Energy & Mining |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Model Number | MGN7C |
Place of Origin | Taiwan, China |
Brand Name | HIWIN |
Material | Alloy Steel |
Product name | Linear Block |
Model | MGN7C |
Brand | HIWIN |
Series | MG type |
Block Type | Standard Block |
Length | Customized Length |
Quality | Genuine HIWIN |
Preload Class | Light Clearance (4 ~ 10 µm), Light Preload (0 ~ 0.02C), Very Light Preload (~0) |
Precision Code | C, |
Material | Alloy Steel and Stainless Steel |
Specification
Details Images
Packing & Delivery
Packing Details
1.Original Carton Box or Color Box
2. Wooden Box
3. Plywood pallets
Original HIWIN Packing
Original HIWIN Packing
HIWIN Carton Box
.
Wooden Box or Plywood Pallets
Recommend Products

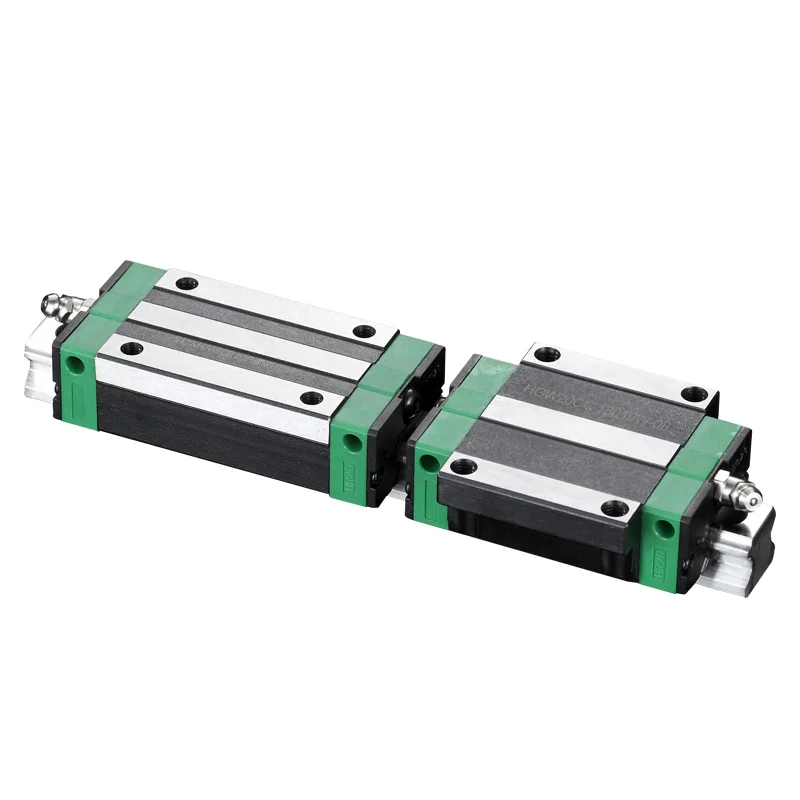

HG Series Heavy Load Ball Type Linear Guideway
HGH-CA, HGH-HA
HGW-CA, HGW-CC. HGW-HA, HGW-HC
EG Series Low Profile Ball Type Linear Guideway
EGH-CA, EGH-SA,
EGW-SA, EGW-CA
WE Series Four Row Wide Rail Type Linear Guideway
WEH-CA.
WEW-CC
RG Series High rigidity Roller Type Linear Guideway
RGH-CA, RGH-HA
RGW-CA, RGW-HC
CG Series Superior Rolling Moment with Cover Strip Linear Guideway
CGH-CA, CGH-HA
CGW-CA, CGW-HA
QH Series Quiet Linear Guideway, with SynchMotion Technology
QHH-CA, QHH-HA,QEH-SA, QEH-CA
QHW-CA, QHW-HA, QEW-SA, QEW-CA
BALL SCREW
1. TBI, HIWIN,
2. Rolled and Ground
3. Machined service is available.
4. C7, C5, C3
5. Diameter from 06mm to 80mm
Ball Screw Support
1. SYK, TMT Brand
2. Accuarcy from C7 to C5
3. With Angular contact ball bearing and Deep groove ball bearing
4. Used for Rolled and Ground ball screws.
5. BK+BF, EK+EF, FK+FF, LK+LF, WBK
Ball Screw Bearing
1. High Precision with P4 and P5
2. High Speed
3. NSK Brand.
Single-Axis Robot
1. HIWIN brand
2. Easy installation, High Precision, small size
Coupling
1. DIfferent types
Linear Bearing
1. Different Type
2. Flange and ground
3.Standard type with Long type. .
Customer Feedback
Our Advantages
We make it easy to select your rail type, Size then configure, with our rail cutting service, you get linear guides customs cut to your exact specifications, blocks and rails are custom cut in our factory providing your with high-quality parts fast.
1. Cut-to-Length: Configure lengths in 1mm increments
2. Short Lead Times: Cut-to-Length Linear Guides ship in 1-5 days
3. Online Quotes: Instant price and lead time
FAQ
1. Fake or original genuine TaiWan HIWIN products you supply to customer?
100% Genuine HIWIN
2. How to gurantee of original HIWIN brand?
You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.
Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.
3.What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
4. What length of linear rail you provide to customers?
Max length of linear rail is 5600mm each, we can cut linear rail length by customer's
also supply the joint service if needs 1 pcs more than 5600mm.
5. What preload of HIWIN linear guide you supply to customers?
Z0, ZA, ZB, ZF( contact sales to get the details)
100% Genuine HIWIN
2. How to gurantee of original HIWIN brand?
You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.
Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.
3.What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
4. What length of linear rail you provide to customers?
Max length of linear rail is 5600mm each, we can cut linear rail length by customer's
also supply the joint service if needs 1 pcs more than 5600mm.
5. What preload of HIWIN linear guide you supply to customers?
6. What accuracy of HIWIN linear guide you can supply to customers?
Grade C, H , P ( Stocked items)
Grade SP, UP (We can help you to order them from TaiWan factory)
7. Do you have stock for precision roller guides?
Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
8.Can you supply dust seals and self- lubricating systems of linear block?
Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
